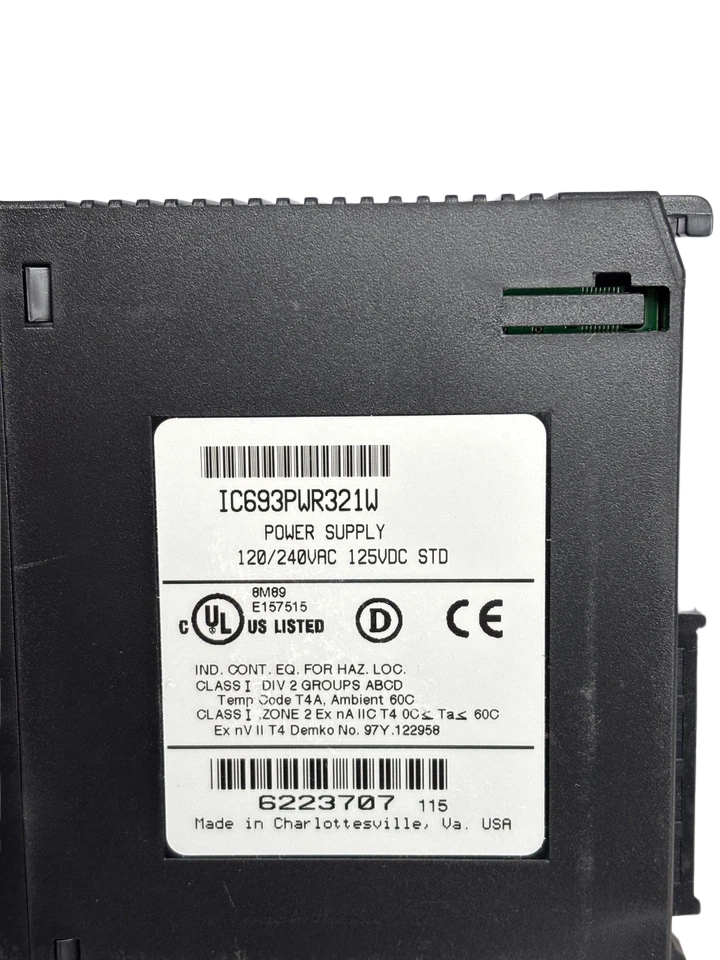

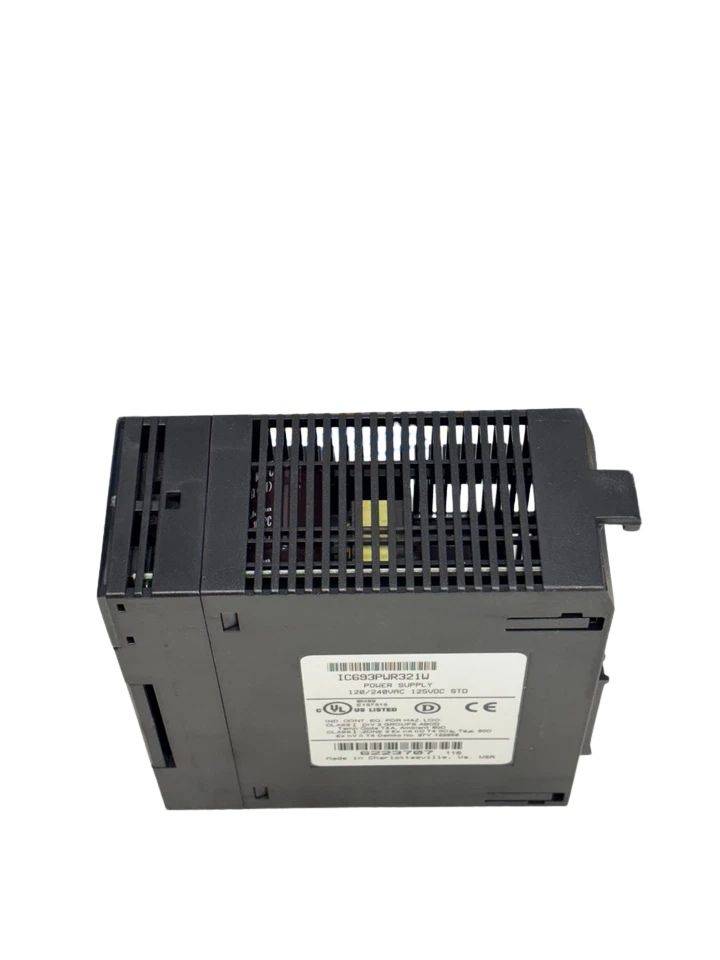

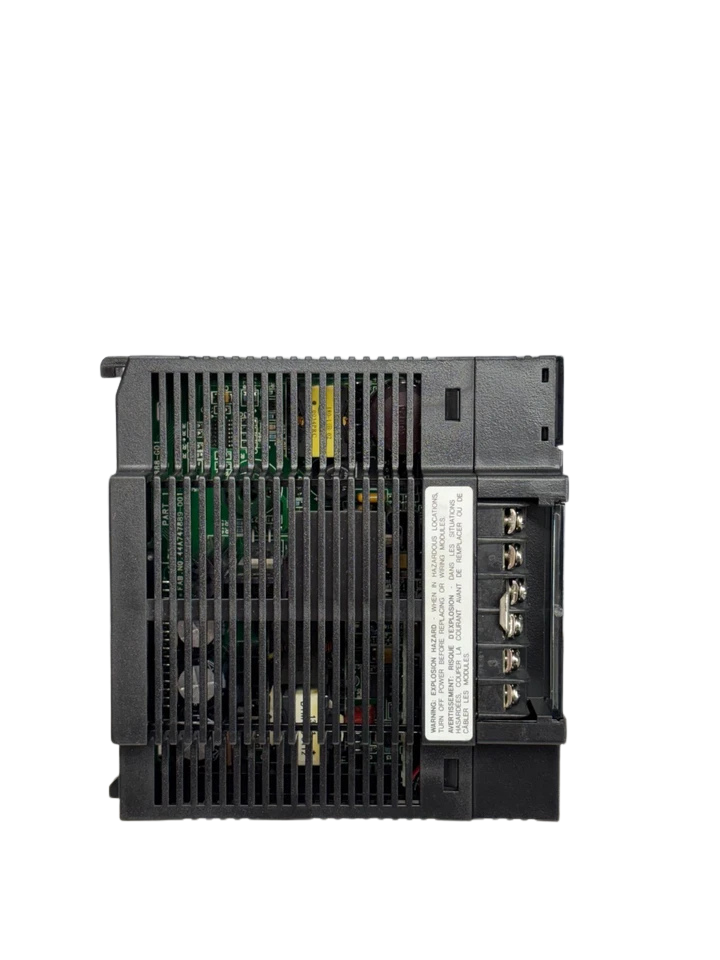

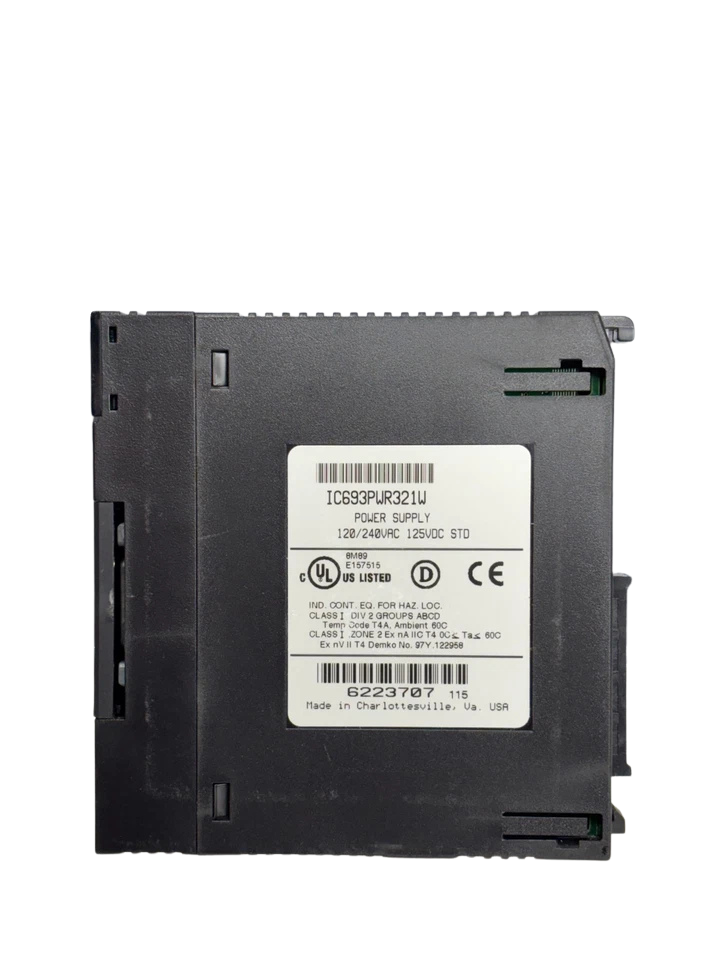

GE Fanuc IC693PWR321W Series 90-30 Power Supply Module

GE Fanuc IC693PWR321W Series 90-30 Standard Power Supply Module (30W)

The GE Fanuc IC693PWR321W (firmware/hardware revision level “W”) is a standard 30-watt AC/DC power supply module engineered specifically for the GE Fanuc / Emerson Series 90-30 programmable logic controller platform. Occupying the dedicated leftmost power supply slot on any Series 90-30 baseplate (CPU, Expansion, or Remote), the module converts wide-range utility, generator, or station-battery incoming voltages into triple-bus internal DC distribution rails.

Operating on an input range of 85 to 264 VAC (47–63 Hz) or 100 to 300 VDC, the IC693PWR321W is designed to ride through line voltage drops, generator load dumps, and electrical transients common in harsh plant and offshore marine automation environments. It delivers regulated +5 VDC logic power, +24 VDC relay drive power, and an isolated +24 VDC auxiliary loop supply (combined output rating not to exceed 30 Watts total). The “W” revision integrates an updated terminal strip assembly and enhanced overvoltage/short-circuit protection clamp circuitry, ensuring continuous controller uptime during brownouts with an internal holdup time exceeding 20 milliseconds.

Model Details

• Manufacturer: GE Fanuc Automation (now Emerson Industrial Automation)
• Series: Series 90-30 PLC
• Model Number: IC693PWR321
• Manufacturing Part Number (MPN): IC693PWR321W
• Base Catalog Identifier: IC693PWR321
• Hardware Revision: Revision W (Backward compatible with all prior revisions A through V, forward compatible with subsequent revs)

Features

1. Universal Dual-Source Input: Operates across nominal 120/240 VAC (85–264 VAC allowable, 47–63 Hz) or 125 VDC (100–300 VDC allowable) on the same terminal block configuration.
2. Triple-Rail Regulated Output: Delivers logic-level +5 VDC (up to 15W), +24 VDC dedicated relay coil power (up to 15W), and +24 VDC isolated power (up to 20W) with a 30W maximum cumulative continuous envelope.
3. Fault-Tolerant Hold-Up Performance: Provides a 20 ms minimum power holdup time at nominal load, bridging intermittent bus-tie switches or line dips without CPU watchdog reset trips.
4. Integrated Safety & Protection Suite: Fitted with a factory 250V internal input fuse, output electronic foldback current limiting (4A max on +5V rail), and fast-clamping Zener overvoltage protection (6.4V to 7.1V).
5. Integrated Logic Diagnostic Interface: Communicates directly with the rack backplane to trigger power-fail alarms and supply the system CPU battery-backed memory retention link via front-accessible connector clips.

Technical Specifications

Compatibility

• Baseplates (CPU Racks): IC693CHS391 (10-Slot Modular CPU), IC693CHS397 (5-Slot Modular CPU), IC693CHS392 (10-Slot Embedded CPU), IC693CHS398 (5-Slot Embedded CPU).
• Expansion Baseplates: IC693CHS393 (10-Slot Expansion), IC693CHS399 (5-Slot Expansion).
• Remote Baseplates: IC693CHS394 (Remote 10-Slot), IC693CHS400 (Remote 5-Slot).
• Associated CPUs: Compatible with CPU311, CPU313, CPU323, CPU331, CPU340, CPU341, CPU350, CPU352, CPU360, CPU363, CPU364, and CPU374.
• Replacement Interactivity: Fully backward-interchangeable with previous revisions IC693PWR321A through IC693PWR321V without backplane rewiring or ladder logic changes.

Frequently Asked Questions

What does the “W” revision suffix indicate on the IC693PWR321W?

The “W” denotes a specific factory hardware/component revision update by GE Fanuc. It functions identically to older revisions (such as IC693PWR321H, J, K, R, U) and subsequent revisions, featuring updated circuit board layout revisions and modern component sourcing. It is 100% plug-and-play compatible with any baseplate that accepts an IC693PWR321.

Can the IC693PWR321W operate on both AC and DC input voltages without jumper switches?

Yes. The power supply uses an auto-ranging switch-mode primary stage that natively accepts 85–264 VAC or 100–300 VDC. There are no manual selector jumpers or DIP switches required; simply wire your supply leads to Terminals 1 and 2.

What is the maximum load the +24 VDC isolated output can supply?

The isolated +24 VDC output (Terminals 5 and 6) is rated at 20 Watts, delivering a maximum continuous current of 0.8 Amps. If your external input field devices exceed 0.8A, you must power them using an external standalone 24 VDC industrial power supply rather than driving them through the baseplate supply module.

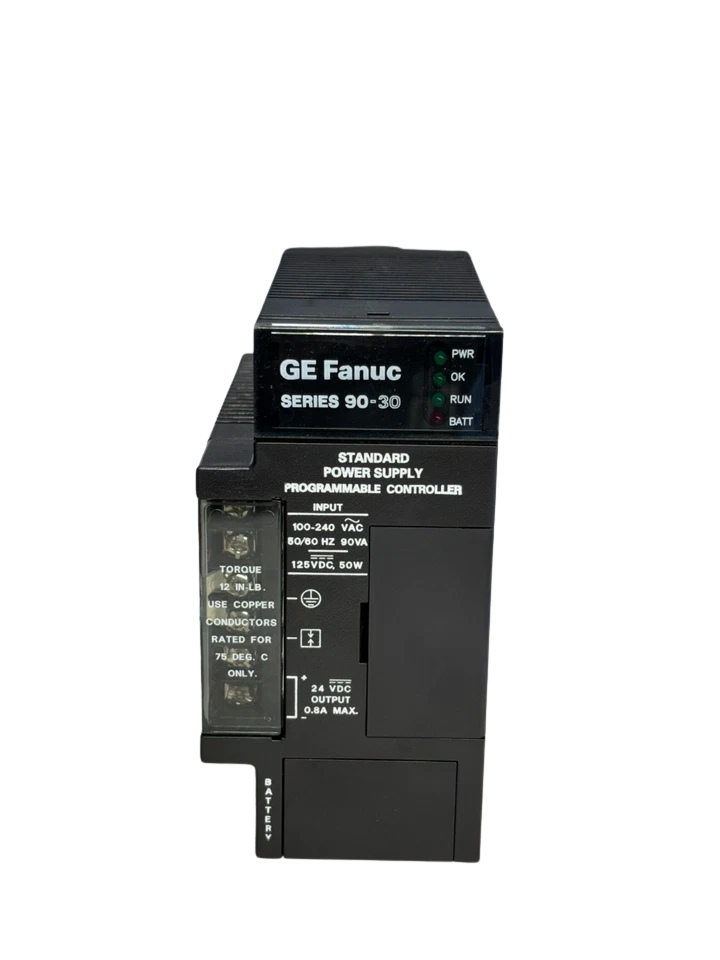

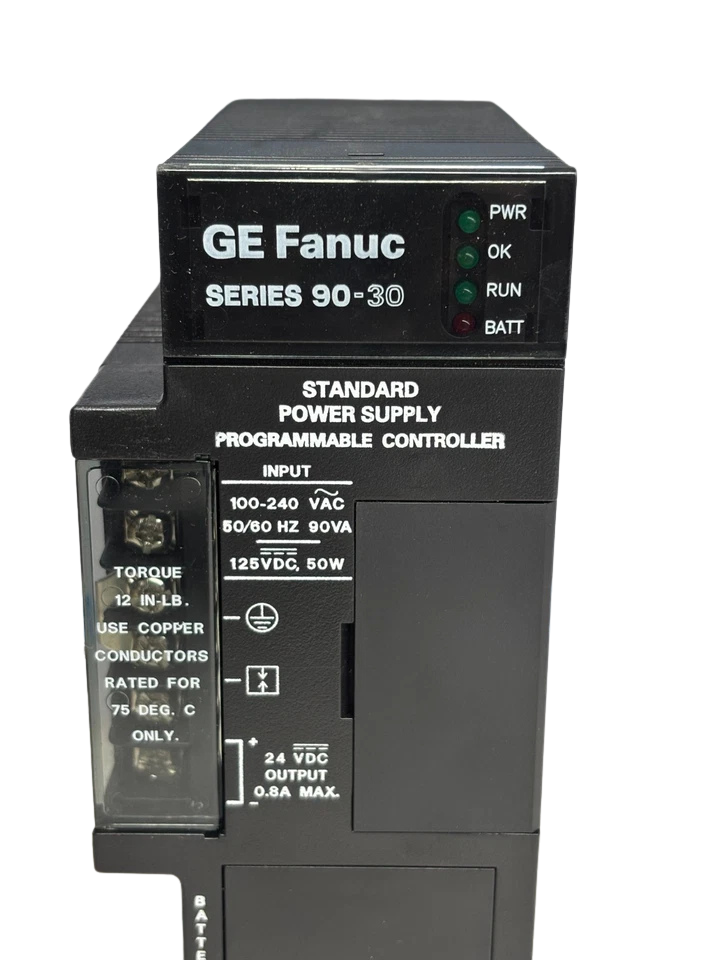

How do I troubleshoot a solid unlit “PWR” LED on the front faceplate?

If the green PWR LED does not illuminate:

1. Verify AC/DC voltage at Terminals 1 and 2 with a calibrated true-RMS multimeter.
2. Disconnect baseplate power and check the front-panel door switch/interlock if fitted.
3. Remove all I/O modules from the baseplate except the power supply and CPU. An internal short on a field module’s +5V logic rail will force the IC693PWR321W into foldback shutdown mode. If the LED turns green with I/O cards removed, insert modules one by one to locate the faulted card.

Can I install the IC693PWR321W into any slot on a Series 90-30 baseplate?

No. The IC693PWR321W must only be installed in the leftmost slot (designated as the dedicated power supply slot) of a Series 90-30 baseplate. Standard 5-slot and 10-slot I/O slots do not have the high-current bus-pin connections required to distribute power across the rack backplane.
