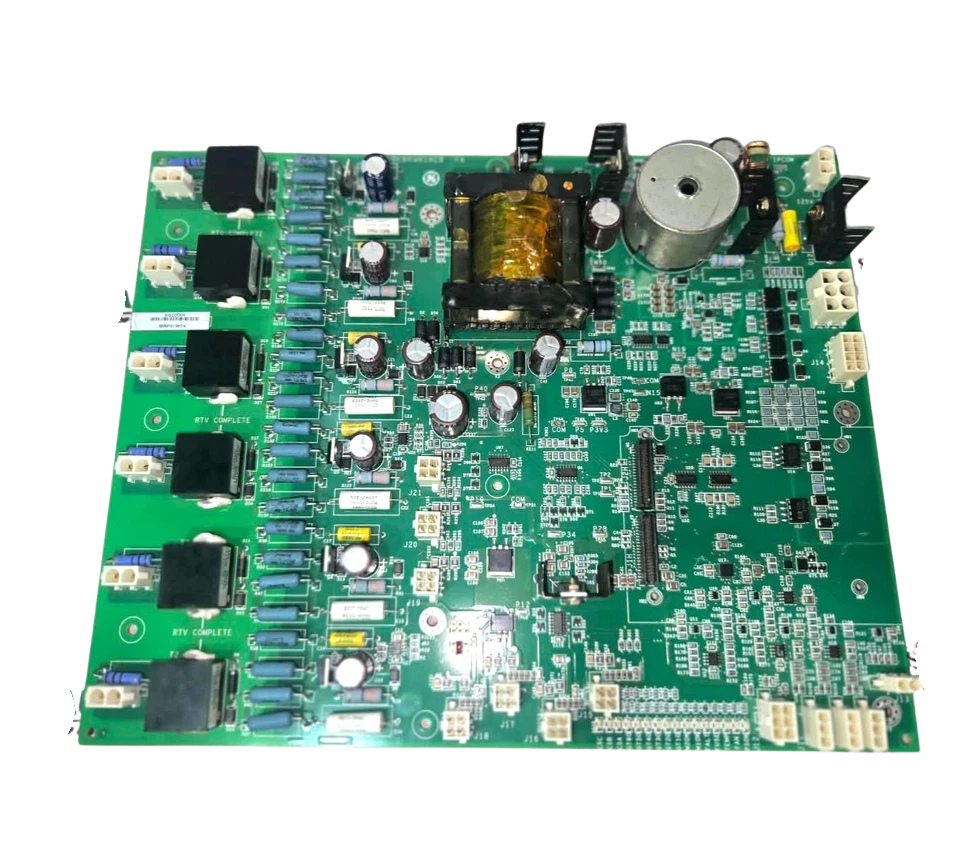

GE IS200EBRGH2AEB Exciter Bridge Interface Board

GE IS200EBRGH2AEB EX2100e Exciter Bridge Interface Board

The GE IS200EBRGH2AEB is an Exciter Bridge Interface (EBRG) printed circuit board engineered for General Electric’s EX2100e Static and Rotary Excitation Control Systems. Acting as the critical galvanic and operational link between the low-voltage digital signal processing cores (such as the DSPX/UCSB controller racks) and the high-power thyristor/Silicon Controlled Rectifier (SCR) power conversion bridges, the IS200EBRGH2AEB provides pulse gating control, feedback conditioning, thermal diagnostics, and bridge health surveillance.

The H2 functional variant is specifically designed for bridge systems utilizing 77 mm or smaller puck-type thyristors, interfacing bridge arm firing pulses, isolated gate driver triggers, fan monitoring circuits, and Rogowski coil current loop telemetry into a centralized, noise-immune backplane. Built with industrial-grade conformal coating, copper-alloy bus interface connectors, and transient snubbing networks, this unit delivers high-reliability performance in marine shaft-generator platforms, offshore turbogenerator modules, utility thermal generation, and industrial cogeneration setups.

Model Details

• Series: EX2100e Excitation Control / GE Mark VI System Family
• Board Acronym / Functional Type: EBRG (Exciter Bridge Interface Board)
• Part Number / MPN: IS200EBRGH2AEB
• Base Part Number: IS200EBRG
• Revision Level: A | Sub-revision / Artwork: EB

Features

1. Direct Isolated SCR Gate Triggering: Converts low-voltage digital logic gating commands into 6 isolated, high-drive pulse signals designed to fire thyristors in full-bridge or warm-backup rectifier topologies.
2. Integrated Bridge Health & Diagnostic Telemetry: Continuously decodes hardware feedback from bridge arm Rogowski coils, blown-fuse optical/microswitch indicators, bridge heatsink RTD/thermal switches, and airflow velocity monitors.
3. Wide-Range Internal Auxiliary Power Distribution: Interfaces dual redundant 125 VDC or 24 VDC control power rails via onboard decoupling diodes to generate unified, transient-suppressed internal DC control buses.
4. Marine & Industrial Noise Rejection: Features high common-mode rejection ratio (CMRR) optoisolators and shielded differential I/O routing to prevent false triggering during heavy load-rejection switching or transient ground faults.
5. Onboard Diagnostic LED Visual Matrix: Features surface-mounted status indicators for gate firing verification, power supply bus health, active fault trips, and bridge communication integrity for rapid field diagnostics.

Technical Specifications

Compatible Systems & Sub-Assemblies

• Exciter Platform: GE EX2100e and EX2100 Static Excitation Systems
• Associated Control Modules: IS200DSPXH1C, IS200UCSB, IS200EDEX, IS200ECTC, IS200ERBP
• Compatible Bridges: Simplex Full Wave, Dual Redundant Warm-Backup Bridge Cabinets, Multi-Bridge Parallel Configurations

Part Number Cross-Reference

• IS200EBRGH2AEB (Complete MPN with latest artwork revisions)
• IS200EBRGH2A (Functional assembly family code)
• IS200EBRG (Base model series)
• GEI-100776 (Associated User & Instruction Manual reference)
• GEH-6781 / GEH-6791 (EX2100e Excitation System Technical Documentation)

Frequently Asked Questions

What is the primary function of the IS200EBRGH2AEB in an EX2100e system?

The IS200EBRGH2AEB serves as the physical interface between the low-voltage microprocessor control rack and the high-voltage thyristor rectifier bridge. It generates isolated gate pulses to fire the SCRs and returns critical diagnostic data, including bridge arm current via Rogowski coils, heatsink temperature, and fuse status.

Can I replace an IS200EBRGH1A with an IS200EBRGH2AEB?

No. The H1 variant is tailored for 100 mm thyristors requiring higher gate currents, whereas the H2 (including H2AEB) is specifically rated for 77 mm or smaller thyristors. Interchanging them can result in gate pulse starvation, thyristor misfiring, or localized junction overheating.

Does this board require firmware flashing prior to installation?

No, the IS200EBRGH2AEB is an analog and discrete hardware interface card without independent programmable flash microcontrollers. However, it must match the excitation control configuration set within the core DSP/UCSB controllers in the EX2100e system to ensure correct scaling of Rogowski feedback loops and thermal limits.

What are the symptoms of a failing bridge interface board?

Common symptoms include unexplained generator field ripple, symmetrical phase current imbalances across the bridge arms, intermittent “Gate Driver Loss” alarms, nuisance bridge over-temperature trips, or blown-fuse false diagnostic warnings on the EX2100e HMI.

How is the board protected against high electromagnetic interference (EMI)?

The board utilizes multi-layer FR-4 construction with isolated ground planes, optical isolators between control logic and power outputs, differential signaling on feedback loops, and high-performance conformal coating resistant to moisture, salt air, and airborne industrial contaminants.
