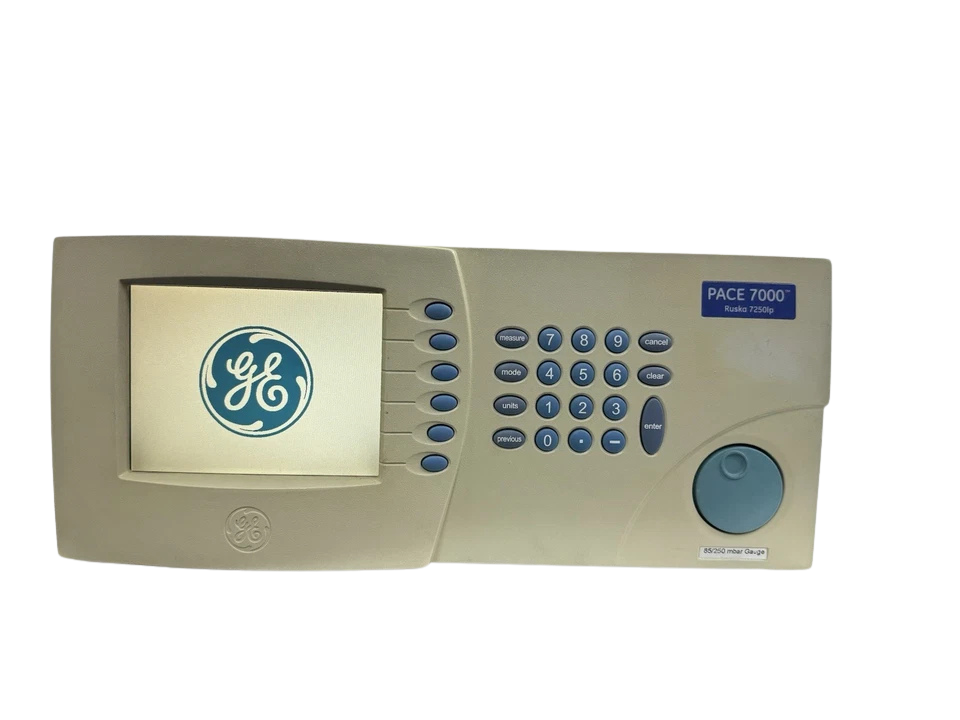

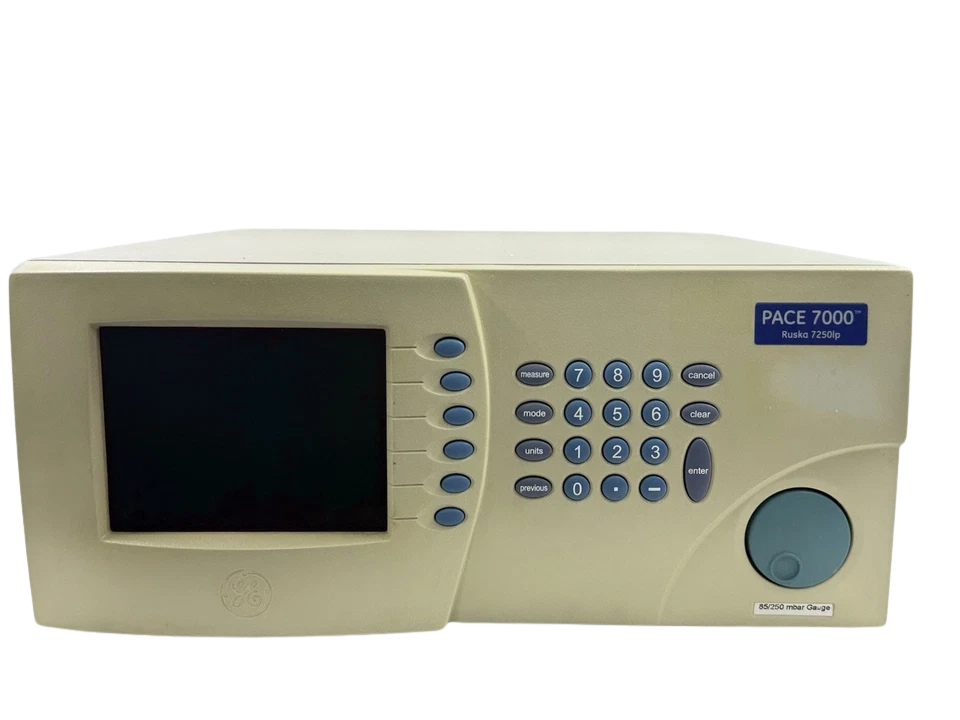

GE Ruska 7250LP Low Pressure Controller Calibrator

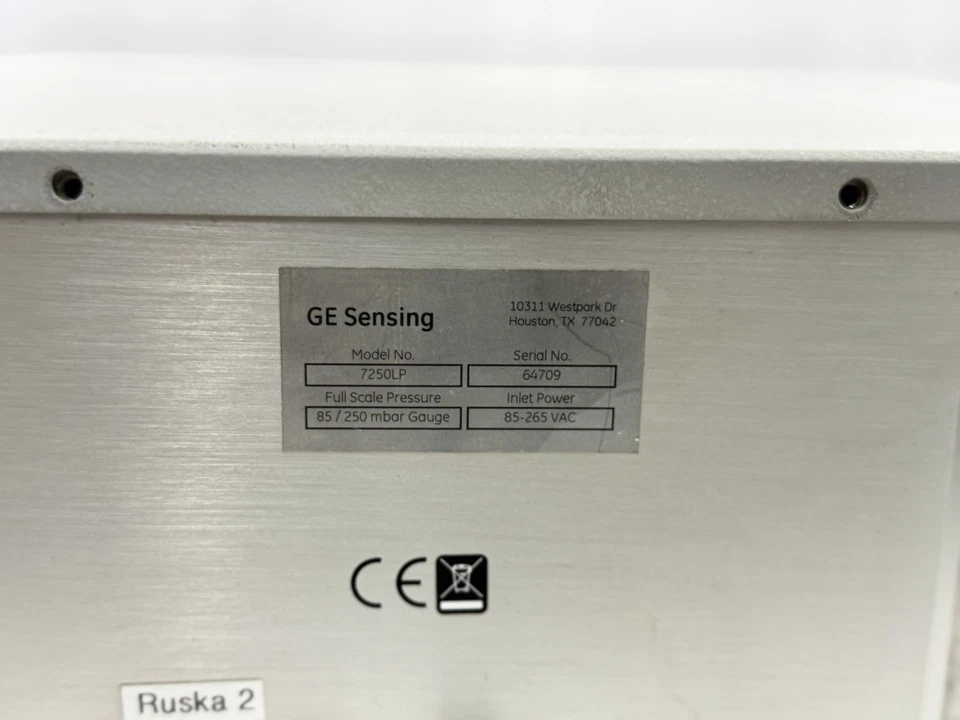

The GE Ruska 7250LP (associated under GE Sensing / Druck lineage with PACE modular digital control architectures) is an ultra-low pressure digital controller and primary transfer standard engineered specifically for very low gauge and differential pressure instrumentation. Equipped with an 85 mbar / 250 mbar (equivalent to the 35 inH₂O / 100 inH₂O and custom European low-differential bands) dual-range configuration, the 7250LP utilizes a proprietary fused-quartz Bourdon/differential sensing element.

Unlike standard piezoresistive controllers that drift under variable thermal profiles or ambient HVAC cycling, the 7250LP isolates dynamic atmospheric disturbances via its true differential quartz reference port. By routing reference piping directly to the low side of the device under test (DUT), the instrument rejects room barometric variations, drafts, and HVAC flutter, providing an ultra-stable, zero-overshoot test standard.

Technical Specifications

 Key Features

1. Dual-Range Fused Quartz Sensor Metrology: Delivers fundamental metrological precision of 0.005% of reading from 10% to 100% of the active range, virtually eliminating mechanical hysteresis and metal fatigue drift.
2. High-Speed PWM Servo-Pneumatics: Reaches target setpoint stability in 30 seconds or less into a 245 cm³ (15 in³) test volume without pressure overshoot, preventing diaphragm inversion on sensitive low-range transmitters.
3. Dual Control Dynamic Modes (Active & Passive): Choose active regulation to compensate dynamically for minor ambient temperature expansion or piping leaks, or passive mode where servo valves close inside a user-defined threshold to eliminate controller valve noise.
4. True Bidirectional & Differential Capability: Supports gauge, negative gauge (vacuum), and differential calibration runs with dedicated reference venting and test port balancing.
5. Full SCPI Automation & Metrology Software Bus: Standard IEEE-488 (GPIB) and RS-232 serial interfaces supporting native SCPI commands, MET/CAL drivers, and COMPASS for Pressure lab automation routines.

Compatible Test Hardware & Sensor Types

• Marine Draft & Level Gauging: Nakakita Seisakusho, Musashee, Emerson Rosemount 2051/3051CD differential air bubbler transmitters, and Vega low-pressure sensors.
• Boiler Draft & Flue Gas Scavenge Transmitters: Yokogawa DPharp EJA110A/EJX110A, ABB 266DSH, and Siemens SITRANS P DS III differential transmitters calibrating 0–10/50/200 mbar furnace draft.
• Secondary Transfer & Field Calibrators: Verification and multi-point bench calibration for Fluke 700P01, 700P22, 754-compatible low-range pressure modules, and Druck DPI 610/611/620 series.
• Magnehelic Mechanical Dial Gauges: Dwyer Series 2000 low differential dial gauges, cleanroom airlocks, and HVAC pressure switches.

Applications

• Inert Gas System (IGS) Over-Pressure / Vacuum Safety Proving: Verification of cargo tank P/V breakers, high/low pressure alarms, and mast riser control transmitters operating in -20 to +180 mbar envelopes.
• Main Engine Two-Stroke Exhaust Gas & Scavenge Balance: Differential pressure transmitter calibration on MAN B&W and WinGD scavenging air bypass modules.
• Vapor Recovery Systems (VRS) & Tanker Vapour Emission Control: Testing marine vapor return lines subject to strict USCG and SOLAS vapor collection limitations.
• Cleanroom, Laboratory, & Wind Tunnel Transducers: Calibration of Pitot-static probe differential pressure sensors, laminar flow elements, and negative pressure quarantine spaces.

Frequently Asked Questions

What differentiates the Ruska 7250LP from standard GE Druck PACE controllers?

The 7250LP is built specifically around a fused-quartz Bourdon/differential sensor core tailored for low full-scale spans (down to tens of millibars). Standard PACE 7000 modular controllers typically employ silicon piezoresistive resonant sensors. While PACE platforms offer modular rack flexibility, the quartz sensor inside the 7250LP provides exceptional zero-point stability and precision at the low end of the pressure spectrum.

Can the 7250LP calibrate both positive and negative (vacuum) low pressures?

Yes, when ordered or equipped with the bidirectional/vacuum option. The unit automatically switches between positive pressure generation and vacuum regulation via external vacuum pump connection, making it suitable for calibrating compound draft gauges and engine crankcase negative-pressure monitoring devices.

What is the maximum supply pressure allowed at the drive gas input?

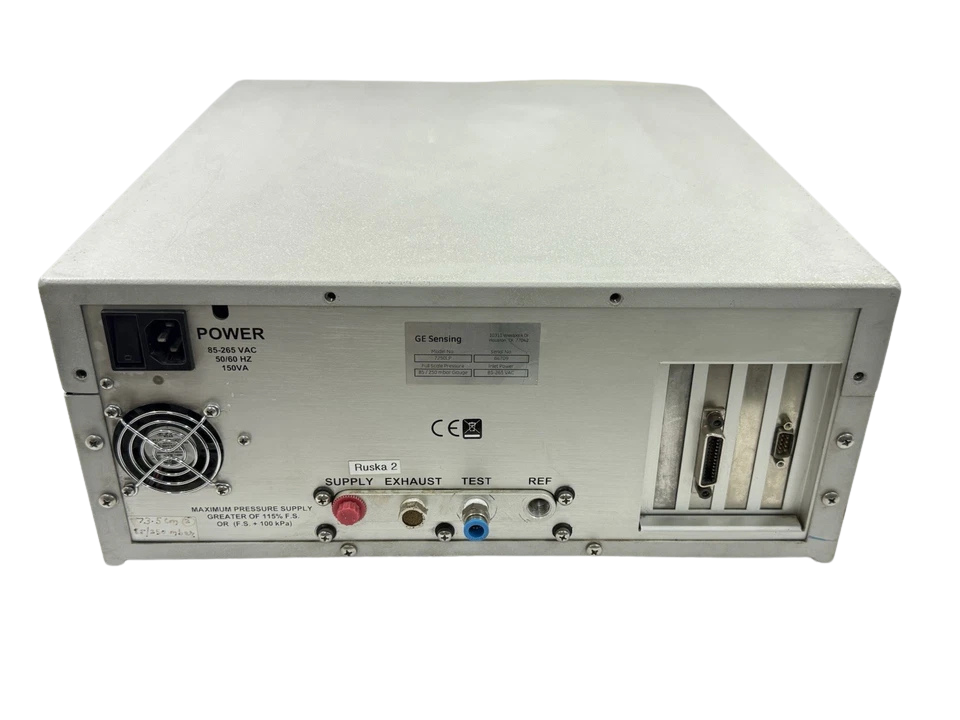

The supply pressure must be regulated to between 110% and 125% of the instrument’s full-scale envelope, and must not exceed 2.1 bar gauge (30 psig). Supplying standard 7–10 bar yard air directly to the supply inlet will rupture the internal low-pressure control manifold.

What test medium is approved for the 7250LP manifold?

The unit is strictly engineered for clean, dry, non-corrosive gases—specifically zero-grade dry nitrogen (N₂) or clean, instrument-grade dry air meeting ISO 8573-1 Class 1.2.1. Never use hydraulic fluids, fluorocarbons, or unfiltered shop air.

How does the 7250LP handle automated multi-point step testing?

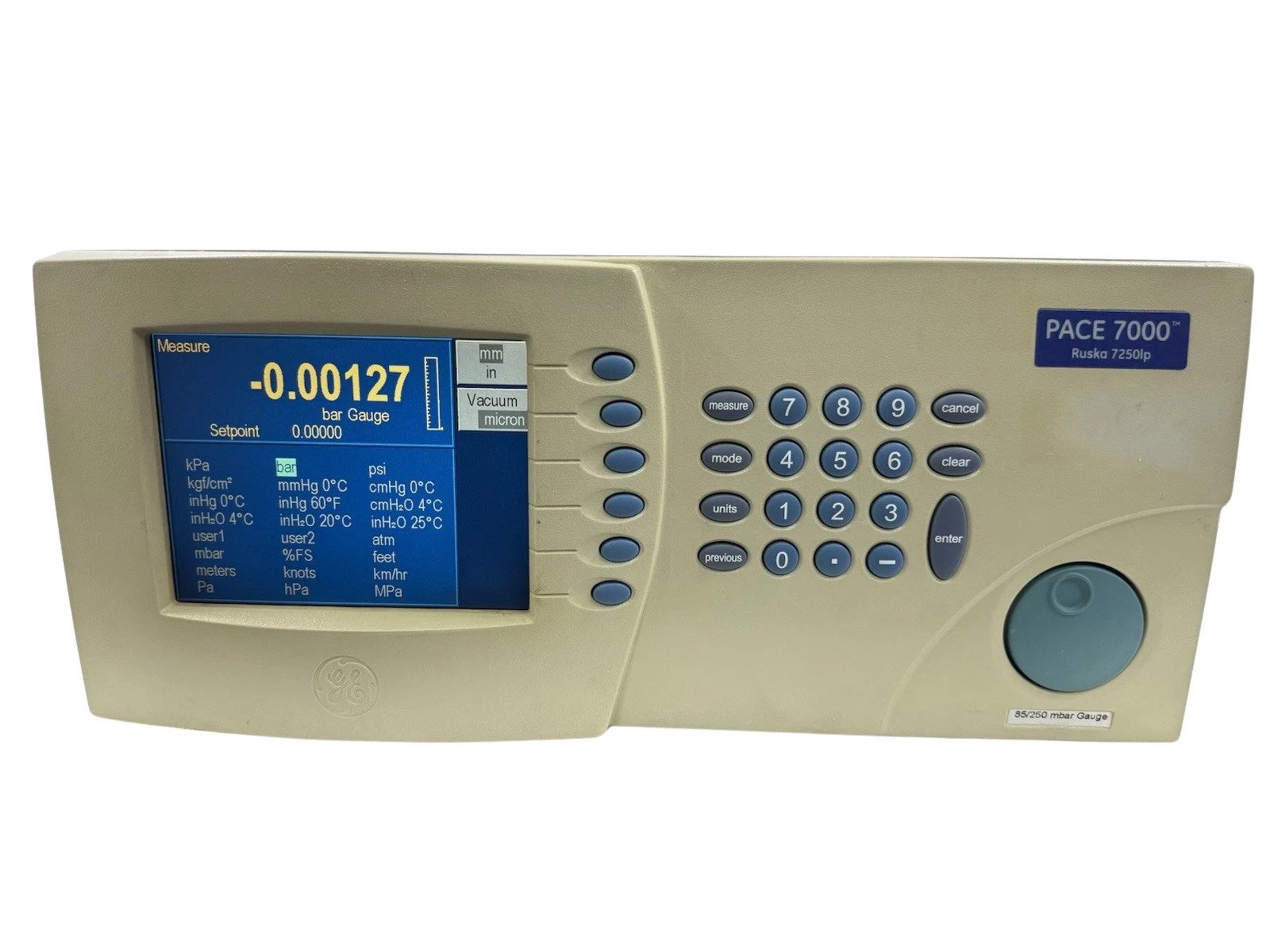

Through its front-panel firmware, you can define step increments using the jog dial or execute pre-programmed automated sweep tests that cycle mechanical diaphragms through set ranges to eliminate physical hysteresis prior to logging calibration figures. Remote test benches can automate these sequences over IEEE-488 (GPIB) or RS-232 serial interfaces using standard SCPI commands.
