MAN Marine Diesel MMDS-CR Control Board (51.27721-7105 / Böning 7205BS)

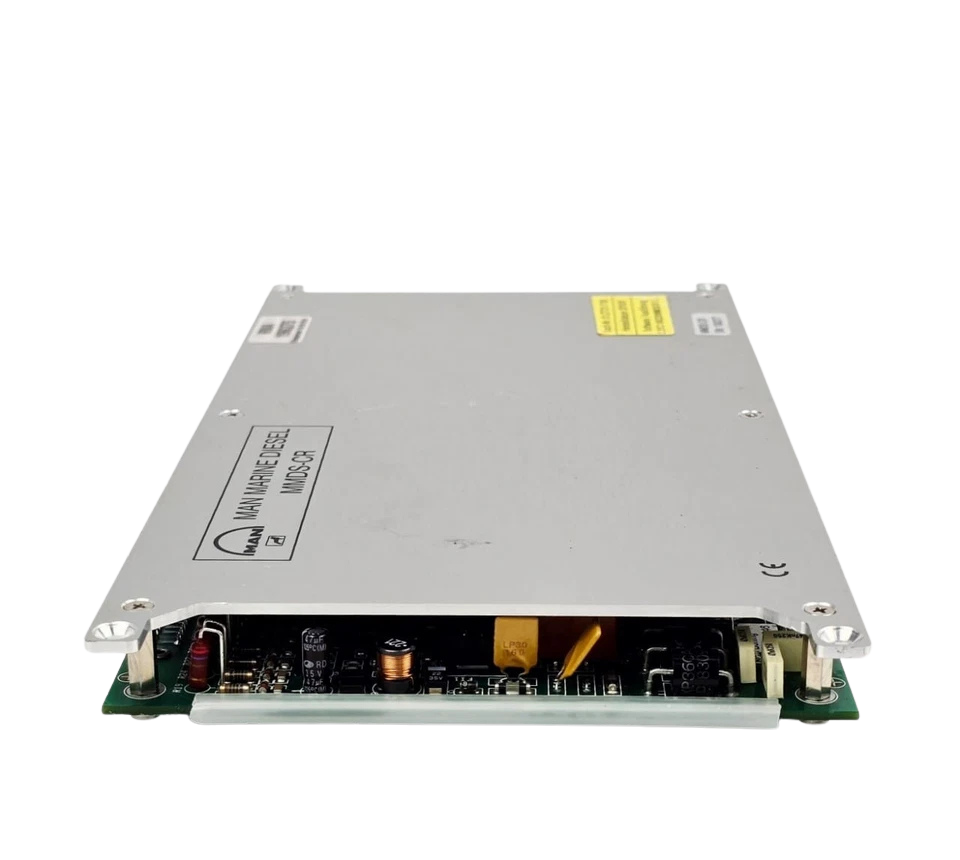

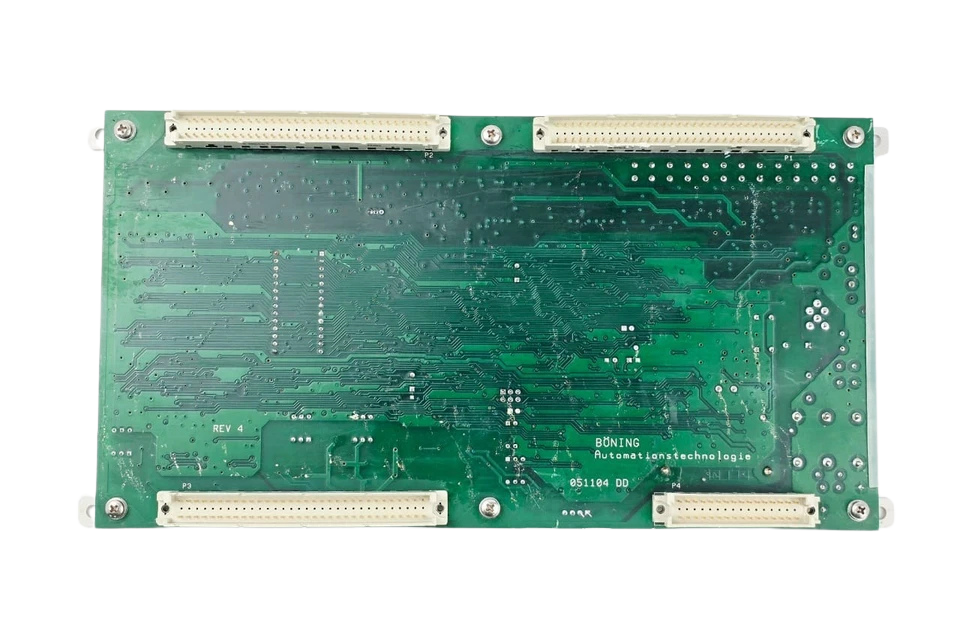

The MAN Marine Diesel MMDS-CR Control Board (Part Number: 51.27721-7105) is a mission-critical microprocessor monitoring and diagnostic interface unit engineered specifically for MAN high-speed marine common-rail diesel platforms. Manufactured in collaboration with Böning Automationstechnologie (OEM Ref: 7205BS), this unit serves as the central data consolidation hub between the Bosch EDC (Electronic Diesel Control) engine management system, onboard sensor instrumentation, local helm displays (MMDS-LC / MMDS-EP), and vessel-wide alarm systems.

The board digitizes analog sensor feeds, supervises common rail operating parameters, monitors intercooler/charge-air pressures, evaluates lube-oil circuits, and routes CAN-bus J1939 telegrams directly to the bridge. Built to withstand high-vibration marine engine room environments, it provides real-time system monitoring, engine derating execution, and fault-code storage.

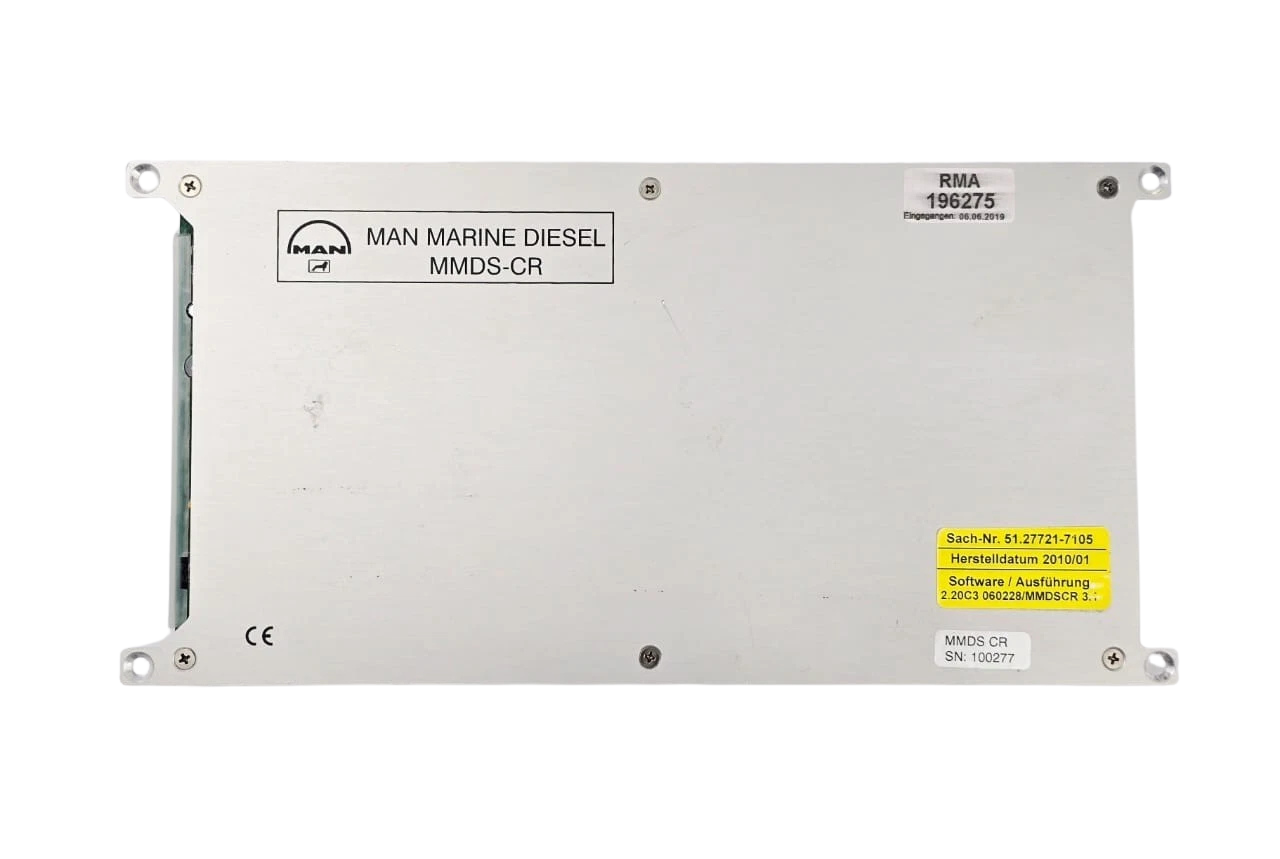

Model Details

• Manufacturer: MAN
• MAN Part Number (Sachnummer): 51.27721-7105 (also referenced as 51277217105)
• Böning Hardware Part Number: 7205BS
• Firmware / Software Baseline: MMDS-CR V2.20C3 (Pre-configured parameter dataset for MAN D2842 common-rail rating)
• Product Series: MAN Marine Diagnostic System – Common Rail (MMDS-CR)

Technical Specifications

Key Features

1. Dual Isolated High-Speed CAN Interfaces: Integrates dual independent J1939/proprietary CAN nodes separating safety-critical EDC communication loops from shipboard bridge displays and remote monitoring stations.
2. Pre-Programmed Fuel Map & Pressure Curvature: Factory parameterized with V2.20C3 software to align alarm trip-thresholds and derate algorithms directly with MAN D2842-series high-pressure common rail characteristics.
3. Galvanically Isolated I/O Terminals: Prevents transient voltage spikes, reverse-polarity incidents, and ground-loop noise common to marine auxiliary and 24 V DC main battery banks.
4. Autonomous Engine Safety Monitoring: Executes hardware-driven safety loops (lubricating oil critical pressure loss, high coolant overheating, charge-air ceiling exceedance, raw-water flow failure) independently of helm consoles.
5. Standard Marine Enclosure & Vibration Compliance: Built to withstand harsh engine-room conditions, including continuous engine-bracket vibration profiles, saline humidity, and thermal cycling up to +70°C.

Compatibility & Engine Fitment

• MAN D2842 LE423 (V12-1360 / V12-1550 / V12-1800 common rail configurations)
• MAN D2840 LE423 (Select V10 common rail variants upon parameter confirmation)
• MAN D2848 LE423 (Select V8 common rail variants upon parameter confirmation)
• Bridge & Helm Interfacing: Native plug-and-play with Böning MMDS-LC displays, MMDS-EP emergency backup panels, and MAN Engine Diagnostic Unit (VMMDS) networks.

Part Number Cross-References

• MAN Primary Part Number: 51.27721-7105 / 51277217105
• Böning Hardware Index: 7205BS (MMDS-CR V2.20C3)
• Related Family Sub-Models: 51.27721-7106 (Böning 7206BS – V2.20N), 51.27721-7099 (Böning 7199BS – V2.20J), 51.27721-7098 (Böning 7198BS – V2.20H)

Applications

• Commercial high-speed crew transfer vessels (CTV) and pilot boats running MAN D2842 common rail machinery.
• Motor yachts, superyachts, and sportfish platforms equipped with MAN V12-1360 / 1550 / 1800 hp propulsion packages.
• Marine patrol, interception, and search-and-rescue (SAR) crafts requiring multi-station J1939 engine parameter redundancy.
• Repower, engine refit, or emergency replacement for malfunctioning bridge-engine telemetry boards.

Frequently Asked Questions

What is the primary function of the MAN MMDS-CR 51.27721-7105 control board?

The MMDS-CR (MAN Marine Diagnostic System – Common Rail) unit acts as the primary data acquisition and diagnostic interface between the MAN common-rail engine management system and shipboard instrumentation. It captures sensor data, processes system alarms, runs safety shutdown routines, and outputs standard J1939 CAN signals to helm monitors.

Can I use this board to replace a 51.27721-7106 or 51.27721-7099 board?

While physical connectors are often identical, the firmware revision (e.g., V2.20C3 vs. V2.20N) contains engine-specific parameter configurations (such as firing intervals, sensor maps, and alarm sets for D2842 vs. D2876 engines). It is strongly recommended to install the exact part number specified on your engine data tag, or have the unit reprogrammed by a certified marine automation technician.

What are the common symptoms of a failing MMDS-CR control board?

Typical failure indicators include intermittent CAN communication drops at the helm display, continuous “EDC Communication Failure” alarms, erroneous sensor readings across multiple channels simultaneously (such as erratic lube oil pressure or coolant temperatures), or failure of the board to boot when 24 V DC supply is active.

Does this unit come pre-flashed with software, or is programming required on-site?

The board comes pre-loaded with MAN/Böning software standard version V2.20C3. For standard single- or twin-engine setups using D2842 LE423 machinery, this unit operates as a direct drop-in module without requiring external on-site parameter flashing.

How do I test the board’s power input when encountering a black bridge monitor?

Locate the main 24 V DC input terminals on the terminal block using your vessel’s electrical schematic. Using a DC multimeter, ensure a minimum of 18 V DC under cold-cranking conditions and no more than 32 V DC while the engine alternator is actively charging. If input voltage is verified within parameters but the onboard LED status indicators remain dark, internal board-level power regulation has likely faulted.
