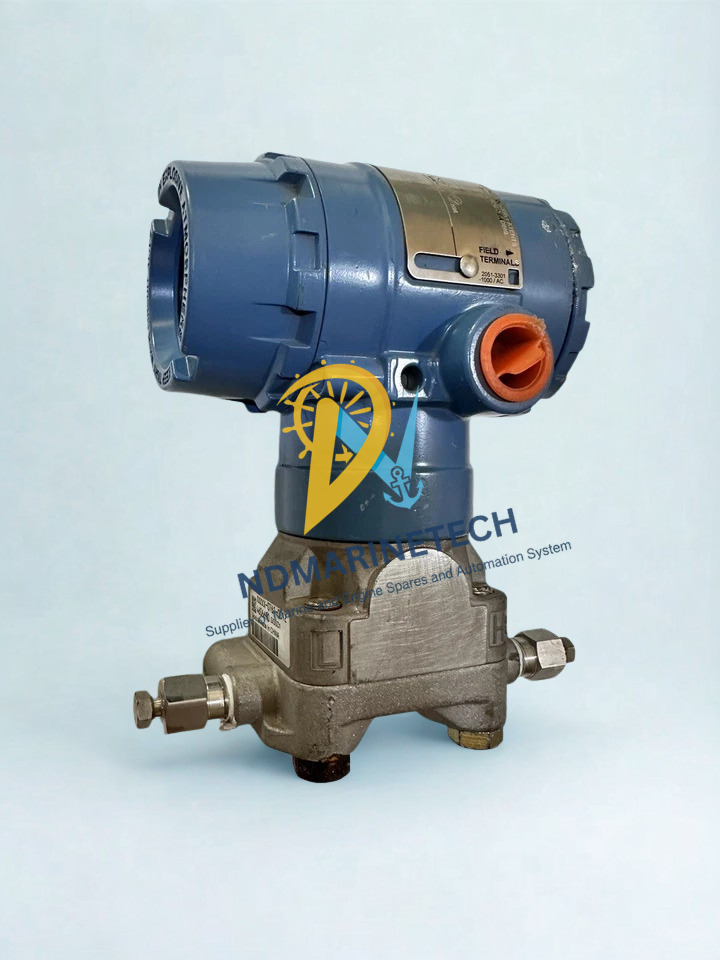

Rosemount 2051 Differential Pressure Flow Transmitter

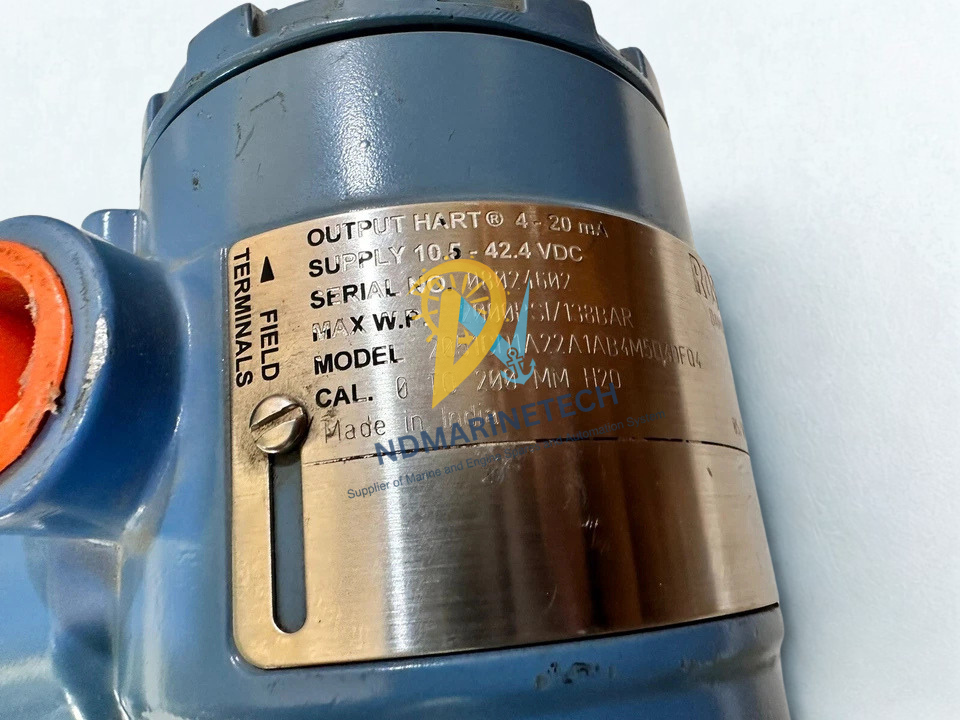

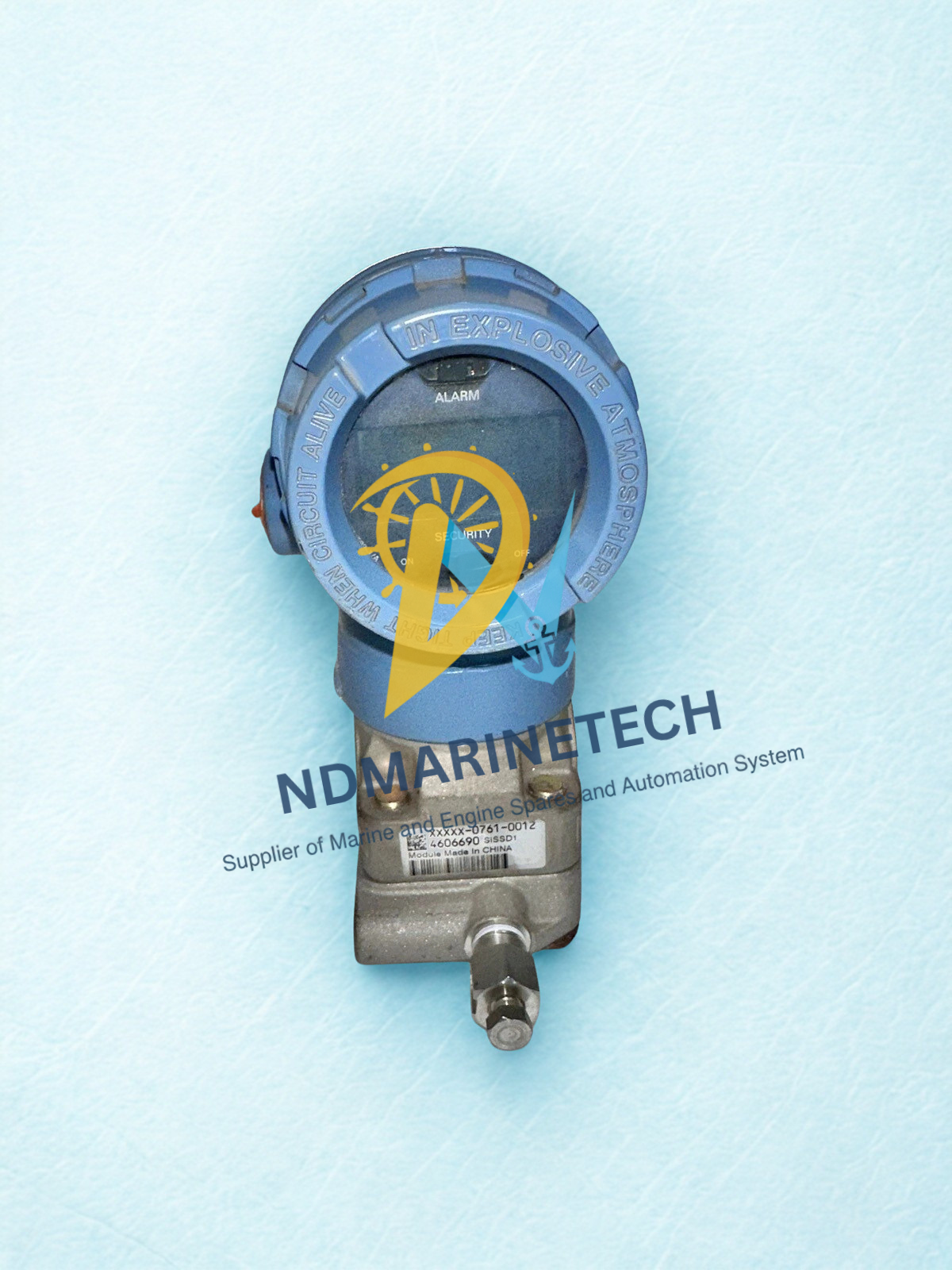

Rosemount 2051 Differential Pressure Flow Transmitter (2051CD1A22A1AB4M5D4DFQ4)

The Rosemount 2051CD1A22A1AB4M5D4DFQ4 is a reliable differential pressure (DP) transmitter used in hazardous industrial situations for accurate flow and hydrostatic level measurements. The arrangement is built on Emerson’s proprietary Coplanar™ platform, which allows for seamless interaction with primary elements and manifolds, reduces structural leak spots, and optimises dynamic reaction times. The 2051C is used on marine vessel engine skids, offshore platforms, or heavy industrial fluid lines and provides standard 0.075% reference accuracy with important field monitoring through an integrated LCD display.

Key Features

1. Patented Coplanar Design: By eliminating standard process flange adapters, the direct-mount Coplanar design significantly reduces physical failure mechanisms, decreases weight, and eliminates leak routes by up to 50%.
2. Integrated M5 LCD Indicator: Digital display block for real time engineering unit readouts and internal diagnostic codes at the point of installation.
3. D4 Local Adjustment Interface External analogue zero and span buttons for easy manual calibration and loop-checks without an external field communicator.
4. Sour Service Certification (NACE): All wetted components are fully compliant with NACE MR0175/ISO 15156 and MR0103 to avoid sulphide stress cracking in corrosive, high sulphur applications.

Applications

1. Main & Auxiliary Boiler Drafts: Monitor necessary air-to-fuel ratios and combustion exhaust drafts on maritime vessels and power skid packages.
2. Orifice Plate & Venturi Flow Loops: Working in direct concert with primary flow elements to determine real time volumetric or mass flow in clean liquid, vapour or steam processing pipelines.
3. Cargo & Ballast Tank Hydrostatic Levelling Accurate measurement of differential head-pressures in closed vessels for determining quantities of liquids in fuel or chemical tanks.
4. • HVAC Air Handler Differential Monitoring: Measure pressure differentials across critical cleanroom or equipment room particulate filters, triggering automated maintenance alerts.
5. Maritime Exhaust Gas Cleaning Systems (EGCS) Fluid Tracing: Measurement of differential parameters in maritime exhaust gas cleaning systems (EGCS) for rigorous environmental compliance.

Our Engineer Expert’s Insights:

On-Site Leveling & Gravity Shifts: When installing Range 1 low-pressure transmitters, remember that the device is highly sensitive to orientation shifts. Simply tilting the transmitter during installation can induce a zero shift of up to 1.25 (3.1 mbar) due to the weight of the silicone fill fluid pressing against the isolation diaphragm.

IMP Tip: Always perform a zero-trim operation after the unit is rigidly secured in its final mounting orientation (via the B4 bracket) but before you open the root valves or expose it to line pressure. Use the D4 external zero button to wipe out this static mounting error instantly.

Maintenance Guide By NDMarineTech:

Manage Long-Term Cavitation and Trapped Air: For flow lines carrying liquids, always mount the transmitter below the orifice or venturi lines so gas bubbles float back into the main line rather than accumulating in the transmitter’s Coplanar cavities. Conversely, for steam or gas flow lines, mount the transmitter above the process line to allow condensation to drain away from the diaphragms.
