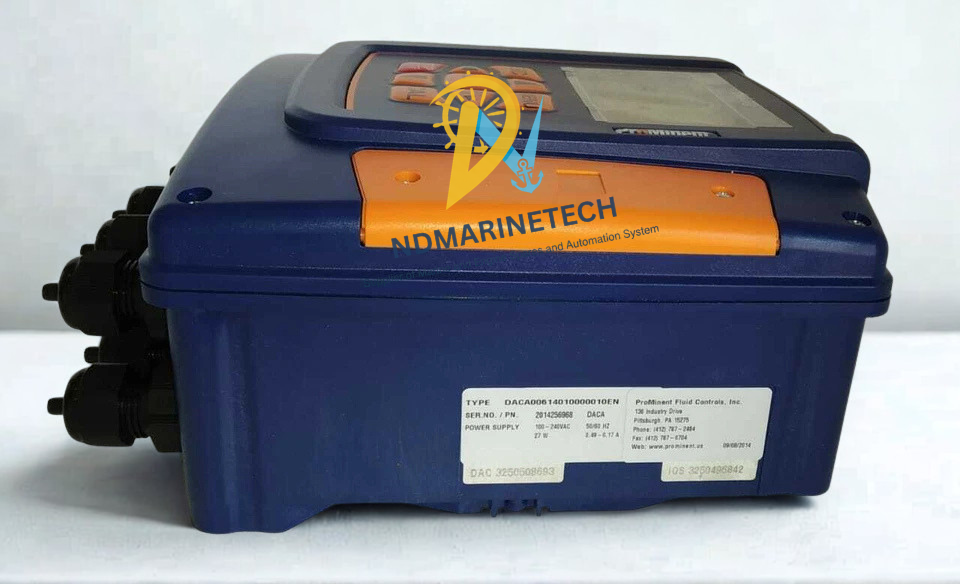

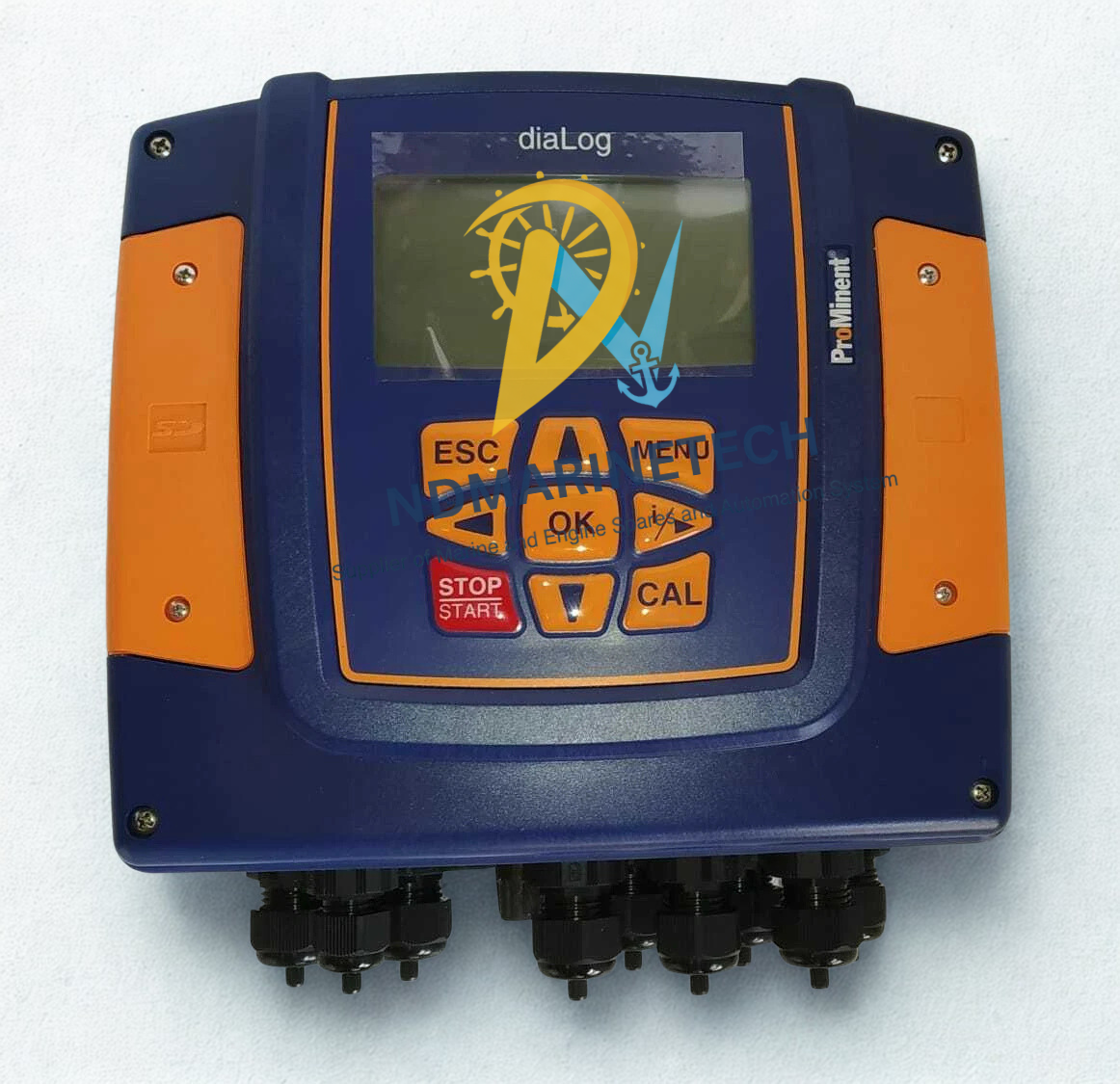

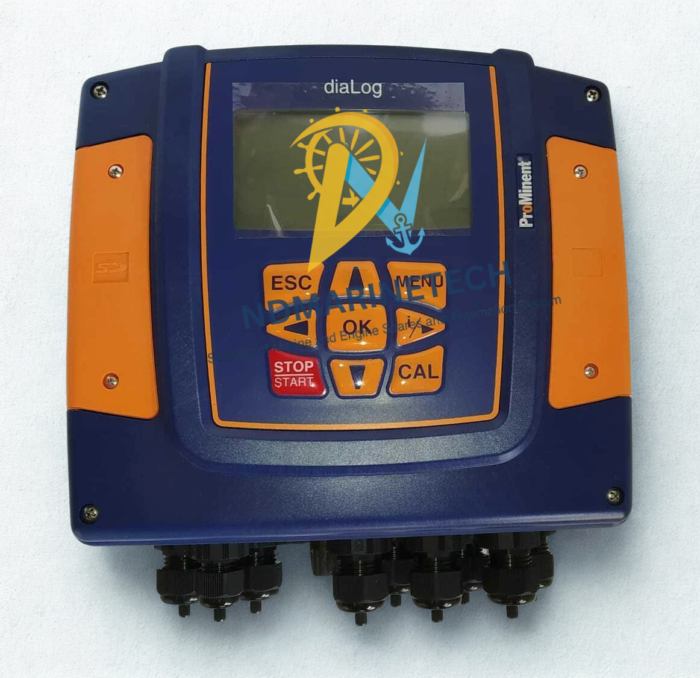

ProMinent DACA00614010000010EN DULCOMETER diaLog DACa Multi-Parameter Controller
The ProMinent DACA00614010000010EN is a very advanced, smart multi-parameter control platform that connects continuous liquid analysis with automated chemical dosing. This unit is part of the well-known DULCOMETER DACa dialogue series, providing accurate real-time tracking and closed-loop control for complex water treatment applications.
The DACa architecture stabilises industrial process streams by turning dynamic sensor data into very accurate frequency or analogue control signals for downstream metering pumps, whether monitoring pH variations, oxidant residuals or disinfection parameters.
Model Details:
- Brand: ProMinent Fluid Controls
- Model Series: DULCOMETER diaLog DACa
- Full Model Number: DACA00614010000010EN
- Manufacturer Part Number (MPN): DACA00614010000010EN
Technical Details
| Attribute | Technical Data Specification |
|---|---|
| Input Supply Voltage | 100 – 240 V AC (±10%), 50/60 Hz |
| Power Consumption | 27 W maximum |
| Current Rating | 0.49 A to 0.17 A |
| Measurement Channels | 1 Channel (Expandable up to 14 selectable variables) |
| Control Characteristic | P / PID Control Loops |
| Signal Inputs | Digital inputs for sample water fault, pause, and remote parameter switching |
| Control Outputs | 2 x Pulse-frequency outputs for metering pump speed management |
| Analog Current Output | 2 x 0/4 – 20 mA electrically isolated outputs |
| Temperature Compensation | Automatic via Pt100 / Pt1000 interface |
| Data Storage Capability | Integrated SD Card slot for parameter logging and cloning |
Applications
- Marine Water Systems: Biocide residuals in cooling loops and treatment of technical/ballast waters on commercial vessels.
- Industrial Cooling Tower Control: Automatic biocidal and scale inhibitor dose rate to minimise biofilm build up without the user intervention
- Municipal and industrial utilities demand tight pH control and subsequent disinfection for drinking and process water treatment.
- Wastewater Neutralisation: Continuous monitoring of chemical feed for industrial wastewater and electroplating precipitation of heavy-metals.
- Legionella Mitigation Systems: Accurate chlorine dioxide dosing loops for commercial premises, hotels and healthcare facilities.

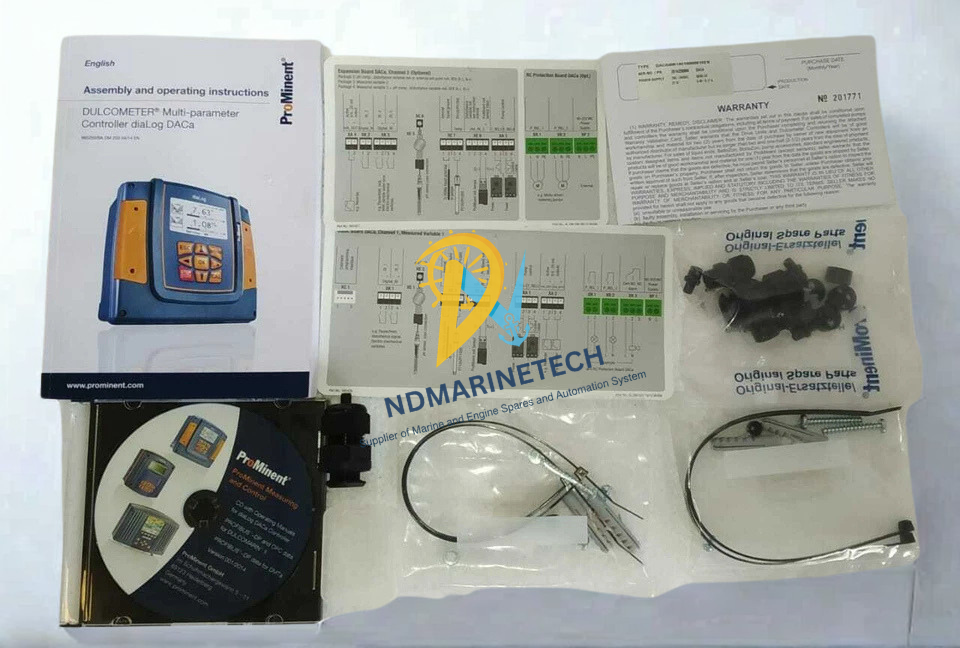

ProMinent DACA00614010000010EN Manual Sheet:
Marine Expert’s Guide:
On board a vessel or within deep industrial plants, electronic signal interference from high-power machinery is the hidden enemy of water analysis. The diaLog DACa series is a favorite among marine crews because its asymmetric/high-impedance input architecture handles raw sensor feeds without letting electrical noise corrupt the data. If you are replacing an older D1Ca or D2Ca unit, this controller drops neatly into the existing line while offering vastly superior PID responsiveness.
