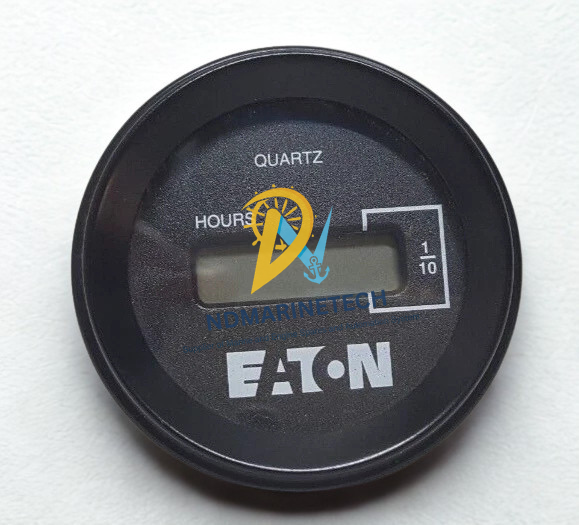

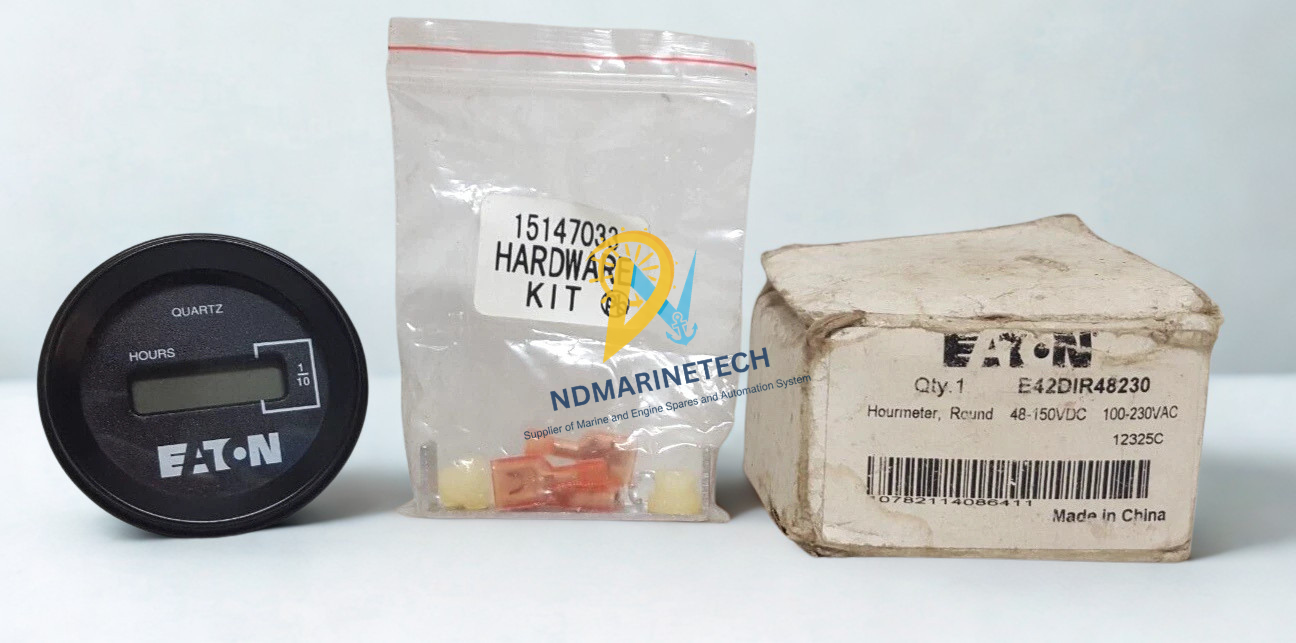

The Eaton E42DIR48230 Time Meter is a solid-state digital hour meter designed to record heavy-duty operating time in rugged situations. This dual-voltage instrument is designed to track the cumulative running time of machinery, accepting both 48–150 VDC and 100–230 VAC inputs, giving exceptional integration versatility across commercial vessel grids, auxiliary power units, and heavy industrial control panels. It features a clear, high-visibility digital display providing the accurate tracking needed for preventative maintenance programs, warranty compliance, and engine operational data.

Model Details:

• Brand: Eaton
• Model/Part Number: E42DIR48230
• MPN: E42DIR48230
• Product Type: Electronic Digital Time Meter / Elapsed Time Indicator
• Country of Origin: China

Technical Specifications

Features and Benefits

1. Dual Voltage Support . Operates flexibly with AC (100-230V) and DC (48-150V) supply loops to reduce inventory complexity and provide a one-stop solution for different voltage lines.
2. Solid-State Reliability: No internal wear because there are no mechanical gears or moving components, ensuring flawless timekeeping even in high-vibration situations.
3. Large Digital Readout: Clear, crisp interface display that reads up to 99,999.9 hours, with a tenth of an hour resolution for proper logging.
4. NEMA 4X/IP65 Front Protection: Built for severe environments, it provides improved protection against moisture, salt spray and dust incursion when panel mounted.
5. Non-Volatile Memory: Safeguards your critical operating data; total cumulative hours are permanently recorded on total power failures or system shutdowns.

Equipment Compatibility

• Marine Generators & Auxiliary Engines: Caterpillar (3400/3500/C-Series), Cummins (QSM/QSK), Wärtsilä, Yanmar, Volvo Penta, MAN Energy Solutions.
• Control Panels & Switchboards: General Electric, Schneider Electric Square D, Siemens S7/S8, Eaton Cutler-Hammer Freedom series MCC panels.
• Compressors, Scrubbers & Separators: Atlas Copco, Alfa Laval purifiers, Ingersoll Rand rotary screw air compressors, Sperre start-air compressors.
• Direct Form-Factor Replacement: Interchangeable with Curtis Instruments 700 Series (700PR / 701PR), Hobbs 85000 Series, and ENM T50 Series round electronic meters.

Applications

• Shipboard Machinery Maintenance: Engine hours tracking for scheduled Class Survey inspections (ABS, DNV, Lloyd’s Register).
• Industrial Prime Mover Running Time: Real-time log tracking on high-pressure wash skids, hydraulic power units (HPUs), and chiller packages.
• Standby Generator Load Bank Validation: Monitoring auxiliary genset exercise and active emergency running duty.
• Warranty & Lease Verification: Tamper-resistant operating time logging on high-value industrial machinery.

Pro Tips for Installation and Long Life:

1. Vibration Damping: The solid-state internals are shock immune, but take care to keep the panel cutout clean and utilize the provided retaining clips securely. Excessive panel flutter may eventually wear external copper wiring terminations.
2. Salt-Air Environment Sealing: For engine room or open-deck locker applications, always use the optional front-panel rubber gasket to protect its IP65/NEMA 4X integrity against salt mist and moisture.
3. Inductive Load Isolation If the meter is wired in parallel with a heavy inductive load (huge electric motor or winch clutch for example) utilize a surge supressor or isolation relay. Extended lifespans can be degraded by voltage spikes during inductive collapse.
4. Wiring Continuity: Always use bootlace ferrules on your stranded marine grade cables before locking them into the screw terminals to prevent wires splaying and intermittent power outages.

Frequently Asked Questions

Can the Eaton E42DIR48230 be manually reset to zero?

No. The standard E42DIR48230 is a non-resettable, tamper-resistant totalizing meter designed for permanent, legally defensible runtime tracking and maintenance schedules. If an application requires manual reset capability, the corresponding resettable model is part number E42DIR48230R.

Will this meter retain its accumulated hours during a power loss or vessel blackout?

Yes. The unit features built-in non-volatile EEPROM memory that stores recorded time data for more than 25 years without requiring internal batteries or continuous trickle power. When power returns, the display resumes accumulation from the exact saved timestamp.

Can I wire this meter to a 24VDC control circuit?

The E42DIR48230 requires a minimum DC input of 48 VDC (operating range: 48–150 VDC). For 12VDC or 24VDC power systems, select the companion model E42DIR1260, which operates on 12–48 VDC and 20–60 VAC.

What indicates that the meter is actively counting hours?

When operating voltage and enable inputs are correctly applied, a small hourglass icon on the left side of the LCD begins flashing at regular intervals, confirming continuous time accumulation.

Is this unit compatible with marine engine room environments?

Yes. With an operational temperature rating spanning -40°C to +85°C and an IP65/NEMA 12 front panel rating when mounted with its supplied sealing gasket, the solid-state architecture easily withstands high humidity, thermal fluctuations, and heavy mechanical vibration.
