HEIDENHAIN ND287 Digital Readout DRO 636-287-01

HEIDENHAIN ND287 Digital Readout (DRO) – ID: 636-287-01

This HEIDENHAIN ND 287 Digital Readout (Position Display device) is used and in good condition. ID # 636-287-01 High precision, multi-axis metrology display device for industrial inspection stations, machine tools and accurate coordinate measurement systems (CMMs). The ND 287 is designed for processing the data of linear scales, angle encoders and length gauges. The unit is equipped with a color TFT display with a bright screen and straightforward software architecture. It supports complex mathematical functions, linear and non-linear error compensation and tolerance sorting.

This machine is an important asset for heavy machining set-ups and quality control laboratories, and provides absolute accuracy, repeatable measurements and easy integration using modular encoder interface slots.

Model Details

• Manufacturer: HEIDENHAIN
• Model Series: ND 287

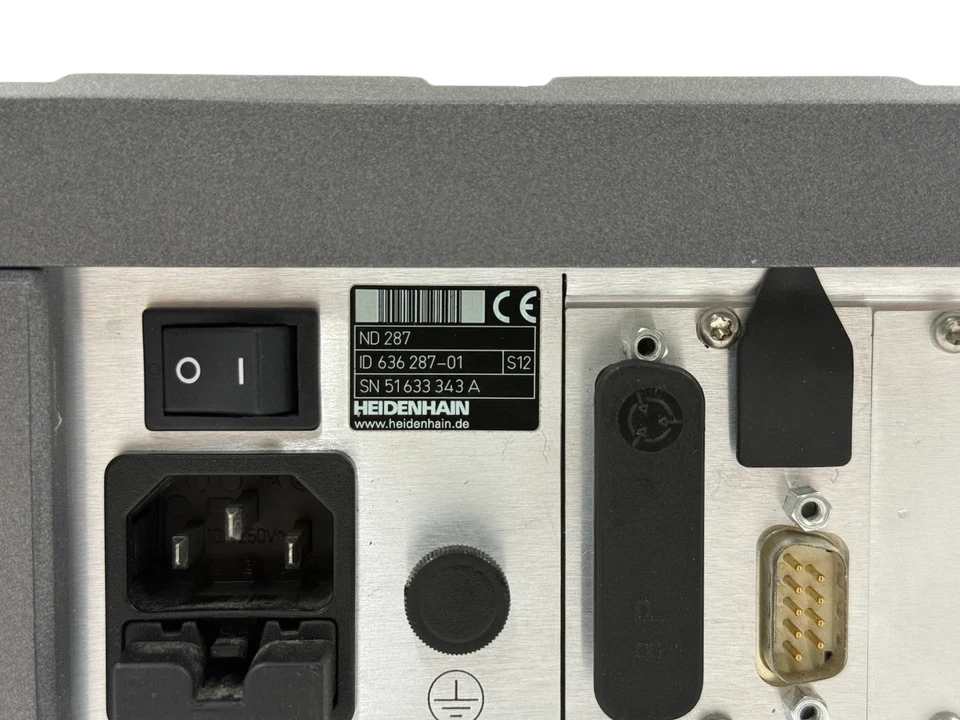

• MPN (Manufacturer Part Number): 636-287-01
• Condition: Available in New

Main Features

1. Modular Architecture: Provides slots for replaceable encoder and analog sensor input cards to meet unique application needs
2. Full Error Compensation: Linear and non-linear axis error compensation with real-time temperature-dependent compensation based on $ pm $10V analog sensor inputs.
3. Advanced metrology functions Min/max value storage Distance to go monitoring Half-value calculation and tolerance sorting limits

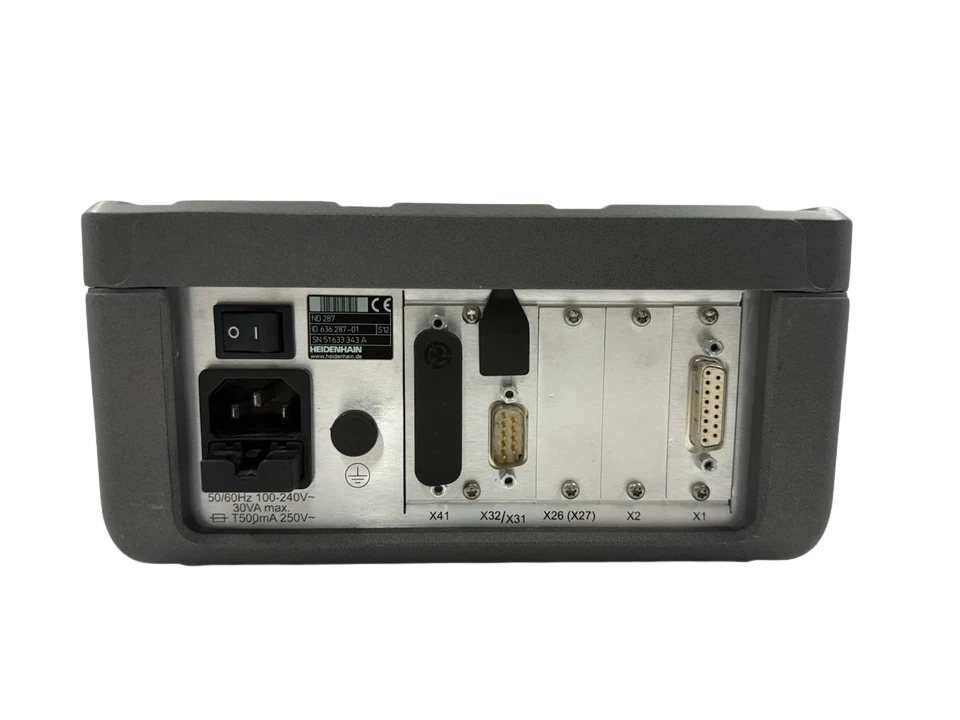

4. Flexible data export Integrated RS-232-C and USB connectors provide easy transfer of measurement reports and statistical data to external PCs or printers.
5. Reference Mark Evaluation supports distance-coded and single reference marks for fast automatic datum recovery during power-up.

Compatibility

• HEIDENHAIN Linear Enclosures & Scales: LF, LS, and LB series incremental/absolute encoders.
• HEIDENHAIN Angle & Rotary Enducers: ROD, RON, and RCN series.
• Length Gauges: HEIDENHAIN Metrology length gauges utilizing App 11 µ App or 1 Vpp outputs.
• Sensors: ±10V industrial standard temperature sensors for thermal expansion correction.

Applications

• High-precision dimensional inspection and quality control laboratories.
• Manual and automated coordinate measuring machines (CMMs).
• Specialized tooling, alignment jigs, and optical test benches.
• Multi-axis positioning tasks requiring strict tolerance sorting and sorting routines.

Guide for Maximum Efficiency

• Datum Management: Leverage the dual datum memory banks to quickly toggle between reference frames during complex multi-step inspection routines without resetting your baseline.
• Error Monitoring Configuration: Keep the error monitor parameter set to FRQ.+CONTAMINATION. This catches optical signal degradation early before dirty scales result in out-of-tolerance batch processing.
• Firmware Diagnostics: Use the built-in diagnostic screen via the setup menu to routinely check individual signal amplitudes to ensure your optical scale optics remain clean and optimal.

Frequently Asked Questions

What encoder signal types are natively supported by the HEIDENHAIN ND 287 (ID 636-287-01)?

The base unit supports 11 µApp or 1 Vpp, and EnDat 2.1/2.2 absolute/incremental encoder signals through its modular interface configuration. Additional inputs can be integrated via secondary plug-in expansion modules.

Can this digital readout handle temperature compensation?

Yes. By installing an optional analog module, you can connect a ±10V temperature sensor. The ND 287 will process the thermal input and dynamically execute linear expansion corrections based on user-defined coefficients.

How do I clear an error code or contamination warning on the screen?

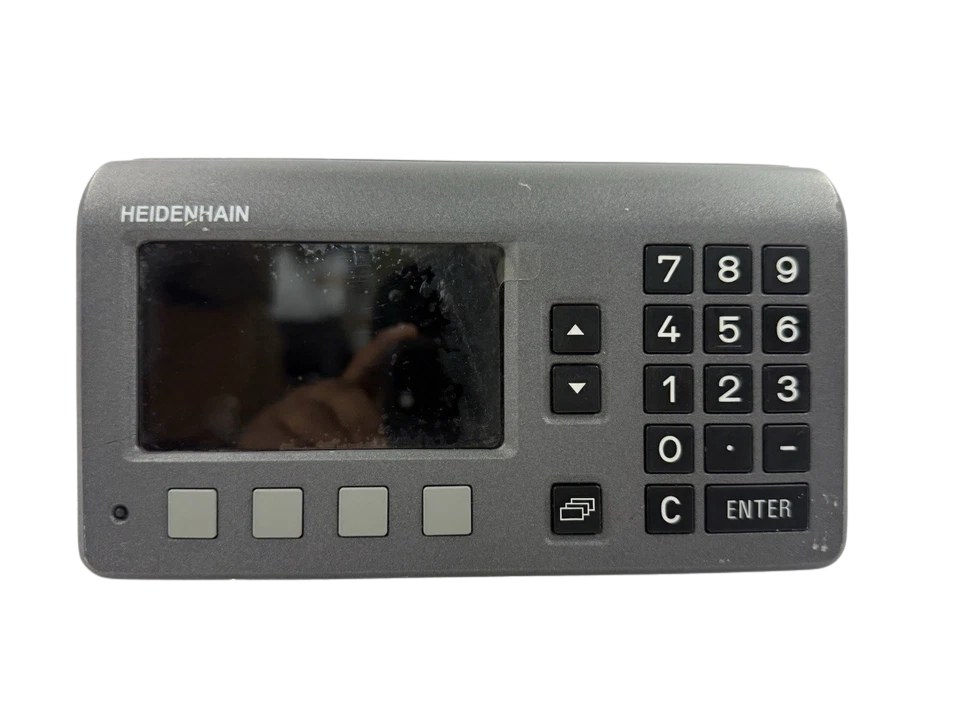

If an error condition such as contamination or frequency overflow occurs, press the C key on the front keypad to acknowledge and clear the warning message once the underlying issue is resolved.

Is data transfer possible to external computers?

Yes, the unit features standard RS-232-C/V.24 and USB Type B data interfaces, allowing users to export live data streams, measurement logs, and parameter configurations directly to data acquisition hardware or PCs.
