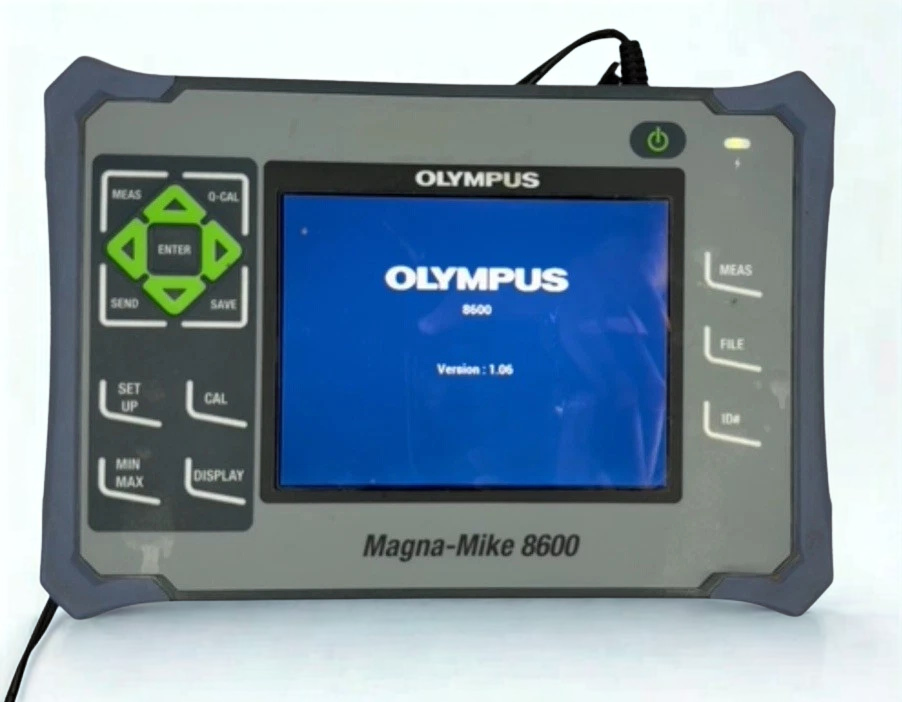

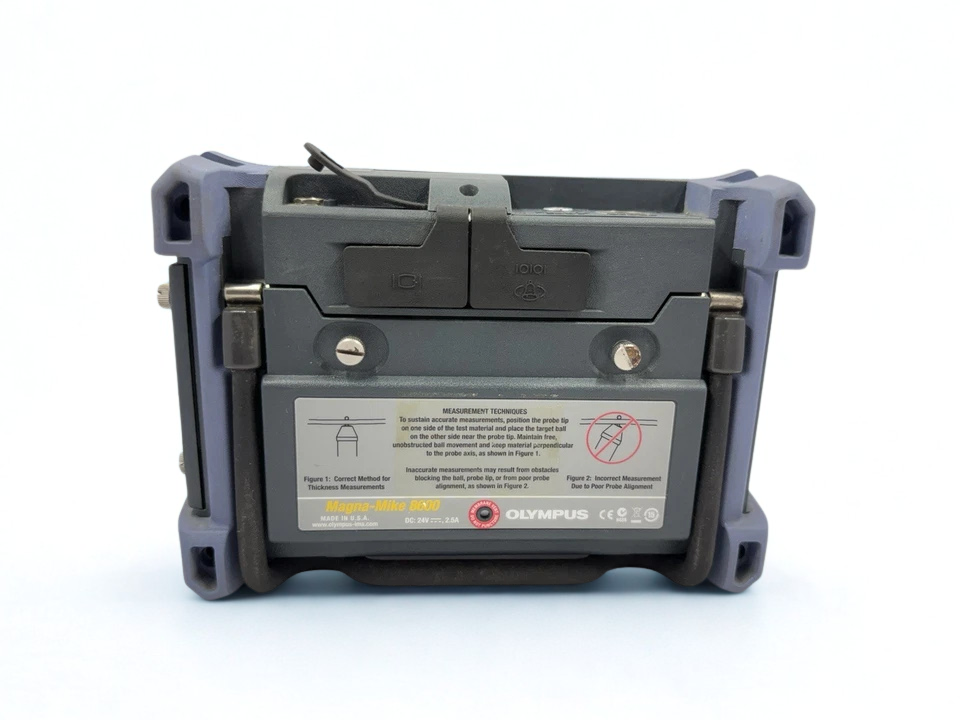

OLYMPUS Magna Mike 8600 Magnetic Thickness Gauge

The Magna Mike 8600 is more than just a thickness gauge; it’s a trusted companion in industries where precision matters. Its magnetic probe works in harmony with a small target ball or disk placed on the opposite side of the material, instantly displaying the thickness on a large, easy-to-read color LCD. The process is simple, intuitive, and leaves no marks on your materials, making it perfect for both routine checks and critical inspections.

The Magna-Mike 8600 has a magnetic probe on one side of the material and a tiny target (such a steel ball, wire, or disk) on the other side. It employs a Hall-effect sensor to detect the distance between the two and shows the thickness directly.

It is often used for measuring the thickness of walls of bottles and containers, as well as for packaging, automotive, and aerospace parts where ultrasonic gauging is hard or not dependable. ​

Magna Mike 8600 Technical Specifications:

Magna Mike 8600 Key features:

-> on-destructive measuring of the thickness of non-ferrous materials like plastics, glass, aluminum, titanium, and others. ​

-> Thickness range has been increased to 25.4 mm (1.00 in.). ​

-> There are three types of probes: straight, right-angle, and low-profile articulating probes that can get into tight spaces. ​

-> A big color VGA screen that can show live, minimum, maximum, and differential readings at the same time. ​

-> An internal alphanumeric data recorder that can export to a microSD card (in text or CSV format) and send data directly to Excel other SPC software. ​

-> Capture of high-speed Min/Max scans at 60 Hz to quickly find the thinnest points. ​

Performance of measurement

• Depending on the size of the probe and the target, the thickness can be anywhere from 0 to 25.4 mm (0 to 1.000 in.)
• You can choose from three resolution options: 0.1 mm (0.01 in.), 0.01 mm (0.001 in.), and 0.001 mm (0.0001 in.)
• The measurement update (capture) rate is 60 Hz, and the display update rate can be set to 4, 8, 16, or 20 Hz
• You can use live, Min, Max, differential, and Min/Max scan to quickly find the most important thin places. ​

Data logging and connectivity

-> Outputs: conventional RS-232, USB 2.0 device port, and VGA visual output. ​

-> Data storage: a file-based data logger on board and a microSD card that can be removed (up to 2 GB in older datasheets; up to 64 GB in recent ones, depending on the revision). ​

-> File export types include text and CSV, which work with Excel and SPC software. The WINXL program lets you send files directly to Excel. ​

Show, power, and the environment

• Display: full-VGA color LCD screen with 640 × 480 pixels and a diagonal size of about 117 mm × 89 mm (4.62 in × 3.49 in)
• Power: 100–120 V or 200–240 V AC mains adaptor; optional lithium-ion battery pack that lasts up to 16 hours
• The temperature range for operation is from –10 °C to 50 °C (14 °F to 122 °F)

Common probes and targets

-> Probes: straight, right-angle, low-profile articulating (like 86PR-1, 86PR-2, and 86PR-3) with wear covers that can be replaced (standard, chisel, and extended wear). ​

-> Targets: magnetic steel balls with diameters of 3/32, 1/8, 3/16, and 1/4 inches; small disks and wire targets (for example, 0.026 in / 0.66 mm wire) for particular shapes such narrow grooves and small holes.
