HEIDENHAIN PLB 510 358 849-01 I/O Module

HEIDENHAIN PLB 510 PLC Basic Board (Id.Nr. 358 849-01)

The HEIDENHAIN PLB 510 (Part Number: 358 849-01) is a modular PLC basic expansion board designed for intermediate-to-large machine tool automation architectures. Engineered to serve as the backplane and I/O carrier within HEIDENHAIN’s contouring control ecosystems—most notably the iTNC 530, CNC PILOT 4290, and MANUALplus 4110—the PLB 510 links high-level CNC processing units with field-level machine devices such as limit switches, tool changers, hydraulic interlocks, and auxiliary valves.

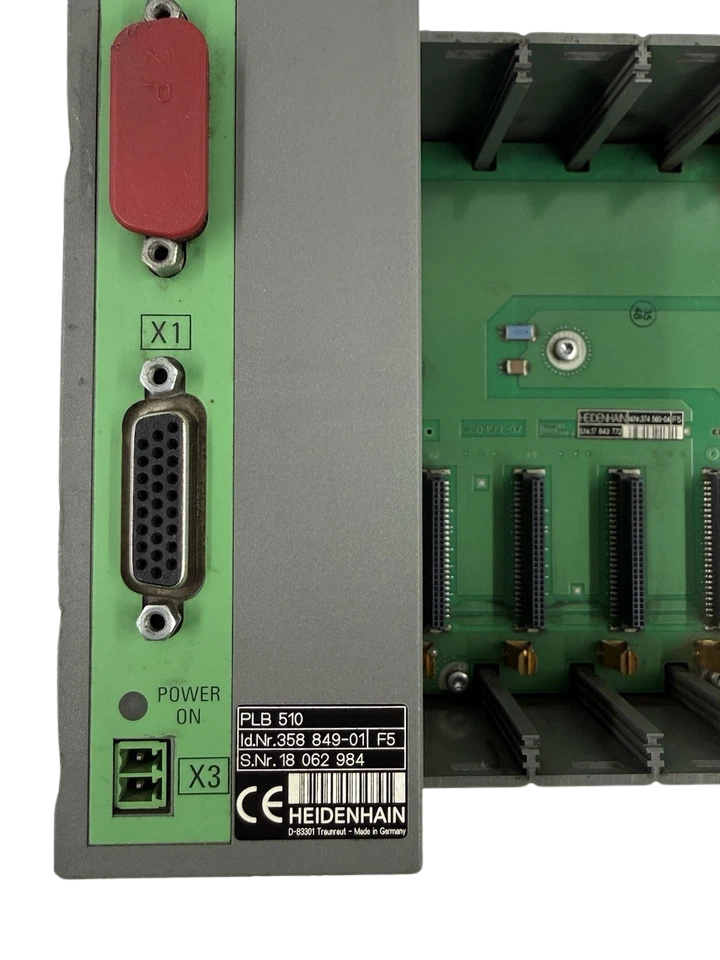

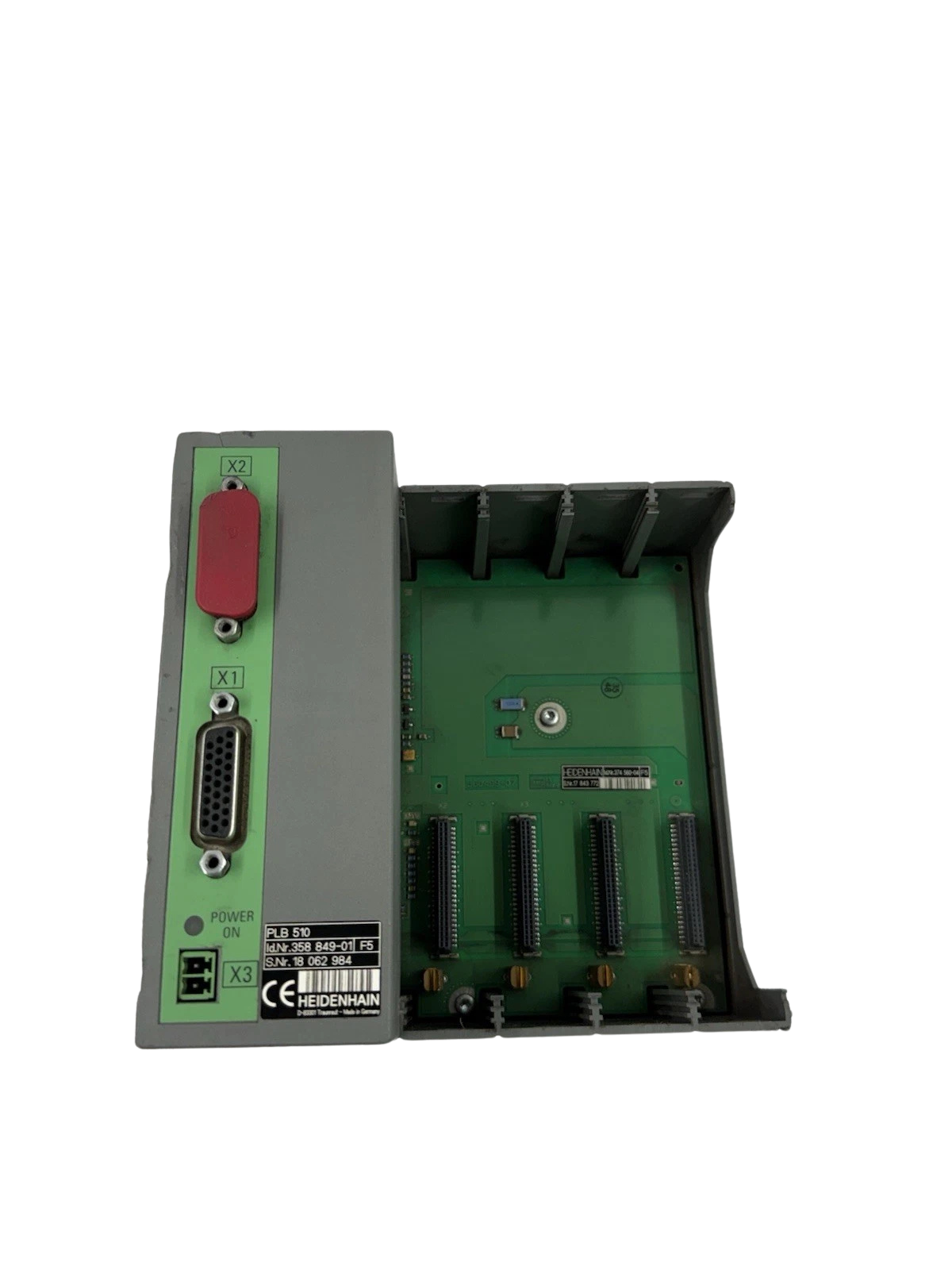

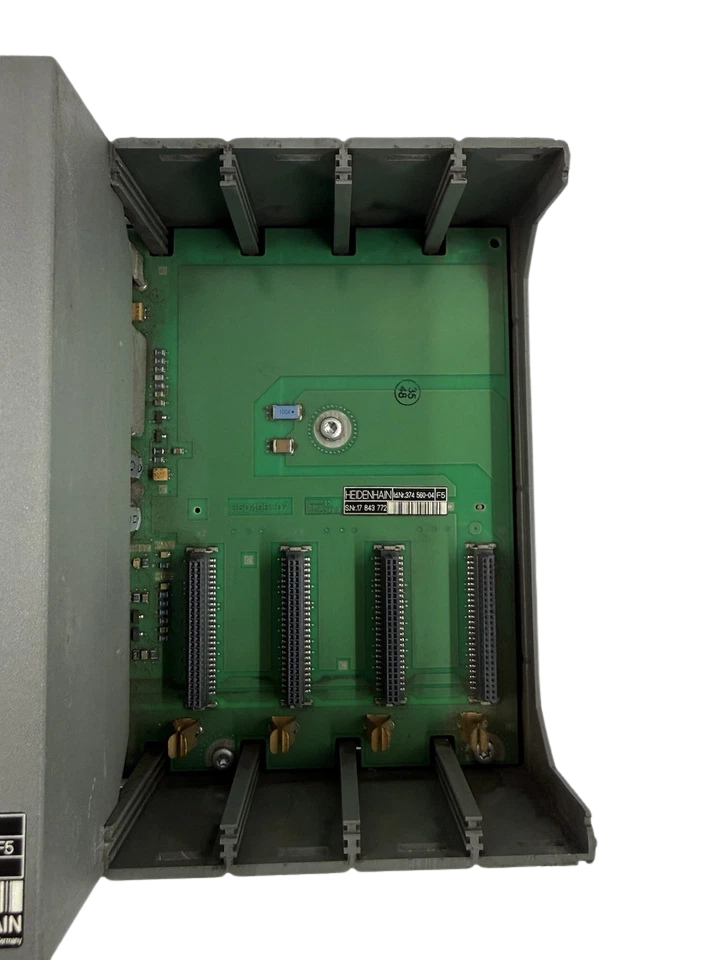

Fabricated inside an industrial-grade, extruded aluminum housing designed for standard mounting inside electrical switch cabinets, the PLB 510 provides four dedicated expansion slots. These slots accept modular digital and analog sub-boards (such as the PLD 16-8 and PLA 4-4 series). High-speed synchronous peripheral bus communications interface directly to the main CNC logic unit via shielded HEIDENHAIN bus ribbon cabling, ensuring real-time PLC cycle synchronization, fast response times under heavy cyclic loading, and galvanic noise rejection across industrial and marine environments.

Model Details

• Product Series: PLB 500 Modular Field I/O System
• Model: PLB 510
• Manufacturer Part Number (MPN): 358 849-01 (Alternative formatting: 358849-01)
• Designation: PLC Basic Board / Expansion Carrier (4-Slot)

Technical Details

Equipment Compatibility

Compatible CNC Systems

• HEIDENHAIN iTNC 530 Series (Main Controller Units: MC 420, MC 422, MC 530)
• HEIDENHAIN CNC PILOT 4290
• HEIDENHAIN MANUALplus 4110 / 620 Retrofit packages
• HEIDENHAIN MillPlus IT

Compatible Sub-Modules

• PLD 16-8 (Digital I/O module: 16 inputs / 8 outputs)
• PLA 4-4 (Analog I/O module: 4 analog inputs / 4 analog outputs)
• Standard HEIDENHAIN machine operating panel (MB series) ribbon breakout interfaces

Part Number Cross-References

• 358 849-01 (Standard OEM ID)
• 358-849-01
• 35884901
• Id.Nr. 358 849-01

Applications

• Multi-Axis CNC Machining Centers: Controlling pneumatic indexing heads, pallet changers, flood coolant solenoids, and chip conveyor sequencing.
• Marine Engine-Room Maintenance Lathes: Automation retrofit on shipboard lathes and boring mills requiring heavy immunity to generator voltage harmonics and engine vibrations.
• Heavy Industrial Milling & Boring Machinery: Interface point for optical tool-setting probes, laser length calibrators, and hydraulic clamping confirmation switches.
• Retrofit & Automation Overhauls: Modernizing aging CNC systems from older analog architectures to high-reliability HEIDENHAIN field interfaces.

Frequently Asked Questions

What does the HEIDENHAIN PLB 510 do within a CNC system?

The HEIDENHAIN PLB 510 serves as a 4-slot basic motherboard module that carries and powers digital/analog expansion boards, allowing the main HEIDENHAIN CNC computer (such as the iTNC 530) to communicate with machine peripherals like interlocks, sensors, and actuators.

Is part number 358 849-01 directly interchangeable with other PLB models?

The 358 849-01 part number denotes a specific revision of the PLB 510 4-slot base unit. It directly interchanges with identical Id.Nr. units and replaces legacy revisions within compatible iTNC 530 / CNC PILOT systems without necessitating PLC software changes. Always confirm your slot module configuration prior to replacement.

Can the PLB 510 operate directly on 115V or 230V AC mains?

No. The PLB 510 runs exclusively on a regulated 24 V DC secondary power supply meeting EN 61131-2 specifications. Applying AC line voltage directly to the terminal block will immediately destroy internal power regulation diodes and compromise connected expansion modules.

How is the PLB 510 tested before dispatch?

Every reconditioned and surplus unit undergoes rigorous functional testing: all 4 modular card slots are populated with live test cards, subjected to full I/O switching cycles via an iTNC test bench, and monitored on an oscilloscope for bus ripple and signal integrity before packaging.

What should I check if my CNC displays a PLC bus timeout error after installing the PLB 510?

First, verify that the 24 V DC supply is delivering steady voltage under load. Second, confirm that the ribbon bus cable between the main controller and the PLB 510 is securely seated and latch-locked. Finally, verify that every expansion card inserted into slots 1–4 is firmly seated in the backplane.
