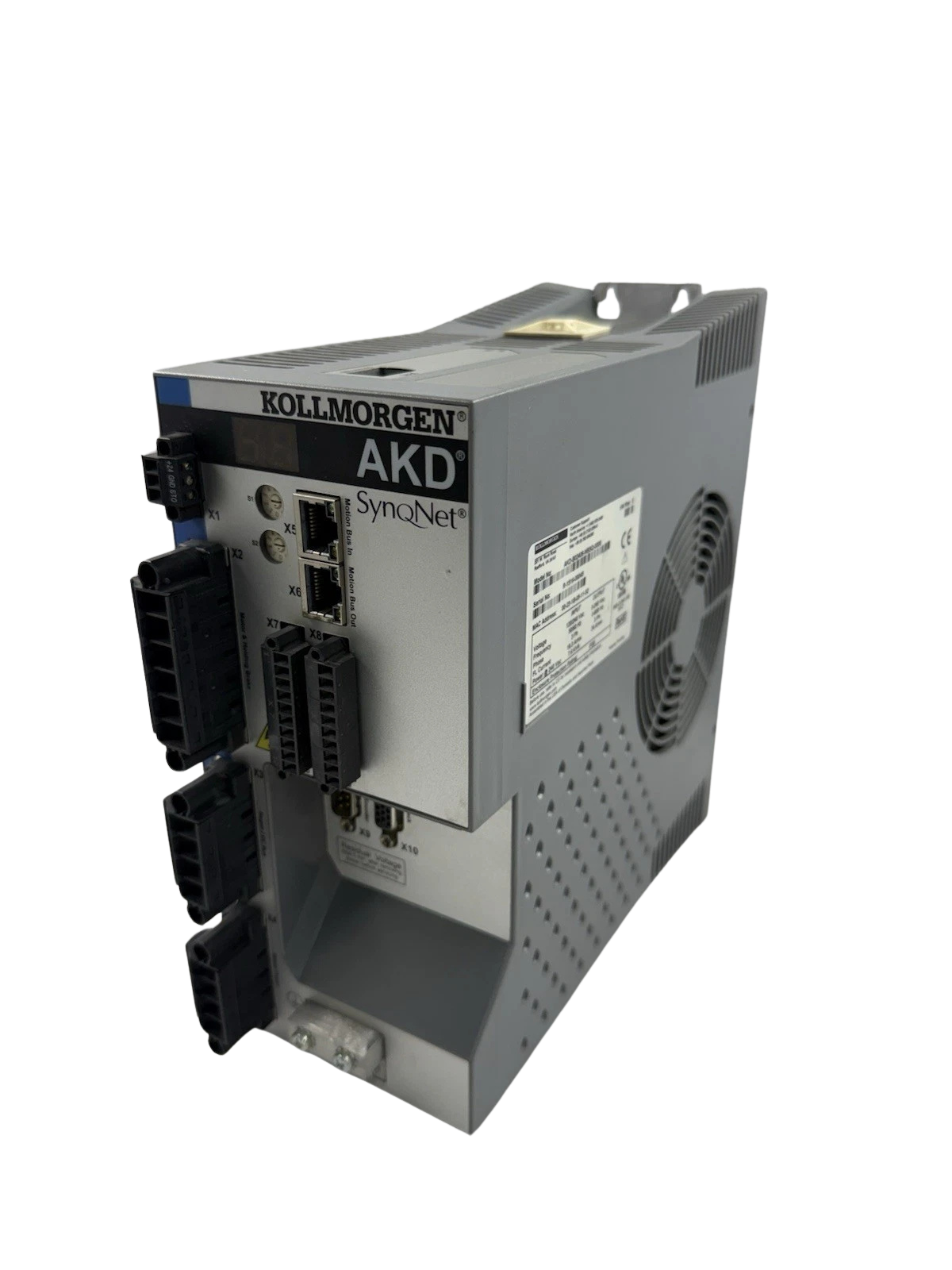

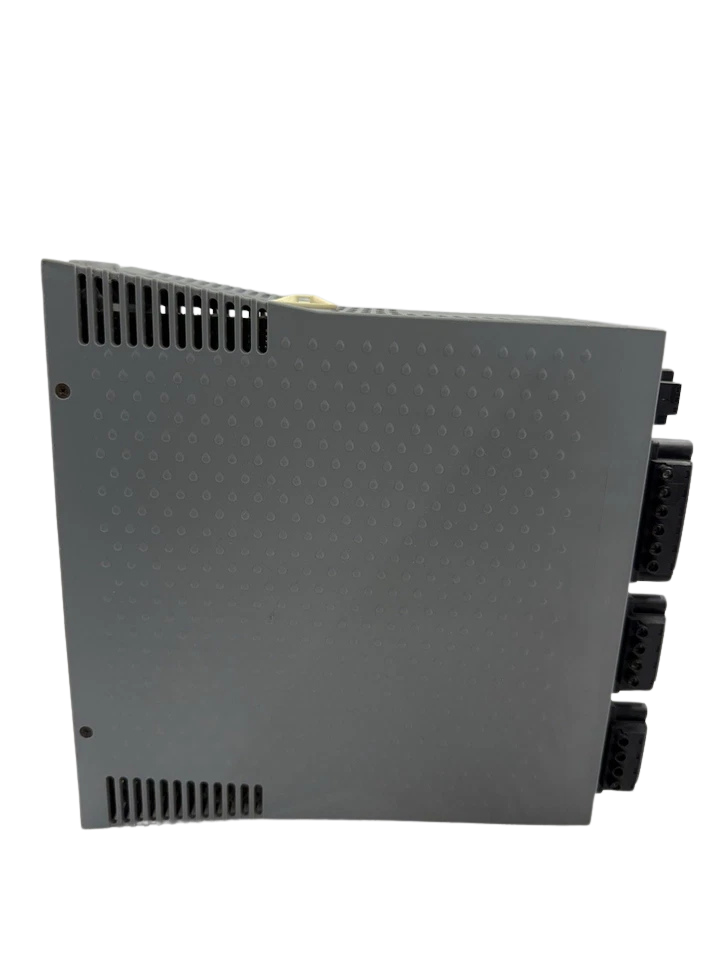

Kollmorgen AKD-B02406-NBSQ-0000 Servo Drive

Kollmorgen AKD-B02406-NBSQ-0000 3-Phase Digital AC Servo Drive

The Kollmorgen AKD-B02406-NBSQ-0000 is a digital AC servo amplifier engineered for precise torque, velocity, and position control. Part of the proven AKD (Advanced Kollmorgen Drive) series, this base drive model delivers up to 24 Arms continuous current and a 48 Arms peak rating over a 120/240 VAC supply envelope.

The drive provides high-bandwidth servo loops, wizard-based autotuning, and dynamic braking capabilities. Whether deployed in automated marine positioning systems, offshore winch reels, high-speed robotics, or heavy packaging machinery, the AKD-B02406-NBSQ-0000 provides high electrical efficiency and operational reliability under demanding operating conditions.

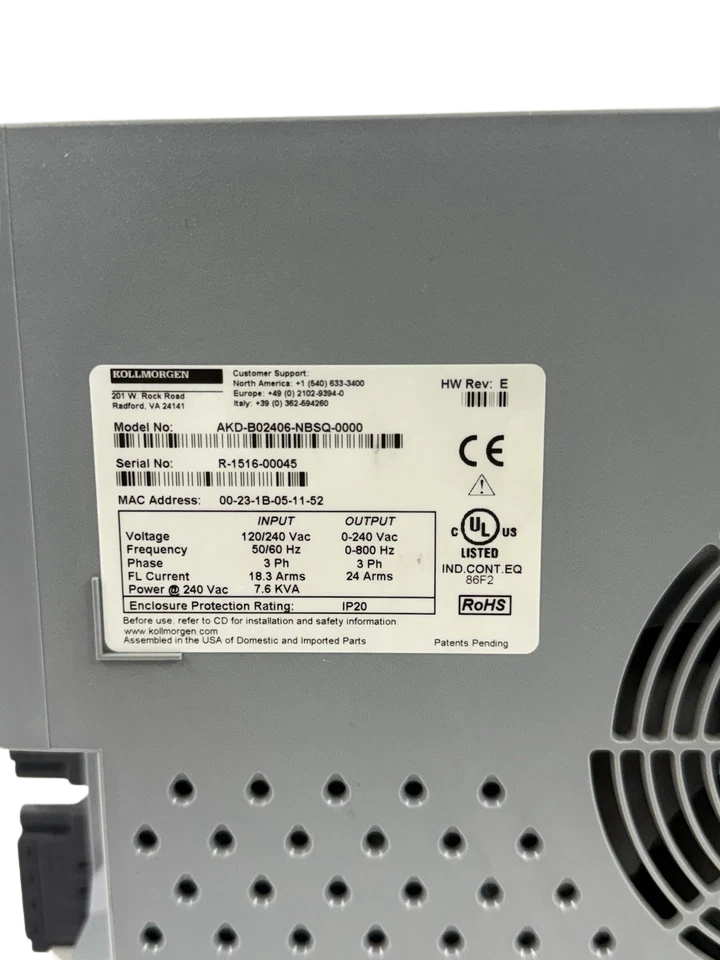

Model Details

• Series: AKD (Advanced Kollmorgen Drive)
• Drive Type / Variant (B): Base Drive (Analog / Motion Bus commanded)
• Continuous Current Rating (024): 24 Arms continuous output current
• Voltage Rating (06): 120 / 240 VAC (85–265 VAC operation range, 3-phase mains)
• Option Card / Extension (NB): Standard / No extension module
• Connectivity (SQ): SynqNet® fieldbus motion control interface
• Customization / Version (0000): Standard factory hardware and firmware configuration
• Manufacturer Part Number (MPN): AKD-B02406-NBSQ-0000

Features

1. High-Bandwidth Control Architecture: Features maximum current loop bandwidth up to 2.5–4.0 kHz, velocity loop up to 600 Hz, and position loop up to 250 Hz for sub-millisecond dynamic trajectory tracking.

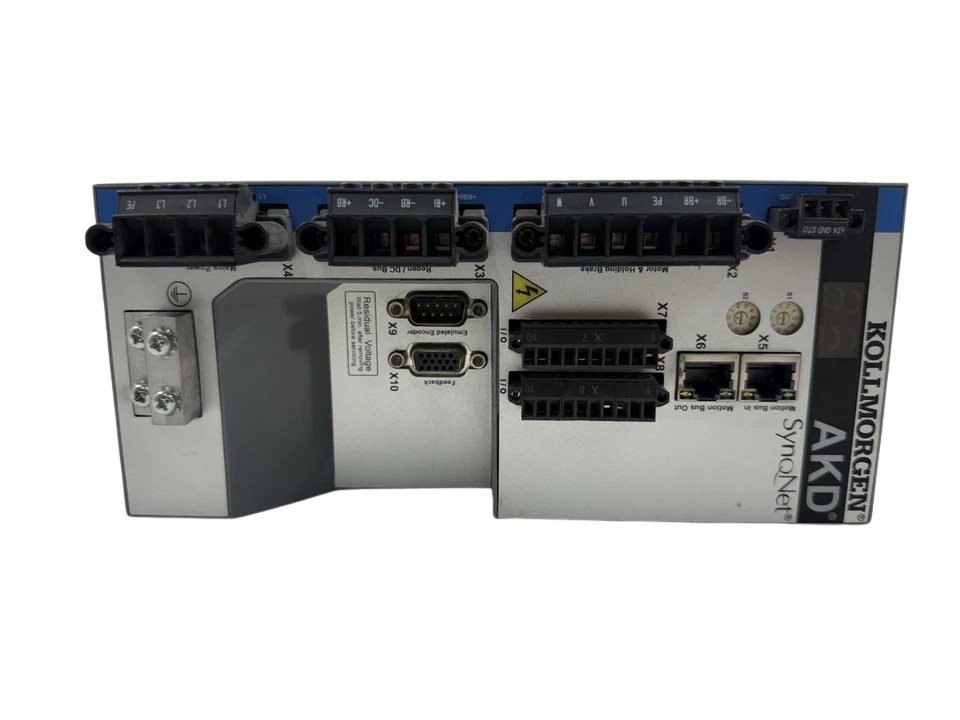

2. SynqNet® Motion Network Interface: Dual 100Base-TX ports (X5 / X6 RJ45) deliver deterministic multi-axis synchronization, real-time node polling, and fast field diagnostics.
3. Integrated Safety Function (STO): Certified Safe Torque Off per IEC 62061 (SIL 2) and ISO 13849-1 (PL d, Category 3) safely cuts power to motor phases without dropping the 24 VDC logic rail.
4. Universal Feedback Device Support: Directly interfaces via high-density sub-D/miniature connectors with Smart Feedback Devices (SFD/SFD3), BiSS (Mode B/C), EnDat 2.1/2.2, HIPERFACE, analog Sine/Cosine resolvers, and incremental quadrature encoders.
5. Built-in Dynamic & Regenerative Braking Circuit: Features an internal regen circuit and dedicated DC bus/resistor terminals (X3) to safely dissipate regenerative energy generated during abrupt deceleration of high-inertia loads.

Compatibility

• The AKD-B02406-NBSQ-0000 operates natively with Kollmorgen rotary and linear motor families as well as compliant third-party PMAC/BLDC servomotors:
• Kollmorgen AKM® Series Brushless Servomotors: Full plug-and-play electronic motor nameplate support via SFD on AKM4x, AKM5x, AKM6x, and AKM7x frames.
• Kollmorgen AKM2G Series: Next-generation high-torque motors configured with digital feedback variants.
• Kollmorgen Cartridge DDR® and Direct Drive Rotary (DDR): D06x through D10x series direct-drive models.
• Kollmorgen ICH and IL Direct Drive linear motors: Synchronous ironless and ironcore linear motor stages.
• Motion Controllers / PACs: SynqNet-compliant multiaxis master controllers including Danaher Motion, Motion Engineering Inc. (MEI), ACS Motion Control, and Aerotech platforms.

Part Number Cross-References

• AKD-B02406-NBSQ-0000 (Direct MPN – SynqNet Base Drive, 24A, 120/240V)
• AKD-B02406-NBAN-0000 (Analog / Discrete I/O interface variant)
• AKD-B02406-NBEC-0000 (EtherCAT fieldbus interface variant)
• AKD-B02406-NBPN-0000 (PROFINET RT industrial ethernet variant)
• AKD-P02406-NBSQ-0000 (Position Indexing variant with SynqNet)
• AKD-T02406-NBSQ-0000 (AKD BASIC programmable motion variant with SynqNet)

Frequently Asked Questions

What does the “NBSQ” connectivity designation represent on the AKD-B02406?

NB” designates standard base drive configuration without extended auxiliary I/O cards. “SQ” denotes factory hardware configuration for SynqNet® motion bus communication via dual dedicated RJ45 interface ports (X5 and X6).

Can the AKD-B02406-NBSQ-0000 be operated on a single-phase mains supply?

No. Unlike smaller 3A, 6A, and 12A AKD 120/240V drives that permit single-phase power, the 24A current frame (AKD-x02406) strictly requires a balanced 3-phase AC input supply (120/240 VAC line-to-line) across terminals L1, L2, and L3 to sustain internal DC-link bus ripple requirements under load.

How do I commission the drive without a SynqNet master connected?

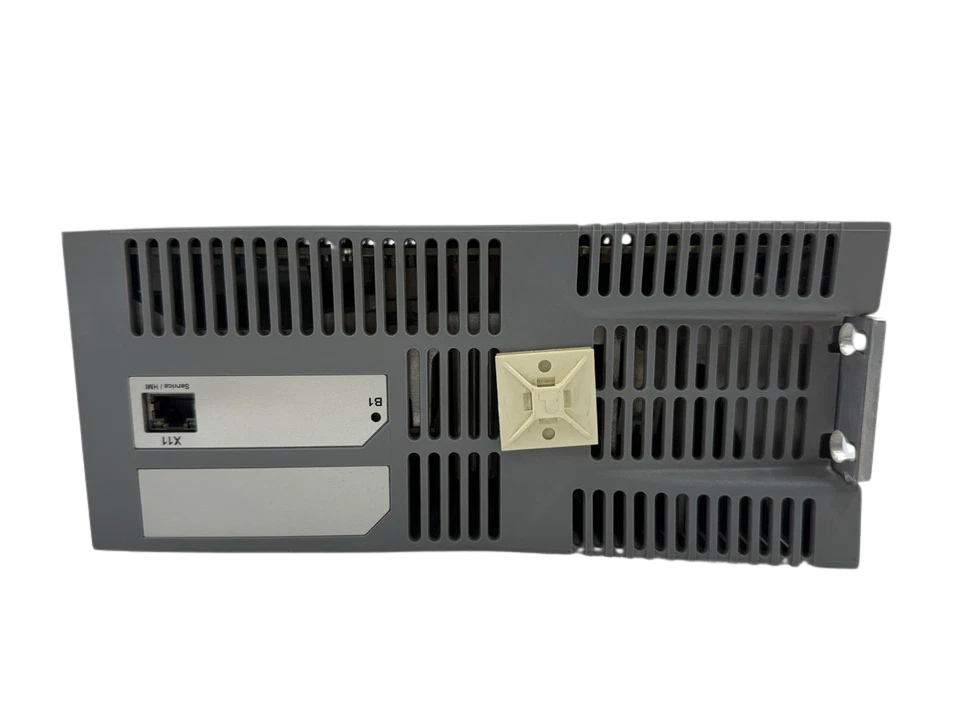

Initial axis setup, motor pairing, feedback calibration, and open-loop testing are performed via the independent TCP/IP Ethernet service port (X35 or Service RJ45) using a Windows PC running Kollmorgen WorkBench software. The service port operates over standard IP networking and does not interfere with the SynqNet real-time network.

What is the maximum recommended motor cable length for this drive?

The standard maximum motor power and feedback cable distance is 50 meters (164 feet) when using Kollmorgen pre-fabricated, low-capacitance shielded cables. Exceeding this length requires output motor chokes (dV/dt filters) to prevent premature motor winding dielectric failure and nuisance overcurrent trips (Fault F201).

What should I do if the drive displays fault F106 (Over-temperature power stage)?

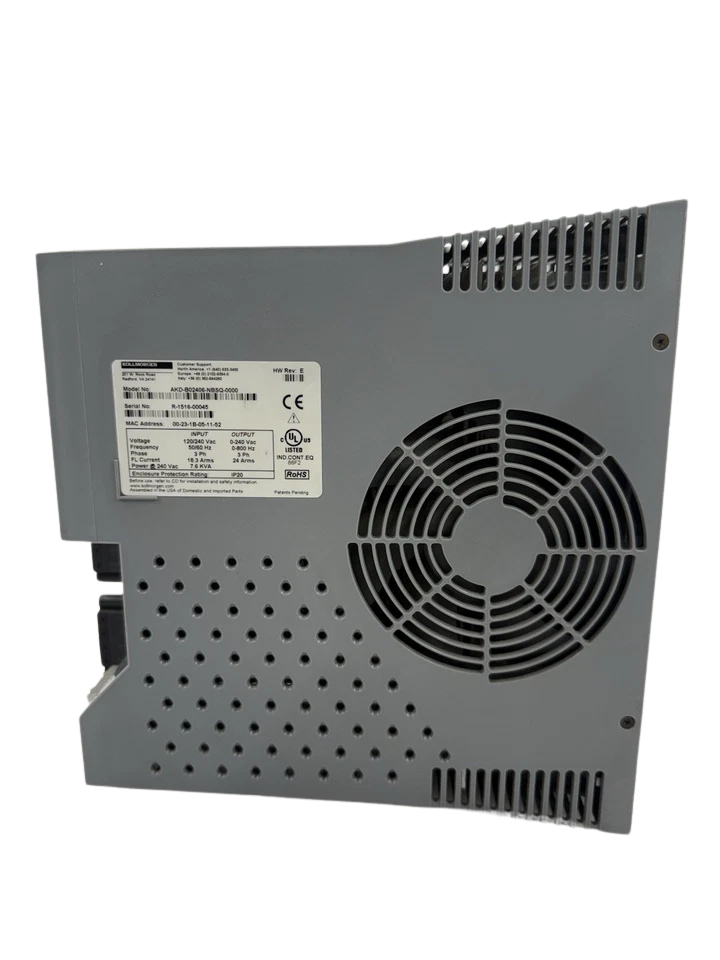

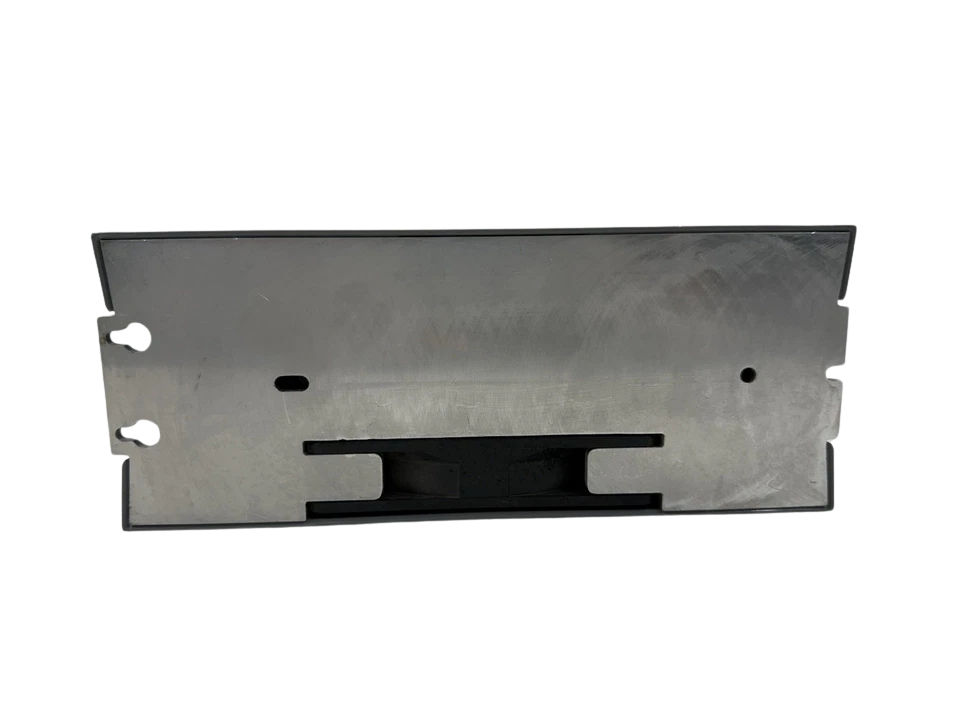

Fault F106 indicates heat sink temperature has exceeded the thermal threshold of 85°C. Verify that the cabinet internal temperature remains under 40°C, inspect the integrated heatsink fan for rotation and dust blockage, ensure minimum mounting clearances (100 mm top and bottom clearance for natural convection airflow), and verify that the drive switching frequency has not been elevated above 8 kHz without appropriate current derating.
