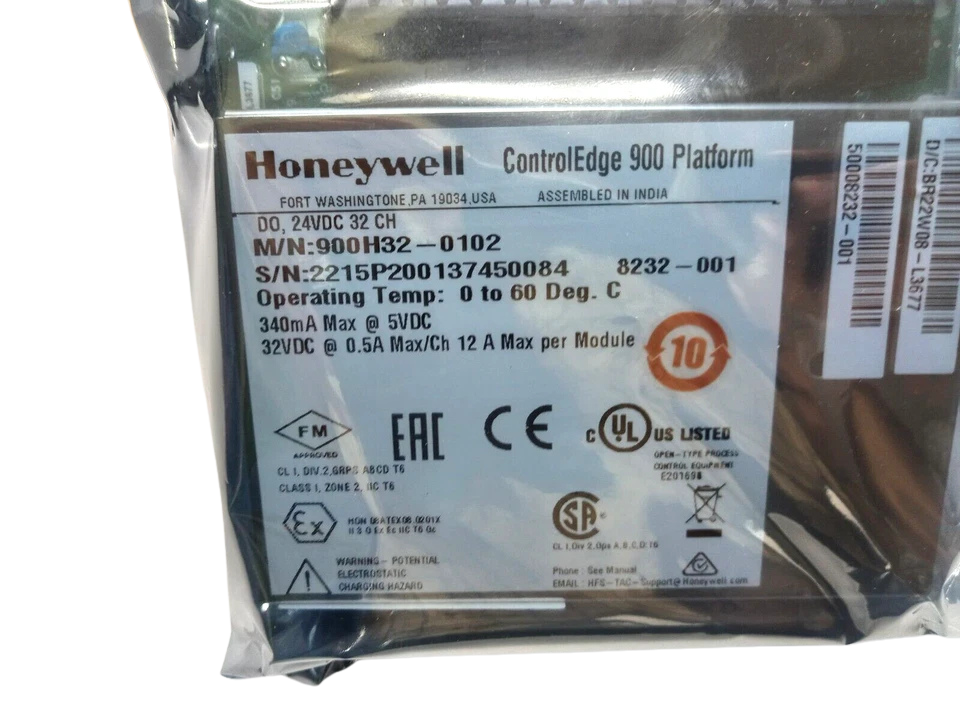

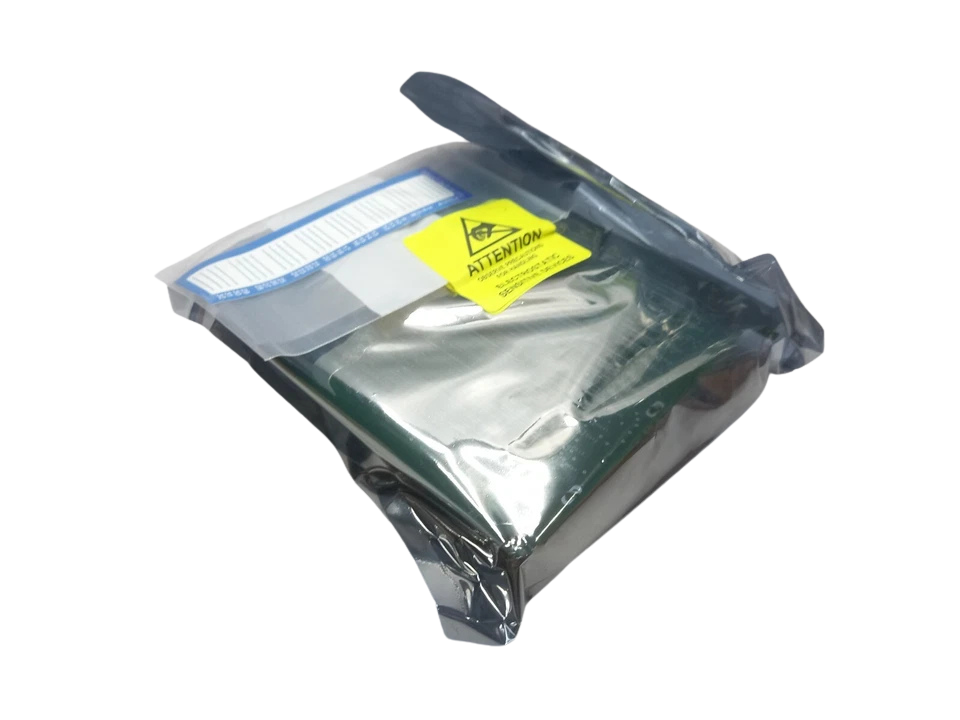

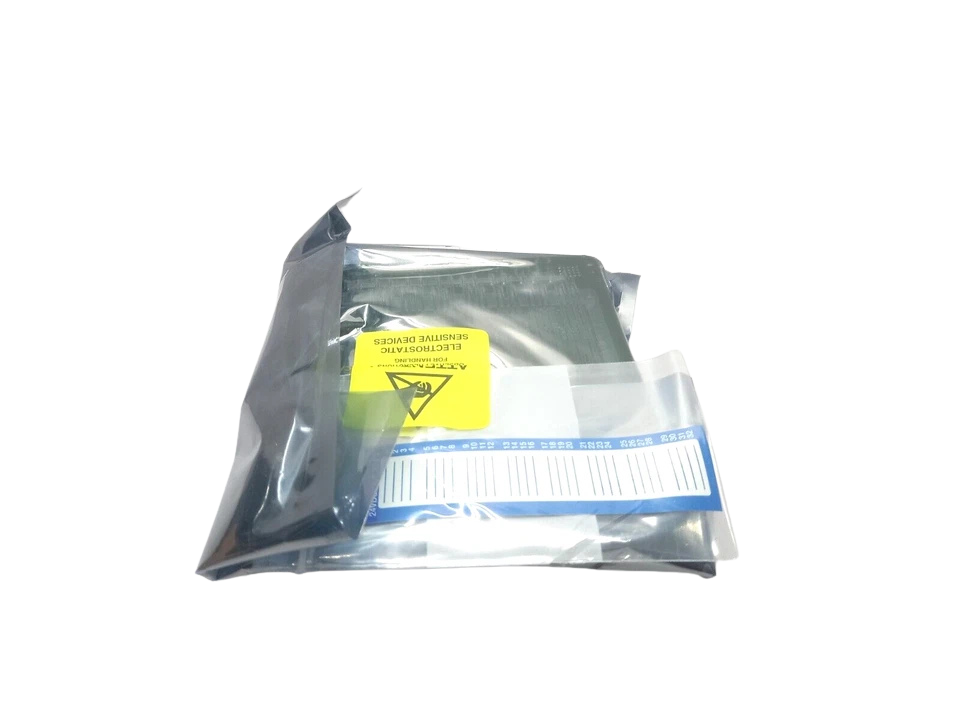

Honeywell 900H32-0102 ControlEdge HC900 32CH DO 24VDC Module

Honeywell 900H32-0102 ControlEdge 900 Platform 32-Channel 24VDC Digital Output Module

The Honeywell 900H32-0102 is a high density 32 channels digital output (DO) module intended for the Honeywell ControlEdge™ HC900 Process and Safety Controller platform. This current-sourcing (high-side driver) module operates at a nominal field supply voltage of 24 VDC and provides accurate, high speed switching control of external field loads such as solenoid valves, interposing relays, contactors, alarm annunciators, status indicators and motor starter coils.

Model Details

• Manufacturer: Honeywell Process Solutions
• Series / Platform: ControlEdge™ HC900 System / 900 Series I/O
• Manufacturer Part Number (MPN): 900H32-0102
• Alternate Model Number: 900H32-xxxx
• Functional Description: Digital Output Module, 24 VDC, Current Sourcing (High-Side), 32 Point
• Backplane Form Factor: Rack-mounted I/O Slot Module (compatible with 4, 8, and 12-slot HC900 racks)

Part Number Cross-References & Alternates

• 900H32-0001: Legacy revision 32CH 24VDC DO module (Direct functional predecessor).
• 900H32-0101: Base revision without extended conformal coating options.
• 900H16-0102: 16-Channel 24VDC Sinking/Sourcing Digital Output Module (Lower density option).
• 900R08-0300: 8-Slot Backplane base unit.
• 900TB1-0001: 20-Screw Euro-style Removable Terminal Block

Key Features

1. High-Density 32-Channel Architecture: Maximize control cabinet footprint by density-packing 32 high-side 24VDC outputs in a single 35.6 mm backplane slot.
2. Dual-Group Galvanic Isolation: Output channels are segmented into two independent 16-point isolation banks to prevent ground loops and protect control logic.
3. Smart Electronic Overcurrent Defense: Active short-circuit protection across 4 groups of 8 channels auto-isolates faulted field lines and restores operation automatically without requiring fuse replacement or power cycling.
4. Class G3 Conformal Coating: Factory-applied protective resin defense prevents corrosive oxidation on printed circuit traces in harsh marine engine rooms and chemical vapors.
5. Hot-Swappable Module Design: Supports Removal and Insertion Under Power (RIUP) in non-hazardous locations, significantly reducing downtime during routine maintenance.

Industrial & Marine Applications

• Marine Main Engine Auxiliary Control: Actuation of lube oil, fuel oil transfer, and cooling water pump solenoids and motor starters aboard commercial vessels.
• Offshore Oil & Gas Skid Automation: Control of emergency shutdown (ESD) valves, deluge system actuators, and wellhead chemical injection pumps.
• Burner Management Systems (BMS): Fuel line safety shutoff valve control, igniter sequence control, and combustion blower interlocks.
• Water & Wastewater Treatment: Dosing pump control, motor-operated valve (MOV) sequencing, and backwash cycle automation.
• Batch Chemical & Pharmaceutical Reactors: Precision manifold valve activation and liquid ingredient transfer metering.

Frequently Asked Questions

What is the difference between sourcing and sinking digital outputs on the 900H32-0102?

The 900H32-0102 is a current-sourcing (high-side) module. When an output channel turns ON, the internal switch connects the positive +24 VDC external supply directly to the field load terminal. The other side of the load must be connected to the 0 VDC common ground.

Does the 900H32-0102 require external field power to operate?

Yes. While backplane logic power (5 VDC) is supplied by the rack power supply, the actual 24 VDC output current delivered to field devices must be provided by external field power supplies wired directly to the module’s terminal block connectors.

How does the short-circuit protection on this module behave during a field fault?

The module utilizes electronic active current limiting arranged in 4 groups of 8 channels. If a short circuit occurs on an output, the current limiter caps the fault current and turns OFF the affected 8-channel group. Once the short circuit is cleared in the field, the channel auto-resets and returns to normal operation without requiring a module reboot or fuse replacement.

Can I replace the 900H32-0102 module while the controller is powered?

Yes, the module supports Removal and Insertion Under Power (RIUP) under standard operating conditions. However, in hazardous locations (Class I, Div 2 / Zone 2), you must ensure the area is non-hazardous or power down field lines before removing or inserting terminal blocks to avoid potential arc risks.

Which terminal block should I order with the 900H32-0102?

The module requires a 20-pin Removable Terminal Block (RTB). You can select either the Euro-style screw terminal block (part number 900TB1-0001) or the Barrier-style terminal block (part number 900TB1-0002) based on your control panel wiring standards.
