Masoneilan CAMFLEX II Model 4611 Corrosion Resistant Positioner

Masoneilan CAMFLEX II Model Type 4611 Corrosion Resistance Positioner

Masoneilan CAMFLEX II Model Type 4611 is an industrial grade, heavy duty pneumatic rotary valve positioner designed for tough marine, offshore and chemical processing applications. The Type 4611 is designed to mount directly to Masoneilan eccentric rotary plug valves (such as the 35002 Series Camflex II) with no external exposed linkages, eliminating lost motion and mechanical backlash while providing dynamic throttling control.

The Type 4611 is constructed of high durability, epoxy-coated low-copper aluminum or stainless steel housing alternatives that resist harsh salt spray, marine air corrosion, chemical vapors and high-vibration engine-room situations. A high-precision feedback cam machined directly to the valve’s rotary shaft is part of the internal force-balance mechanism to deliver linear, equal-percentage, or bespoke flow responses to variations in process load.

Model Details

• Manufacturer: Masoneilan
• Base Model: CAMFLEX II Type 4611
• Manufacturer Part Number (MPN): 4611-CAMFLEX-2-CR
• Actuation Mechanism: Pneumatic Force-Balance Rotary Cam Mechanism
• Housing Construction: Heavy-Duty Corrosion Resistance Coating (Marine Grade)

Key Features

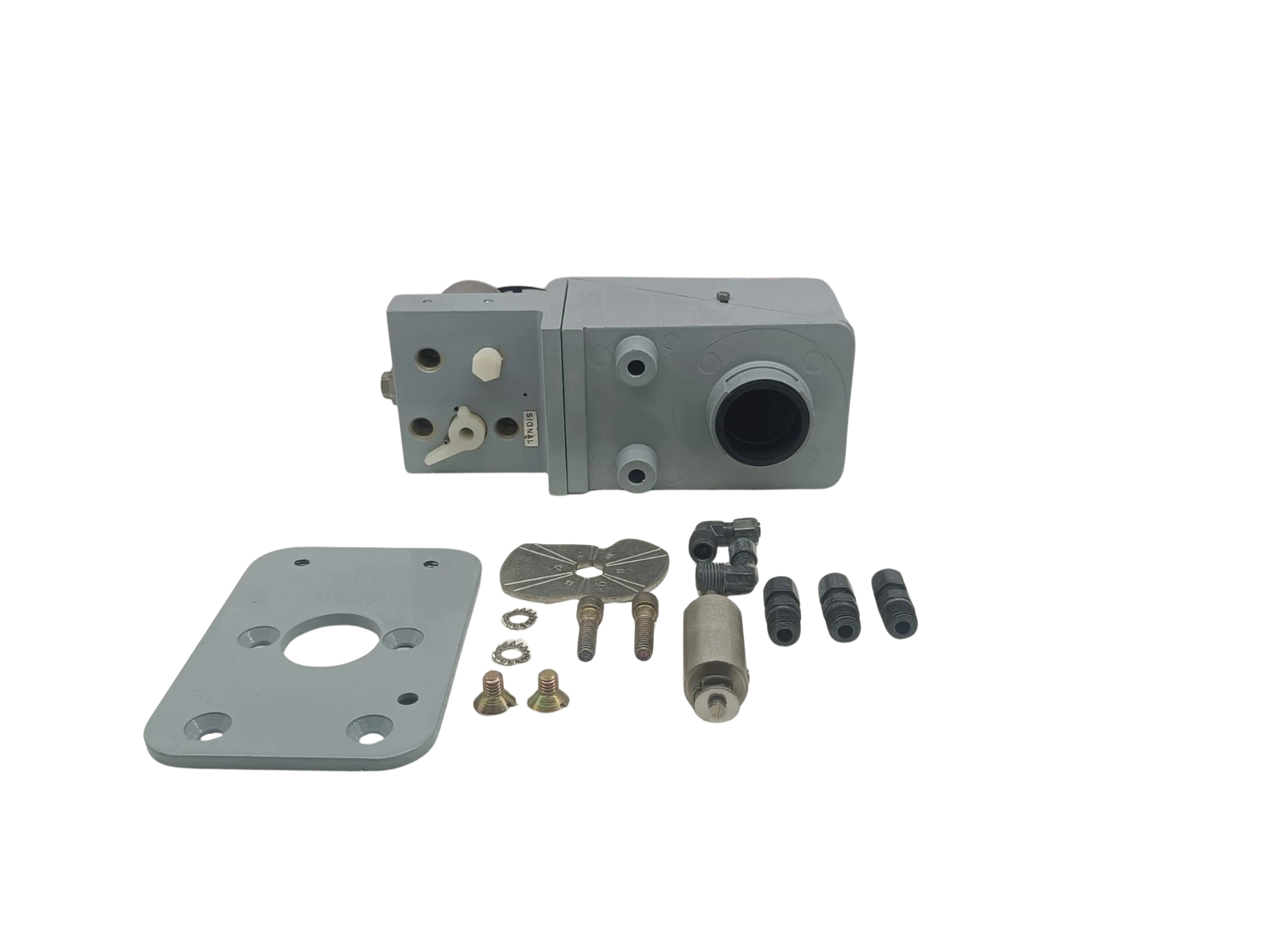

1. Direct Linkageless Shaft Coupling: Connects directly to the Camflex rotary shaft shaft pin to eliminate mechanical backlash, play, and external wear points.
2. Marine-Grade Corrosion Barrier: Finished with multi-coat epoxy polyurethane paint and stainless steel internal springs/hardware for prolonged exposure to saltwater mist and chemical atmospheres.

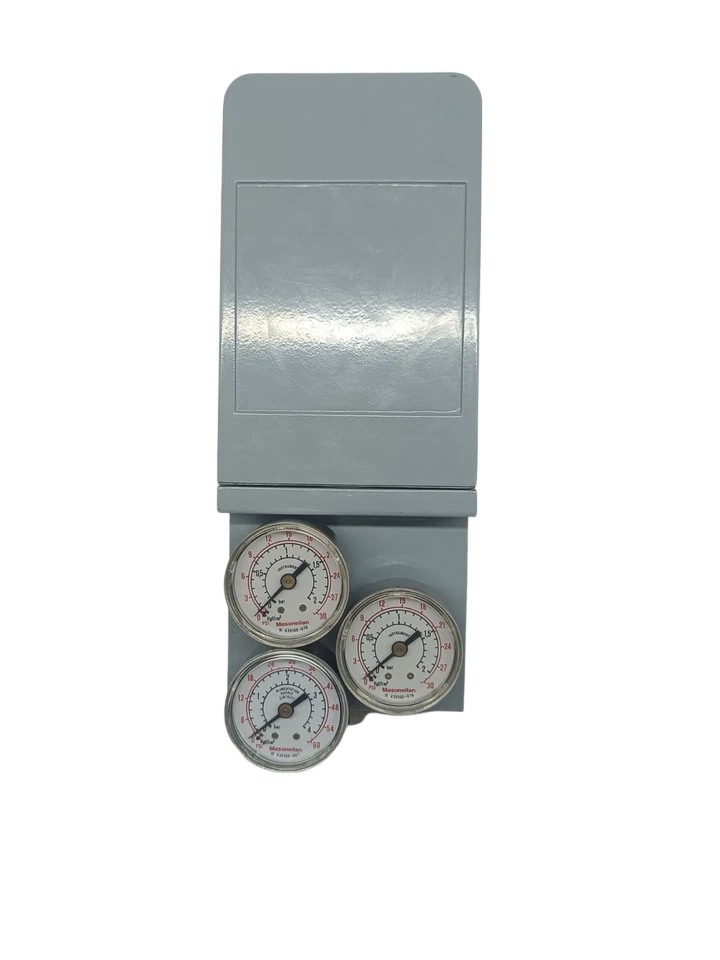

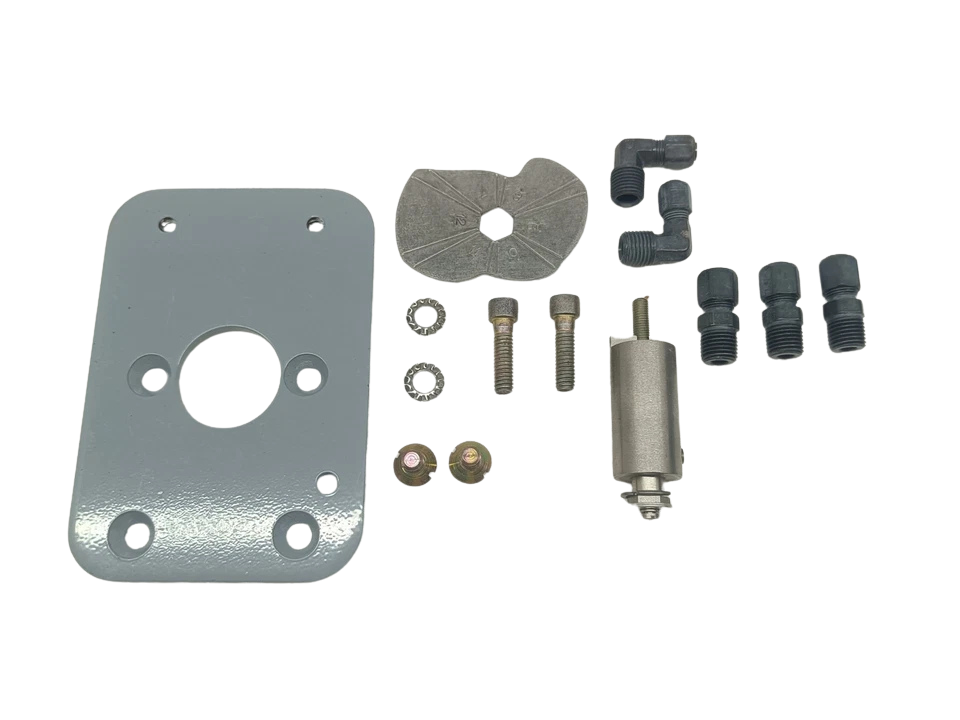

3. Characterized Feedback Cam: Ships with interchangeable cam profiles (Linear, Equal Percentage, Modified) to easily adjust system gains without changing controller loops.
4. Field Reversible Acting Mode: Simple manual reconfiguration allows seamless field conversion from Direct Acting (ATC) to Reverse Acting (ATO) without extra conversion kits.
5. Vibration-Damped Internal Pilot: Isolated spool valve and diaphragm design absorbs engine room vibration and pipeline pulsation without position drift or calibration shift.

Applications

• Marine Main Engine Auxiliary Cooling: Jacket water and central freshwater cooling temperature control loops.
• Shipboard Boiler Feedwater & Steam Systems: Pressure reduction, steam atomization, and feedwater level control.
• Offshore Oil & Gas Production: Separator level control, flare gas bypass, and Produced Water Treatment skid modulation.
• Chemical & Petrochemical Processing: Corrosive acid line control, solvent handling, and caustic wash systems.
• FPSO Cargo Handling & Ballast Management: Seawater ballast intake, cargo stripping lines, and inert gas systems.

Part Number Cross-References

• Masoneilan OEM: 4611, 4611-1, 4611-2, 4611-CR, 4711
• Legacy Positioner Equivalents: Masoneilan 8012, 8013, 4700P Series
• Digital Upgrade Path: Masoneilan SVI II AP, SVI3 Digital Valve Positioner (Direct retro-fit mounting pattern)

Chief Engineer’s Guide for Installation & Operation

• Air Filtration is Non-Negotiable: Ensure your 5-micron coalescing filter-regulator is installed within 1 meter of the positioner. Water or oil carryover from shipboard service air compressors will gum up the pilot spool, leading to hunting and sluggish response.
• Zero and Span Calibration Sequence: When recalibrating after a overhaul, always set the mechanical stop on the Camflex valve body before setting the positioner zero. Adjust zero at 3 psig (or 4 mA equivalent) first, then adjust the span screw at 15 psig. Re-check zero, as adjusting the span has a minor secondary effect on the zero position.

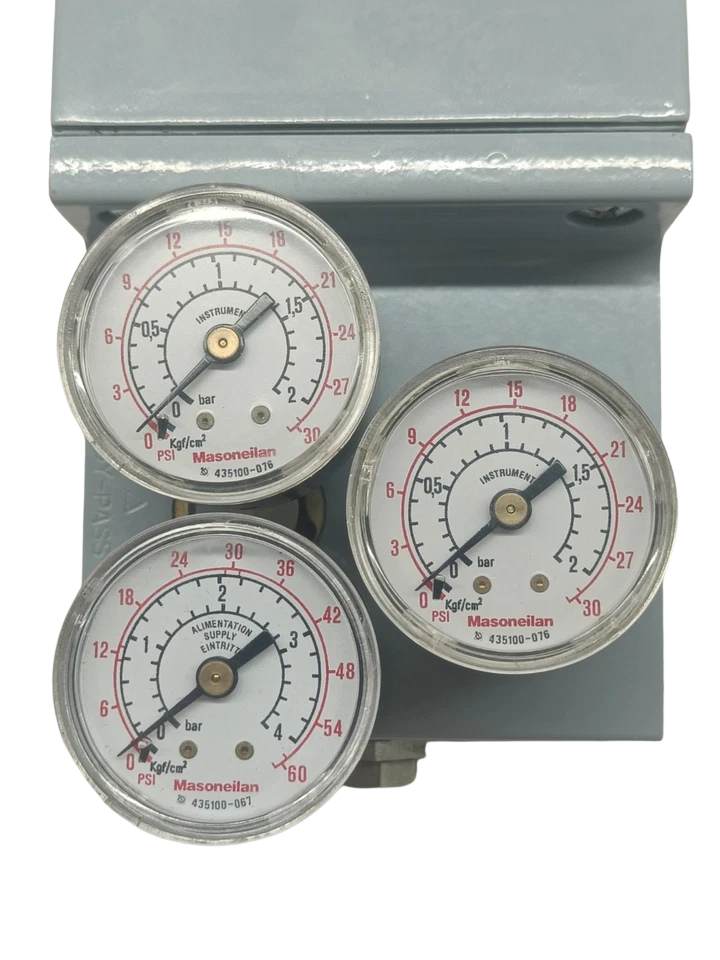

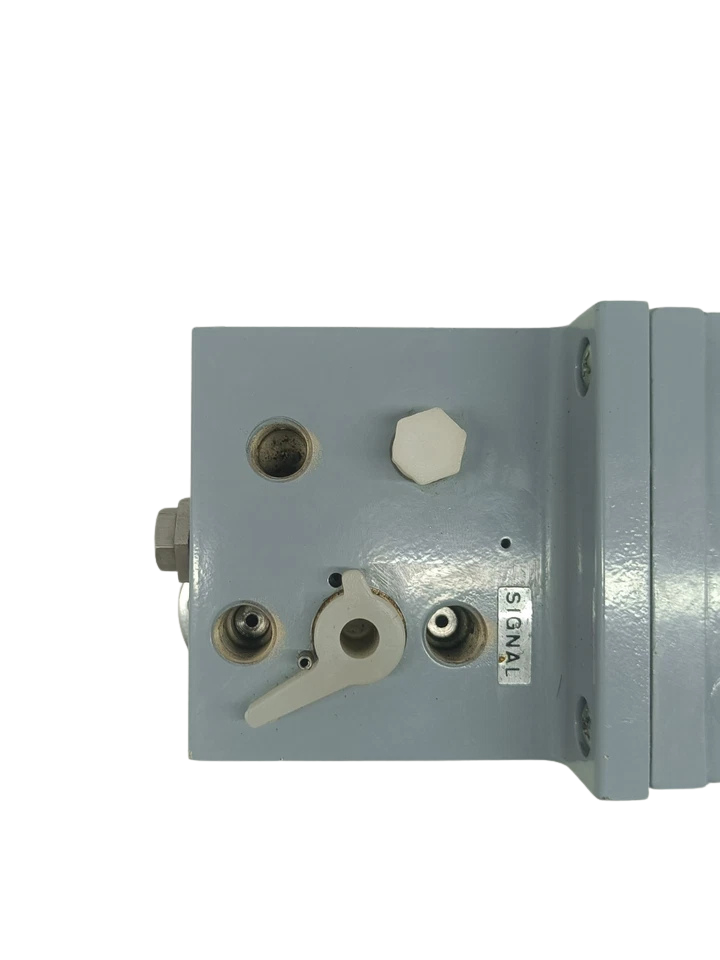

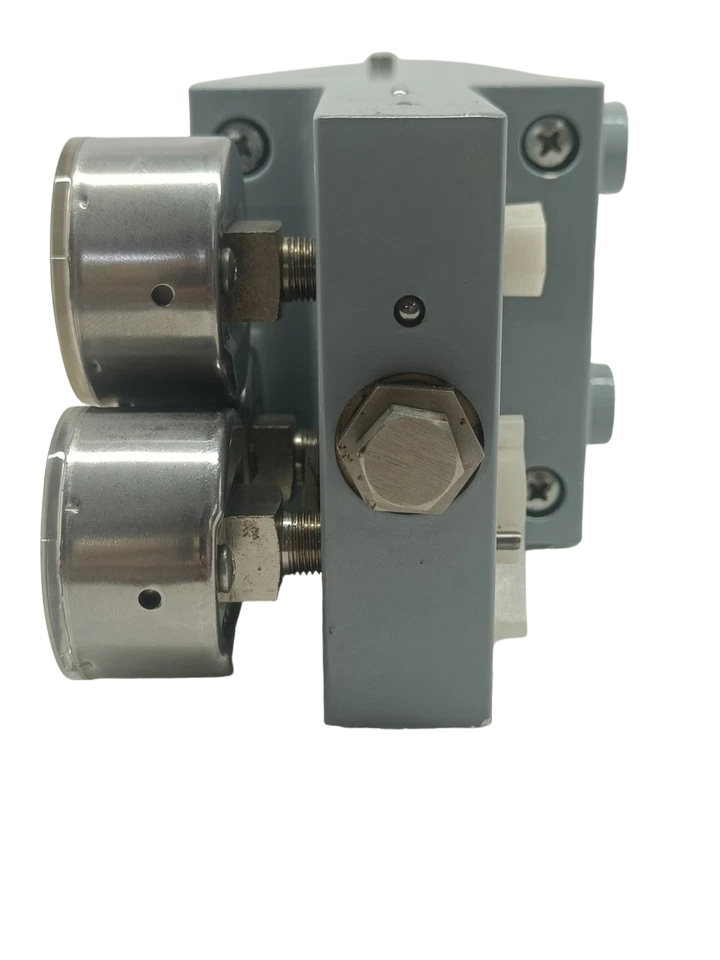

• Bleed Hole Maintenance: Inspect the breather vent/bleed orifice on the side housing during weekly rounds. If painted over during routine ship maintenance, internal backpressure builds up, causing severe control overshoot.

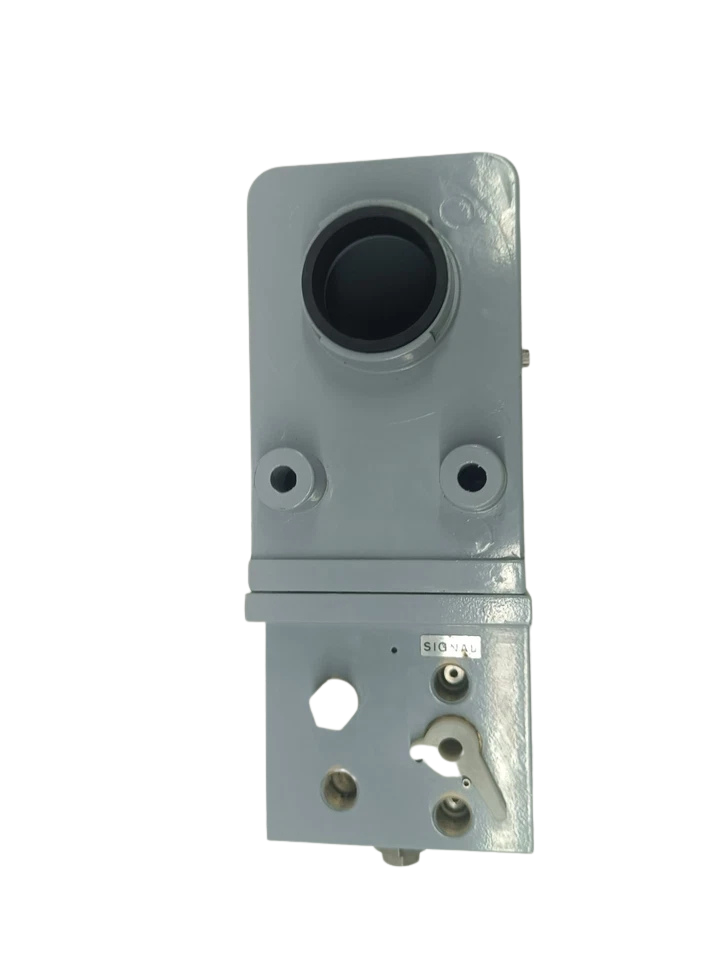

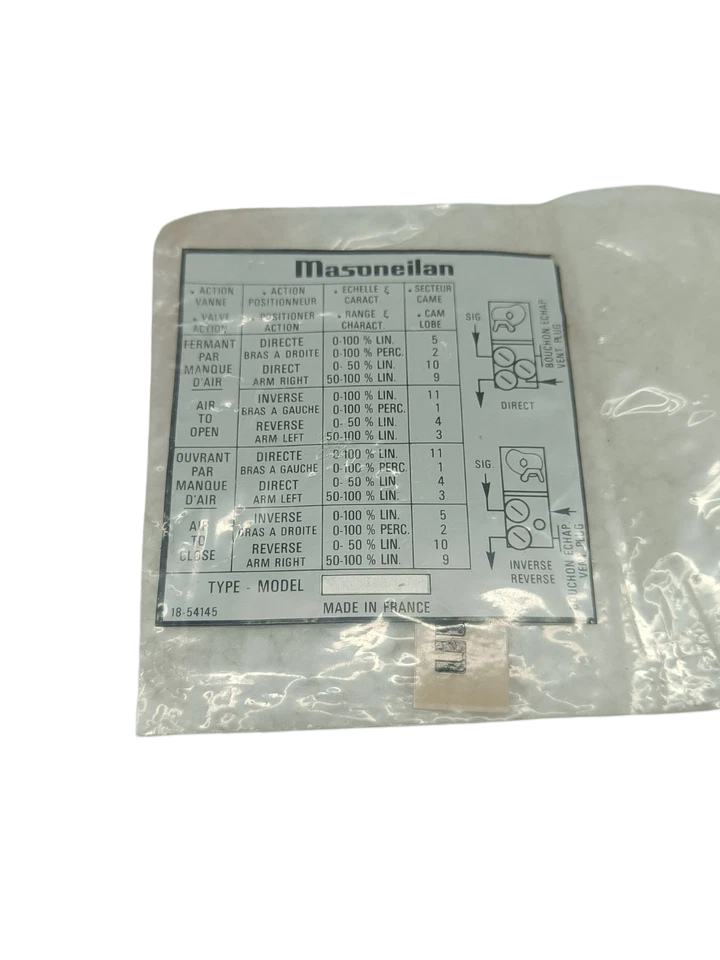

• Cam Profile Verification: Ensure the internal cam is installed on the correct face (marked ‘L’ for Linear or ‘E’ for Equal Percentage). For marine jacket water cooling loops, setting the positioner cam to Equal Percentage stabilizes loop gains under low thermal load conditions.

Frequently Asked Questions

Can the Masoneilan Type 4611 positioner be converted from direct-acting to reverse-acting in the field?

Yes. The Type 4611 positioner features a field-reversible design. By flipping the internal feedback cam and reversing the air piping to the actuator ports, you can switch between Air-to-Open (ATO) and Air-to-Close (ATC) configurations without purchasing additional conversion components.

What makes the Type 4611 specifically suitable for marine and corrosive environments?

The Type 4611 features a high-density epoxy coating, stainless steel internal springs, and an enclosed linkageless mounting system. This prevents marine salt spray, high humidity, and aggressive chemical fumes from corroding the feedback mechanism or causing mechanical binding.

How does the linkageless feedback design on the Camflex II improve control precision?

Traditional positioners use external turnbuckles, levers, and pin joints that wear out over time due to vibration, causing backlash and deadband. The Type 4611 couples directly to the rotating valve shaft of the Camflex II, delivering zero-backlash feedback and tighter process control.

Can I upgrade my analog Type 4611 positioner to a smart HART or Fieldbus digital positioner later?

Yes. The mounting footprint on the Camflex II actuator yoke is standardized. You can directly retrofit the analog Type 4611 with a digital positioner, such as the Masoneilan SVI II AP or SVI3, using standard mounting hardware kits.
