Honeywell Enraf Smart Servo 954 FLEX LINE 954AHBB-L-C11AAED

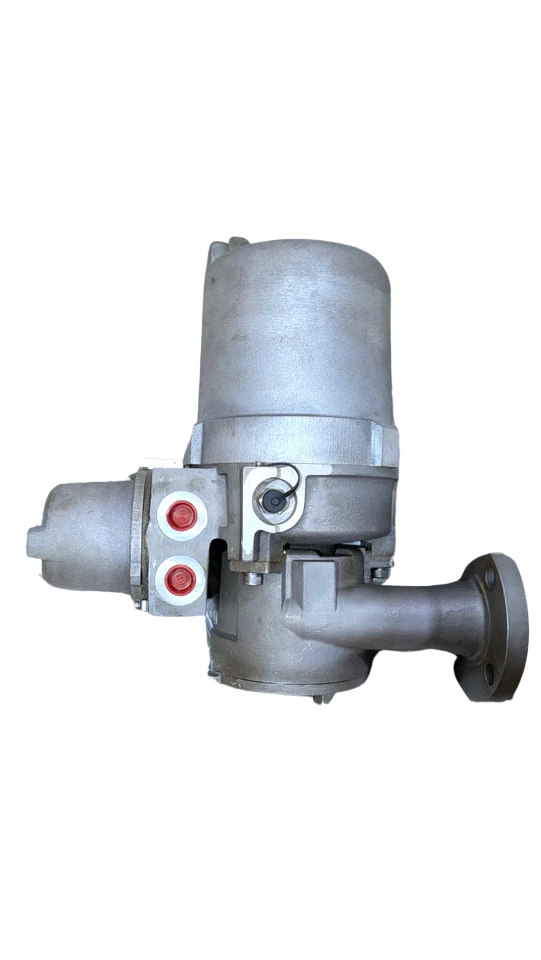

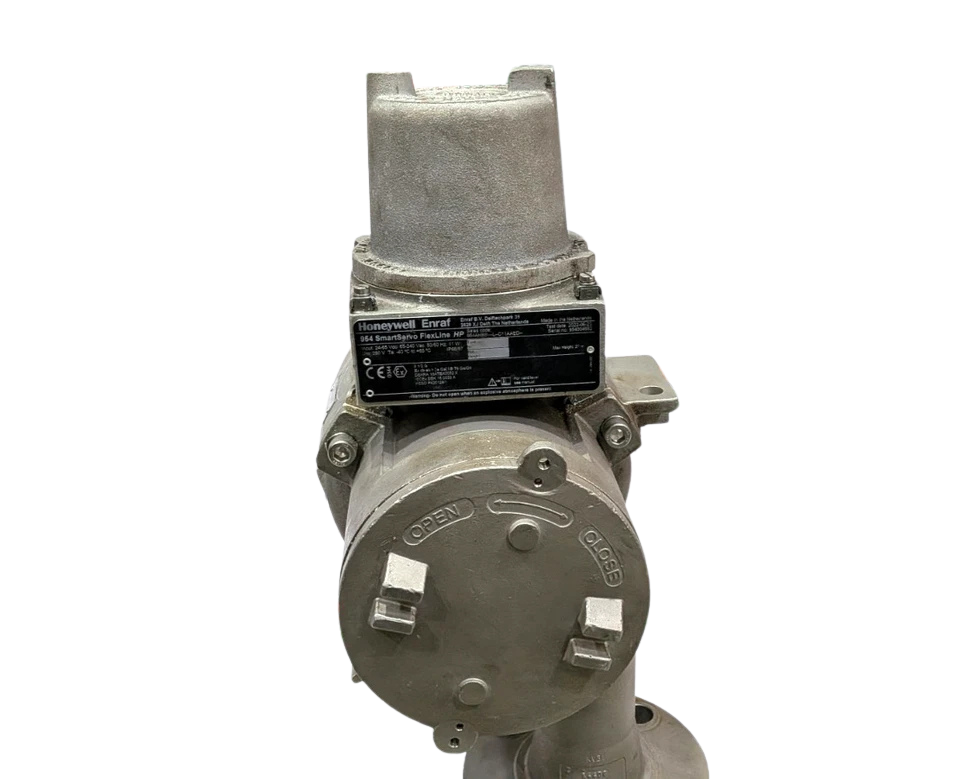

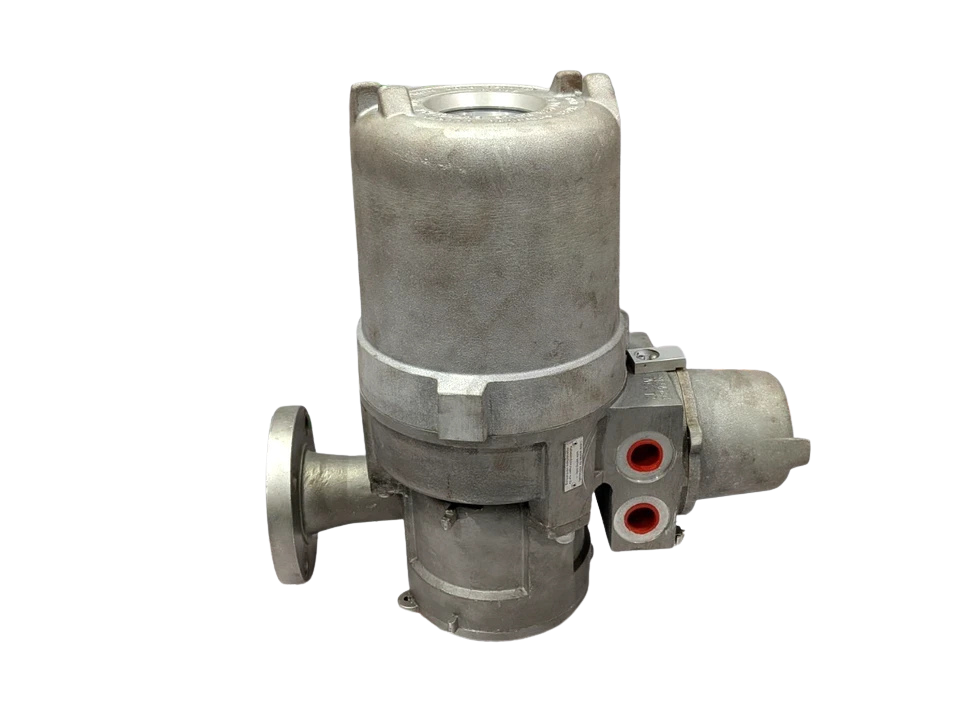

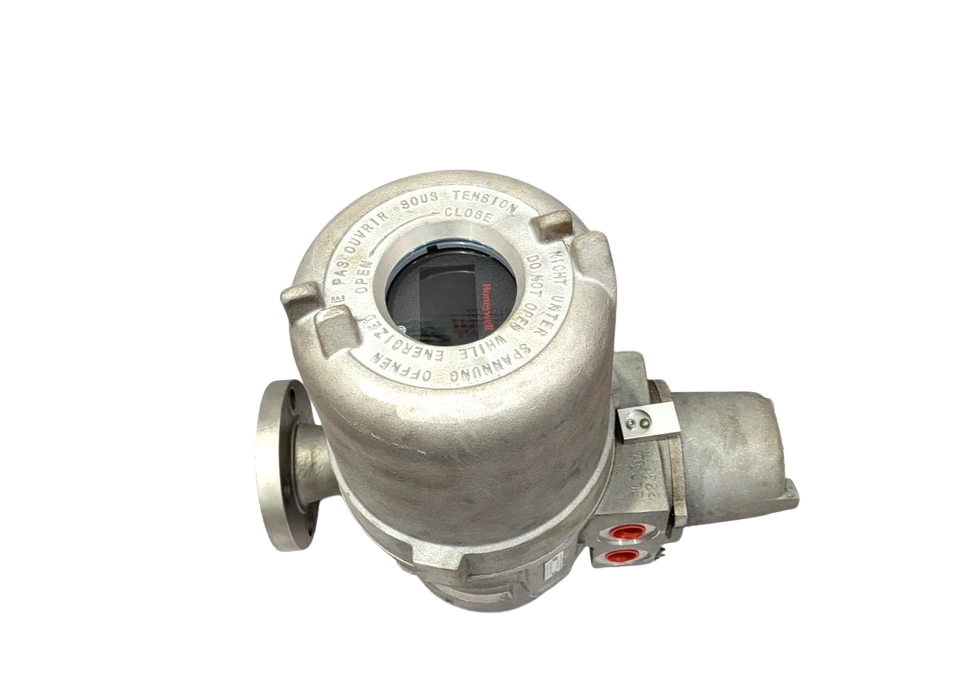

Honeywell Enraf Smart Servo 954 FLEX LINE Automatic Tank Gauge (954AHBB-L-C11AAED)

The Honeywell Enraf Smart Servo 954 FLEX LINE (Model Code: 954AHBB-L-C11AAED) represents the benchmark in continuous, custody-transfer precision liquid level measurement. Engineered for bulk liquid storage tanks, offshore production facilities, chemical storage terminals, and marine cargo applications, the 954 utilizes an advanced servo-balance mechanism capable of measuring product level, water bottom interface, and density profiles with legal metrology accuracy compliant with OIML R85, API MPMS Chapter 3.1B, and ISO 4266.

In this framework, microprocessor-managed peripheral modules (such as Host Communication Interfaces, Field Input/Output boards, and Safety Integrity Level relay matrices) operate inside a robust explosion-proof dual-compartment housing. The 954 eliminates the drift issues associated with pressure transmitters and avoids the physical deadband constraints of pulse radar gauges when handling challenging light hydrocarbons, turbulent viscous crude, or dynamic marine environments.

Model Details:

• Manufacturer: Honeywell Enraf
• Product Series: Smart Servo 954 FLEX LINE Series
• Full Order / Part Number (MPN): 954AHBB-L-C11AAED

Key Features

1. OIML R85 Legal Metrology Certification: Delivers certified custody-transfer accuracy for fiscal storage verification, billing reconciliation, and third-party custody transfer compliance.
2. SIL-2 / SIL-3 Functional Safety Integration: Designed with automated “Servo Auto Test” self-diagnostic cycles that continuously exercise the weighing balance and motor coils without disrupting process control, enabling direct inclusion in IEC 61508 SIL-2 and redundant SIL-3 safety loops.
3. Multi-Parameter Profile Acquisition: Beyond basic ullage/innage levels, the unit dynamically profiles fluid stratification: providing upper, middle, and lower product density, true water-bottom interface tracking, and continuous temperature profiling via VITO multi-element probes.
4. Modular FlexConn Board Architecture: Built-in modular electronics separate host communications, sensor inputs, and power processing on dedicated boards, allowing fast on-site servicing, field firmware upgrades, and loop conversions without breaking tank seal integrity.
5. Dual-Compartment Flameproof Isolation: The mechanical measuring drum chamber is isolated from the electronic board compartment via magnetic coupling, preventing volatile, corrosive tank vapors and pressurized gases from contacting the motor assembly or optical encoder.

Applications

• Petrochemical & Coastal Refineries: Finished product tanks, gasoline blending stations, LPG spheres, and crude storage requiring high-accuracy custody measurement.
• Marine Oil Tankers & Floating Production (FPSO/FSO): Heavy-fuel-oil (HFO), marine gas oil (MGO), and dynamic cargo tank level monitoring operating in harsh marine environments.
• Aviation & Military Fuel Depots: Jet A-1 bulk storage facilities where automated water-bottom detection is critical for fuel purity monitoring.
• Chemical Bulk Terminals: Storage tanks handling aggressive solvents, acids, aromatics, and alcohols requiring chemical-grade alloy hardware.
• Fiscal Custody Transfer & Pipeline Interconnects: Metering points where tank volume calculations must comply with international customs and excise verification standards.

Compatibility

• Enraf Communication Infrastructure: Connects natively to Honeywell Enraf Communication Interface Units (CIU 858, CIU 880, CIU 888) over Bi-Phase Mark (BPM).
• Supervisory Inventory Software: Interfaces smoothly with Honeywell Entis Pro, Experion PKS, and third-party SCADA software utilizing Modbus RTU/TCP or GPU protocol translators.
• Tank Accessories & Sensors: Direct plug-and-play field pairing with VITO 762 multi-element average temperature transmitters, VITO LT bottom water probes, and high-precision RTD assemblies.
• Retrofit Capabilities: Engineered to replace legacy servo units—including the Enraf Series 854 ATG and 854 XTG—without altering existing mounting flanges, stilling wells, or field cable runs.

Part Number Cross-References

• Honeywell Enraf: 954AHBB-L-C11AAED / 954-AHBB-L-C11AAED
• Predecessor Legacy Models: 854ATG, 854XTG, 854 Advanced Technology Gauge
• Equivalent Migration Configurations: 954AHBA-L-C11AAED, 954AHBB-0-C11AAED
• Displacer Assemblies: Enraf P/N S0854901 (AISI 316 cylindrical displacer) / S0854902

Frequently Asked Questions

What does the model code 954AHBB-L-C11AAED signify?

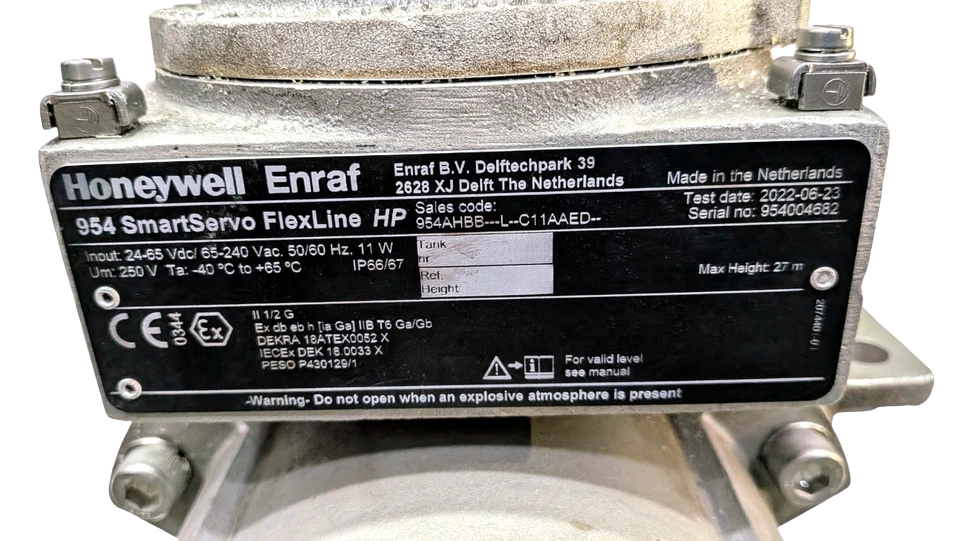

This specific model designates a Honeywell Enraf 954 Smart Servo Gauge configured with an aluminium drum housing, high-performance custody accuracy ±0.4 mm, an integrated graphic display with SmartView interface, Bi-Phase Mark (BPM) host communication, 1x SIL-2 digital output relay, auxiliary VITO/HART board, autoselecting 65–240 VAC / 24–65 VDC power supply, ATEX/IECEx explosion-proof ratings, and a 27-meter AISI 316 measuring wire assembly.

Can the Honeywell Enraf 954 gauge be used directly in overfill prevention systems?

Yes. The 954AHBB configuration includes an integrated SIL digital output (DO) contact specifically designed for overfill safety shutdown systems. The unit’s internal Servo Auto Test continuously verifies motor movement, weighing sensitivity, and relay actuation, satisfying IEC 61508 SIL-2 safety loop requirements (and up to SIL-3 in dual-instrument architectures).

How does the 954 measure density and water interface?

The instrument’s micro-step motor raises and lowers a calibrated cylindrical displacer through fluid boundaries. By continuously monitoring the apparent weight of the displacer via high-precision force sensors, the gauge calculates the exact immersion level where buoyancy shifts. This provides water bottom detection, hydrocarbon/water interface monitoring, and continuous vertical density profiling throughout the tank.

What is the advantage of Enraf Bi-Phase Mark (BPM) fieldbus communication?

Bi-Phase Mark communication is an industrial 2-wire serial transmission standard developed specifically for liquid storage terminals. It operates over long cable distances (up to 10 kilometers) without requiring external repeaters, has high immunity to electrical transients, and utilizes transformer isolation to protect instrumentation from ground potential differences and lightning surges across tank farms.

Can I upgrade my older Enraf 854 ATG to the Smart Servo 954 without tank hot-work?

Yes. The 954 series uses matching flange dimensions, identical displacer chamber centerlines, and compatible electrical connection schemes. It mounts directly onto standard 2-inch ANSI 150 lbs nozzles or existing gauge hatches without hot work, cutting, or tank degassing. The existing fieldbus lines can be wired directly into the new unit’s FlexConn terminal blocks.
