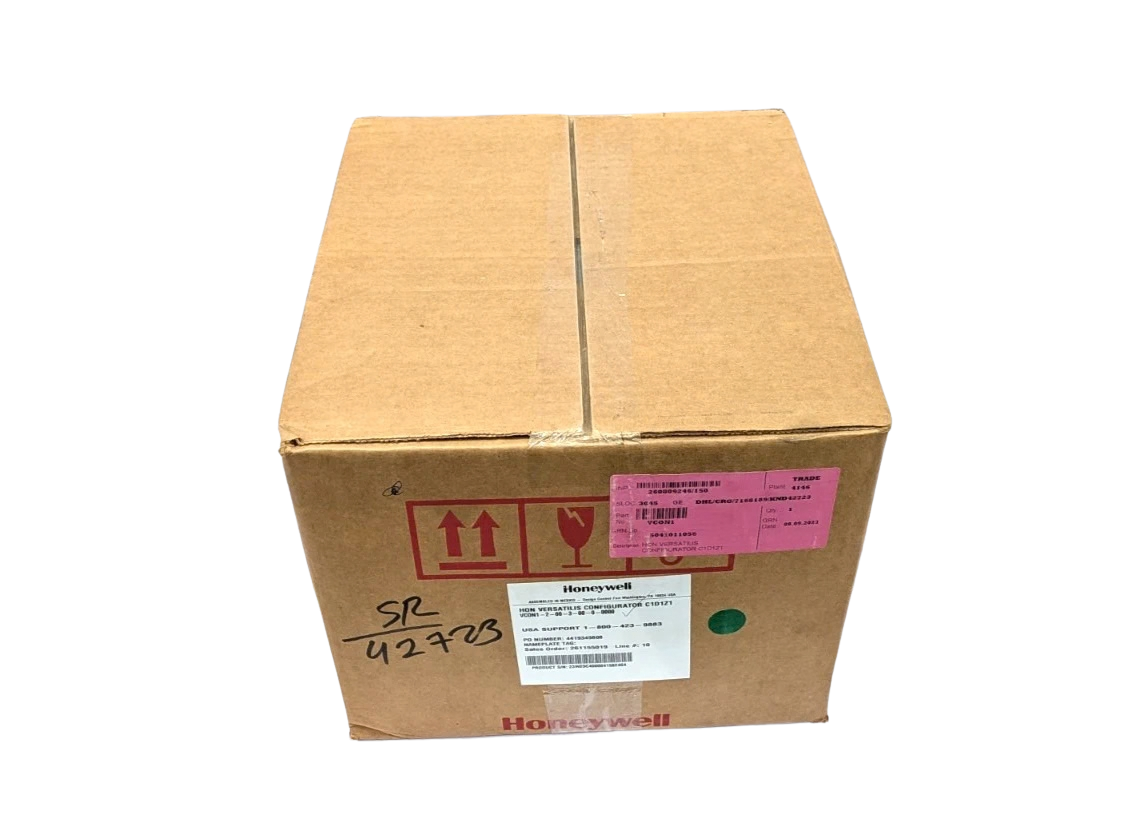

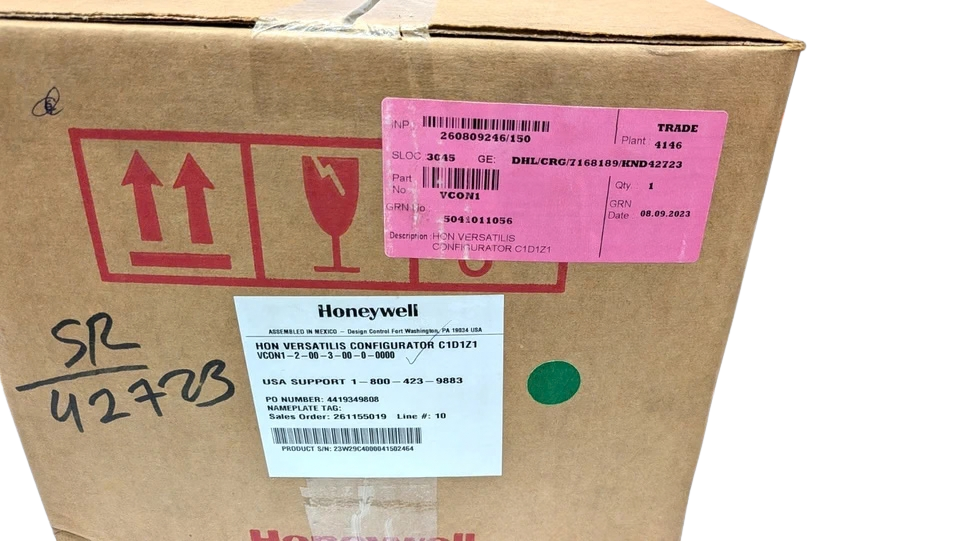

Honeywell VCON1-2-00-3-00-0-0000 Versatilis Configurator C1D1/Z1

Honeywell VCON1-2-00-3-00-0-0000 Versatilis Configurator (IS C1D1 / Zone 1)

The Honeywell Versatilis Configurator (Model: VCON1-2-00-3-00-0-0000) is an intrinsically safe, Class I Division 1 / Zone 1 field communicator and interface platform designed for configuration, calibration, diagnostics, and monitoring of smart instrumentation across hazardous industrial and offshore marine environments. Engineered to consolidate multiple legacy field tools into a single platform, the VCON1 hardware architecture pairs universal digital and analog physical layers with a dedicated intrinsically safe modem head.

The base hardware architecture communicates via physical loop interfaces (banana-to-minigrabber hookups) or integrated wireless links (Bluetooth Low Energy / Wi-Fi) to an industrial-grade tablet or mobile interface. It delivers complete lifecycle device support across HART (5, 6, 7, and HART-IP), Honeywell Digitally Enhanced (DE), and Modbus RTU over RS-485 protocols. Built to withstand marine engine-room vibrations, offshore salt spray, and refinery atmospheres, the VCON1 is built for high duty-cycle field commissioning and troubleshooting.

Model Details:

• Manufacturer: Honeywell Process Solutions
• Product Line: Honeywell Versatilis™
• Base Model: VCON1
• Full Part Number (MPN): VCON1-2-00-3-00-0-0000
• Form Factor: Intrinsically Safe Field Modem / Handheld Configurator Head

Technical Specifications

Key Features

1. Universal Multi-Protocol Engine: Native physical layer transceivers support HART (HART 5, 6, 7), proprietary Honeywell Digitally Enhanced (DE), and Modbus protocols without requiring external loop adapters.
2. Intrinsically Safe Certification (C1D1 / Zone 1): Fully certified under ATEX, IECEx, and cFMus for deployment in explosive gas and dust atmospheres without hot-work permits.
3. Integrated Loop Power Generation: Onboard 24V DC loop power capability with internal selectable 250Ω HART termination resistor eliminates the need for external bench supplies during bench testing or dry-loop commissioning.
4. Galvanic Isolation Protection: 500V AC/DC galvanic isolation between loop terminals and internal system logic shields host devices and laptops from common-mode noise, field surges, and stray engine-room earth faults.
5. Wireless Offload & Mobility: Dual BLE (Bluetooth Low Energy) and Wi-Fi interface lets engineers configure closed-cabin transmitters up to 10 meters away from hazardous point-of-measurement locations.

Compatibility

• Honeywell Transmitters: ST 3000 (DE & HART), SmartLine ST 700 / ST 800 series (Pressure, DP, Flange-mount), SMV 3000 / 800 Multivariable, STT 3000 (STT170, STT250, STT850) Temperature Transmitters, SLG 700 Guided Wave Radar.
• Third-Party HART Transmitters: Rosemount (3051S, 3051C, 644, 3144P), Yokogawa (EJA-E, EJX-A series), ABB (266 series), Endress+Hauser (Cerabar, Deltabar, Promass).
• Control Valve Positioners: Honeywell Smart Valve Positioners (SVP 100/300), Fisher FIELDVUE (DVC6000, DVC6200), Flowserve Logix 3200MD/3800, Samson 3730.
• Marine Automation Platforms: Kongsberg Maritime K-Chief 600 / K-Gauge, Wärtsilä Nacos Platinum, Valmet DNA Marine automation transmitters, Framo cargo pumping hydraulic pressure transmitters.

Applications

• Marine & Offshore Engineering: Routine zero-trimming, span calibration, and health diagnostics of boiler water level DP transmitters, fuel oil service pressure transducers, and inert gas system (IGS) pressure monitors.
• Floating Production (FPSO) & Tanker Operations: Closed-manifold cargo tank radar gauge configuration, deepwell pump discharge pressure switch commissioning, and vapor recovery line loop checks in hazardous cargo deck zones.
• Downstream Petrochemical & Refining: Field commissioning of SIL-rated safety instrumented system (SIS) pressure switches, temperature loops, and boundary control valves.
• Power Generation & Industrial Steam: Maintenance of flue gas draft sensors, feed pump delivery pressure cells, and Honeywell legacy DE-based differential pressure transmitters on marine water-tube boilers.

Frequently Asked Questions

Can the Honeywell VCON1 replace our old Honeywell MC Toolkit (MCT404 / MCT202)?

Yes. The VCON1 is the direct technology replacement for both the MCT404 and the legacy MCT202/SFC communicators. It provides native legacy Honeywell DE (Digitally Enhanced) support along with complete HART 5, 6, and 7 device communication, running on modern tablet/mobile operating platforms.

Does the VCON1 require an external 250-ohm resistor when communicating with an unpowered transmitter?

No. When you set the VCON1 to Active Loop Power mode (generating 24V DC), the device firmware automatically engages an internal 250-ohm resistor into the physical circuit. If you are tying into an already-energized loop from an external power supply or PLC/DCS analog input card, the internal resistor stays disengaged automatically to prevent signal drop and loop loading.

Can I run the Versatilis application on any commercial Android or Windows tablet?

The VCON1 modem head interfaces over encrypted Bluetooth/Wi-Fi to standard Android and Windows 10/11 platforms. However, if you are operating inside a Class I, Div 1 or Zone 1 classified hazardous area, the host tablet or PC running the Versatilis software must also be certified to the equivalent hazardous area rating (e.g., ATEX/IECEx Zone 1 certified rugged tablet).

How does the VCON1 handle mixed HART and Modbus equipment?

The hardware interface houses independent line driver transceivers. By swapping lead taps to the RS-485 balanced lines and switching mode inside the software suite, the operator can troubleshoot Modbus RTU drop addresses, parity mismatches, and baud rates on multi-drop networks, eliminating the need to carry a second serial converter.

What is the primary cause of communication timeout errors when connecting to field instruments?

The most frequent cause is insufficient loop impedance. A HART signal requires a minimum loop resistance of 230 Ohms (nominal 250 Ohms) to develop the alternating FSK voltage signal. If the loop is powered directly by a stiff 24V DC power supply without an in-line resistor or high-impedance barrier, the communicator cannot read the device. Ensure the VCON1 internal loop resistor is enabled in your connection profile.
