Johnston Fluid Power BGRP-201-1AH Pressure Control Valve

Johnston Fluid Power BGRP-201-1AH Pressure Control Valve

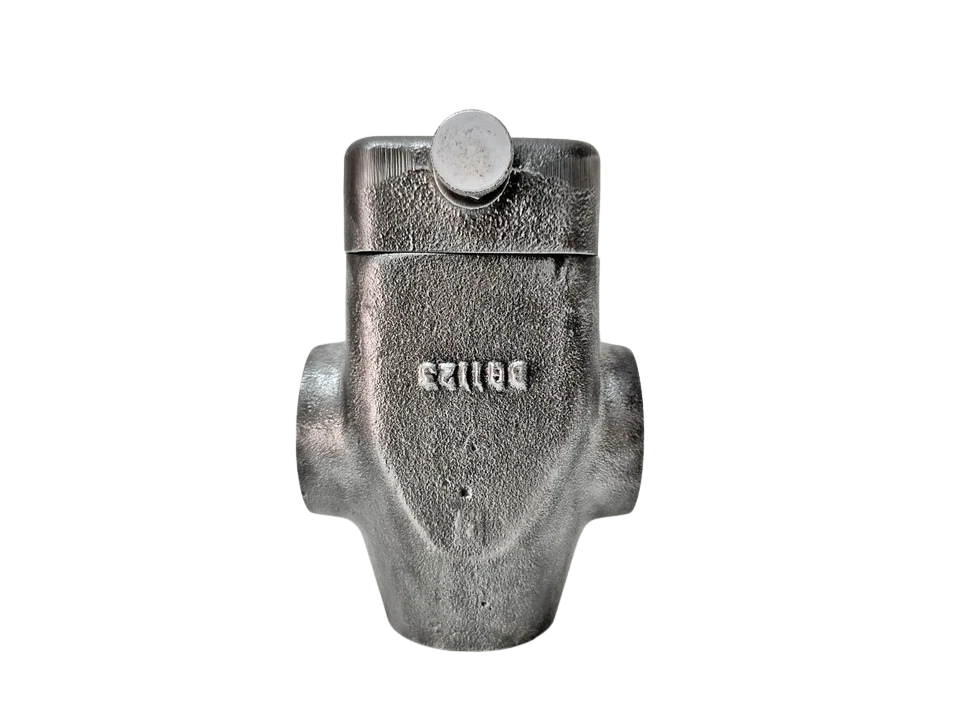

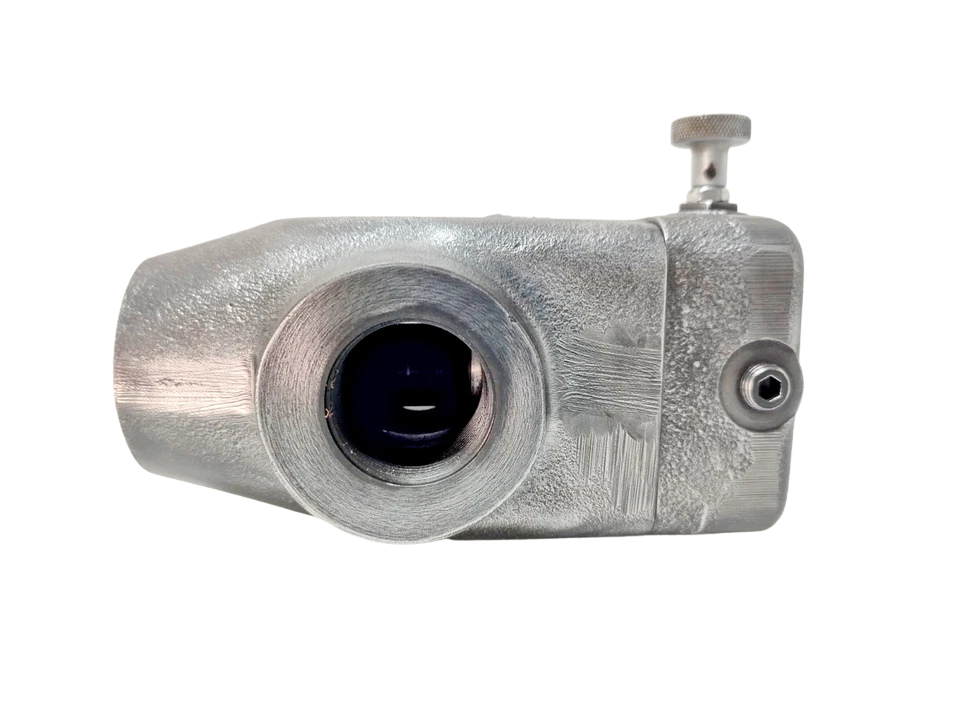

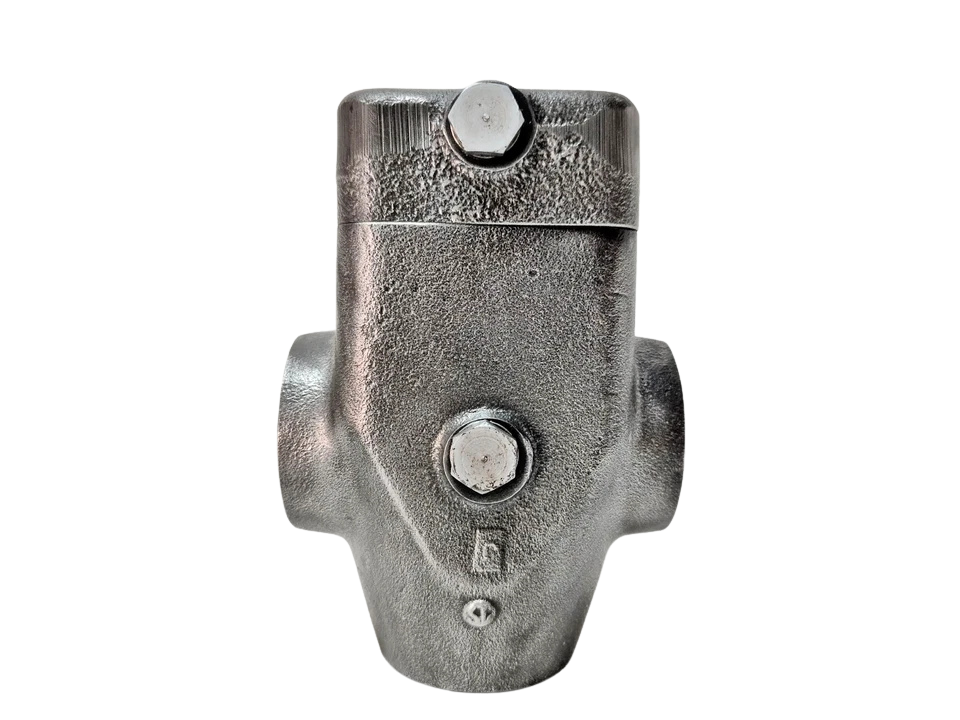

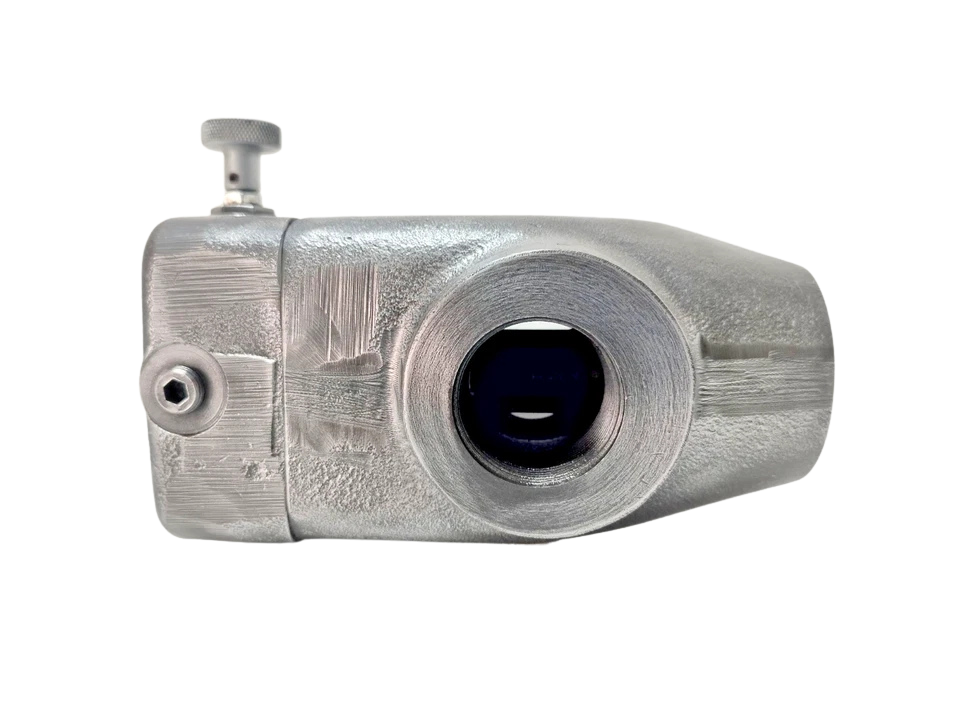

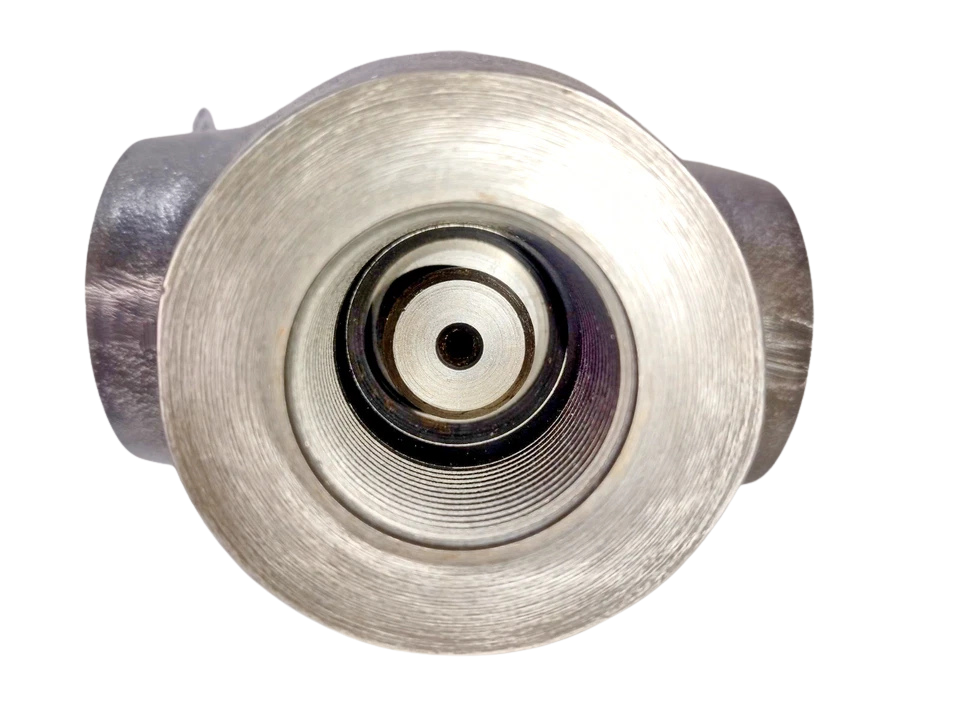

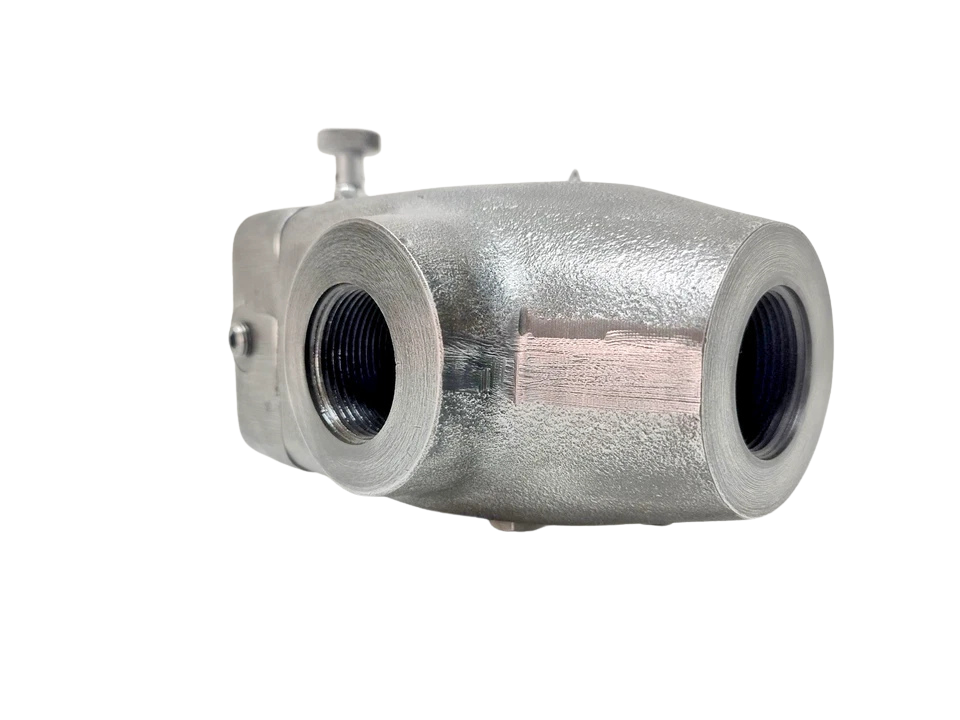

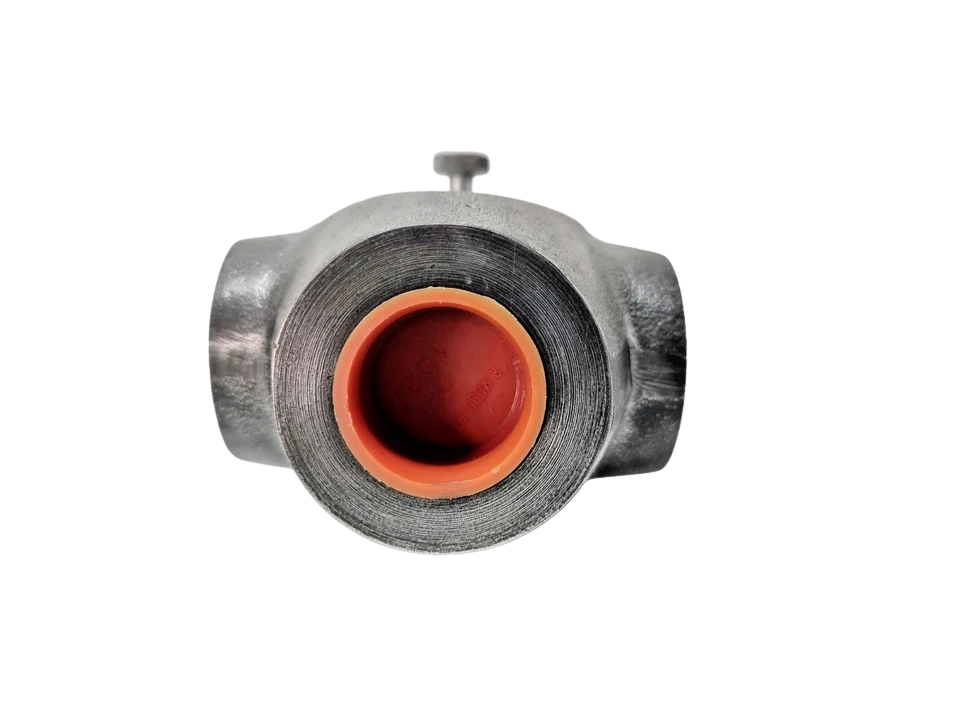

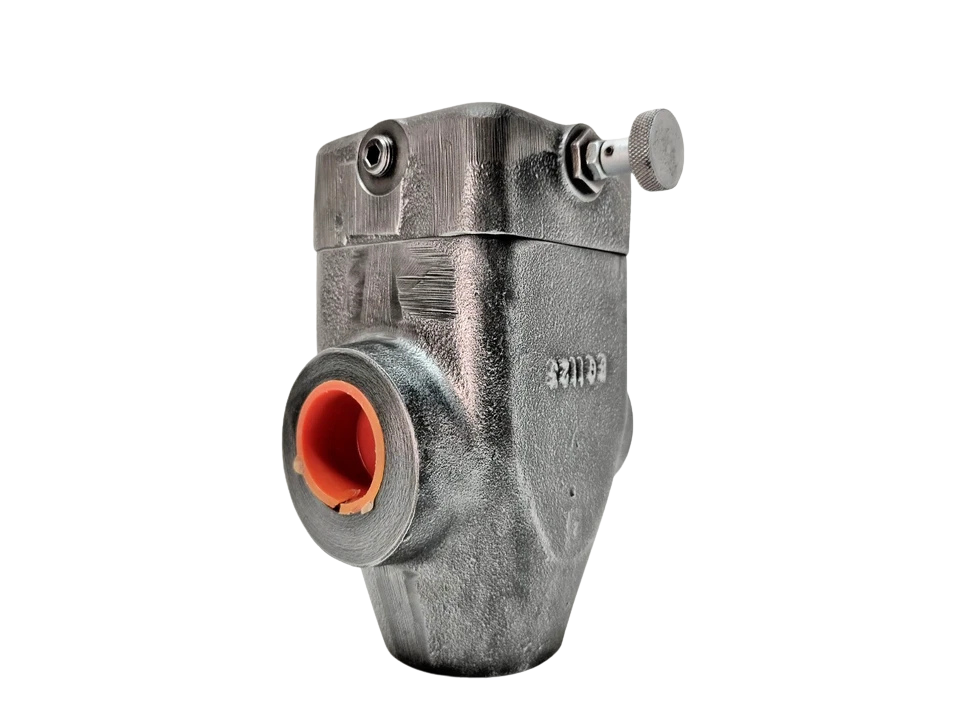

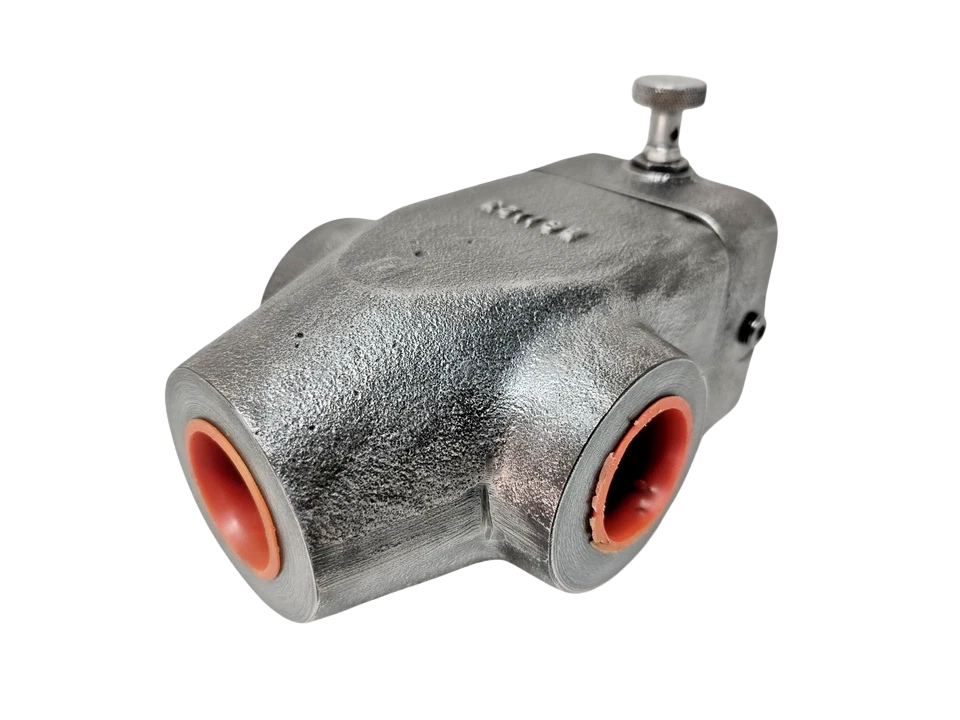

The Johnston Fluid Power BGRP-201-1AH is a pilot-operated hydraulic pressure control valve engineered specifically for high-demand maritime, offshore, and heavy industrial hydraulic power units (HPUs). Manufactured with a ductile iron body and hardened steel internal spool-and-sleeve cartridges, the BGRP-201-1AH handles continuous line pressures up to 350 bar (5,075 psi) and nominal flow rates up to 200 L/min (53 GPM).

This model integrates internal pilot pressure regulation with direct tank draining, minimizing system pressure spikes, hydraulic chatter, and cavitation across fluctuating thermal regimes. The “-1AH” suffix designates an external hex-adjuster with locknut configuration, Viton (FKM) fluorocarbon elastomeric packings for synthetic or high-temperature ester oils, and subplate surface mounting conforming to standard ISO 6264 interfaces.

Model Details:

• Manufacturer / Brand: Johnston Fluid Power

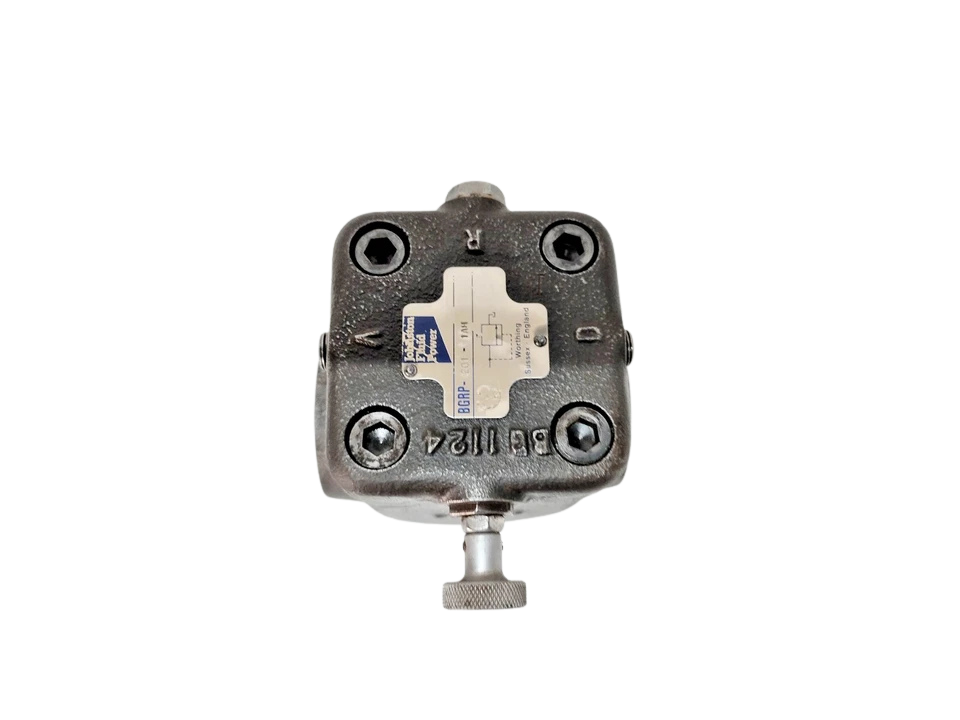

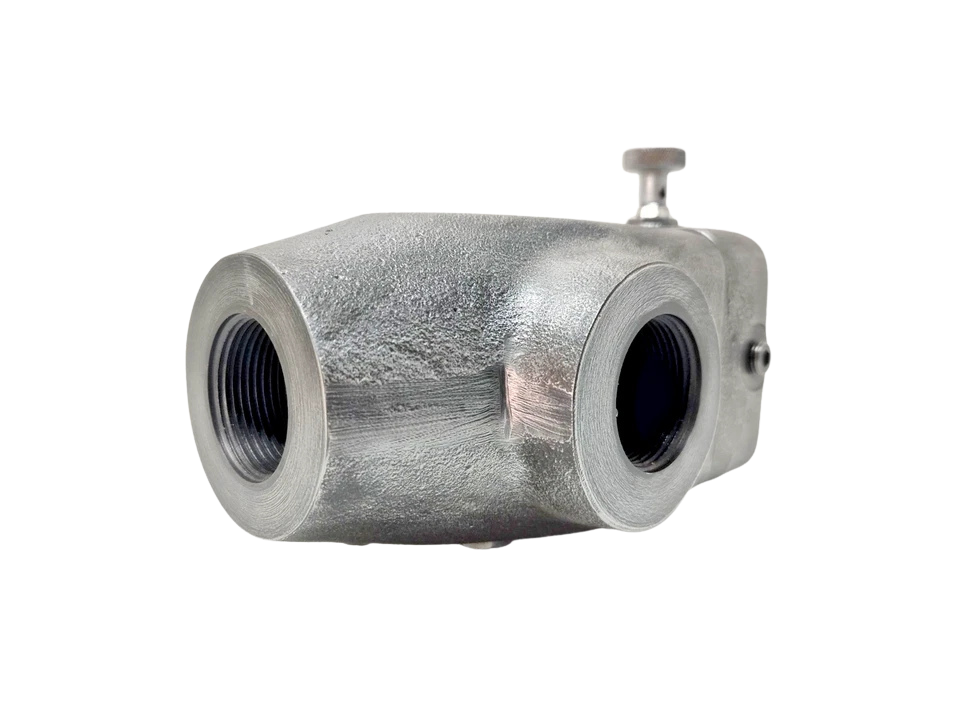

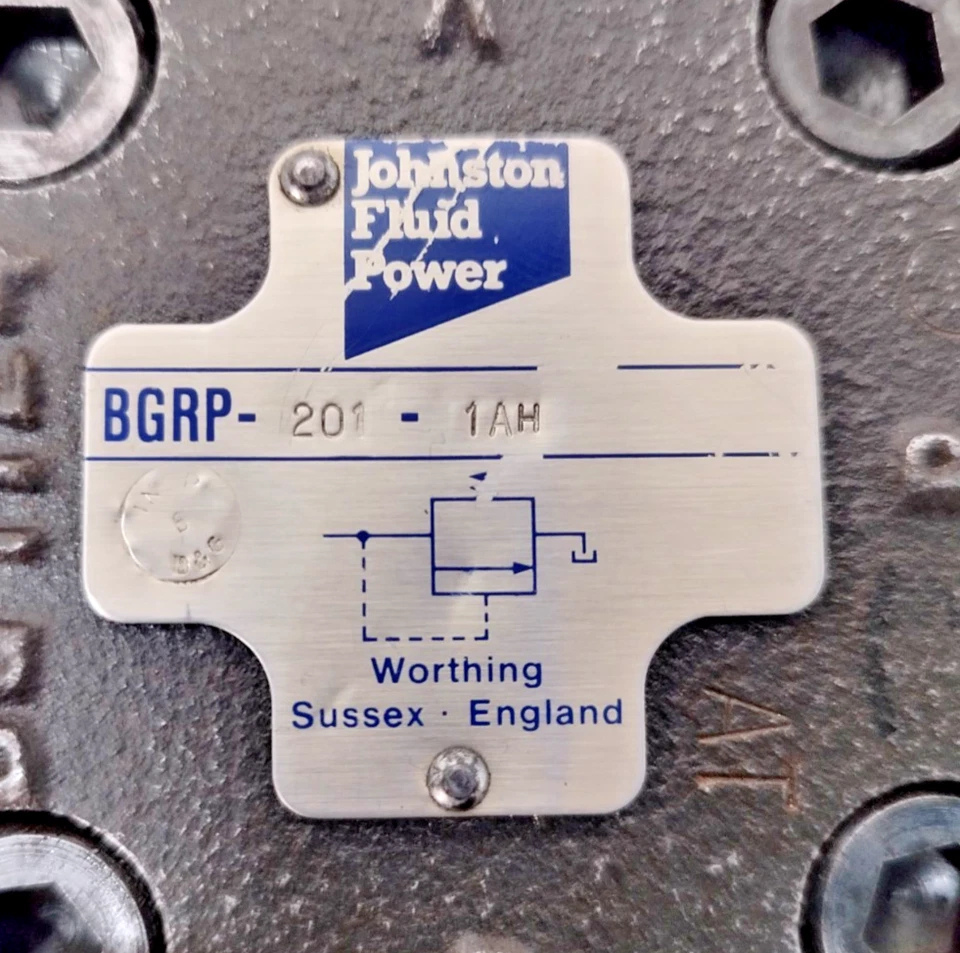

• Model Code: BGRP-201-1AH
• Manufacturer Part Number (MPN): BGRP-201-1AH-V-01
• Condition: Brand New (Original OEM factory crated, zero operating hours, preserved with protective storage wax)
• Lead Time / Shipping Info: In stock for same-day

Features

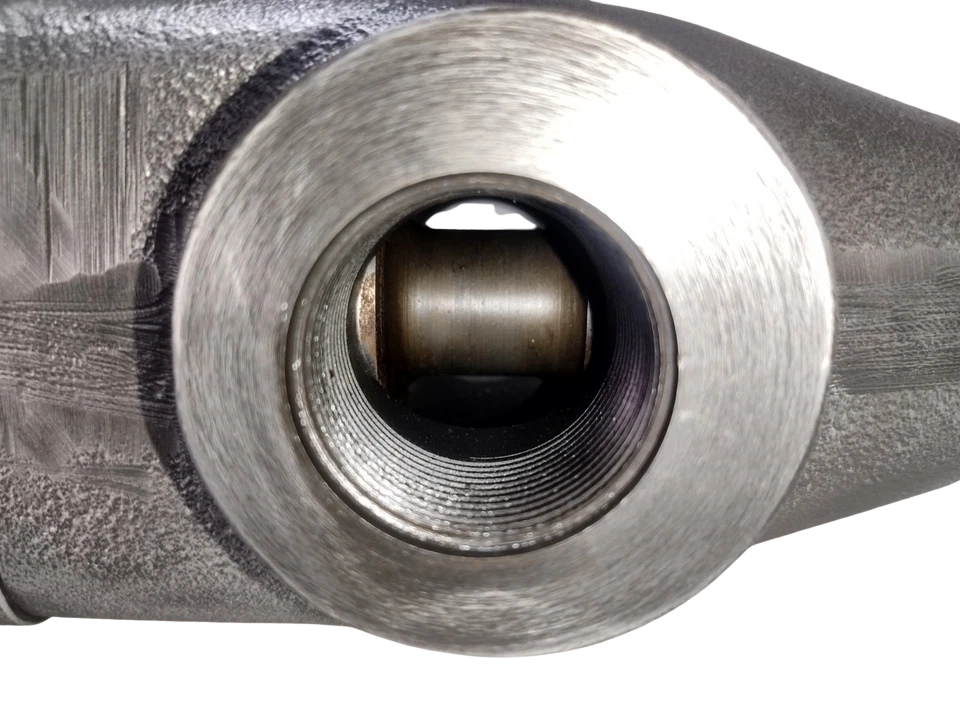

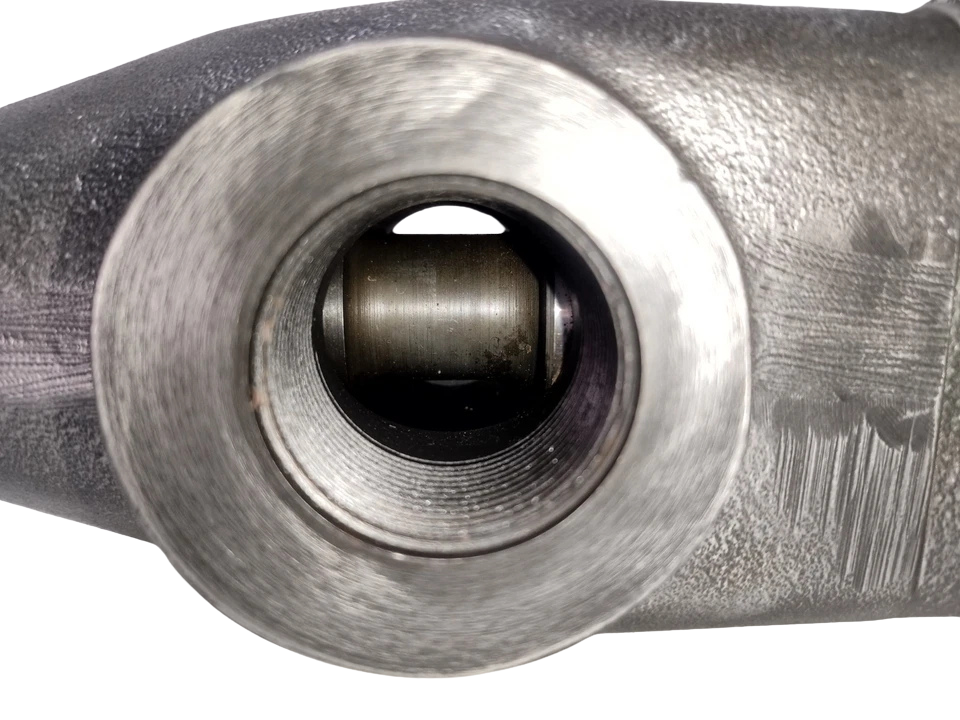

1. Balanced Piston Cartridge Architecture: Features a hardened ground-steel spool and honed sleeve geometry that prevents pilot-stage binding during thermal cycling and high differential transients.
2. Rapid Response with Low Hysteresis: Engineered with dynamic balance orifices delivering full relief cut-off response in under 25 milliseconds, maintaining pressure hysteresis below 2.5% across full flow ranges.
3. Corrosion-Resistant External Finish: Finished with a marine-grade zinc-nickel trivalent passivation coating (1,000-hour salt spray test rating to ASTM B117) to prevent oxidation on exposed offshore decks.
4. Integrated Damping Circuit: Incorporates a mechanical dampening dashpot assembly that suppresses cavitation, high-frequency line vibration, and resonance generated by axial piston pump displacement harmonics.
5. Standardized Manifold Footprint: Directly mounts to standardized ISO 6264-06 footprint interfaces, enabling plug-and-play drops into hydraulic systems without manifold re-machining.

Part Number Cross-References

• Bosch Rexroth: DB10-1-5X/315, DB10-2-5X/350XY
• Eaton Vickers: CG-06-B-10, C-175-F-20
• Parker Hannifin: R4V06-533-11-A1
• Yuken: BG-06-32, BG-06-H-32
• Denison Hydrolux: R4V06 series subplate mount

Frequently Asked Questions

What is the primary function of the Johnston Fluid Power BGRP-201-1AH valve?

The Johnston Fluid Power BGRP-201-1AH is a pilot-operated hydraulic pressure relief valve. It limits maximum pressure within a hydraulic system by opening and dumping excess fluid from the main pressure line (P) back to the reservoir (T) whenever system line pressure reaches the user-adjusted spring setting.

How do I adjust the set pressure on the BGRP-201-1AH?

Remove the protective threaded aluminum cap on top of the valve to expose the internal socket-head set screw and locknut. Loosen the locknut using a standard wrench. Turn the set screw clockwise to increase relief cracking pressure, or counterclockwise to lower operating pressure. Monitor changes via an isolated pressure gauge connected to the G 1/4″ test port. Once calibrated, retighten the locknut to prevent drift caused by system vibration.

Can the BGRP-201-1AH valve handle synthetic and environmentally acceptable fluids (EALs)?

Yes. The BGRP-201-1AH comes standard with high-specification FKM (Viton) dynamic and static O-rings. These seals resist chemical degradation when exposed to modern synthetic esters, biodegradable marine hydraulic oils (HEES/VGP-compliant oils), and conventional petroleum-based mineral oils (ISO VG 32, 46, and 68).

Can the BGRP-201-1AH directly replace a Bosch Rexroth or Vickers valve?

Yes. The BGRP-201-1AH utilizes an ISO 6264-06 mounting pattern, making it a direct drop-in replacement for standard CETOP 06 subplate-mounted pressure control valves, including the Rexroth DB10 series and Vickers CG-06 series, without requiring piping modifications.
