Kongsberg OST/HS MP530 Maritime System Backup CD Set 1-4

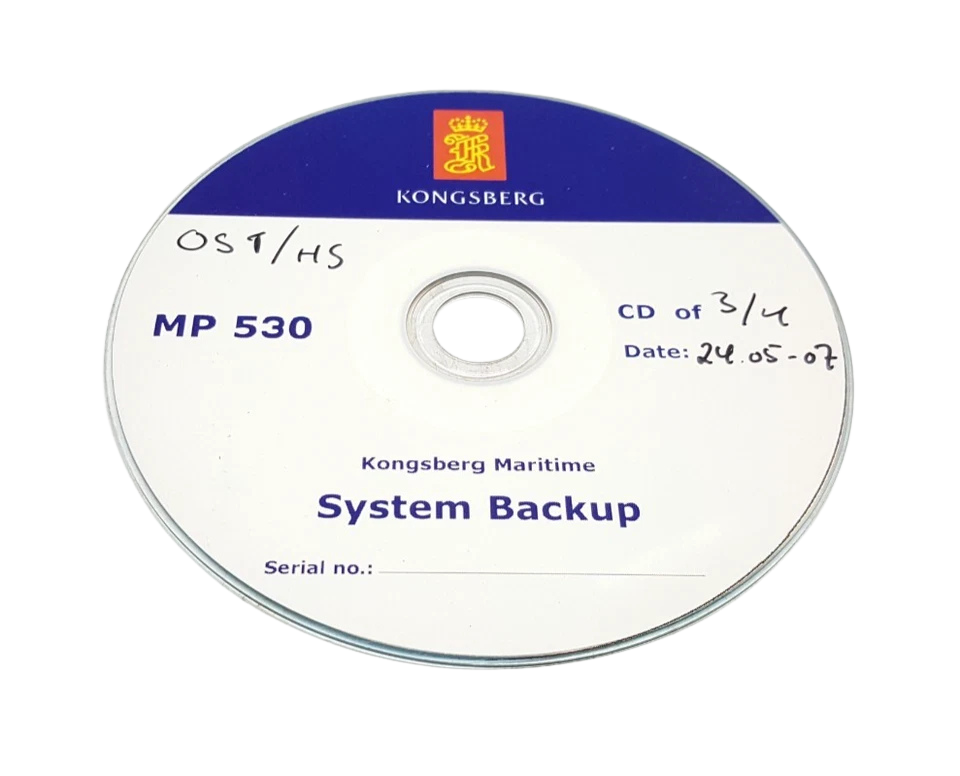

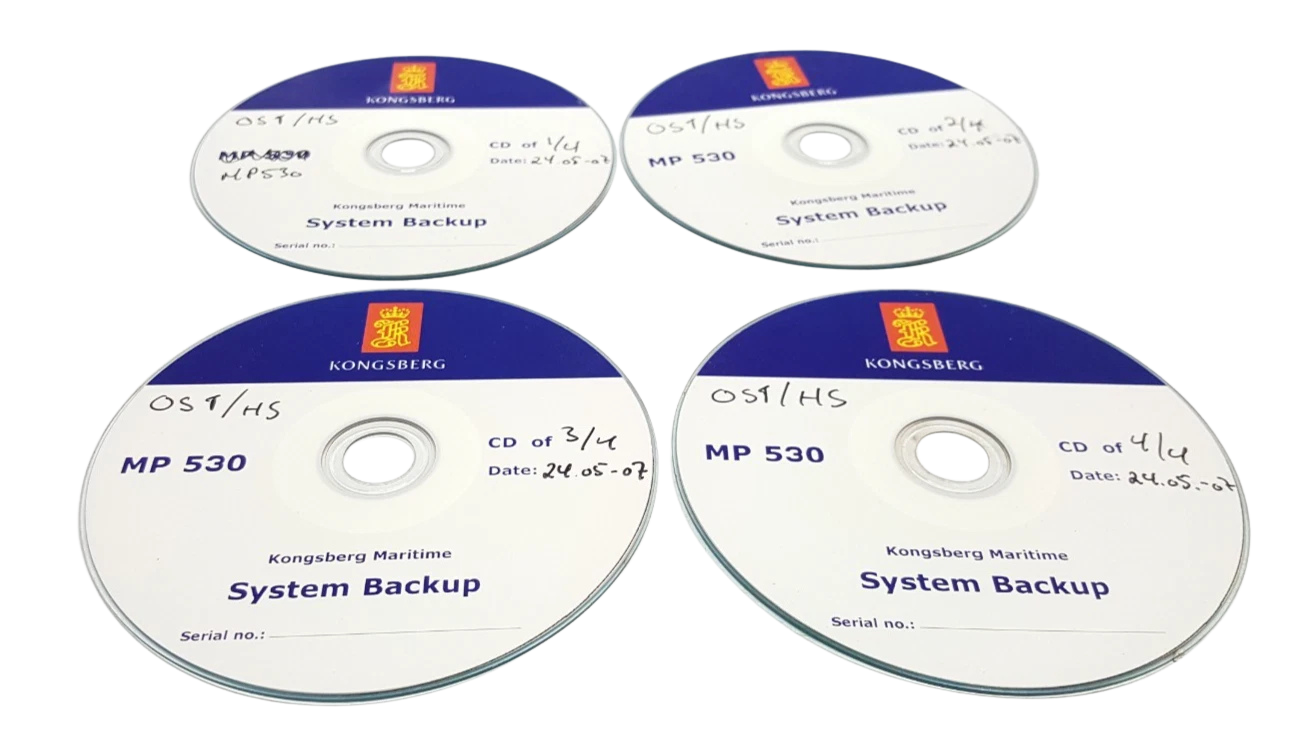

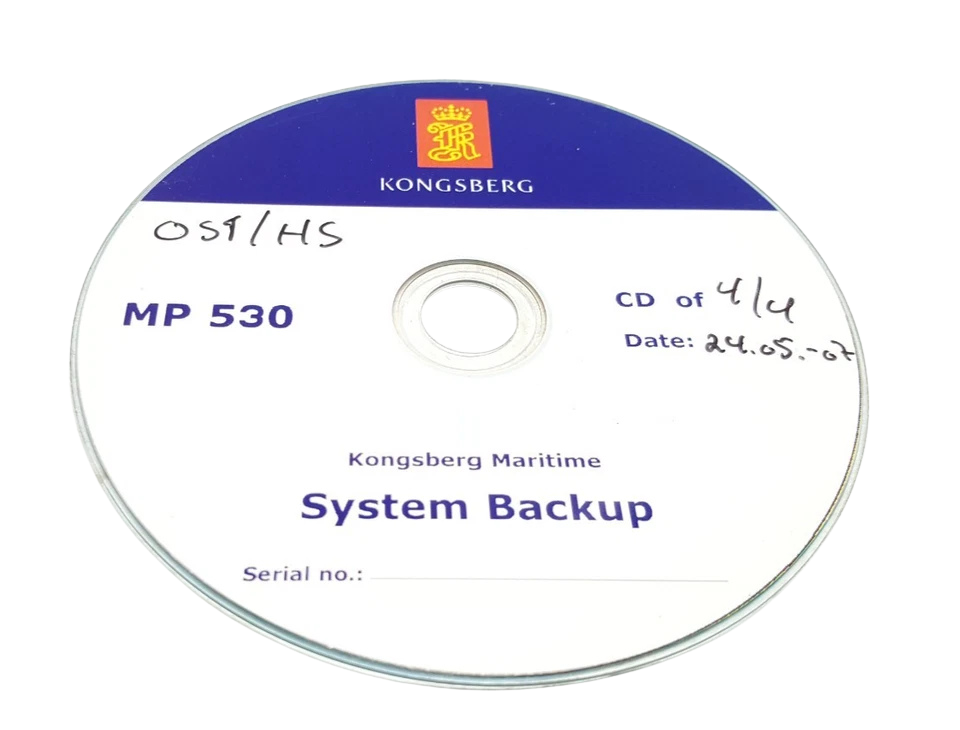

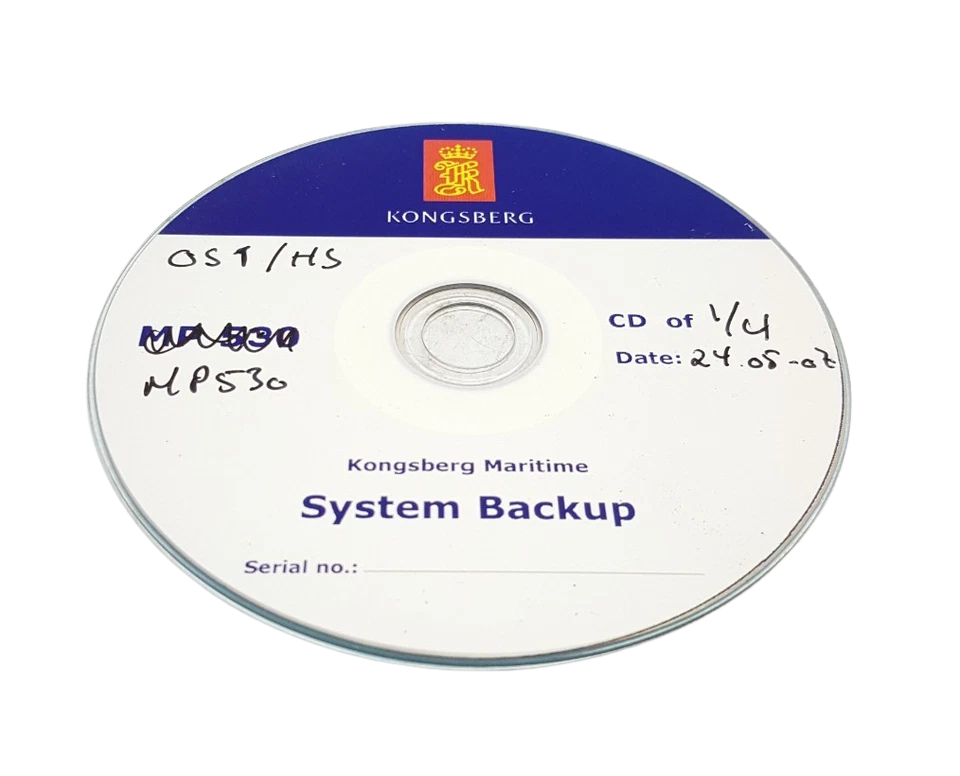

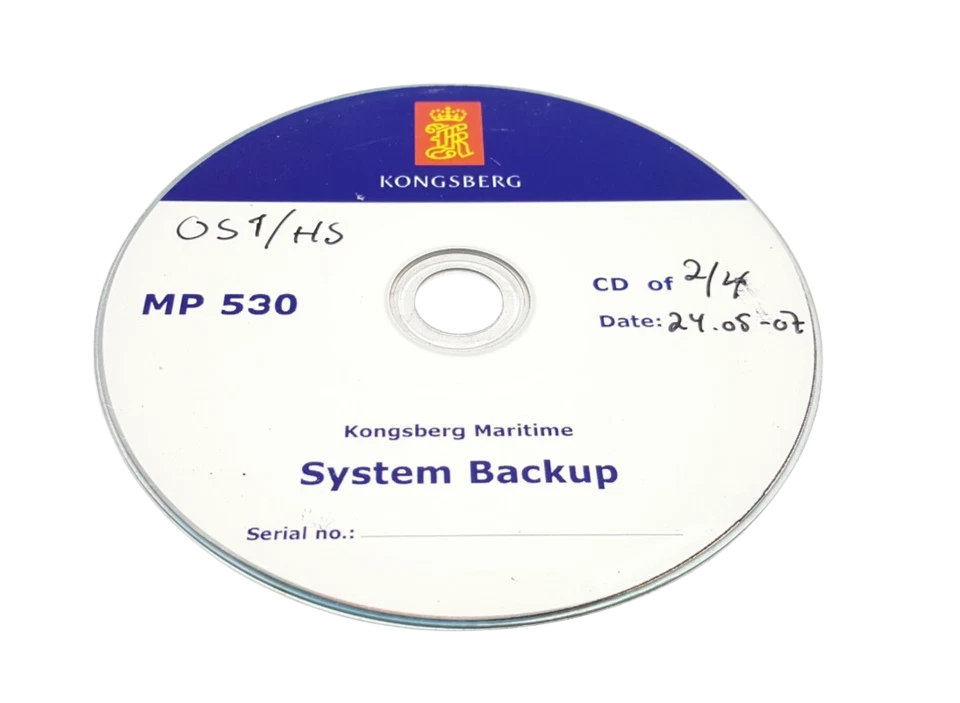

Kongsberg OST/HS MP530 Maritime System Backup CD Set (Discs 1-4)

The Kongsberg OST/HS MP530 System Backup CD Set (Discs 1–4) provides the complete baseline system image, operating environment, and application recovery software for Kongsberg Maritime Operator Stations (OST) and History Stations (HS) built on the MP530 industrial workstation platform. Essential for chief engineers, electro-technical officers (ETOs), and marine automation specialists, this 4-disc set allows full system restoration, bare-metal re-imaging, and fault recovery following hard drive failures, software corruption, or system upgrades.

Engineered specifically for Kongsberg’s legacy K-Pos Dynamic Positioning (DP), K-Chief Integrated Automation Systems (IAS), and AutoChief Propulsion Control platforms, these backup discs contain the factory-configured OS kernel, system parameters, driver stack, and application executables calibrated for marine environments.

Key Features

1. Complete System Image Recovery: Restores the core operating system and Kongsberg proprietary marine environment across 4 dedicated installation discs.
2. Hardware-Matched OS Stack: Pre-configured drivers and kernel settings optimized specifically for MP530 / HP Compaq d530 SFF industrial workstation architectures.
3. Disaster Recovery Ready: Ensures minimal vessel downtime by enabling full bare-metal restoration of corrupted Operator Stations (OST) or History Stations (HS).
4. Network & I/O Pre-Configurations: Preserves factory baseline settings for marine dual-redundant Ethernet, serial interfaces, and fieldbus communications.
5. Original OEM Software Distribution: Ensures bit-for-bit software integrity and compatibility with Kongsberg K-Pos, K-Chief, and AutoChief marine control architectures.

Model Details

• Brand: Kongsberg Maritime
• Primary System Model: OST / HS MP530 Operator Station / History Station
• Media Type: Compact Disc Set (Discs 1 through 4)
• Master Part Number (MPN): OST/HS MP530 CD-SET 1-4
• Associated Workstation Hardware Base: HP Compaq d530 SFF / DC578AV
• Software Baseline Version: Windows XP Professional Embedded / Kongsberg OS Release Stack

Marine System Compatibility

The OST/HS MP530 Backup CD 1-4 set is direct-compatible with the following Kongsberg Maritime systems and hardware units:

• Kongsberg K-Pos Dynamic Positioning (DP): DP-11, DP-12, DP-21, DP-22, DP-31, and DP-32 DP Systems
• Kongsberg K-Chief Integrated Automation Systems (IAS): K-Chief 500 / K-Chief 700 Operator Stations (OST) and History Stations (HS)
• Kongsberg AutoChief Propulsion Control Systems: AutoChief C20 Main Engine Remote Control Systems
• Hardware Processing Units: Kongsberg MP530 Operating Station CPU (P/N: DC578AV, 703011, 268621-001)

Applications

• Operator Station (OST) Re-imaging: Clean recovery of bridge and engine control room (ECR) operator workstations following hard drive crashes.
• History Station (HS) Data Node Setup: Re-installing logging and historical trend recording nodes in K-Chief automation systems.
• Retrofit & Maintenance Spares: Onboard emergency media kit for vessel ETOs and marine automation service technicians.
• System Migration & Drive Upgrades: Clone baseline images onto new SSDs or modern industrial storage media during drydock overhaul.

Chief Engineer’s Technical Notes

Re-imaging a Kongsberg MP530 Operator Station at sea requires exact procedures to ensure fieldbus cards and dual-redundant K-Net adapters bind correctly. Follow these expert recommendations during installation:

• Capture License Keys & IP Parameters First: Before booting from Disc 1, record the static IP addresses (K-Net A and K-Net B), subnet masks, and system node ID from the current machine or system topology drawing. Keep your Kongsberg dongle / software key details ready.
• Boot Sequence Priority: Access the BIOS setup on the MP530 (Press F10 during initial boot) and set the optical drive as the primary boot device (First Boot Device: CD/DVD-ROM).
• Follow Sequenced Disc Prompts: Insert Disc 1 to initialize partitioning and the core OS kernel. The installation wizard will sequentially prompt for Discs 2, 3, and 4 to install system drivers, Kongsberg runtime libraries, and marine application layers. Do not eject discs prematurely.
• CMOS Battery Replacement: If the MP530 host CPU has been powered off in storage or off-board for an extended period, replace the CR2032 onboard CMOS battery before running the backup suite to prevent loss of RTC (Real-Time Clock) and BIOS settings.
• Backup Configuration Data: After complete OS restoration, import your vessel’s specific *.cfg parameter backup file to reload active sensor calibrations and mimic screen layouts.

Frequently Asked Questions

What is included in the Kongsberg OST/HS MP530 Backup CD 1-4 set?

The 4-disc set contains the complete factory operating system image, hardware drivers, Kongsberg runtime environment, and core software applications required to rebuild an OST (Operator Station) or HS (History Station) on an MP530 hardware platform.

Can I use these backup CDs on hardware other than the Kongsberg MP530?

No. The drivers and system HAL (Hardware Abstraction Layer) on these discs are specifically configured for the MP530 industrial workstation architecture (HP Compaq d530 SFF base). Installing them on non-compatible hardware will lead to driver conflicts or driver initialization errors.

Do I need a software license key to complete the restore process?

Yes. While the backup CDs restore the core operating environment and application binaries, your vessel’s specific Kongsberg software licence key or hardware dongle is required to unlock full operating station functionality.

How long does a full system restoration take using this 4-disc set?

A standard bare-metal restore on an MP530 station typically takes between 35 to 50 minutes, depending on optical drive speed and storage media write times.

Are these discs supplied as original Kongsberg media or verified master copies?

Depending on stock selection, we supply both original OEM physical disc sets and tested, bit-for-bit verified high-integrity master media accompanied by MD5 checksum reports.
