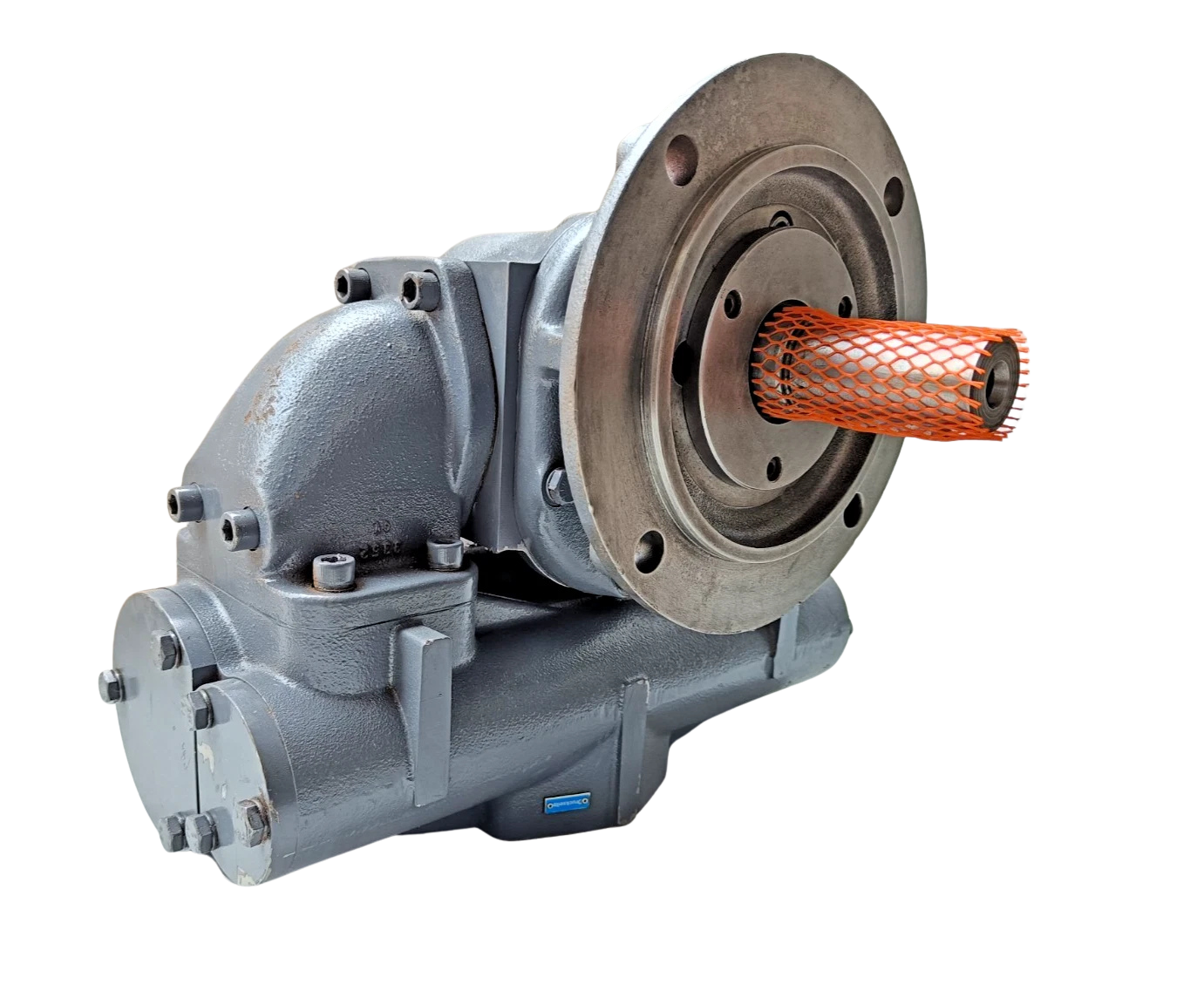

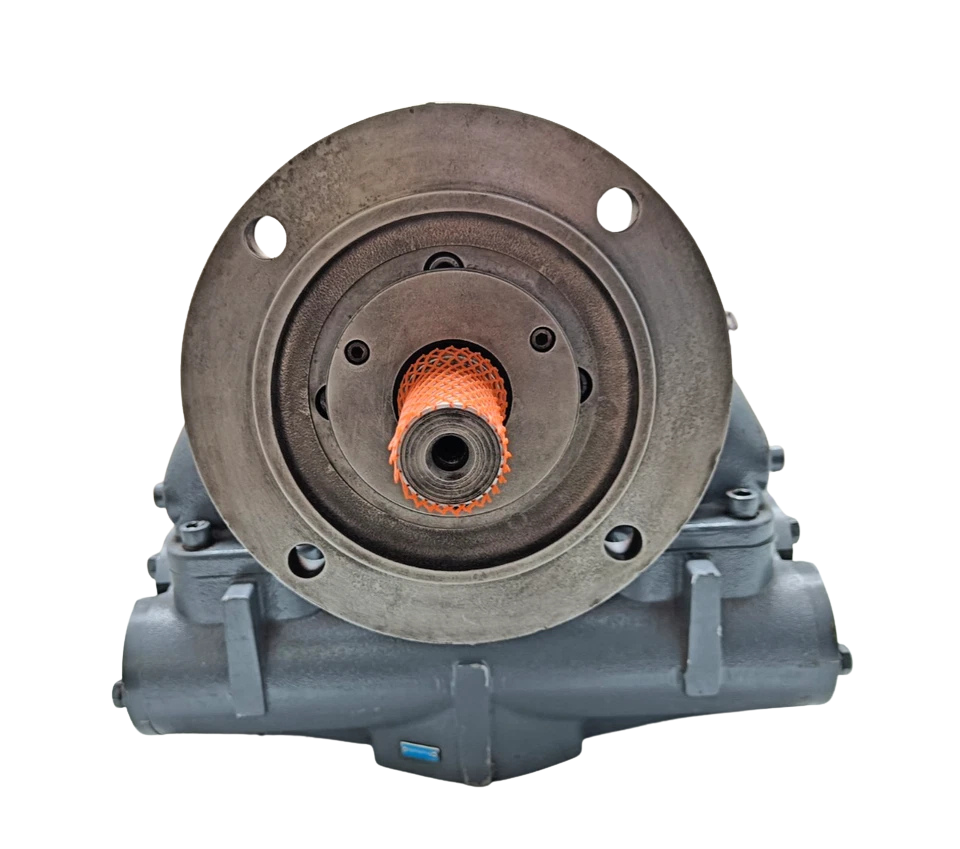

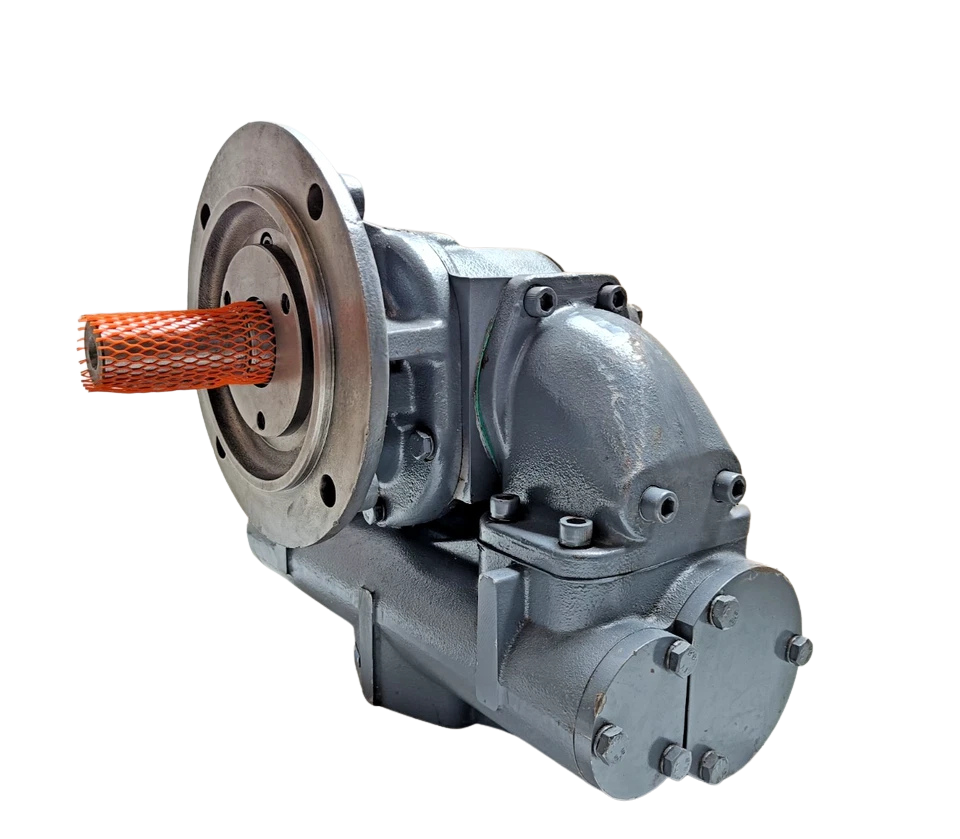

Kracht KF5/250 H30B M0B 0DP1/20 Gear Pump with KF5U07 Valve

Kracht KF5/250 H30B M0B 0DP1/20 Hydraulic Pump with KF5U07 Universal Valve

The Kracht KF5/250 H30B M0B 0DP1/20 is a high-volume external gear pump designed for demanding fluid transfer and lubricating applications. This industrial-grade machine incorporates a helical gearing shape that significantly reduces fluid pulsation and operational noise.

The Kracht KF5/250 H30B M0B 0DP1/20 is a high performance, large volume external gear pump for heavy duty fluid transfer and lubricating applications. Its industrial grade unit has helical gearing design that significantly reduces fluid pulsation and operational noise.

Technical Details: Kracht KF5/250 H30B

 Key Features

1. Bi-Directional Input Protection: The KF5U07 Universal Valve is built-in for constant delivery to the same pressure port, irrespective of the direction of the shaft rotation.
2. Low Noise Helical Gearing Optimized gear shape decreases pressure waves, cavitation risk and structural noise during high-throughput operation.
3. High Displacement Performance: Offers a nominal displacement of 250cm/ rev to provide fast transfer of oil volume under normal operating pressures.
4. Extreme wear resistance for tough situations Heavy-duty Grey/Spheroidal Cast Iron Housing with Case Hardened Steel Gears.

System Compatibility & Cross-References

• Direct Manufacturer Alternatives: Kracht KF5/200, KF5/315 series variants (verify system flow rate allowances before down/upsizing).
• Prime Mover Allocation: Mounts directly via standard IEC frame bellhousings to industrial electric motors or PTO marine gear shafts.
• Media Compatibility: Formulated for marine lubricating oils (mineral and synthetic), diesel fuel oils, thermal oils, and industrial gear lubricants.

Part Number Cross-References

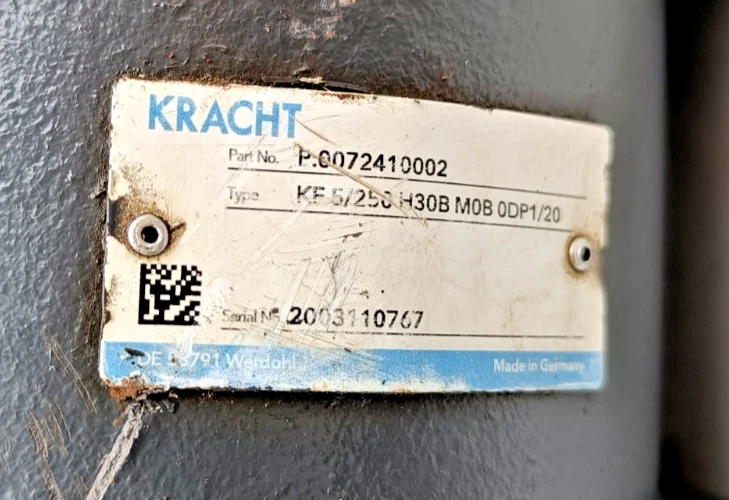

• MPN: KF5/250 H30B M0B 0DP1/20
• Valve Component MPN: KF5U07

Applications

• Marine Engineering Main propulsion gearbox lubricating oil supply and multi-disc clutch engaging systems.
• Power Generation: Pre-lubrication and continuous main lube oil supply circuits for big bore medium / high speed diesel engines.
• Wind Energy Variable directional oscillation of gearbox cooling and lubrication circuits
• Industrial Fluid Processing: Filtration Loop Circulation (High Volume), Fuel Oil Transfer Pumping Stations, Bulk Chemical Transfer.

Chief Engineer’s Installation Checklist:

Universal Valve Bleeding: The KF5U07 Universal Valve relies on precise hydraulic pilot routing to shift its internal directional gates. During the initial priming phase, ensure the pump casing is filled manually with system oil via the suction port to prevent dry running of the multi-material plain bearing bushes.

Alignment Tolerances: When coupling to an electric motor, check angular and parallel alignment using a dial indicator or laser tool. Misalignment will induce premature wear on the single radial lip-type shaft seal, causing external oil leakage or air ingestion under vacuum.

Frequently Asked Questions

What does the Kracht Universal Valve (KF5U07) do?

The KF5U07 Universal Valve is a specialized directional regulation block. It ensures that regardless of whether the pump shaft rotates clockwise or counter-clockwise, the inlet and discharge ports do not switch. Fluid continues to discharge from the designated pressure side without manual piping modifications.

Can this pump handle high-viscosity lubricants?

Yes, the Kracht KF external gear series is designed for heavy media transfer, including high-viscosity marine gear lubricants and diesel fuels. Ensure operating speeds match the viscosity curve to avoid cavitation.

What is the maximum pressure rating for the Kracht KF5/250?

This pump is rated for a maximum pressure threshold of 25 bar (363 psi), assuming the fluid parameters fall within the recommended temperature and viscosity thresholds.
