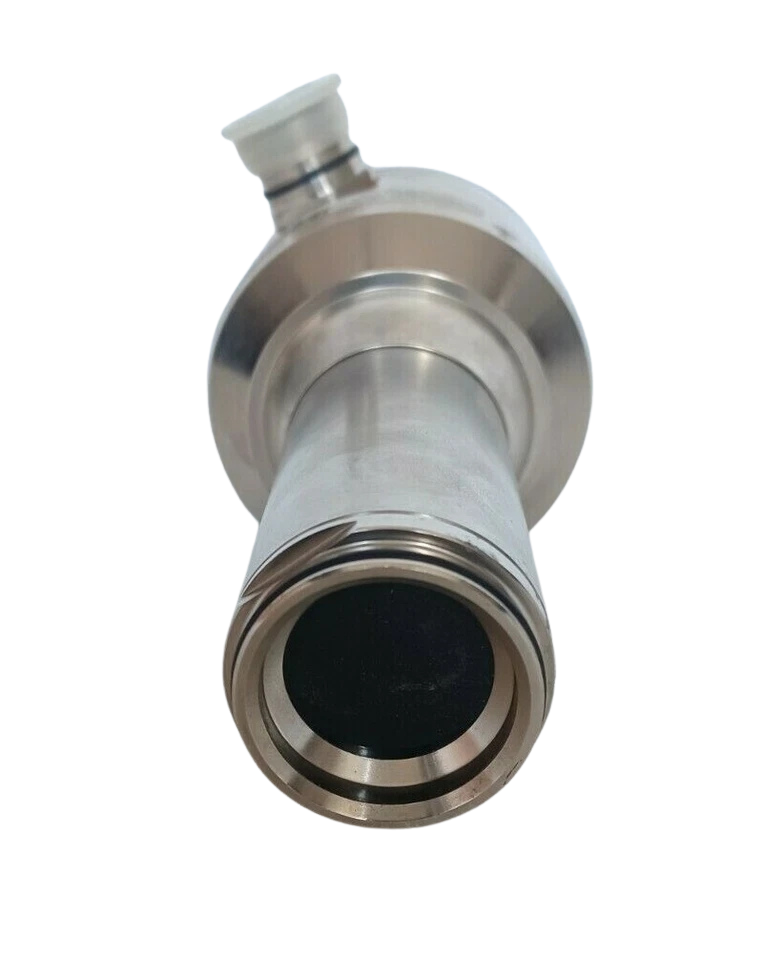

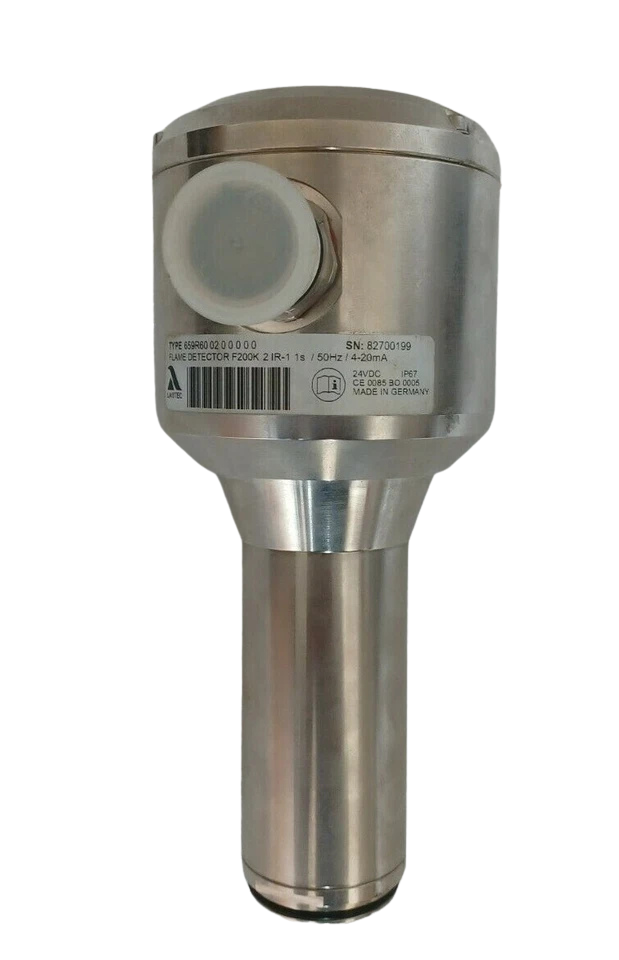

Lamtec 659R60 F200K 2 IR-1 Flame Detector

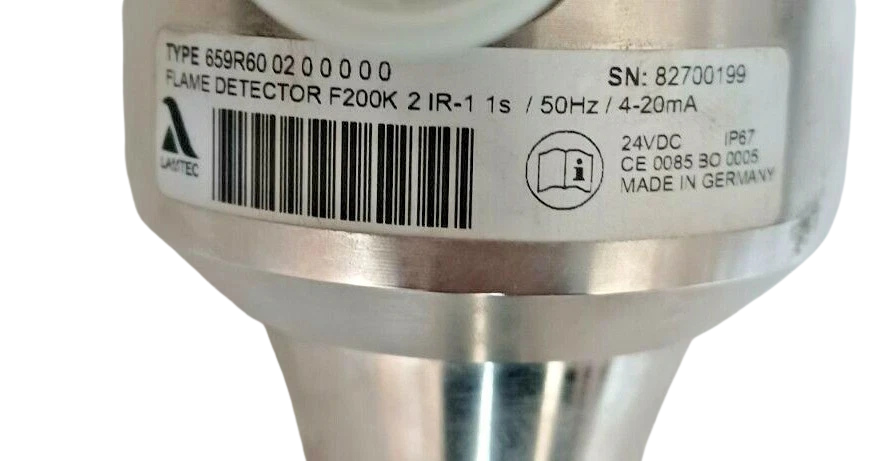

LAMTEC TYPE 659R60 | 0200000 F200K 2 IR-1 FLAME DETECTOR

The Lamtec Type 659R60 (Model: F200K 2 IR-1) is a state of the art high integrity compact flame scanner for continuous monitoring of single and multi-burner combustion systems. This device integrates the optical flame sensor and the evaluation/switching amplifier in a single, sturdy cylindrical container, delivering fail-safe performance for industrial boilers, power plants and marine engineering. It distinguishes background radiation from active combustion dynamics using an Infrared (IR-1) spectral arrangement, giving dependable trip warnings in case of a flame-out.

Model Details

• Manufacturer: Lamtec
• Product Series: F200K Compact Flame Scanner
• Type Designation: 659R60
• MPN (Manufacturer Part Number): 0200000 (02 000 00)
• Sensor Variant: F200K 2 IR-1 (Infrared spectrum channel 1, dual-channel digital architecture)

Key Features

1. All-in-One Compact Architecture: Merges high-sensitivity optical sensors and solid-state evaluation electronics into a unified enclosure, removing the need for external remote amplifiers.
2. Fail-Safe Dual-Channel Logic: Features independent dual analog/digital processing channels operating sequentially to ensure continuous self-monitoring and safety-directed outputs.
3. Infrared IR-1 Discrimination: Optimized spectral band monitoring designed specifically for heavy oil, gas, and multi-fuel burner configurations with high background thermal radiation.
4. Rugged Environmental Sealing: Built to IP67 protection class specifications using seawater-resistant aluminum, withstanding aggressive industrial and marine atmospheres.
5. Precise Analogue Feedback: Equipped with an integrated 4–20 mA current loop output terminal for real-time flame intensity trend monitoring and setup adjustments.

Terminal Allocations & Input/Output Ratings

• Power Supply Terminals (+24 VDC / 0V): Requires regulated low-voltage direct current input with low ripple tolerance.
• Relay Output Contacts (SPDT): Potential-free safety relay output rated for max switching loads to interface directly with burner management systems (BMS).
• Analog Output (4–20 mA): Dedicated current loop terminals for dynamic flame intensity measurement, troubleshooting, and alignment via multimeters or control room displays.
• Plug Connector Interface: Heavy-duty industrial circular connectors maintaining IP67 integrity under thermal expansion and mechanical vibration.

Compatible Equipment Models

• Power Supply Units: Lamtec FN20 Power Pack (for transitioning to 115 VAC / 230 VAC mains supplies
• Testing Devices: Lamtec FFP30 Flame Scanner Testing Device.
• Cabling Options: LiYcY standard control cables (-40 °C to +80 °C) or high-temperature silicone-insulated cabling with optional stainless steel protective armor tubes.
• Burner Systems: Compatible with industrial burners utilizing gas, light oil, heavy fuel oil (HFO), or mixed-fuel setups.

Applications

• Marine steam boiler combustion monitoring
• Large-scale thermal power station utility boilers
• Industrial water-tube and fire-tube boilers
• Chemical plant processing furnaces and waste incinerators
• Multi-burner systems requiring independent flame discrimination

Expert’s Guide

1. Optical Alignment is Critical: When mounting the 659R60 on marine boiler windboxes, ensure the sighting tube is purge-aired correctly using clean instrument air. Even minor soot or oil mist buildup on the front lens quartz glass will attenuate the IR spectrum and trigger false low-signal trips.
2. Frequency Tuning: Take advantage of the internal digital frequency evaluation stages. If erratic boiler flicker causes unstable relay behavior at high firing rates, adjust the frequency filter switch to block background mechanical modulation frequencies.
3. Loop Testing: Utilize the 4–20 mA diagnostic port during initial burner commissioning. A stable baseline reading above 10 mA during high-fire operation confirms proper optical alignment, whereas erratic fluctuations indicate unstable flame root attachment.

Frequently Asked Questions

What is the primary function of the Lamtec 659R60 F200K flame detector?

The unit continuously monitors burner combustion via an infrared sensor and cuts off fuel supply lines instantly through a safe relay output if a flame failure occurs.

Can this scanner withstand high ambient temperatures near industrial burners?

Yes, the housing is designed to handle high radiant heat environments, and when paired with proper cooling/purge air adapters and correct cabling, it operates reliably up to demanding thermal thresholds.

How do I verify if the scanner is correctly powered and reading a flame?

You can verify operation via the onboard status LEDs or by connecting a multimeter to the 4–20 mA output terminals to check real-time signal intensity.
