MacGREGOR MCG7-063Z45-2 Directional Control Valve with Manifold Block

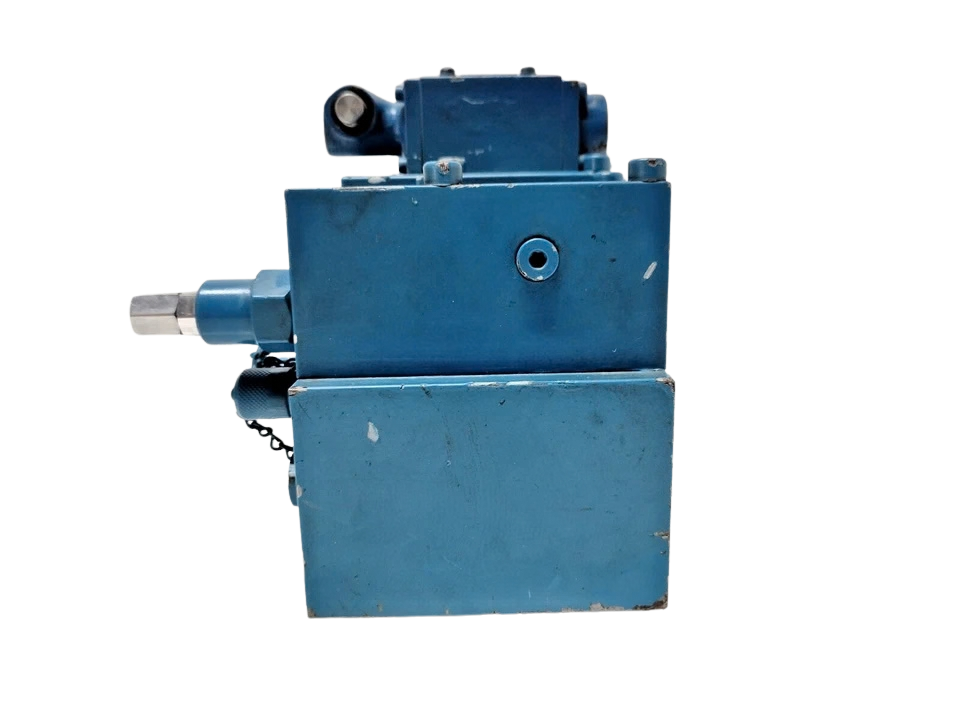

MacGREGOR MCG7-063Z45-2 Directional Control Valve with Integrated Manifold Block

The MacGREGOR MCG7-063Z45-2 is an engineered marine-grade directional control valve assembly equipped with a matched intermediate manifold/subplate block. Designed explicitly for heavy-duty marine deck equipment and commercial vessel cargo-handling hydraulics, this unit regulates fluid distribution to double-acting cylinders and high-torque hydraulic motors.

Operating in punishing marine environments where moisture, salt mist, and mechanical shock loads are continuous, the MCG7 series delivers zero-drift load holding, precise micro-metering during inching maneuvers, and tight internal leakage tolerances under high operational delta-P. The valve assembly comes factory-paired with a dedicated flow manifold block that provides direct isolation, counter-balance or relief integration, and standard line porting to simplify hydraulic bulkhead routing.

Model Details

• Manufacturer / Brand: MacGREGOR

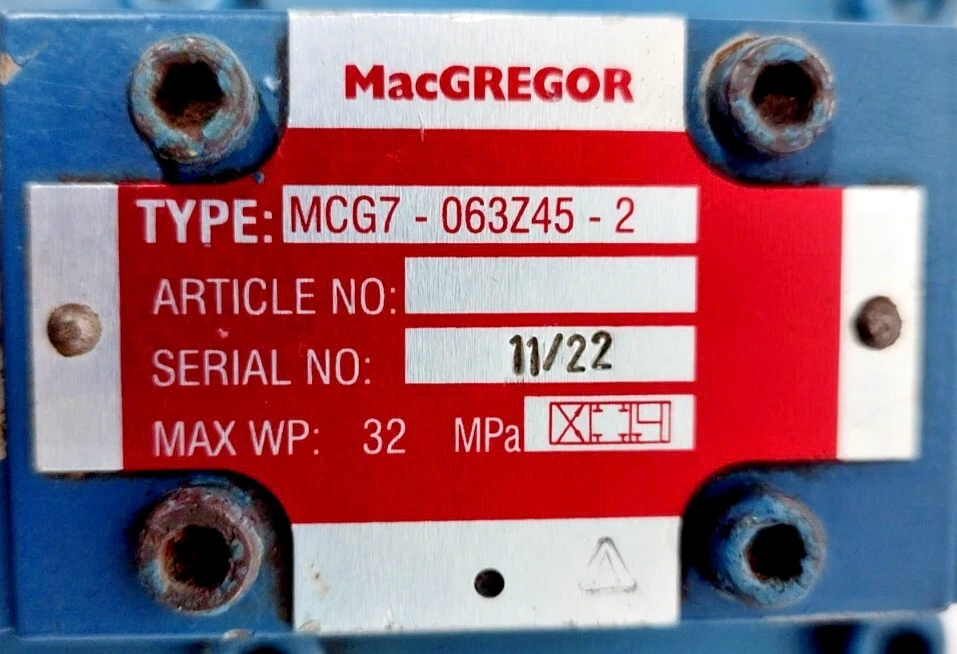

• Model Code: MCG7-063Z45-2
• Assembly Type: Directional Spool Valve with Integrated Subplate Manifold Block
• Spool Size / Nominal Interface: CETOP 03 / NG6 / NFPA D03 interface mounting pattern
• Flow Rating: Up to 60–80 L/min (application dependent)

MPN & Part Number Cross-References

• Primary MPN: MCG7-063Z45-2
• Series Variants: MCG7-062AC25-2, MCG7-06-3Z, MCG7-063
• Functional Group: 1STB/MCG Cargo Handling Hydraulics
• OEM Drawing Reference: Refer to MacGREGOR Hatch Cover Hydraulic Schematics (Section 4: Control Blocks & Valve Stands)

Technical Details:

Key Features

1. Monoblock Rigidity with Custom Manifold: Integrates an engineered ductile iron/steel manifold block with the directional valve, eliminating leak-prone interconnecting pipe joints and reducing vibration fatigue.
2. High-Pressure Marine Rating: Tested for nominal continuous operating pressures up to 315 bar (burst pressure > 700 bar), handling offshore hydraulic surges during hatch open/close torque spikes.
3. Precision-Ground Chrome Spool Geometry: Features precision-lapped micro-notches designed to smooth out hydraulic fluid hammer when shifting under high static system pressure.
4. Corrosion-Resistant Surface Protection: Exterior treated with marine-grade phosphate passivation and epoxy primers to resist continuous exposure to salt atmosphere and washdown conditions.
5. Serviceable Cartridge & O-Ring Architecture: Employs standard Viton (FKM) 90-durometer fluorocarbon dynamic and static seals for high thermal tolerance against oxidized marine hydraulic oils (ISO VG 32, 46, and 68).

Compatibility

• MacGREGOR Cargo Hold Hatch Covers: Folding hatch covers, Side-Rolling covers, and Lift-and-Roll covers on Bulk Carriers and General Cargo vessels.
• MacGREGOR Ro-Ro Systems: Stern ramps, bow doors, internal car deck ramps, and hoistable ramp locking latch cylinders.
• Deck Cranes & Winches: Auxiliary hoisting lines, topping cylinders, and tensioning valve groups on offshore supply vessels (OSVs).
• Lashing Bridges & Mooring Systems: Tension winches, capstan drives, and sea-chest valve actuation blocks.

Applications

• Regulating primary directional fluid vectors in hydraulic double-acting cylinders.
• Driving hydraulic motor rotations on hatch cover traction drive winches and rolling wheels.
• High-integrity load-holding control across container vessel cargo access hardware.
• Safe mechanical locking pin sequencing on deck ramps and bulk carrier hatch cleats.

Frequently Asked Questions

What does the “Z” represent in the MCG7-063Z45-2 model code?

The “Z” designates the spool hydraulic function in the center neutral condition. In this configuration, all ports (P, T, A, and B) are blocked, locking the actuator in position and preventing unintended movement of heavy cargo handling equipment.

Can the MCG7-063Z45-2 replace an older MCG7-062 or standard CETOP 03 valve?

Yes, provided the port interface matches ISO 4401-03 / NG6 and the spool function coincides with your system schematic. However, because the MCG7-063Z45-2 is paired with an engineered manifold block, check your line piping dimensions (BSPP port pitches) to ensure direct bolt-in capability.

What causes hydraulic chatter or sluggish shift response on this valve?

Sluggish shifting is typically caused by particulate contamination in the pilot passages, cold oil exceeding maximum viscosity limits, or an excessive drain line backpressure exceeding the maximum allowable rating on the T-line. Ensure your hydraulic oil is warmed to operating viscosity (>20 cSt) and return lines are free of restriction.

What is the recommended service interval for re-sealing this assembly?

Under continuous open-sea trading conditions, complete internal dynamic O-rings and backup rings should be inspected every 30 to 36 months, or whenever your system undergoes periodic 5-year special survey dockings. Always replace all internal and intermediate interface seals whenever the valve is detached from its manifold block.
