MGLS24064-47C LCD Module PCB-LS24064#1-01
Condition: New
- 100% SECURED PAYMENTS
- AVAILABLE IN STOCK - READY TO SHIP
- EXPRESS DELIVERY: WORLDWIDE DELIVERY BY FEDEX & DHL EXPRESS COURIER
- HASSLE FREE 14-DAY RETURNS
MGLS24064-47C LCD Module PCB-LS24064#1-01 Graphic Display Unit

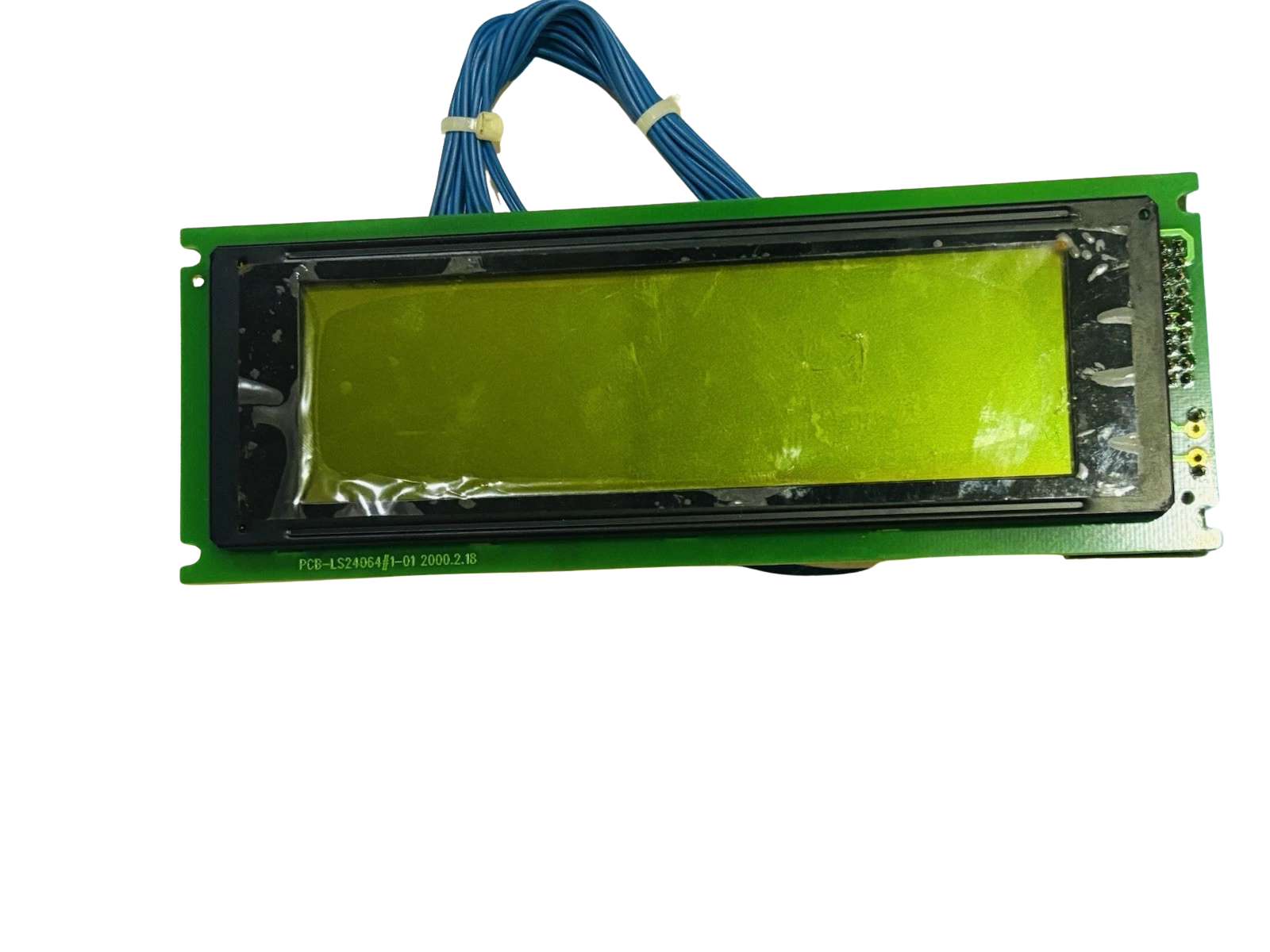

The MGLS24064-47C (PCB reference PCB-LS24064#1-01) is a 240×64 dot-matrix monochrome STN transflective graphic liquid crystal display (LCD) module. Engineered for marine automation architectures, engine telegraph displays, main engine propulsion remote controls, power management systems (PMS), and bridge monitoring consoles, this unit delivers high-contrast optical readouts under direct sunlight and bridge night-vision conditions.

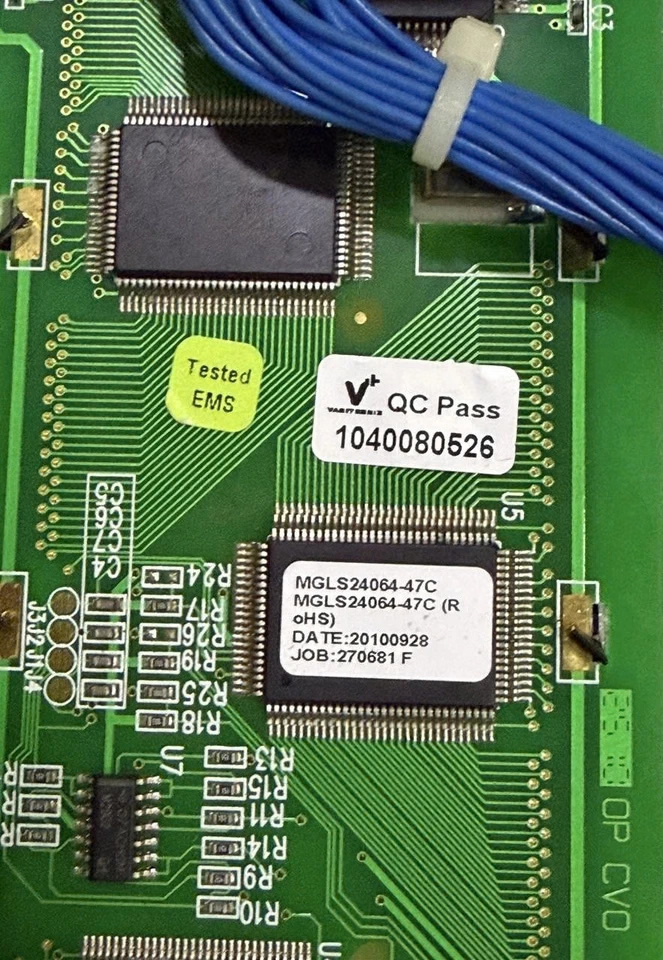

Driven by the industry-benchmark Toshiba T6963C (or functional equivalent) onboard controller with integrated display RAM, the module features an 8-bit parallel MPU interface, hardware/software font generation and independent dual-layer text and graphic rendering. The heavy-duty industrial PCB substrate meets UL 94V-0 flammability ratings and complies with marine classification society shock and vibration thresholds (IEC 60068-2-6 / IEC 60068-2-27), ensuring resilient uptime in demanding engine control room (ECR) and wheelhouse environments.
Model Details
- Manufacturer/Brand: Varitronix Ltd. (VL Electronics)
- Model Code: MGLS24064-47C
- Manufacturer Part Number (MPN): MGLS24064-47C

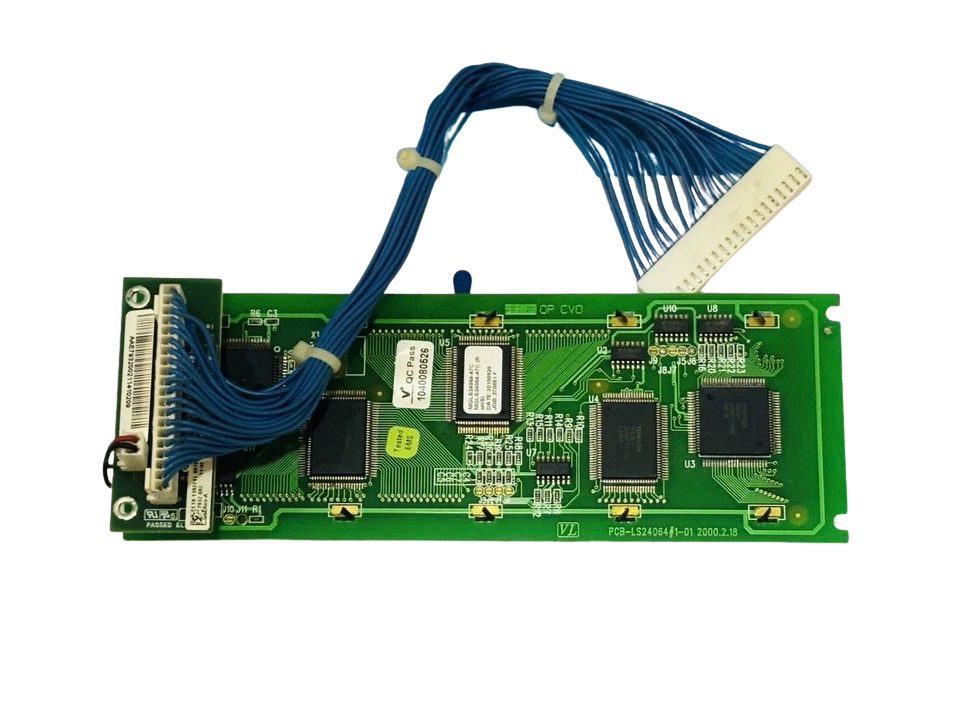

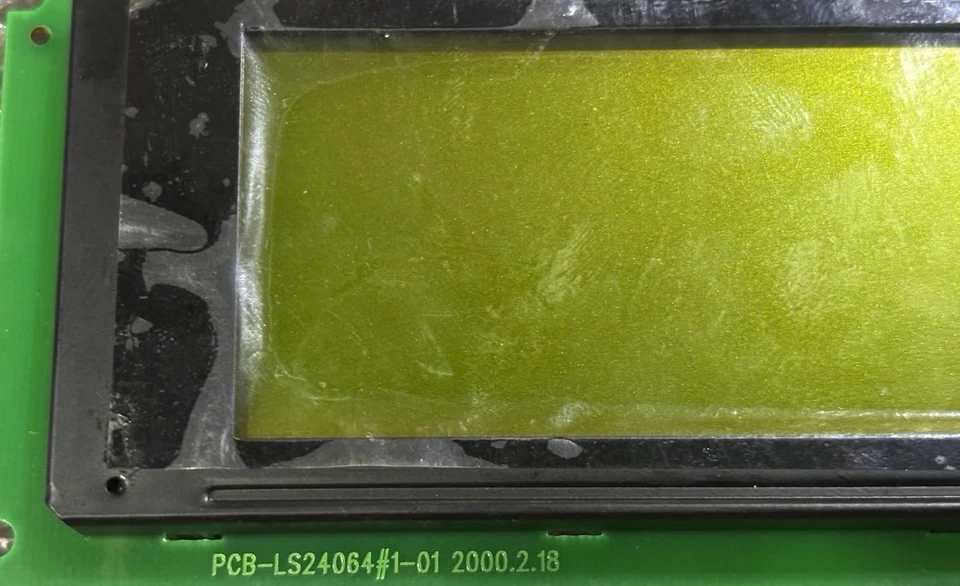

- Bare Board / PCB Stamping: PCB-LS24064#1-01
- Revision Level: Rev. A5 / Rev. 1.0 (firmware/timing backward compatible)
- Underwriters Laboratories Identifier: UL 94V-0 E314500
- Lot/Batch Stamping Reference: UW02 5216 / ETK S210022R 0163 / 7932-102
Technical Specifications
| Parameter / Engineering Characteristic | Nominal Value / Technical Specification | Tolerance / Remarks |
|---|---|---|
| Display Dot Resolution | 240 (Horizontal) × 64 (Vertical) Dots | Monochrome Dot Matrix |
| Onboard LCD Controller | Toshiba T6963C-0101 (or direct binary equivalent) | QFP-67 / Built-in CGROM |
| Display Memory (SRAM) | 8 Kilobytes (8 KB) High-Speed Static RAM | Holds text & graphic pages |
| LCD Technology & Polarizer | STN (Super Twisted Nematic), Yellow-Green / Gray Transflective | Positive display mode |
| Driving Scheme | 1/64 Duty Cycle, 1/8.7 Bias | Multiplex multiplexing ratio |
| Viewing Direction (Optimal) | 6 o’clock (Bottom view) | Best for panel-mount consoles |
| Backlight Subsystem | Solid-State Bottom LED array (Yellow-Green, 568 nm) | Long MTBF (>50,000 hrs) |
| Logic Supply Voltage (VDD – VSS) | +5.0 V DC (±0.25 V) | Absolute Max: -0.3 V to +7.0 V |
| LCD Drive Bias Voltage (VDD – V0) | 11.8 V to 13.5 V DC (Typ. -7.5 V to -8.5 V wrt GND on Pin 4) | Adjustable via 10kΩ potentiometer |
| Logic Current Draw (IDD) | Typical: 12.0 mA | Maximum: 20.0 mA | Ta = 25°C, fosc = 3.0 MHz |
| Backlight Forward Current (ILED) | Typical: 180 mA to 240 mA (Nominal 4.2 V to 5.0 V) | External series resistor required |
| Data Bus Interface | 8-bit Parallel Asynchronous (DB0 – DB7) | Intel 8080 / Z80 protocol compatible |
| Module Dimensions (W × H × D) | 180.0 mm × 65.0 mm × 16.0 mm Max | ±0.5 mm |
| Viewing Area (W × H) | 132.0 mm × 39.0 mm | Bezel cutout benchmark |
| Active Display Area (W × H) | 127.15 mm × 33.87 mm | Active pixel surface |
| Dot Pitch & Size | Dot Pitch: 0.53 × 0.53 mm | Dot Size: 0.48 × 0.48 mm | Dot Spacing: 0.05 mm |
| Operating Temperature Range | 0°C to +50°C (Standard) / -20°C to +70°C (Wide-Temp Option) | Non-condensing, ≤95% RH |
| Storage Temperature Range | -20°C to +70°C | Dry pack storage recommended |
Compatibility
- Marine Propulsion & Maneuvering: Kongsberg AutoChief 4 / C20 Propulsion Control System operator panels (ACP), Nabco / NABTESCO Bridge Maneuvering Systems (BMS-series / PSU-33 control assemblies), Mitsui MAN B&W pneumatic/electronic bridge telegraph stations.
- Vessel Monitoring & Alarm Automation: Lyngsø Marine / SAM Electronics STEALTH & MCS 2200 monitoring systems, Valmet / Damatic DNA local operator displays, Decca / Sperry Marine bridge alarm watch receivers.
- Auxiliary Marine Machinery: Alfa Laval EPC-50 / EPC-60 Separator Controller units, Daihatsu / Yanmar Auxiliary Engine digital tachometer and parameter panels, HDW / Blohm+Voss Stern Tube Bearing temperature monitors.
- Industrial & CNC Systems: Heidenhain, Siemens Simatic OP series legacy retrofits, and customized microprocessor-driven industrial process controllers.
Key Features
- Toshiba T6963C Onboard Processing Engine: Operates autonomously with built-in hardware character generation (CGROM), independent graphic and text memory regions, and pixel-level bitwise Boolean logic rendering (AND, OR, EXOR, Attribute).
- High Contrast Transflective Optics: Wide-angle 6 o clock viewing cone with sunlight-readable transflective STN liquid crystal matrix, providing glare-free visibility in open-bridge environments.
- Solid-State Long-Life LED Backlight: Resilient yellow-green LED array eliminates the fragility, high-voltage risk, and inverter failures associated with cold cathode fluorescent lamps (CCFL).
- Industrial & Marine Grade Durability: Built onto a 1.6 mm FR-4 glass-epoxy base rated to UL 94V-0, resistant to corrosive salt spray, high engine room ambient temperatures, and mechanical shock up to 100g.
- Configurable Font Array Switch (FS): Hardware-selectable font pitch between 6 × 8 (up to 40 characters across 8 lines) and 8 × 8 without requiring microcode alterations.
