Parker 646500802 MAXIGAS108 ECBLL Nitrogen Generator

Parker 646500802 MAXIGAS108 ECBLL Nitrogen Generator

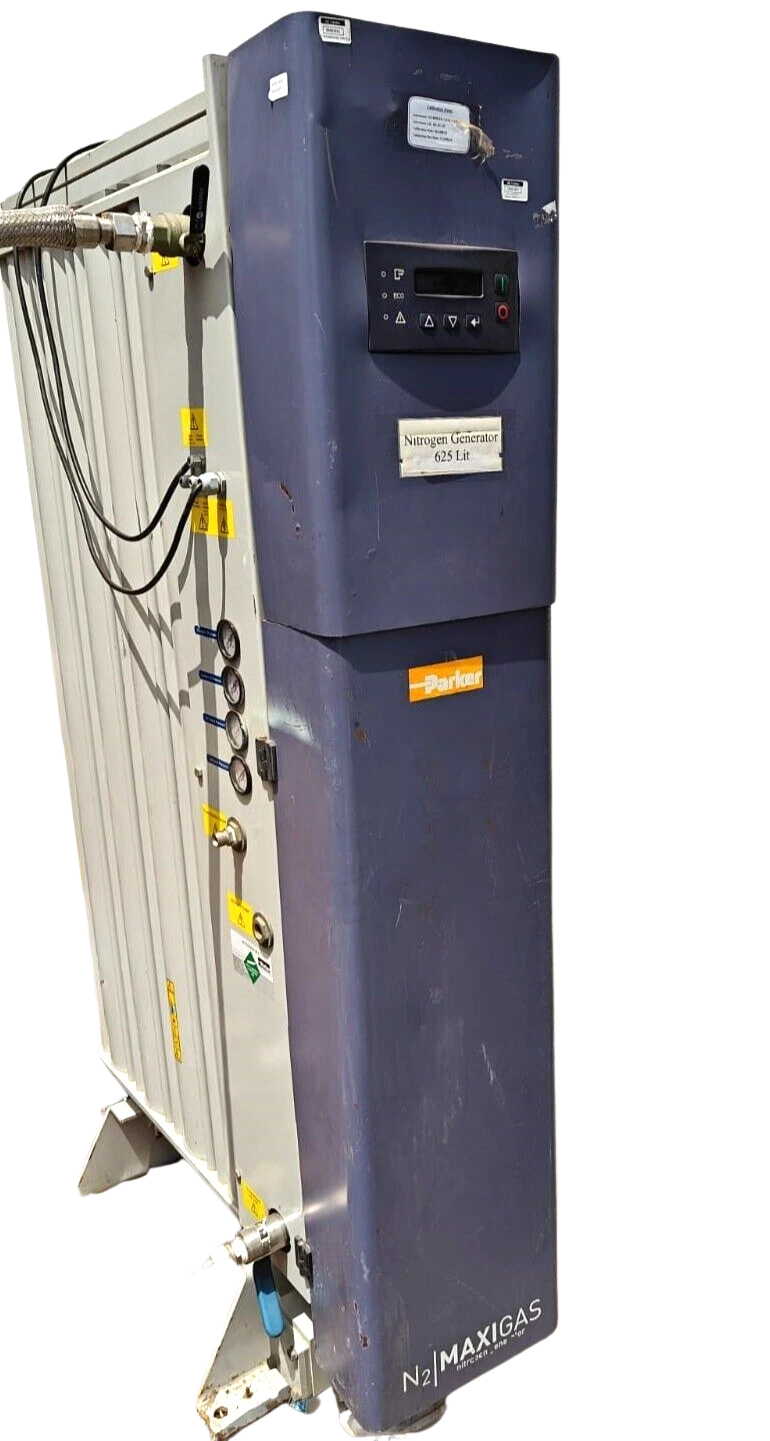

The Parker Domnick Hunter MAXIGAS108 (MPN: 646500802, Variant: ECBLL) is a rugged industrial grade Pressure Swing Adsorption (PSA) nitrogen gas generator that converts normal compressed air to a continuous on-demand supply of high quality nitrogen gas. This device utilizes dual-bed extruded aluminum columns packed with premium Carbon Molecular Sieve (CMS) to methodically separate oxygen and trace gases down to 10 ppm residual oxygen.

The specific arrangement has a very large total equipment structural volume of 625 Liter with a 210 Liter buffer/vessel process capacity to buffer flow fluctuations and provide very consistent line pressures during demanding industrial and marine processing activities. The MAXIGAS108 incorporates integrated oxygen analysis, digital and analog telemetry and an automatic eco-mode interface that reduces air use and operates completely independent of standard liquid bulk tanks and high pressure gas cylinder manifolds.

Features

1. Smart control board with universal compatibility to nominal inputs from 100V AC to 240V AC at 50/60 Hz, only requires 40W to 80W of operational power. Multi-Voltage Flexibility:
2. Continuous Telemetry & Protection: Built-in zirconia or electrochemical oxygen analyzer for real-time monitoring, integrated dry-contact alarm relays and analog/digital telemetry ports.
3. Robust Modular Architecture Pairs of extruded aluminum columns offer maximum corrosion resistance and structural integrity and are designed to easily sustain a test pressure validation of up to 14.3 Barg
4. Smart economy automation Load-dependent economy mode stops air consumption as soon as the buffer tank of the downstream application reaches full pressure in order to reduce the wear of the primary supply compressors.

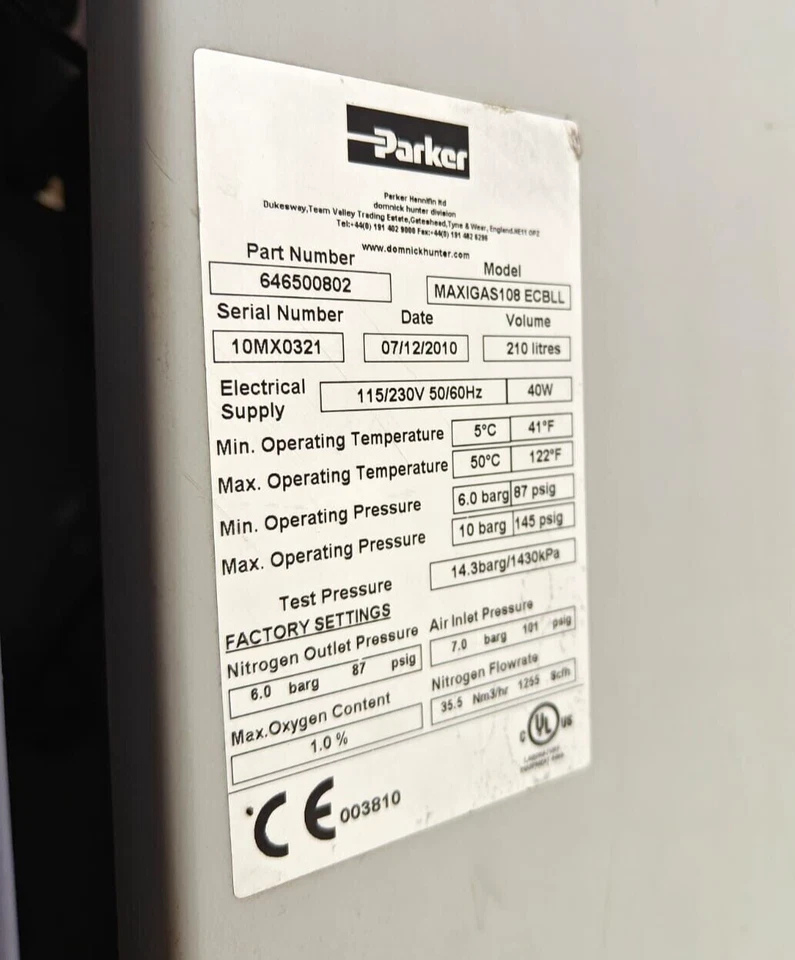

Technical Specifications: MAXIGAS108

Part Number Cross-References

• Parker Domnick Hunter: 646500802
• Alternative Factory Code: 646500801 (NCALL Alternating Base Variant)
• Legacy Design Series: MAXIGAS 108 ECBLL Series

Industrial Applications

• Marine Vessel Tank Inerting: Deployed on chemical, oil, and liquefied gas carriers to continuously blanket volatile cargo spaces, displacing ambient oxygen to prevent combustion hazards.
• Laser Cutting Assist Gas: Supplies dry, high-pressure nitrogen gas to clear molten metal out of cutting paths, stopping edge oxidation on stainless steel and aluminum blanks.
• Chemical & Petroleum Processing: Used for pressure testing, pipeline purging, catalyst bed protection, and low-pressure storage tank blanketing to stop raw materials from degrading.
• Food & Pharmaceutical Processing: Integrated into automated processing lines for modified atmosphere packaging (MAP) and product storage vial purging to dramatically extend product shelf life.

Frequently Asked Questions

What does the “ECBLL” suffix indicate on this Parker MAXIGAS108 model?

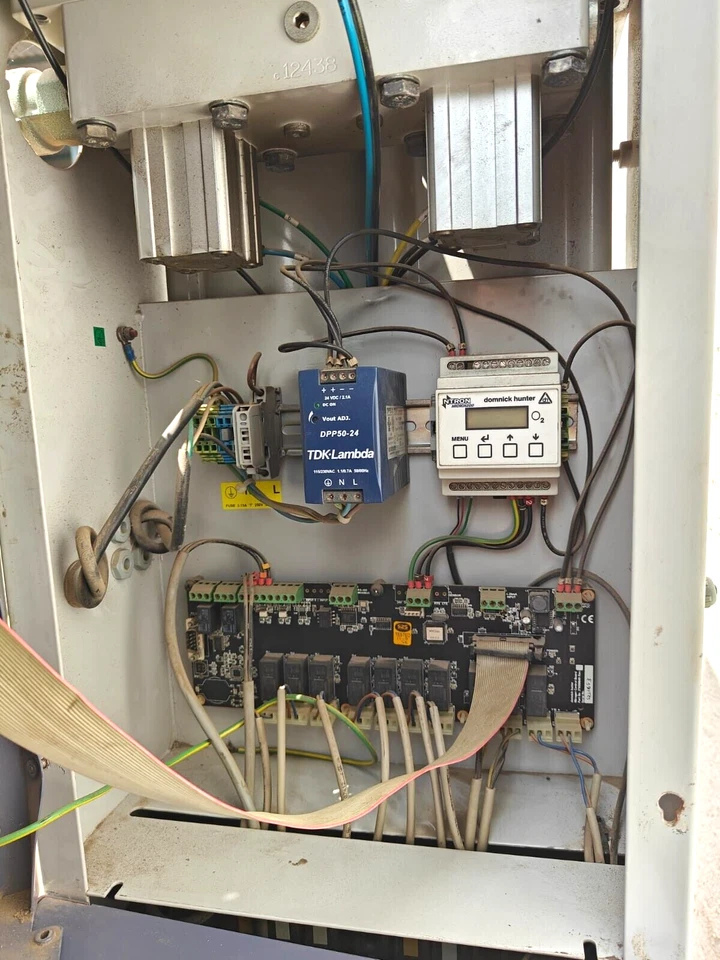

The ECBLL designation refers to the electrical control architecture and internal valve block layout of the generator. This includes the integrated economy mode function, automatic standby controls, and local diagnostic feedback circuits wired specifically for integration with plant automation systems.

Can the Parker 646500802 generator handle raw shop air?

No. Raw compressed air contains high levels of liquid water, vapor, and oil mist. The MAXIGAS108 requires pre-treated feed air matching ISO 8573-1:2010 Class 2.2.2 standards. Running unconditioned air into the system will flood the adsorption beds, ruin the CMS media, and void operational warranties.

How does the automated economy mode save energy?

When the downstream 210-Liter nitrogen buffer vessel reaches your target high-pressure setpoint, the internal controller closes the air inlet valve and pauses the cycling sequence. This stops the unit from consuming compressed air while demand is low, lowering the run hours and power draw of your facility’s primary air compressors.
