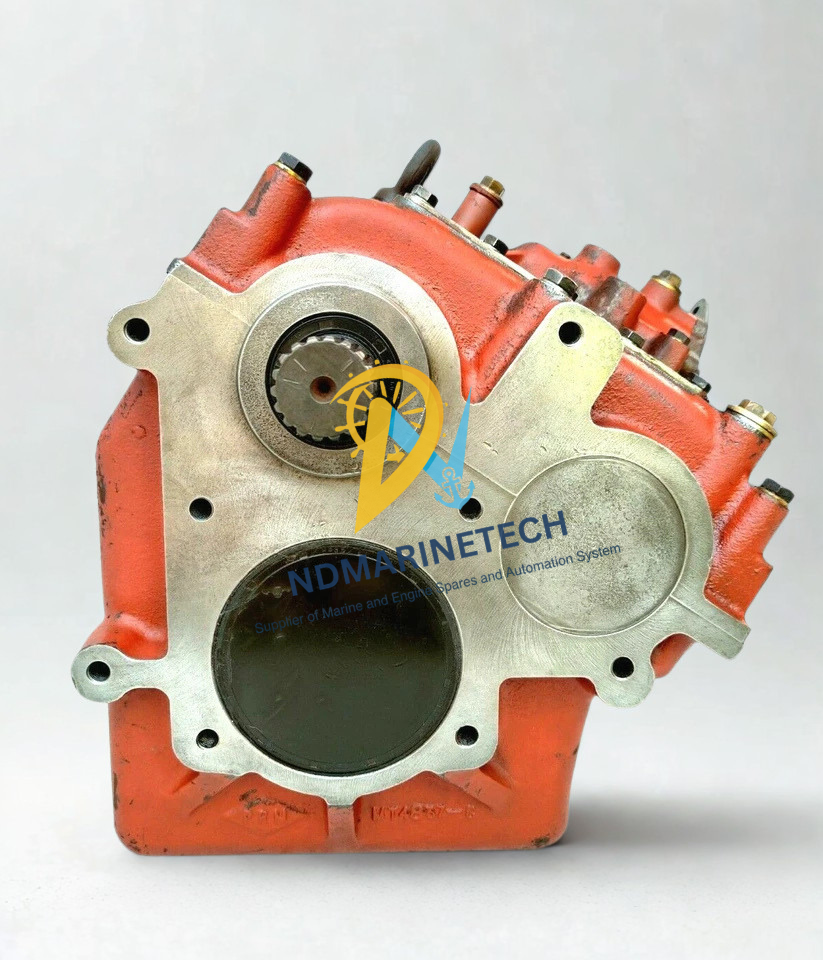

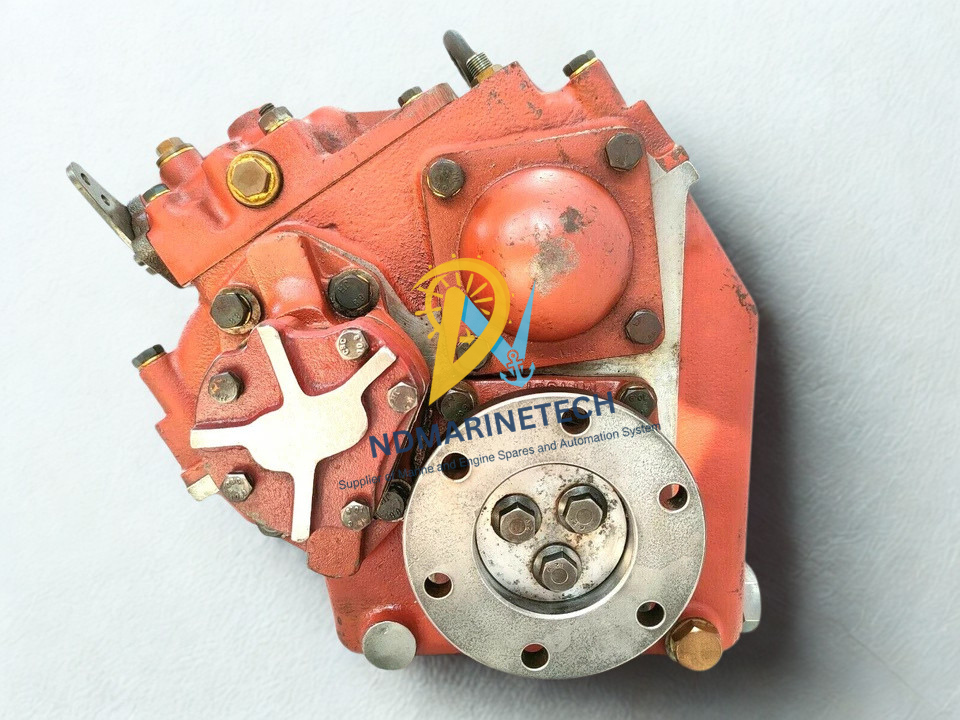

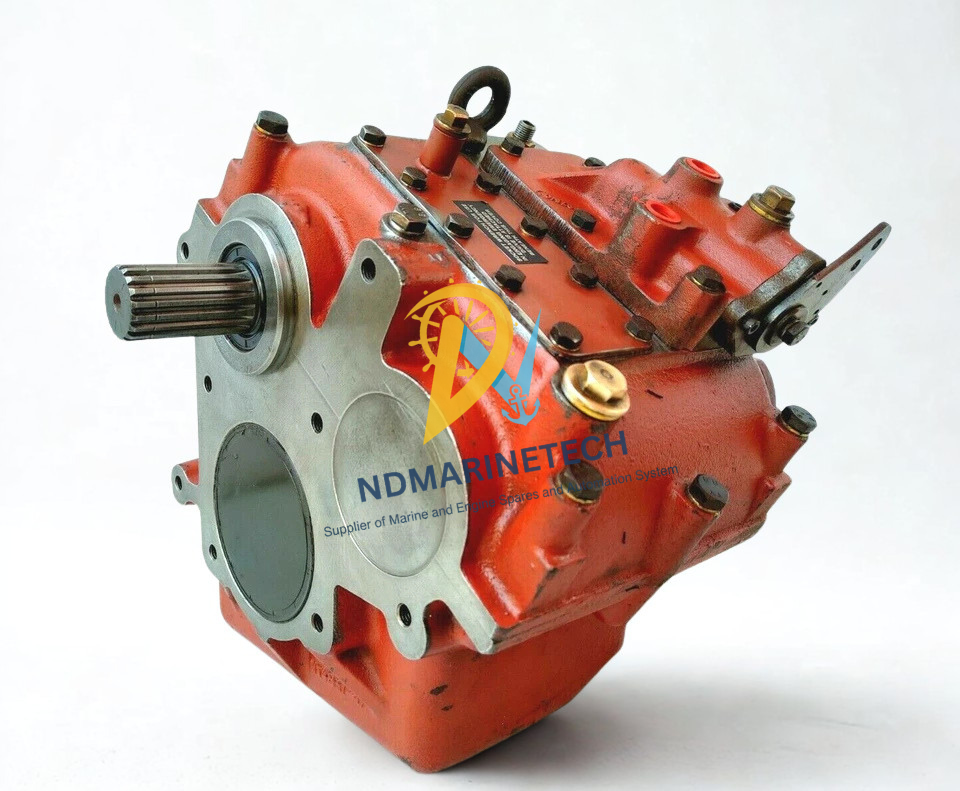

PRM Marine 1000D3 Hydraulic Marine Gearbox Drop Centre

PRM Marine 1000D3 Hydraulic Marine Gear Box Drop Centre – New

The PRM Marine 1000D3 Hydraulic Marine Gear Box Drop Centre is a completely new, world-class propulsion solution designed for heavy duty commercial and high performance leisure yachts. The 1000D3 has a particular drop center layout designed to transmit maximum torque under continuous, punishing sea conditions. This design drops the output shaft below the input shaft centerline providing naval architects and marine engineers with exceptional spatial flexibility, optimum hull positioning and lower shaft lines for deep draft boats.

This hydraulic gearbox has a complex multi-disc clutch mechanism that uses oil pressure to engage smoothly and immediately in both forward and reverse modes. The PRM 1000D3 is suitable for dual engine installation with counter-rotating propellers because the gear ratios for ahead and astern are the same, so the gear can be run continuously in either direction without any problems.

Model details:

• Brand: PRM Marine
• Model Series: PRM 1000 Series
• Model Variant: 1000D3

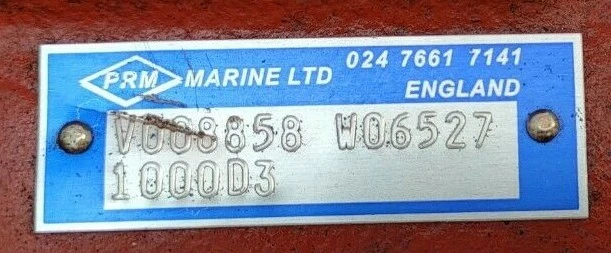

• Manufacturer Part Number: PRM-1000D3-HYD
• Condition: New

Technical Data:

Product Features

1. Full Power Output, Dual-Clutch Operation The same internal gear ratios for forward and astern operation enable for maximum rated power delivery in either direction at all times.
2. Premium Hydraulic Activation: Oil-actuated, multi-disc clutches provide maintenance-free, ultra-smooth, and progressive engagements that protect the engine spline and reduce drive plate clatter.
3. Drop Centre Shaft Offset Lower the angle of the engine and optimise weight distribution by dropping the driveline further into the bilge with the offset output shaft.
4. Rugged Cast Iron Frame: Constructed with ruggedised high-grade cast-iron that protects gear trains from mechanical deformation and provides outstanding acoustic dampening.
5. Emergency Mechanical Lock-In: The clutch has a built-in mechanical lock-in feature that can be manually engaged if there is a total loss of hydraulic pressure, which is unlikely.

Applications:

1. Commercial Fishing Vessels: Ideal for trawlers, crabbers and longliners requiring steady propulsion and predictable trolling profiles.
2. Workboats and tugs are intended to be able to handle the constant forward and reverse cycling of pushing, towing and mooring operations.
3. Passenger Ferries & Water Taxis: Provides the needed high-occupancy commercial transportation and low-vibration transit performance.
4. Medium- to heavy-displacement vessels are used for long-range cruiser and ocean-going trawler yachts. Heavy displacement recreational ships are ideal.
5. Dual Engine Counter-Rotating Installations: Allows for matching of port and starboard propulsion layouts by operating one unit continuously in the opposite direction without loss of mechanical efficiency.

Chief Engineer’s System Integration Guide:

When integrating the PRM 1000D3 into a new or repowered vessel, alignment is paramount. Because this is a drop centre unit, it naturally shifts the output flange downward. Ensure your engine mounts are calibrated to account for this vertical offset without exceeding a 3° to 5° static installation angle.

Additionally, hydraulic gearboxes rely explicitly on thermal management. A dedicated marine oil cooler must be inline with the gearbox’s hydraulic circuit. Always plumb the oil line so that hot oil flows out of the top of the gearbox, through the sea-water cooled heat exchanger, and returns directly to the low-pressure sump side.
