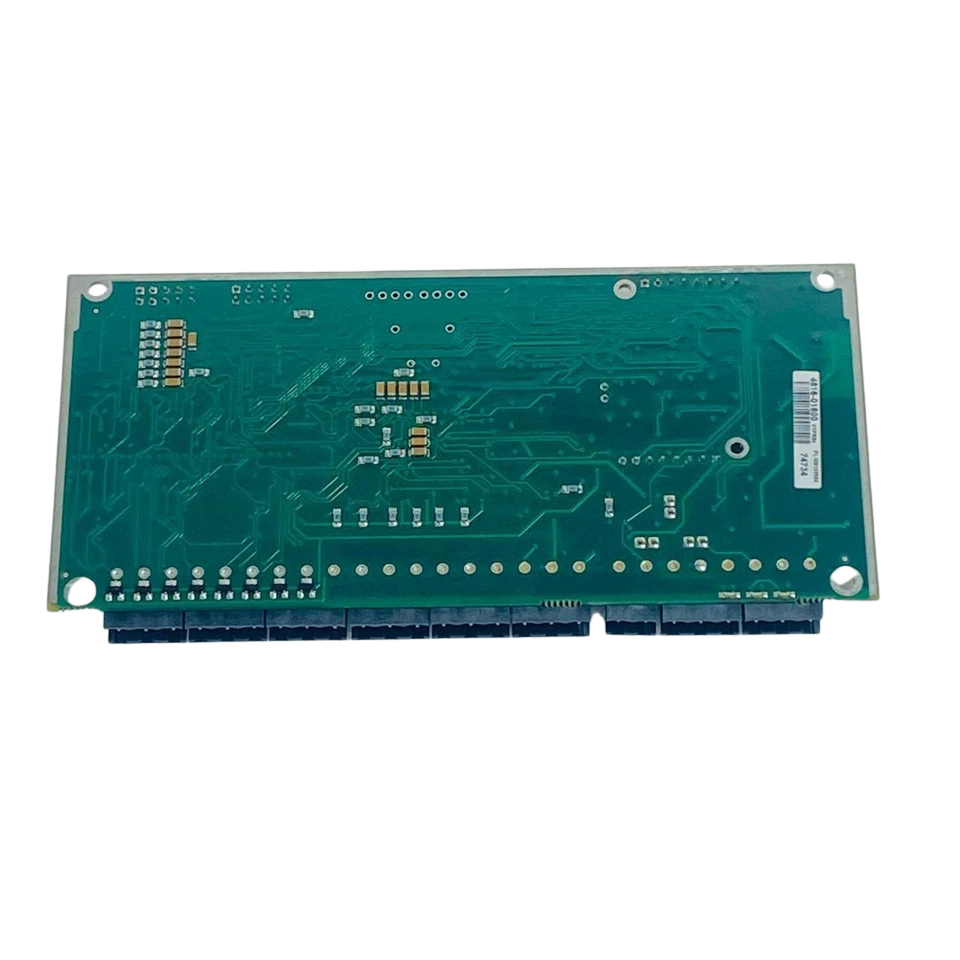

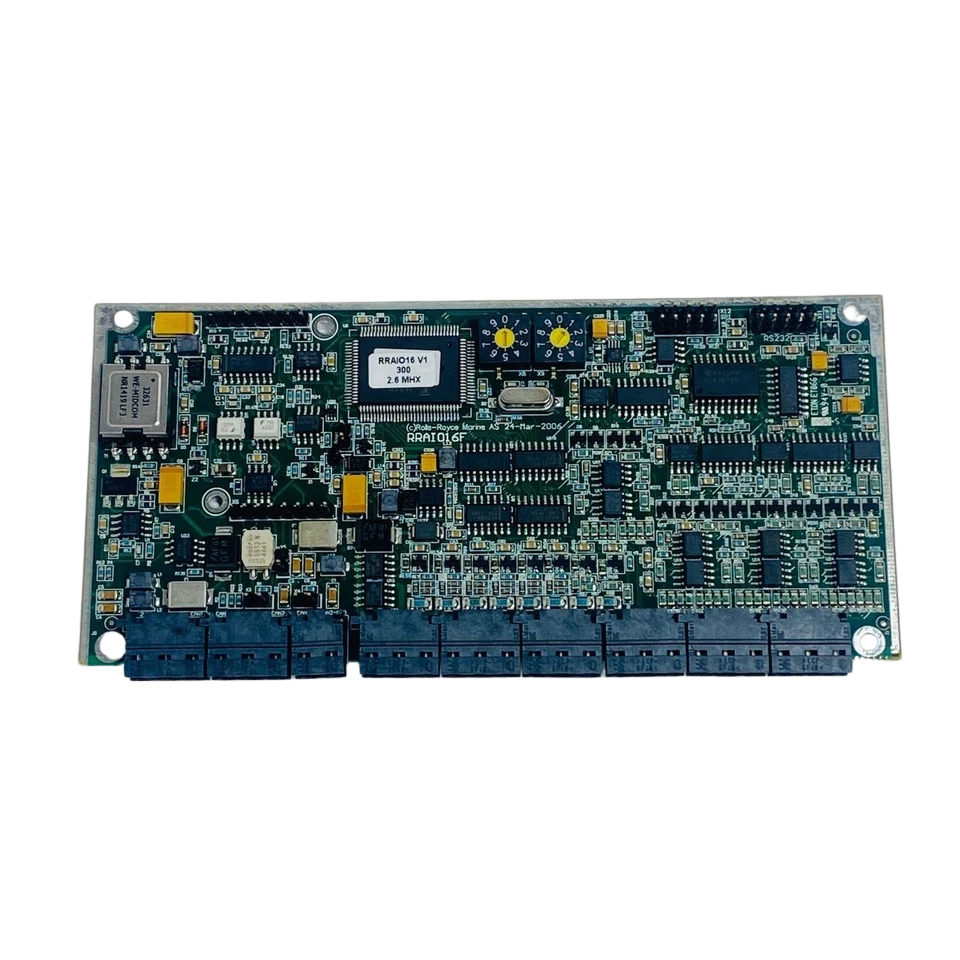

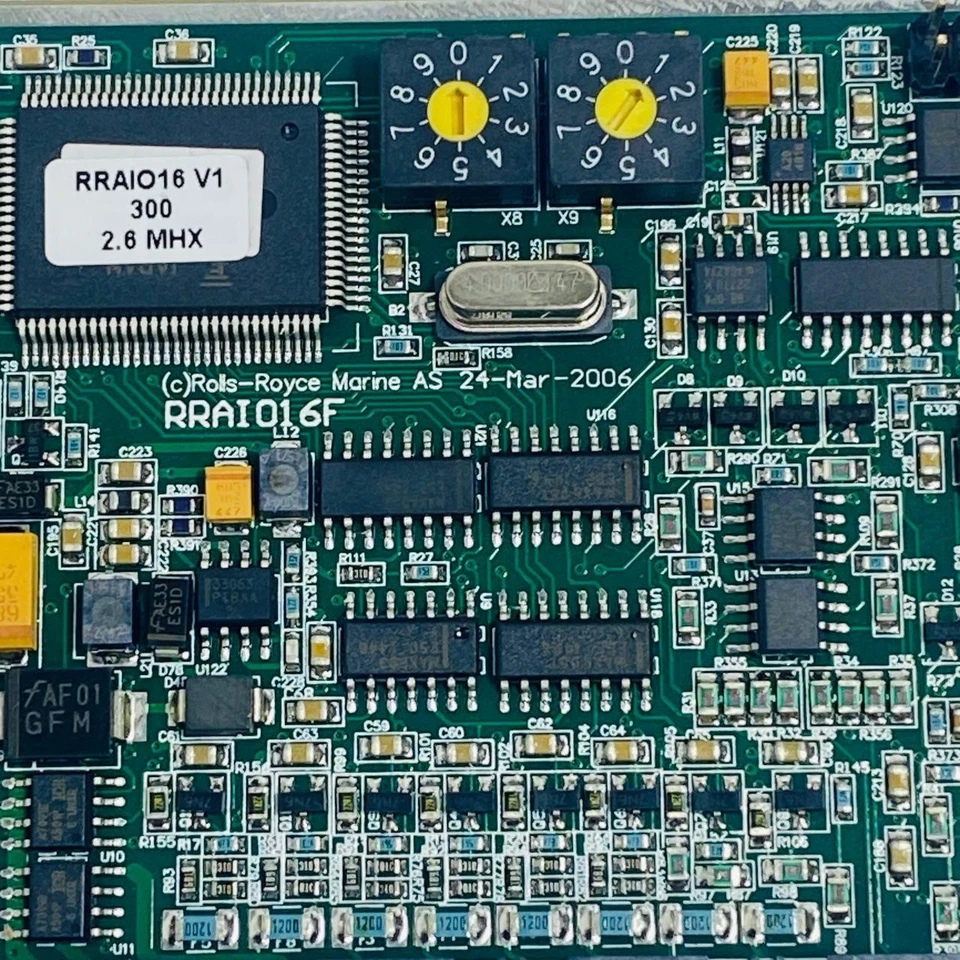

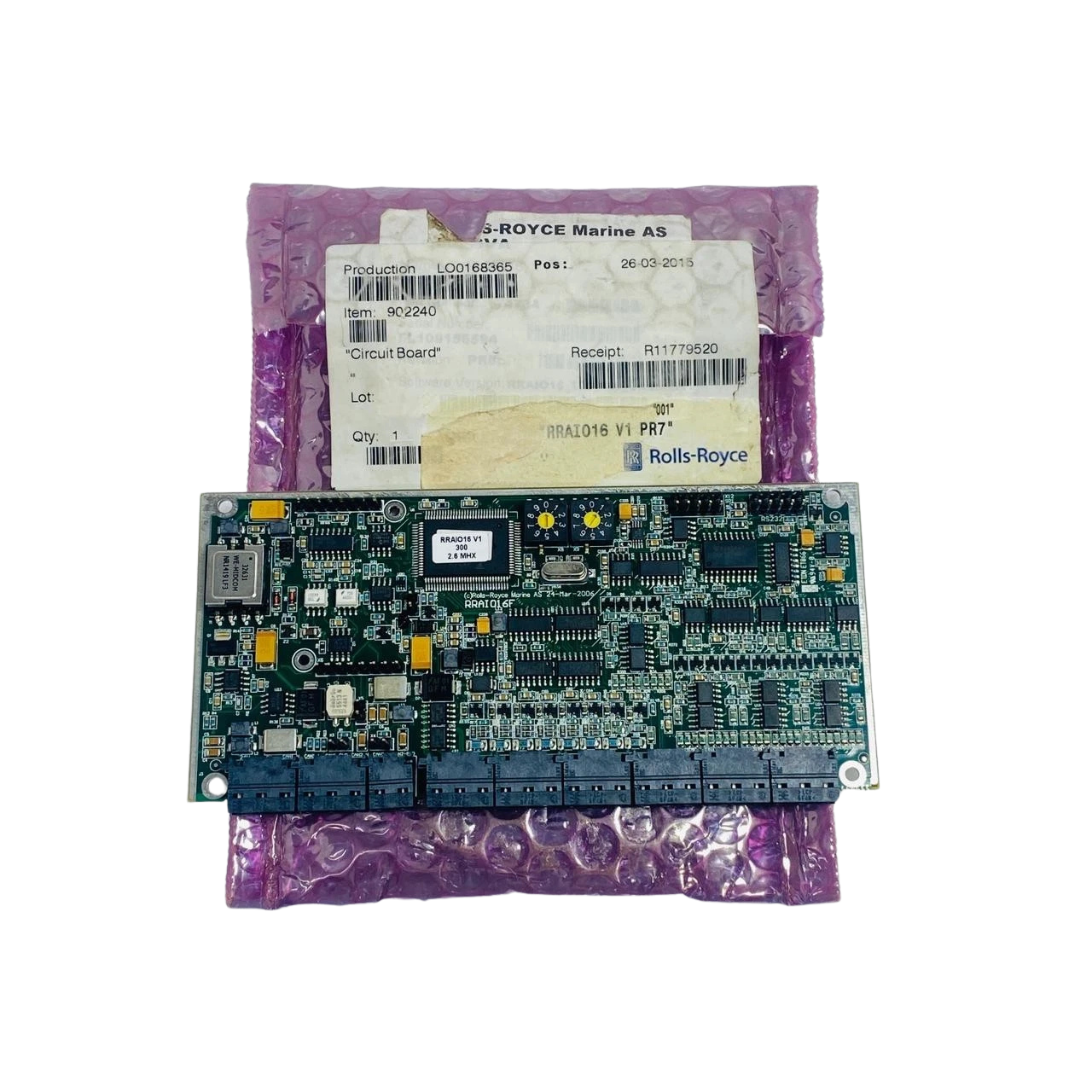

Rolls Royce RRAIO16F PCB Card

Rolls Royce RRAIO16F PCB Card – 16-Channel Analog Input/Output Marine Automation Module

The Rolls Royce RRAIO16F PCB Card is a 16-channel analog input/output interface board engineered specifically for harsh marine automation, propulsion management, and dynamic positioning environments. Developed under the legacy Rolls-Royce Marine automation product line (now supported under Kongsberg Maritime lifecycle programs), this board acts as the critical sensor-and-actuator signal translation layer between localized machinery transmitters and centralized programmable automation controllers.

Operating on a standard isolated 24 V DC bus, the RRAIO16F processes continuous analog signals—including 4–20 mA current loops, 0–10 V DC command signals, and resistive feedback arrays—used to drive proportional valves, monitor hydraulic thruster pitch, translate rudder feedback angles, and track main engine auxiliary parameters. Designed with multi-stage optoelectronic isolation, rugged galvanic barriers, and high electromagnetic immunity, it prevents ground loops and electrical transients typical of shipboard low-voltage switchboards and variable-frequency drive (VFD) enclosures.

Model Details

• Manufacturer: Rolls-Royce Marine / Ulstein Automation (Kongsberg Maritime)
• Model Identifier: RRAIO16F
• Manufacturer Part Number (MPN): RRAIO16F (Legacy assembly refs: 660-RRAIO16F, RR-AIO-16F/REV-C/D)
• Hardware Architecture: Microprocessor-supervised, 16-channel multi-range analog conditioning PCB with onboard flash bus interface
• Bus Interface: Proprietary dual-redundant fieldbus / backplane edge connection for marine rack integration

Technical Specifications

Equipment Compatibility & System Architecture

• Thruster & Propulsion Control: Rolls-Royce Helicon-X3, Helicon-XT Propulsion Control Systems, and Aquamaster Azimuth thruster feedback panels.
• Steering & Rudder Machinery: Tenfjord and Frydenbø rotary-vane steering gear control cabinets.
• Vessel Automation Platforms: UMAS-V (Ulstein Marine Automation System), Rolls-Royce ACON Integrated Automation System (IAS), and early-generation Kongsberg K-Chief/AutoChief auxiliary sub-racks.
• Engine Monitoring Modules: Bergen Marine medium-speed diesel auxiliary safety/temperature racks.

Part Number Cross-References & Equivalent Codes

• Manufacturer Reference: RRAIO16F
• Rolls-Royce Spares Code: RR-660-RRAIO16F
• Kongsberg Legacy Cross-Reference: KM-RRAIO-16F / 10243981
• Ulstein Automation Code: UMAS-AIO-16F-BRD
• Functional Predecessor: RRAIO8F (8-Channel variant—requires rack reconfiguration for direct replacement)

Key Features

1. 16-Bit Precision Field Conversion: Translates up to 16 analog channels simultaneously, delivering ultra-low drift, high-accuracy telemetry for tight feedback-loop dynamic positioning and thruster RPM/pitch commands.
2. Comprehensive Galvanic Channel Isolation: 1500 V AC protection shields sensitive upstream computing hardware from external marine ground faults, heavy induction loads, and switchboard switching noise.
3. Ruggedized Marine Conformal Coating: Factory-dipped industrial acrylic coating guards components against salt-mist corrosion, humidity, diesel soot, and vibration-induced micro-fractures.
4. Flexible Software Channel Configuration: Each channel pair is independently configurable for active 2-wire transmitter loops, passive 4-wire process instruments, or pure voltage inputs without desoldering components.
5. Hot-Swap Rack Insertion Capability: Equipped with transient suppression circuitry and staged pin lengths allowing safe insertion and extraction in de-energized sub-rack backplanes without bus collapse.

Applications

• Marine pitch, azimuth angle, and nozzle position feedback loops for Rolls-Royce and Kamewa propulsion systems.
• Main and auxiliary engine instrumentation monitoring (exhaust gas temperatures, lube oil manifold pressures, scavenge air lines).
• Bilge, ballast, and cargo manifold valve actuator position control in Integrated Automation Systems (IAS).
• Hydraulic power unit (HPU) telemetry, tracking proportional relief valve states, filter differential pressures, and oil sump temperatures.
• Rudder angle command and true-position verification loops in dual-redundant commercial steering gears.

Frequently Asked Questions

What are the primary failure symptoms of an aging RRAIO16F PCB card?

Common failure indicators include erratic thruster pitch feedback on bridge consoles, intermittent channel dropout alarms on the IAS, output clamp at 0 mA or 24 mA, or complete loss of communication across the sub-rack backplane due to blown internal voltage regulator diodes.

Can the RRAIO16F directly replace an RRAIO8F card?

While they share identical input conditioning characteristics and bus protocols, the RRAIO16F features a higher-density channel footprint (16 channels vs. 8 channels). Replacing an RRAIO8F with an RRAIO16F requires updating the hardware configuration map in the automation software project and rewiring the terminal headers.

Does the RRAIO16F require field calibration prior to installation?

Hardware replacement units supplied by certified marine electronic vendors come factory-calibrated. However, zero-and-span verification using a precision mA/V calibrator across operational ranges is required during vessel commissioning to verify loop integrity between the card and field transmitters.

How do I know if my system requires active or passive wiring for this module?

Passive sensors (2-wire pressure and temperature transmitters) require loop excitation voltage provided directly from the module’s positive terminals. Active sensors (flow meters or self-powered position transmitters) provide their own drive voltage and should be connected strictly across the signal input and common ground return pins.

What conformal coating is applied to the board for salt-mist protection?

These cards utilize a MIL-I-46058C and IPC-CC-830 qualified transparent acrylic or polyurethane conformal coating, engineered to insulate against conductive saline air, high relative humidity, and oil vapor contamination in marine machine spaces.
