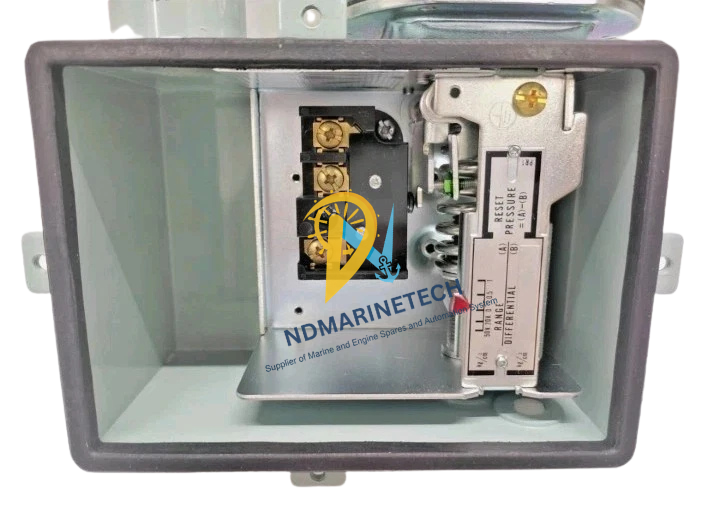

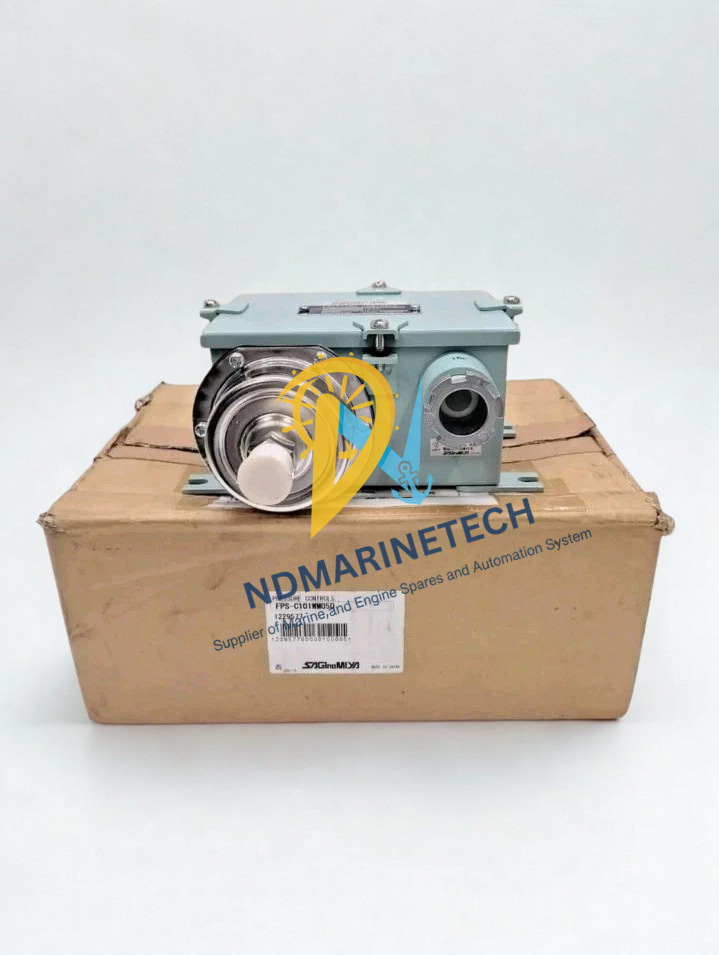

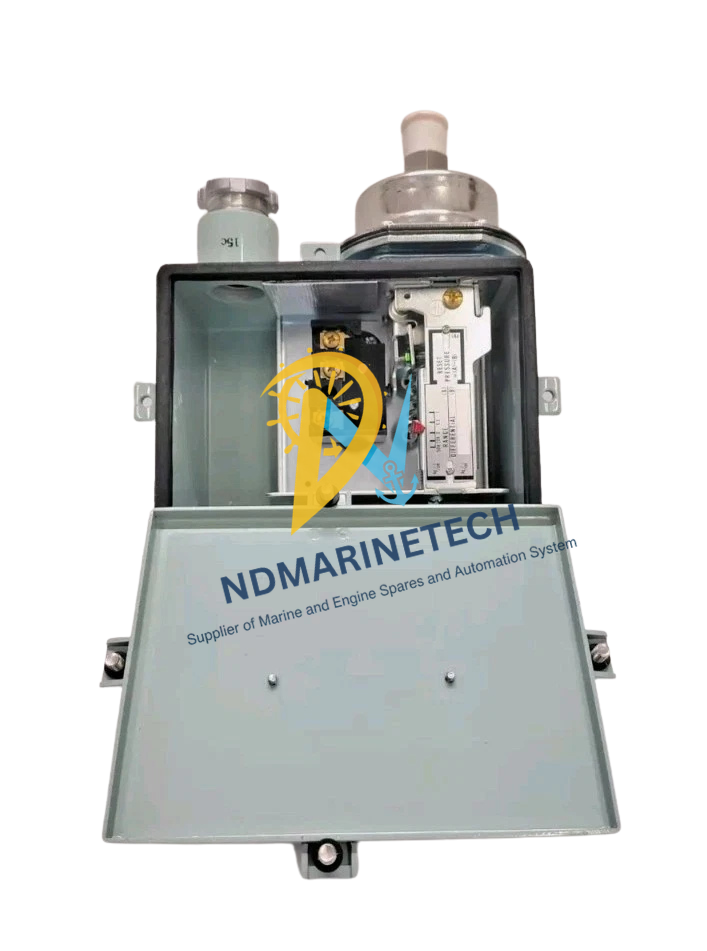

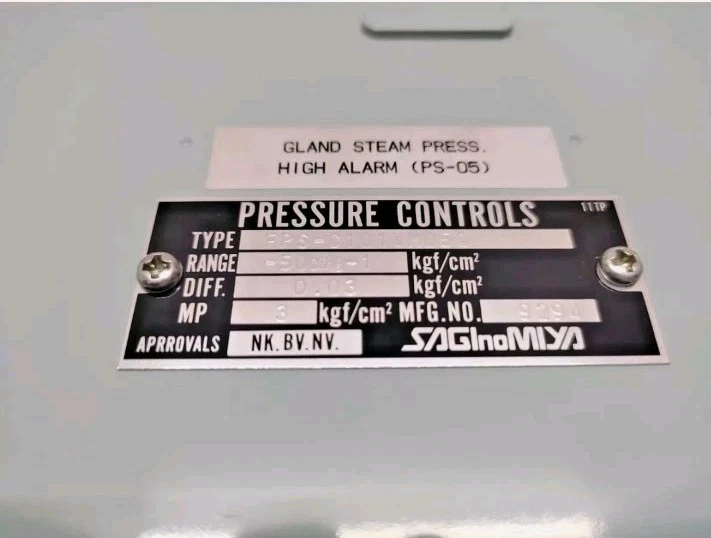

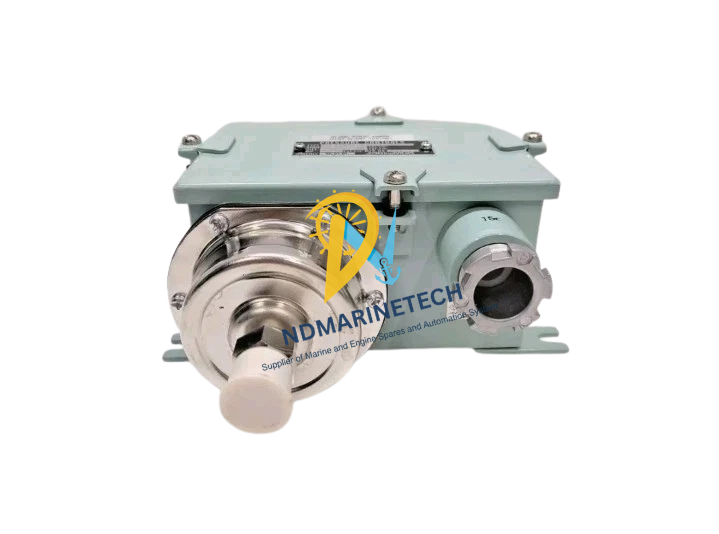

Saginomiya FPS-C101WM05Q Pressure Control Switch

Saginomiya FPS-C101WM05Q | Precision Pressure Control Switch

The Saginomiya FPS-C101WM05Q is a pressure control switch that is designed for precise monitoring and control in commercial HVAC and refrigeration systems. Japanese engineers have made this switch a standard feature since it is built to last under tough conditions. As a safety and operational limit control, it makes sure that system pressures stay within safe limits to protect the compressor and maximize energy efficiency.

 Technical Specifications

Applications

• Commercial refrigeration is great for managing suction pressure in walk-in coolers, freezers, and display cases.
• Air conditioning systems: These are used as a high-pressure cut-off or low-pressure safety for central plant chillers.
• Air Compressors: Controls the motor reliably based on the pressure in the tank.
• Industrial Automation: Good for checking hydraulic or pneumatic pressure on factory floors.
• Pump Control: This can be used to stop fluid transfer systems from running dry or getting too much pressure.

NDMarineTech’s Pro Tip:

When installing the Saginomiya FPS-C101WM05Q, always ensure the capillary tube or pressure connection includes a vibration loop (a small coil in the tubing). This prevents mechanical fatigue at the joint, which is the leading cause of premature leaks in pressure-controlled systems. Furthermore, verify that the electrical load does not exceed the 12A inductive rating; if controlling a heavy-duty motor, always use the switch to trigger a contactor rather than wiring it directly to the motor leads.
