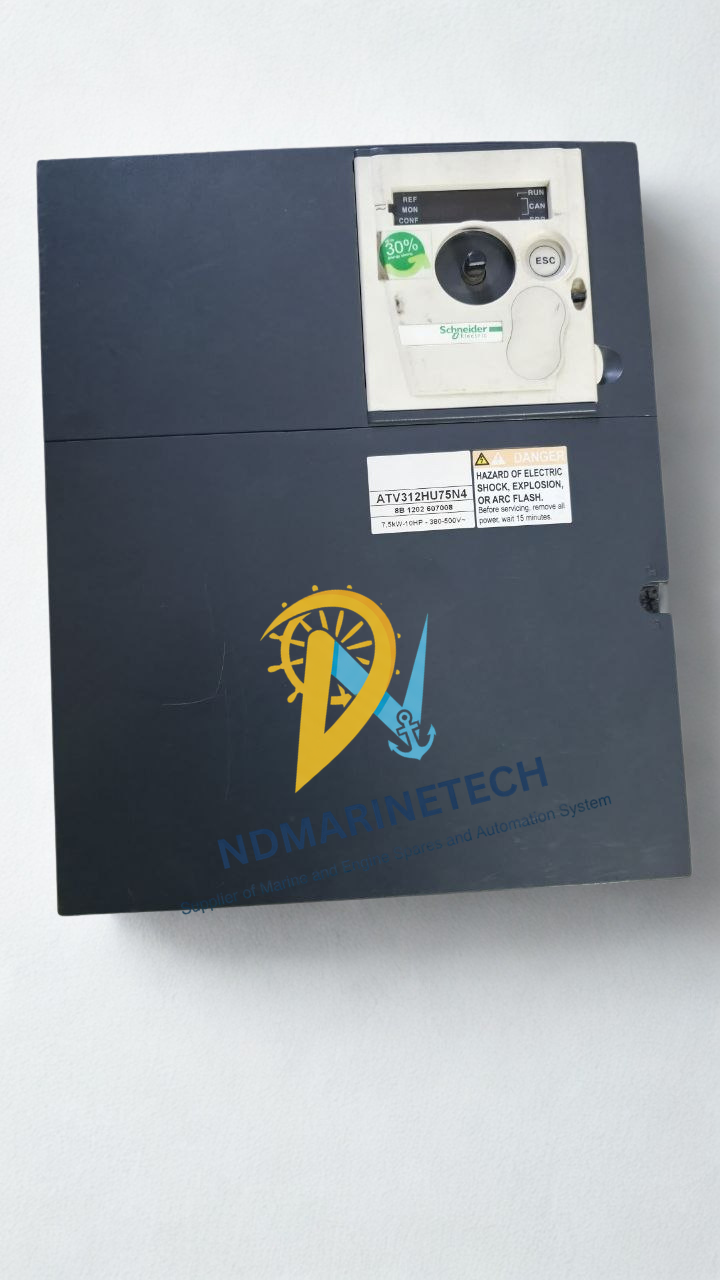

Schneider Electric ATV312HU75N4 | 7.5kW 10HP AC Drive

Schneider Electric ATV312HU75N4 7.5KW 10HP AC Drive – Fully Operational

Schneider Electric ATV312HU75N4 is a rugged Altivar 312 variable speed AC drive designed to offer accurate control for three phase asynchronous motors. It’s an ultra-reliable Variable Frequency Drive (VFD) that optimises energy consumption and machine longevity. Input range: 380V to 500V AC Rating: 7.5kW (10 HP) It has sensorless flux vector control and an inbuilt EMC filter for maximum motor torque efficiency and minimum electrical interference.

From the point of view of the maritime and heavy industrial engineering, this drive is a robust solution for equipment circuits which are subject to strong demands. Due to its excellent resistance to supply voltage variations and severe mechanical overloads, it is the ideal solution for automation panels where downtime is simply not an option.

Model Details

• Brand: Schneider Electric
• Product Range: Altivar 312 (ATV312)
• Model Number / MPN: ATV312HU75N4
• GTIN/UPC: 3606480075179

Technical Specifications: Schneider Electric ATV312HU75N4

Main Features

1. Sensorless Flux Vector Control: Offers excellent torque performance and accurate speed control under different load conditions.
2. The integrated Class A EMC filter protects neighbouring communication and monitoring devices and reduces installation costs thanks to a reduction of radio frequency and electromagnetic emissions.
3. Strong Communication: Native Modbus RTU and CANopen over RJ45 makes it easy to connect to bigger PLC and SCADA platforms.
4. More robust overload protection: It can tolerate abrupt overtorques of 170% to 200% of the motor’s rated torque for up to 60 seconds.
5. Built in protection against line overvoltage and undervoltage, output phase-to-earth short circuits and local heat overload.

Marine and Industry Applications

• Pumps and Central Cooling Fans: Perfect for ballast systems, bilge pumps and HVAC ventilation loops.
• Material Handling and Conveyors: Smooth S-ramp and U-ramp accelerations to safeguard mechanical gearboxes.
• Packaging and Textile Machinery: Fast response time with discrete and analogue I/O control for accurate sequencing.
• Compressors and Thrusters – Can easily handle very demanding start stop torques.

Compatibility & Part Number Cross-References

The ATV312HU75N4 serves as a modern, direct drop-in replacement or alternative for several legacy and contemporary frames:

• Legacy Cross-Reference: Schneider Altivar 31 series (ATV31HU75N4)
• Direct Fitment: Standard IEC three-phase asynchronous induction motors rated up to 10HP / 7.5kW within 380V-500V architecture.
• Optional Fieldbus Compatibility: Expandable via dedicated slot cards for Profibus DP, DeviceNet, Modbus TCP, and Fipio.

Condition and Shipping Info

• Condition: Pre-Owned, Fully Operational
• Lead Time: Same-day or next-business-day dispatch for critical breakdown mitigation.
• Shipping Info: Globally packed in anti-static, heavy-duty industrial foam molding. Worldwide express free shipping.

Guide by Our Expert Engineer:

1. Environmental De-rating: While the ATV312 series can operate natively up to 50°C without derating, marine engine rooms or tightly sealed enclosures often exceed this. If operating without the top protective cover plate, you can run the unit up to 60°C, but you must factor in a current de-rating of 1% per degree Celsius above 50°C.

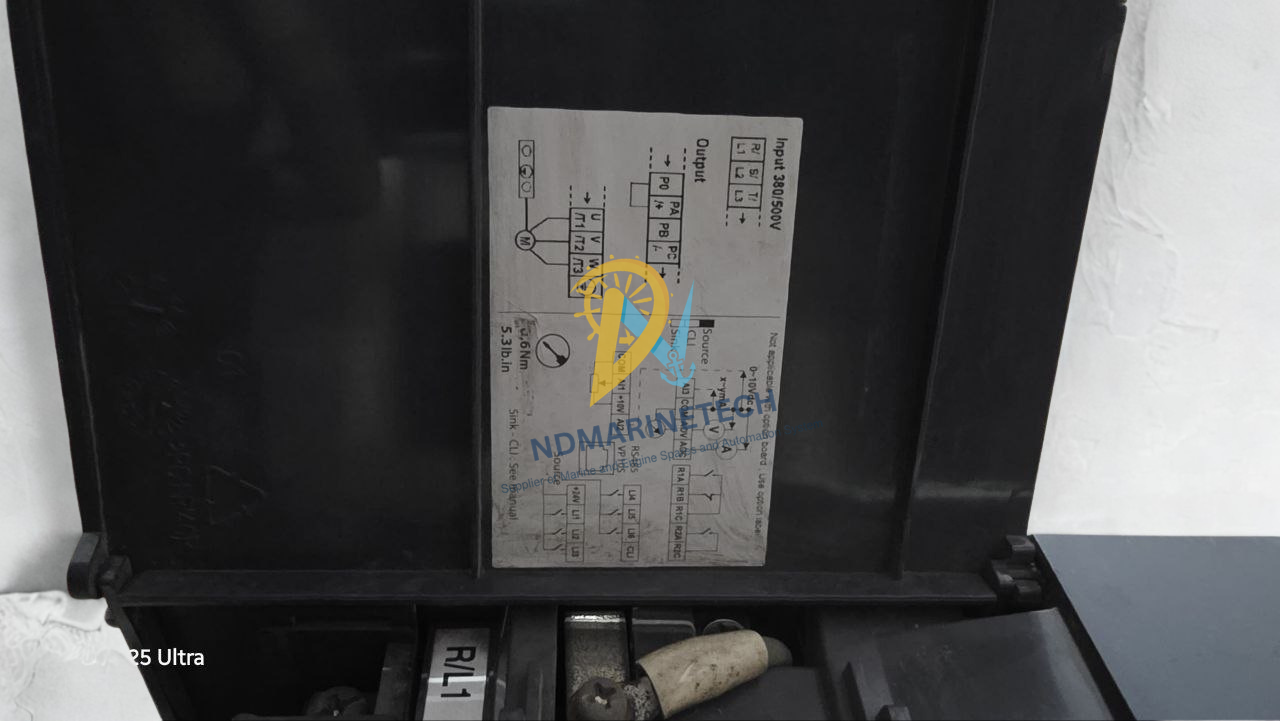

2. On High Vibration Enclosures: Onboard ships or near heavy industrial shaker screens, harmonic vibrations can cause terminal screw backing. Ensure the main power terminals (L1, L2, L3, U, V, W) are precisely torqued to 2.5 N.m, and signal terminals are set to 0.6 N.m. Always loop your shielded motor cabling with proper EMC grounding clamps directly to the mounting plate to prevent stray shaft currents from chewing through your motor bearings.
