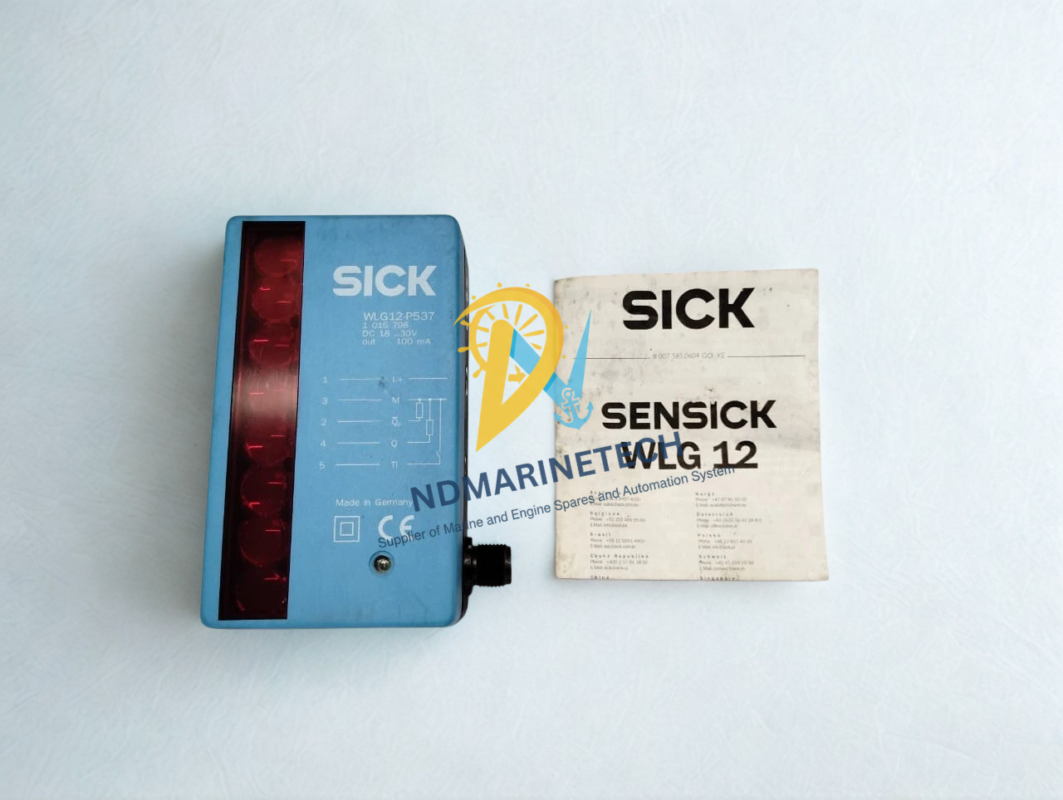

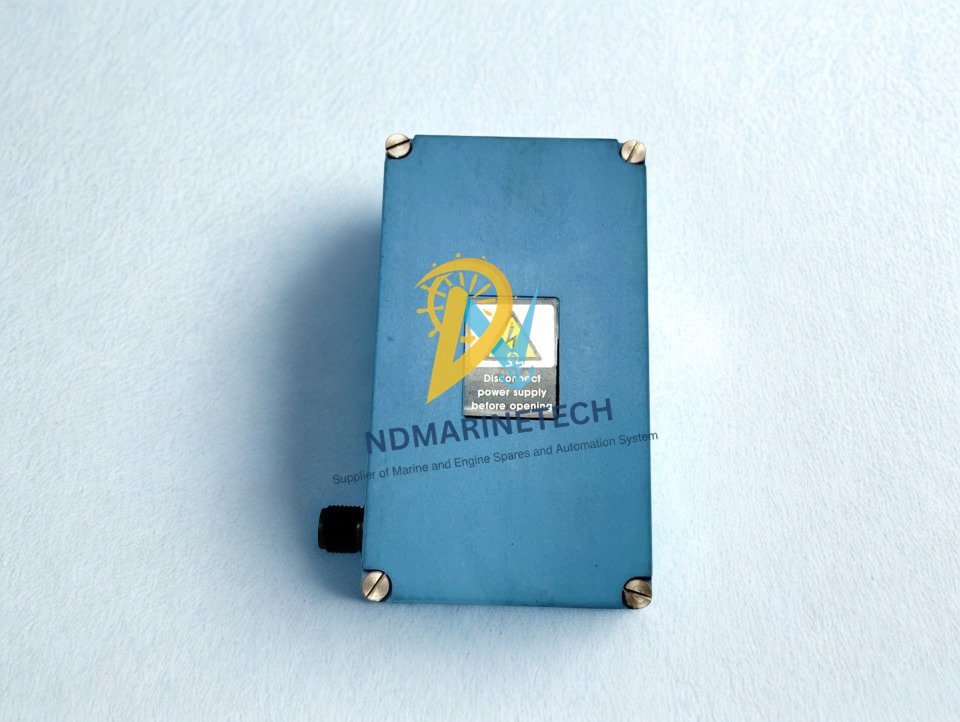

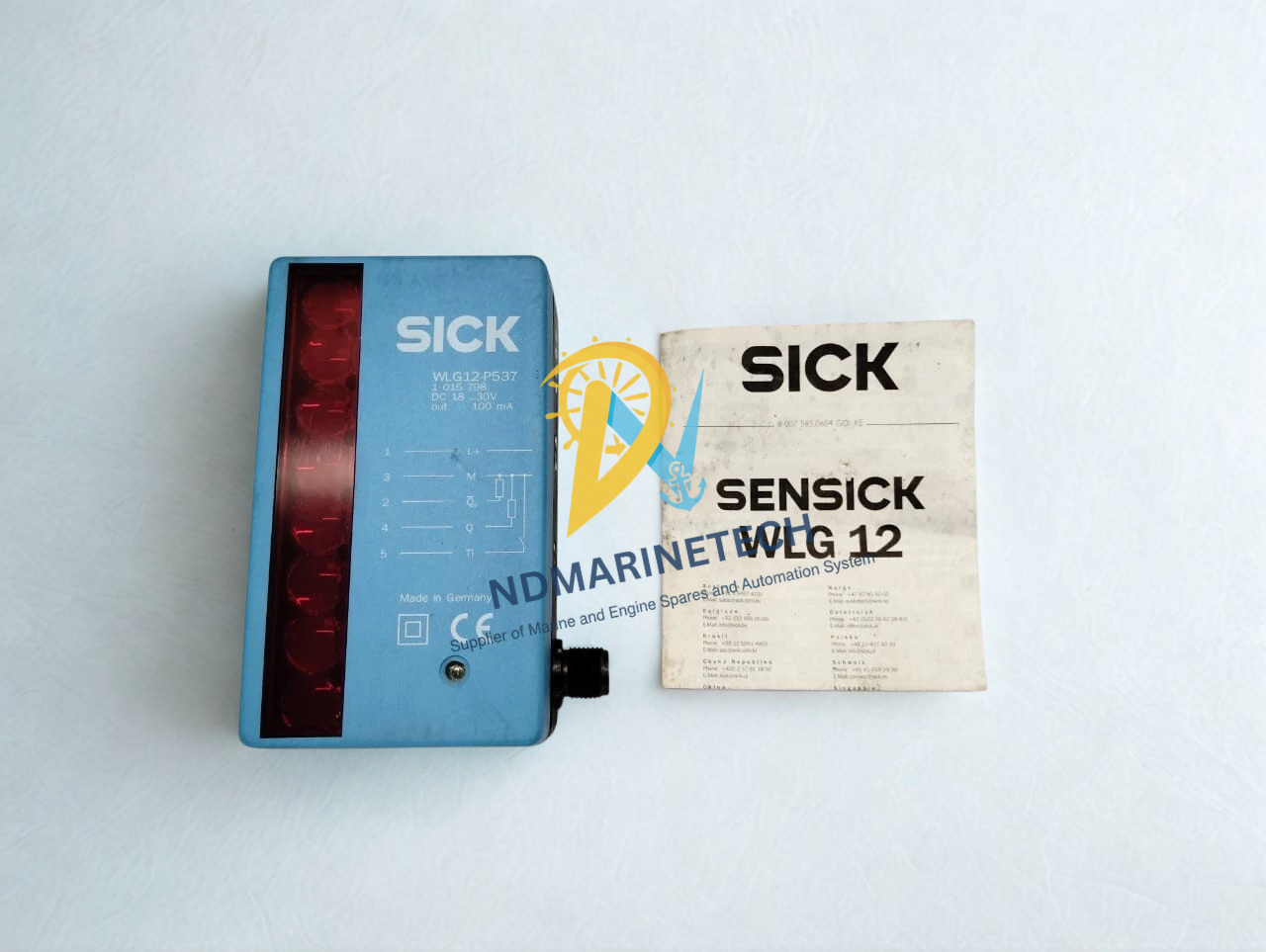

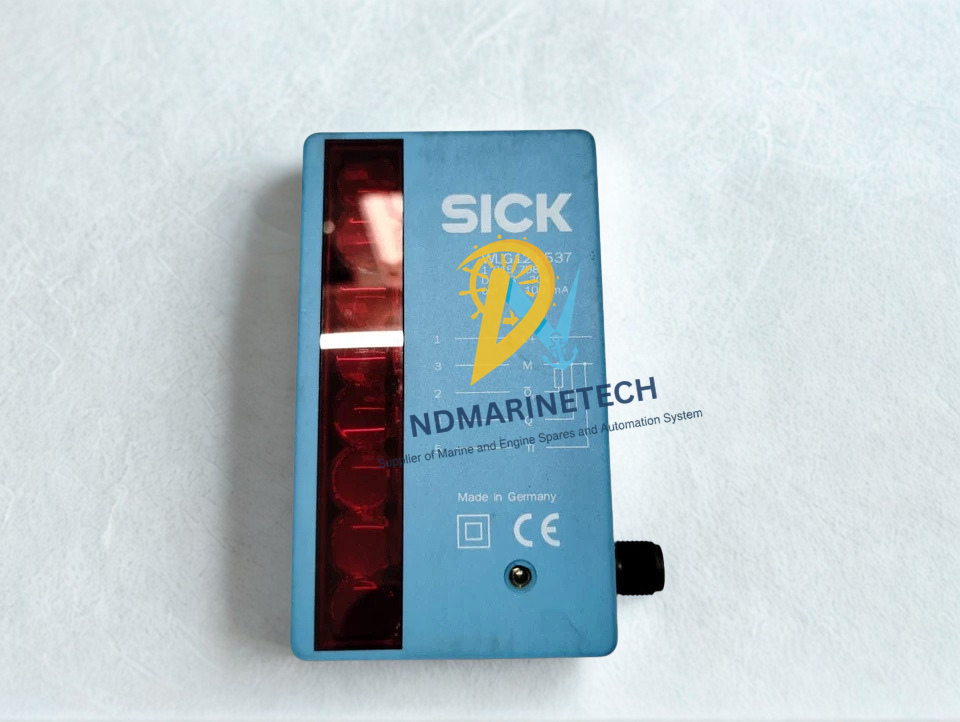

Sick WLG12-P537 Switching Automation Light Grid
The Sick WLG12-P537 Switching Automation Light Grid (Part Number: 1015798) is the perfect solution for reliable, compact object identification in fast-paced industrial situations. This modular light grid is designed as a photoelectric retro-reflective sensor and features a complex 8-beam parallel array to achieve perfect monitoring performance across a 1.5 metre detection range.
The WLG12-P537 boasts an ultra quick reaction time of 0.6 ms and a durable casing with IP67 rating and enables accurate resolution scaling from 6 mm to 12.5 mm. It is the preferred solution for tough processing lines, packaging infrastructure and demanding marine automated control networks where spatial footprints are restricted but operational safety and dependability cannot be sacrificed.
Model Details:
- Brand: SICK
- Model Number: WLG12-P537
- Manufacturer Part Number: 1015798
- Product Range: WLG Series
Specifications: Sick WLG12-P537
| Feature / Parameter | Specification Details |
|---|---|
| Sensor Principle | Photoelectric Retro-Reflective Block Sensor |
| Operating Range | 100 mm to 1,500 mm (1.5 m) |
| Number of Beams / Detection Height | 8 Beams / 87.5 mm Detection Height |
| Beam Separation / Resolution | 12.5 mm / Adjustable from 6 mm to 12.5 mm |
| Light Source / Wave Length | Visible Red LED / 650 nm |
| Supply Voltage (Vs) | DC 18 V … 30 V |
| Current Output (Imax) | ≤ 100 mA |
| Power Consumption (Sender) | 80 mA |
| Switching Output / Mode | 2 x PNP / Q Dark Switching (Active if beam interrupted) |
| Response Time | Parallel beam, 0.6 ms (with resistive load) |
| Connection Type | Male Connector M12, 5-pin |
| Dimensions (W x H x D) | 62 mm x 106 mm x 46.6 mm |
| Enclosure Rating / Protection Class | IP67 / Protection Class II |
| Housing / Front Lens Material | Durable Plastic / PMMA |
| Operating Temperature Range | –25 °C to +55 °C |
Features
- Ultra-Fast 0.6 ms Response Matrix: This is designed with an 8-beam parallel scan rate for capturing microscopic or ultra-fast transient targets quickly on fast automation lines.
- Ruggedized IP67 Sub-Assembly: Fully sealed against severe dust ingress and heavy water spray, maintaining functionality in moist and demanding situations.
- Configurable Multi-Beam Resolution: Provides a flexible setup matrix with target threshold detection from 6 mm to 12.5 mm to allow for optimal object discriminating.
- Smart Diagnostics Interface: High-visibility multi-function front and top LEDs monitor receiver strength, marginal signals and Teach-In failures.
Part Number Cross-References
- SICK ID Code: 1015798
- Farnell Order Code: 4412092
- Associated Mounting Accessories: BEF-WN-WLG12 (2017567)
- Compatible Reflectors: PL180E01 (1013289), PL80A, PL40A
