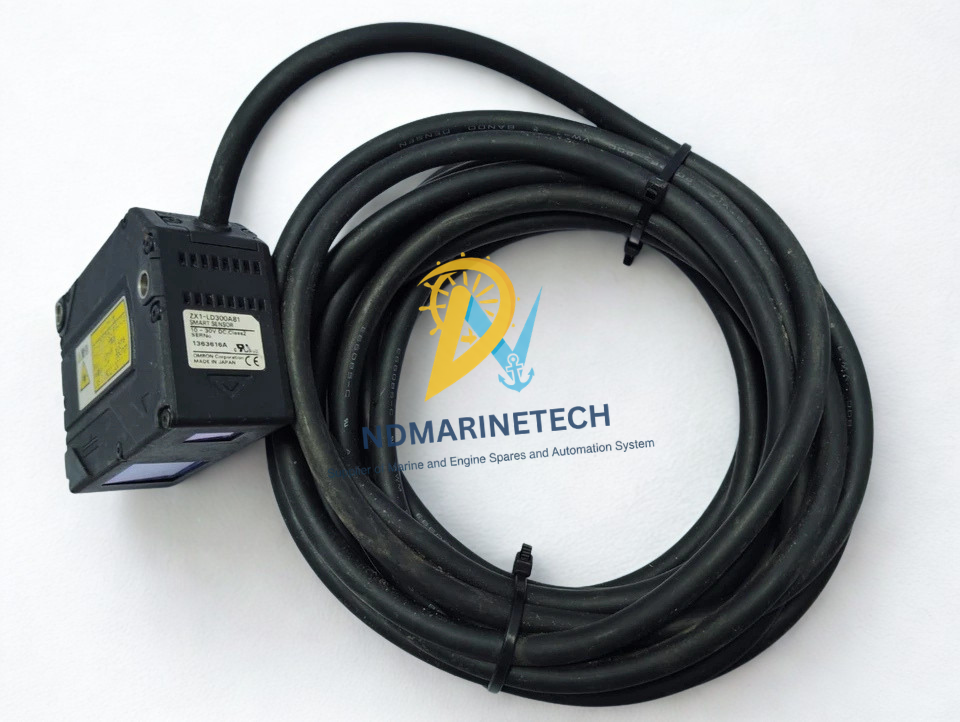

OMRON ZX1-LD300A81 Smart Laser Sensor

OMRON ZX1-LD300A81 Smart Laser Sensor with Built-in Amplifier

The OMRON ZX1-LD300A81 is a high-performance compact CMOS laser displacement sensor, designed for high-accuracy distance differentiation. This diffuse-reflective smart sensor features an integrated, built-in amplifier, eliminating the need for additional tracking units, optimizing cabinet space and simplifying field deployment. It has a broad measuring range and a large reference distance of 300 mm, which makes it very good at handling complex workpiece surface variations – from highly reflective machined metals to dark matte composite materials.

Model Details:

• Brand: OMRON Industrial Automation
• Model: ZX1-LD300A81 2M
• MPN (Manufacturer Part Number): ZX1LD300A812M
• Part Number Cross-References: ZX1-LD300A81, ZX1-LD300A81-2M, ZX1LD300A81

Technical Specifications: OMRON ZX1-LD300A81

Features and Benefits

1. All-In-One Built-In Amplifier: Processing circuitry is integrated into the ultra-compact sensor head housing to simplify machine design.
2. Advanced Surface Adaptive Processing High speed dynamic range algorithms maintain very accurate tracking of bright, multi-color or dark matte targets.
3. One-Touch Smart Tuning: simplifies commissioning by providing one-button setup for rapid optimization of laser intensity and threshold baselines.
4. Dual Output Utility: Provides flexible PNP digital switching output and analog 4-20 mA loop for accurate variable monitoring.
5. Rugged Marine & Heavy Industrial Construction: Constructed in high-grade PBT with an IP67 rating, designed with a flexible robot cable to endure continuous motion and dampness.

Applications

• Automotive & Aerospace Assembly: Correct positioning of sub-assemblies, identification of gaps, error-proofing (poka-yoke) on paint or weld lines.
• Marine Machinery Monitoring: Non-contact testing of shaft eccentricity, tracking thermal expansion on structural bulkheads and positioning of deck machinery.
• Packaging & Conveyor Systems: Web tension control in real time, product height confirmation, and dual sheet detecting loops.
• Metalworking & Rolling Mills: Structural thickness validation, coil winding measurement and component run-out inspections.

Compatibility

The ZX1-LD300A81 functions completely standalone due to its integrated amplifier. It connects seamlessly to any industrial PLC or SCADA system accepting PNP or 4–20 mA analog inputs (e.g., OMRON Sysmac NJ/NX series, Siemens S7-1200/1500). For physical mounting arrays, it is fully compatible with the OMRON E39-L181 stainless steel mounting bracket.

Engineer Expert’s Advice:

In marine and heavy processing environments, optical components suffer significantly from vibration harmonics and particulate settling. When deploying the OMRON ZX1-LD300A81 near heavy rotary gear or engines, ensure you utilize its built-in Smart Tuning functionality under normal ambient running conditions. This stabilizes the CMOS receiver matrix against flickering reflections caused by continuous micro-vibrations.

1. Preventing Clean-Down Damage: Although rated to IP67, the optical window is vulnerable to oil film crystallization and chemical hazing. Mount the sensor with a slight downward angle (3° to 5°) to prevent airborne condensation or washdown runoff from pooling directly across the lens window.
2. Signal Noise Abatement: When routing the 2-meter factory pre-wired robot cable alongside heavy 440V distribution lines, use a separate, grounded shielding conduit for the sensor cable. This completely isolates the sensitive 4–20 mA analog output from EMI line spikes.
3. Mitigating Target Angle Deflection: If tracking a highly mirrored or highly reflective metallic workpiece, tilt the sensor slightly relative to the target surface. This ensures the specular reflection does not overwhelm the CMOS chip, forcing the sensor into an over-saturation error state.
