Tamrotor Marine Compressor NT0368 Off-Load Valve

Tamrotor Marine Compressor TMC NT0368 Off-Load Valve – NEW

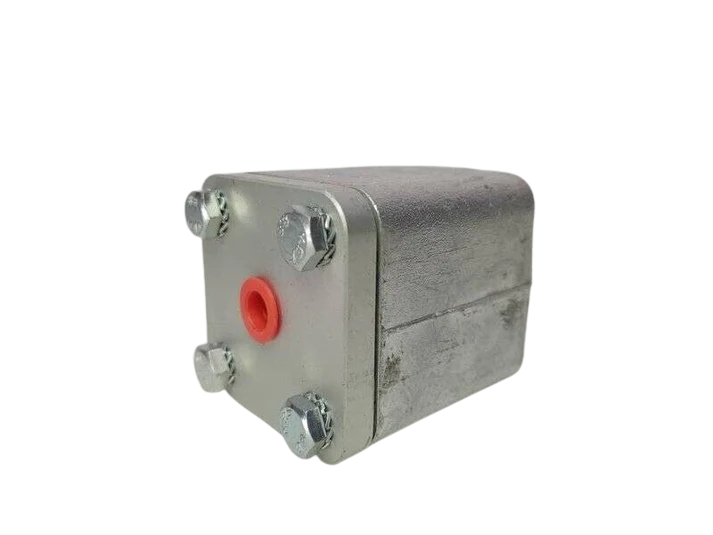

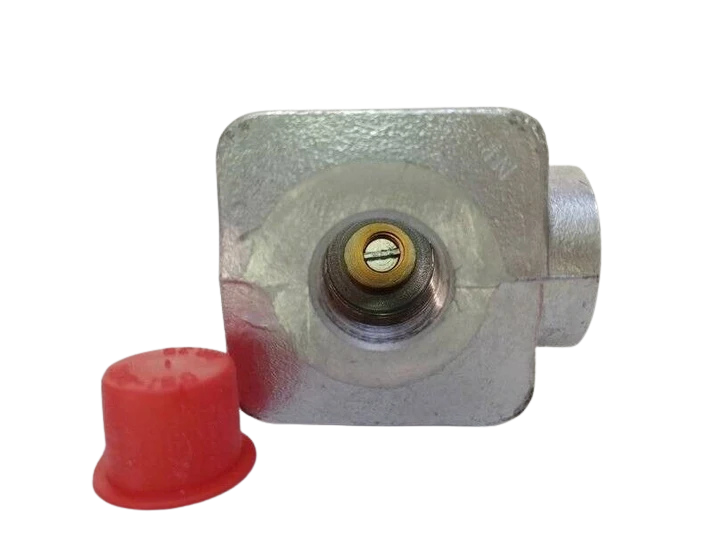

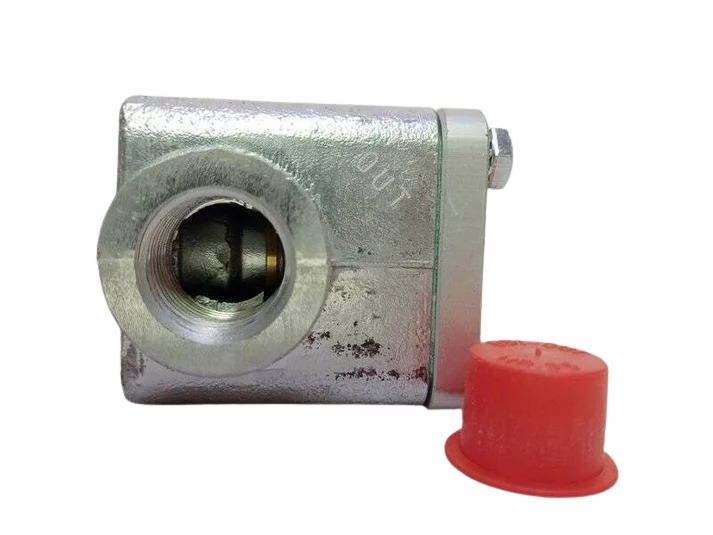

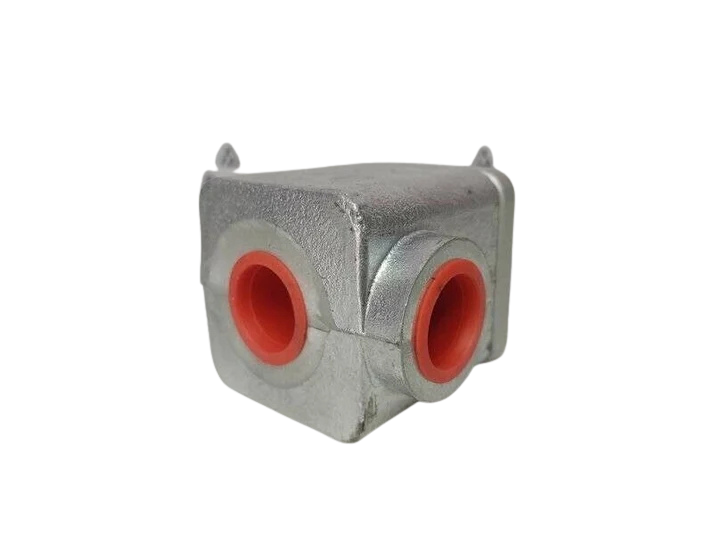

The Tamrotor TMC NT0368 Off-Load Valve (also known as the unloader or suction control valve assembly) is a vital pneumatic control device used in Tamrotor rotary screw marine air compressors. The NT0368 is mounted on the suction side of the compressor air end and governs the airflow switch from loaded (pumping) to off-laden (idling/venting) operational cycles.

This valve controls the internal pressure with dual acting pneumatic pilot signals . It prevents the motor overloading during starting and reduces the electrical power surges. It maintains the accurate system discharge pressure on marine working air and control air systems. The case is precision machined from sea-water resistant anodized aluminum and furnished with high-temp fluoropolymer seals, it will stand-up to the vibration, thermal strain, and oil mist common to engine room settings.

Key Features

1. Rapid Response Cycle: Pneumatic piston mechanism ensures smooth transitions between load and unload phases, reducing air-end pressure spikes.
2. Marine-Grade Material Construction: Corrosion-resistant cast alloy housing built to endure saline mist, lube oil vapors, and high engine room ambient heat.
3. Integrated Vent / Blowdown Path: Facilitates automatic air-receiver depressurization to lower starting torque requirement on the drive motor.
4. Direct Air-End Mounting: Flange-face geometry matches Tamrotor compressor housings for leak-free, drop-in replacement.
5. High-Durability Elastomers: Pre-fitted with Viton seals resistant to synthetic compressor lubricants (ESTHER / PAG / Mineral oils).

Compatible Compressor Models

• TMC Series Screw Compressors: TMC 15, TMC 22, TMC 30, TMC 37, TMC 45, TMC 54 (EA / EW Marine Working and Control Air Units)
• EMH / EANA Series: Select Tamrotor packaged air compressors fitted with pneumatic unloader assemblies.

Cross-Reference Part Numbers

• TMC Part No: NT0368
• Tamrotor OEM Ref: NT-0368 / NT0368-V

Applications

• Shipboard Working Air Systems: Regulating continuous deck air supply on container ships, bulk carriers, and tankers.
• Control Air Systems: Maintaining constant pressure delivery for pneumatic engine controls, valve actuators, and instrumentation.
• Offshore Rig Air Packages: Screw compressor skid installations operating in high-humidity marine conditions.

Marine Engineer’s Operational Insights

1) Prevent Unload Delays: If your TMC compressor fails to drop to idle pressure or continuously vents out the intake during unload phase, the NT0368 internal piston is likely binding due to varnish buildup from degraded compressor oil. Replacing the entire valve assembly avoids premature air-end overheating.

2) Check Control Air Line Filtration: Ensure the pilot air line supplying the solenoid to the NT0368 port is clean and free of moisture/rust particles. A clogged pilot line leads to sluggish actuation, causing high current draw during motor startup.

3) Installation Tip: Always replace the mounting flange O-ring/gasket when fitting a new NT0368 valve. Torque flange bolts evenly in a cross pattern to 25 Nm to prevent casing deformation or vacuum air leaks during loading.

Frequently Asked Questions

What are the primary symptoms of a failing Tamrotor TMC NT0368 off-load valve?

Common indicators include the compressor failing to load (no pressure build-up), inability to vent blowdown pressure during unloading, excessive air blowing back through the suction filter, or frequent main motor overload tripping during star-delta starting sequence.

Is the NT0368 off-load valve a direct plug-and-play unit for TMC marine compressors?

Yes, as a genuine Tamrotor specification valve, the NT0368 features standard mounting face dimensions and pilot port configurations, making it a direct swap for existing compressor units without modification.

What maintenance is required for the off-load valve on a marine air compressor?

Inspect the valve every 4,000 operational hours or during major compressor service. Check internal seals for wear, clean the internal piston housing from varnish residue, and verify smooth stroke movement under pilot air pressure.
