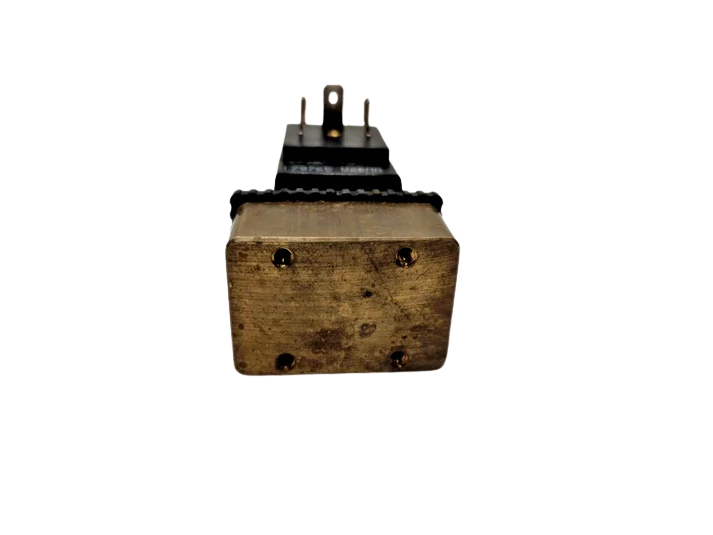

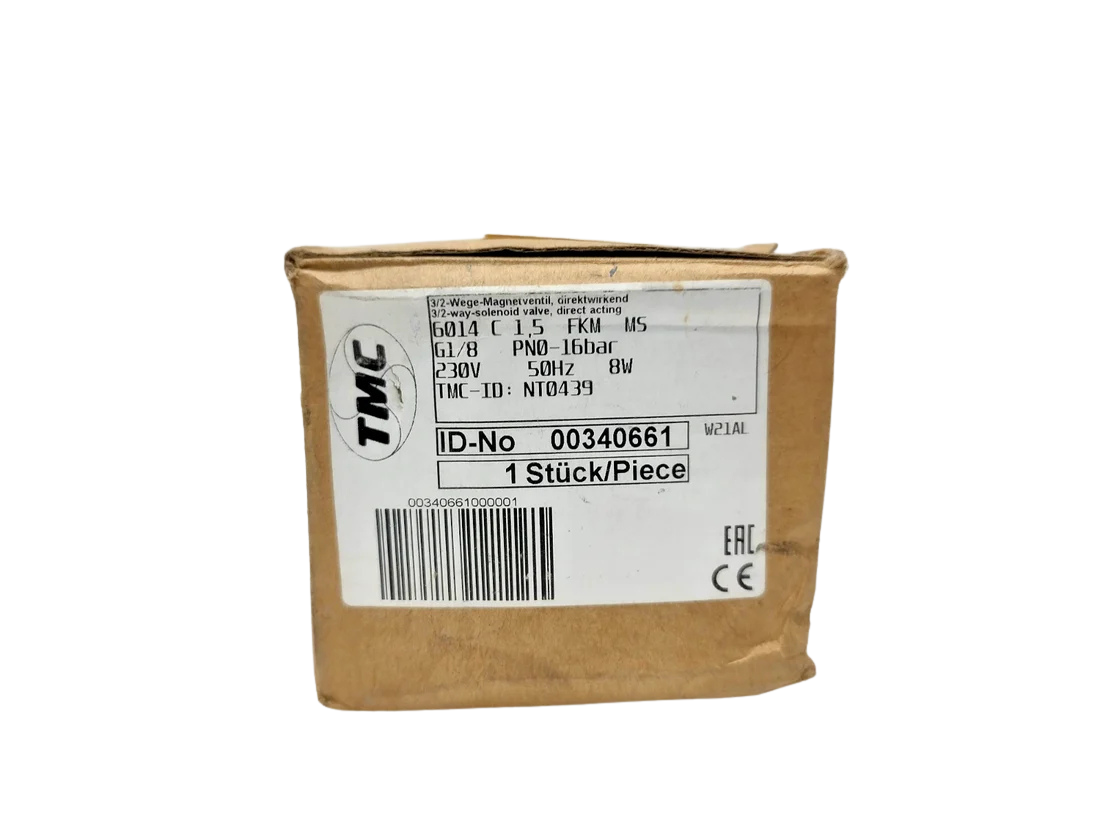

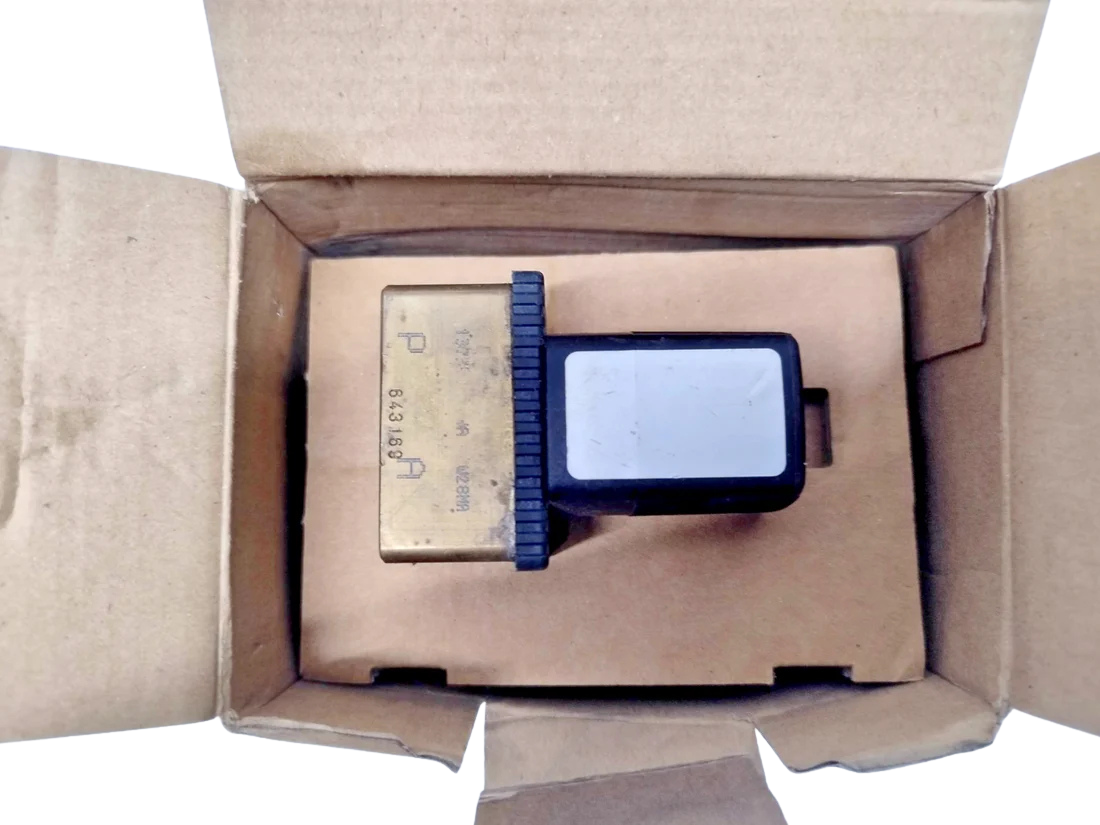

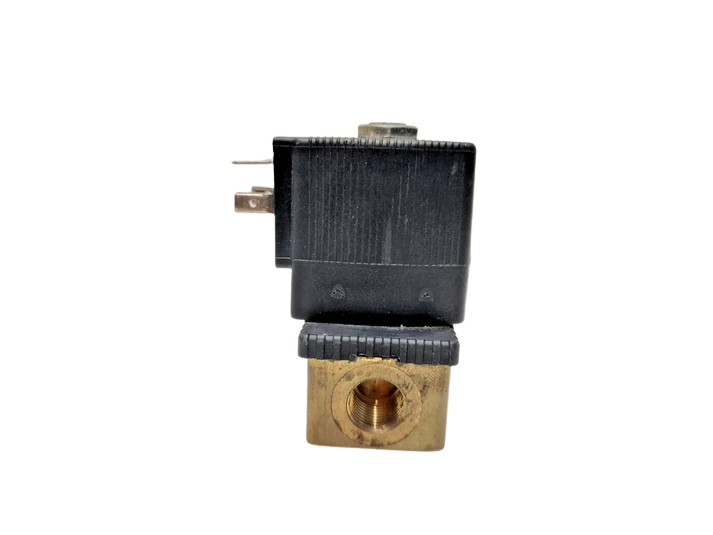

Tamrotor TMC NT0439 3-Way Solenoid Valve

Tamrotor Marine Compressor TMC NT0439 3-Way Solenoid Valve

The Tamrotor TMC NT0439 3-Way Solenoid Valve is a heavy-duty, marine-grade pneumatic control unit specifically built for the unloader and capacity control circuits of Tamrotor Marine Compressors (TMC). It is the primary pilot valve for intake unloader control . It controls system pressurization , blowdown venting and load / unload switching for onboard screw compressor systems . Engine room vibration, high thermal ambient conditions (up to 55°C) and greasy marine air environments are no problem for the NT0439. It guaranties rapid response times for autonomous compressor staging.

Model Details

• Manufacturer: TMC / Tamrotor Marine Compressors
• Model / Type: NT0439 3-Way Solenoid Valve
• Primary MPN: NT0439 / TMC NT0439
• Secondary Part Numbers: 604329, 604529

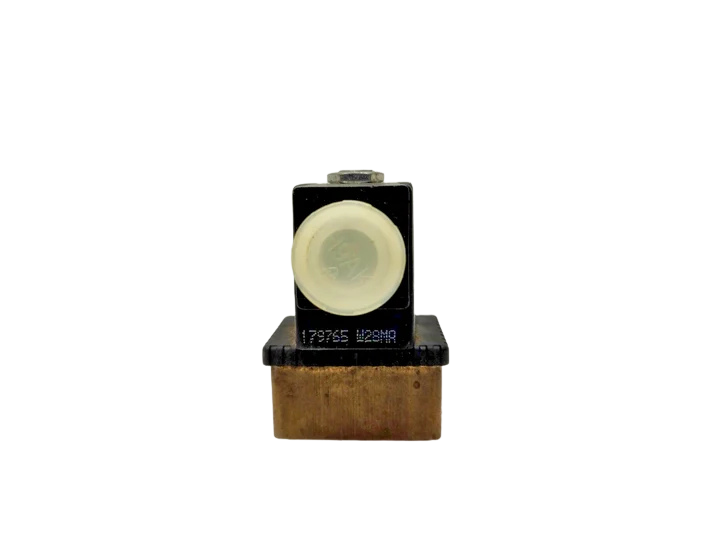

• Internal / Stamping Reference: 179765 W22MN / 179765 WZ2MP / 126235

Compatible Equipment Models

The TMC NT0439 3-way solenoid valve is standard OEM equipment across various Tamrotor marine rotary screw air compressor series:

• TMC EA Series (Air-Cooled): TMC 15-8 EA, TMC 22-8 EA, TMC 30-8 EA, TMC 45-8 EA, TMC 55-8 EA
• TMC EW Series (Water-Cooled): TMC 30-8 EW, TMC 54-8 EWNA, TMC 75-8 EW, TMC 90-8 EW
• TMC Inert Gas Generator (IGG) Support Compressors
• TMC Working Air & Service Air Screw Compressor Packages

Key Features

1. Marine-Grade Viton (FKM) Seals: Eliminates degradation caused by hot compressor oil vapors and airborne particulates in tropical engine room environments.
2. Direct-Acting High-Speed Response: Provides instant pneumatic switching to prevent pressure spikes during unloader valve opening and closing cycles.
3. IP65 Enclosure Protection: Sealed DIN 43650 connector protects coil windings against moisture condensation, fuel oil splashes, and dust exposure.
4. Full Continuous Duty Rating (100% ED): Engineered for uninterrupted operation during prolonged sea passages without risk of solenoid coil overheating.
5. Standard G 1/4″ Porting: Direct bolt-in replacement for effortless retrofitting without requiring pipework modifications or adapter fittings.

Applications

• Unloader Control: Pilot actuation for the main inlet control valve on TMC rotary screw compressors.
• Condensate Drain Management: Automated timed blowdown control for air receiver moisture traps.
• Capacity Regulation: Dual-mode loading/unloading logic integration with the master compressor control panel.
• General Marine Pneumatics: Automation lines for starting air systems, control air systems, and nitrogen generator feed air units.

Guide for Optimal Performance

• Purge Pilot Piping Prior to Fitment: Before threading the new NT0439 valve into place, crack open the supply air pilot line for 2 seconds to blow out accumulated moisture, scale, or varnish. Even a microscopic particle trapped between the armature seat and FKM seal will cause constant pilot leakage and unloader chatter.
• Coil Orientation: Mount the valve with the solenoid coil positioned vertically upright whenever possible. Positioning the coil upside down causes moisture to settle around the core tube, accelerating seal erosion and coil burn-out.
• Verify Supply Voltage: Measure the terminal voltage at the DIN plug under load. A drop greater than 10% below nominal rating (e.g., operating below 207V AC on a 230V system) increases coil current draw, raising coil operating temperature and leading to premature winding failure.
• Use Proper Thread Sealant: Apply PTFE tape or liquid pipe sealant exclusively to male pipe threads, leaving the first two threads bare. Never allow thread tape to project into the air stream entering port 1 or port 2.

Frequently Asked Questions

What is the primary function of the TMC NT0439 valve on a Tamrotor compressor?

The TMC NT0439 3-way solenoid valve serves as a pilot valve for the intake unloader assembly. It directs control air pressure to open or close the inlet valve mechanism, enabling the compressor to switch seamlessly between loaded (pumping) and unloaded (idling) states based on system line pressure.

Can I replace only the solenoid coil without disconnecting the valve body?

Yes, the solenoid coil on the NT0439 can be unbolted and swapped without opening the pneumatic air line connections, provided the replacement coil matches the core tube dimensions and voltage specifications.

How do I know if my NT0439 solenoid valve has failed?

Common symptoms of a failed NT0439 valve include the compressor failing to load (remaining idling despite drop in receiver pressure), failure to unload (causing system overpressurization and safety valve blow-off), continuous air leaking through the solenoid exhaust port, or a burnt solenoid coil with no magnetic draw when energized.

Is the NT0439 3-way solenoid valve compatible with 24V DC and 230V AC control systems?

The NT0439 valve body is standard across configurations, but the installed coil voltage must match your control panel output. Ensure you verify the voltage stamped on your existing coil enclosure (230V AC or 24V DC) prior to wiring.
