Tamrotor Marine Compressor TMC NT0303 Seal

Tamrotor Marine Compressor TMC NT0303 Seal (Lot of 25pcs) – NEW

The Tamrotor TMC NT0303 Seal is an OEM-grade sealing component specifically engineered for marine-grade rotary screw compressors operating in tough engine room environments. The NT0303 seal is suitable for permanent contact with synthetic compressor lubricants, high discharge temperatures and cyclic thermal stress. The seal prevents fluid degradation and pressure bypass across internal air-end and valve borders.

This package is suitable for shipboard inventory maintenance, overhaul projects, and fleet technical stores management, and is supplied in a bulk lot of 25. These seals offer the maximum volumetric efficiency and contamination free maritime working air, control air and nitrogen generator feed systems with zero leakage performance.

Model Details:

• Manufacturer/Brand: Tamrotor / TMC Marine Compressors

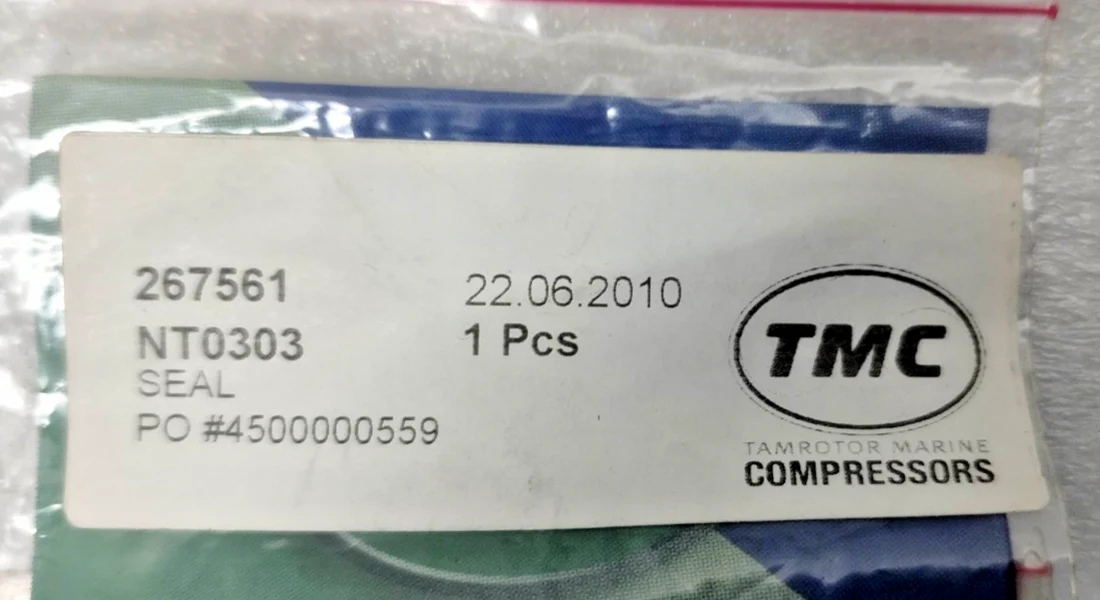

• Manufacturer Part Number (MPN): NT0303 (Cross-ref: NT-0303)

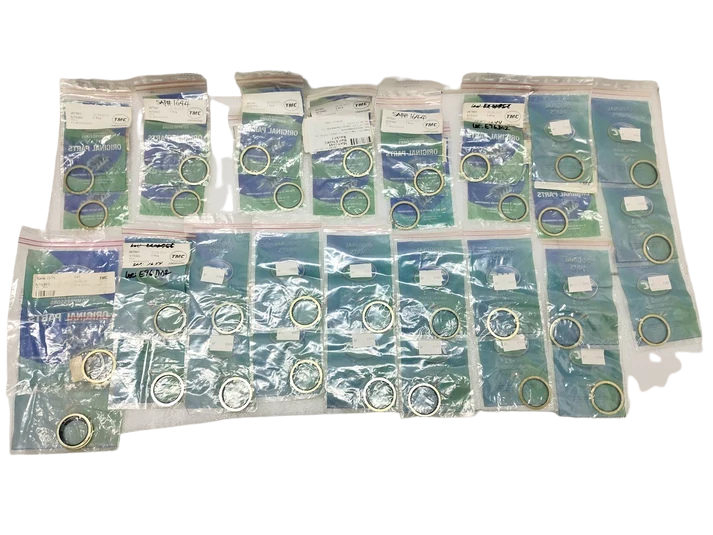

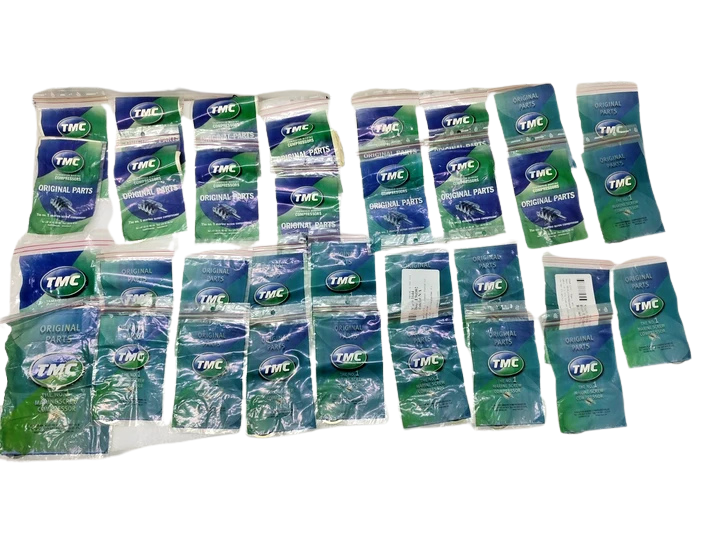

• Lot Quantity: 25 Pieces / Package
• Condition: New Unused Surplus Stock (Original Factory Quality)

Compatible Equipment Models

The TMC NT0303 seal is widely utilized across various Tamrotor marine rotary screw compressor air-ends, control valves, and auxiliary manifolds:

Tamrotor / TMC Screw Compressor Models:

• TMC Series: TMC 6-8, TMC 6-10, TMC 9-8, TMC 9-10, TMC 14-8, TMC 14-10
• TMC Medium Range: TMC 18-8, TMC 18-10, TMC 21-8, TMC 21-10, TMC 26-8, TMC 26-10
• TMC High-Capacity: TMC 44-8, TMC 44-10, TMC 54-8, TMC 54-10, TMC 65-8, TMC 65-10
• EMH Series: EMH 21-8, EMH 26-10, EMH 35-8, EMH 44-10 EANA

Part Number Cross-References

• TMC Part Number: NT0303
• Alternative Designation: NT-0303
• Tamrotor Ref: 0303 Seal Ring

Key Features

1. Marine-Grade Elastomer: Formulated to withstand severe thermal expansion cycles and continuous immersion in synthetic compressor lubricants.
2. Low Compression Set: Maintains elastic memory under continuous mechanical compression, eliminating air-end leakage over thousands of operating hours.
3. Extreme Chemical Inertness: Resists hardening, swelling, and chemical breakdown caused by ester-based and PAO synthetic oils.
4. Precision OEM Dimensions: Ensures exact dimensional fitment without manual trimming or structural deformation during installation.
5. Fleet Pack Convenience: Supplied as a 25-piece lot to cover complete major overhaul cycles or build up long-term onboard spares.

Primary Applications

• Marine Working Air Systems: Main engine room compressed air plants providing tool and service air onboard vessels.
• Control & Instrument Air: Critical sealing applications in dry instrument air lines powering pneumatic valve positioners and automation.
• Nitrogen Generator Feed Compressors: High-duty cycle compressed air systems supporting offshore oil/gas tankers and chemical carriers.
• Scheduled Overhauls: Essential replacement component during 8,000-hour and 16,000-hour standard air-end maintenance.

Installation Best Practices

• Surface Inspection & Cleaning: Before fitting the new NT0303 seal, meticulously clean the mating groove using a lint-free rag and approved electrical/contact cleaner. Remove all carbonized oil, scale, and old gasket residue using a soft brass scraper. Never use steel tools that can scratch precision seating surfaces.
• Pre-Lubrication Routine: Lightly coat the NT0303 seal with fresh, clean synthetic compressor oil (matching the oil type used in the compressor sumps, e.g., ISO VG 46/68) prior to fitment. This prevents dry-scuffing, pinching, or rolling during component assembly.
• Torque Sequence: When tightening housing bolts around sealed flanges, use a cross-pattern (star) sequence and torque to manufacturer specification in three progressive stages (30%, 60%, 100%) to ensure uniform pressure distribution across the seal face.

Maintenance Tips

• Avoid Excessive Sealant: Do not apply liquid gasket maker or RTV silicone on or around the NT0303 seal unless explicitly stated in the TMC overhaul manual. Anaerobic or silicone compounds can break down and migrate into internal oil injection nozzles, starving bearings.
• Storage Protocol: Store remaining seals from the 25-piece lot in their original sealed UV-blocking bag away from direct sunlight, ozone sources (electric motors), and temperatures exceeding 30°C to preserve elastomer elasticity.

Frequently Asked Questions

What material is the Tamrotor TMC NT0303 Seal made from?

The Tamrotor TMC NT0303 seal is fabricated from a high-performance marine-grade synthetic fluorocarbon elastomer (FKM/Viton-type compound). This material offers superior thermal stability, low compression set, and high resistance to synthetic compressor oils and air moisture.

Can the NT0303 seal be reused during routine compressor maintenance?

No, elastomer seals, including the TMC NT0303, undergo continuous thermal hardening and compression deformation during operation. Reusing a disturbed seal risks instantaneous blow-by, oil leakage, and loss of volumetric efficiency. Always fit a new seal during disassemblies.

Is the TMC NT0303 seal compatible with synthetic compressor oils?

Yes, the NT0303 seal is engineered specifically for compatibility with both mineral-based and fully synthetic marine compressor lubricants (including polyalphaolefin and polyol ester formulations).

How should unused NT0303 seals be stored in marine technical stores?

Keep unused NT0303 seals in a cool, dark, and dry environment inside sealed, UV-blocking polyethylene bags. Keep them flat and stored away from ozone-generating equipment (such as electric motors or welders) to prevent elastomer degradation.
