Terasaki ECD-531 Electronic Circuit Board

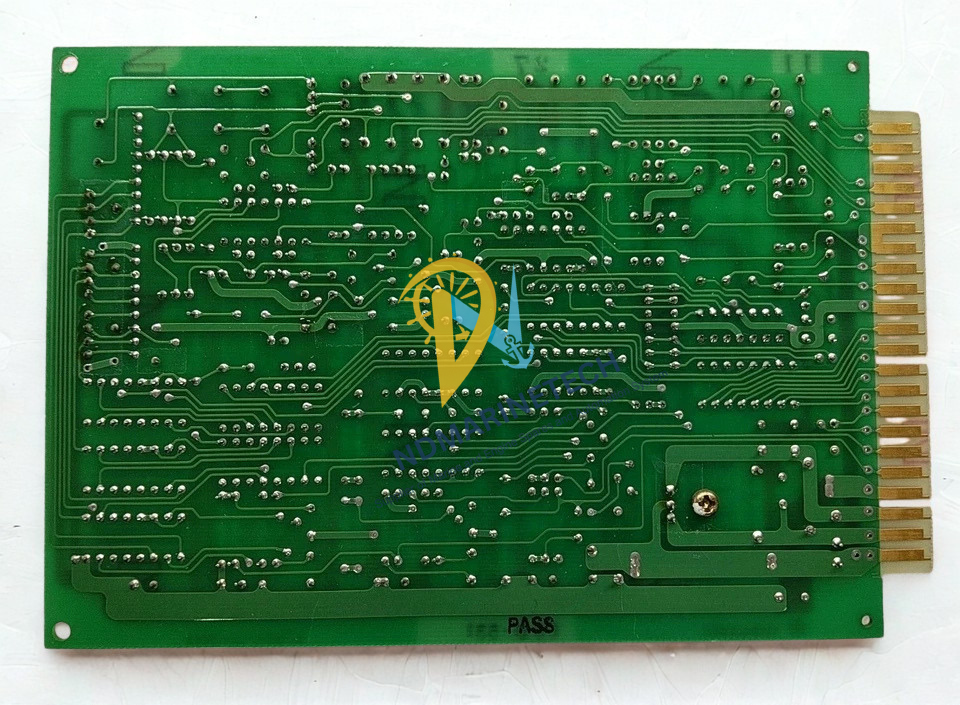

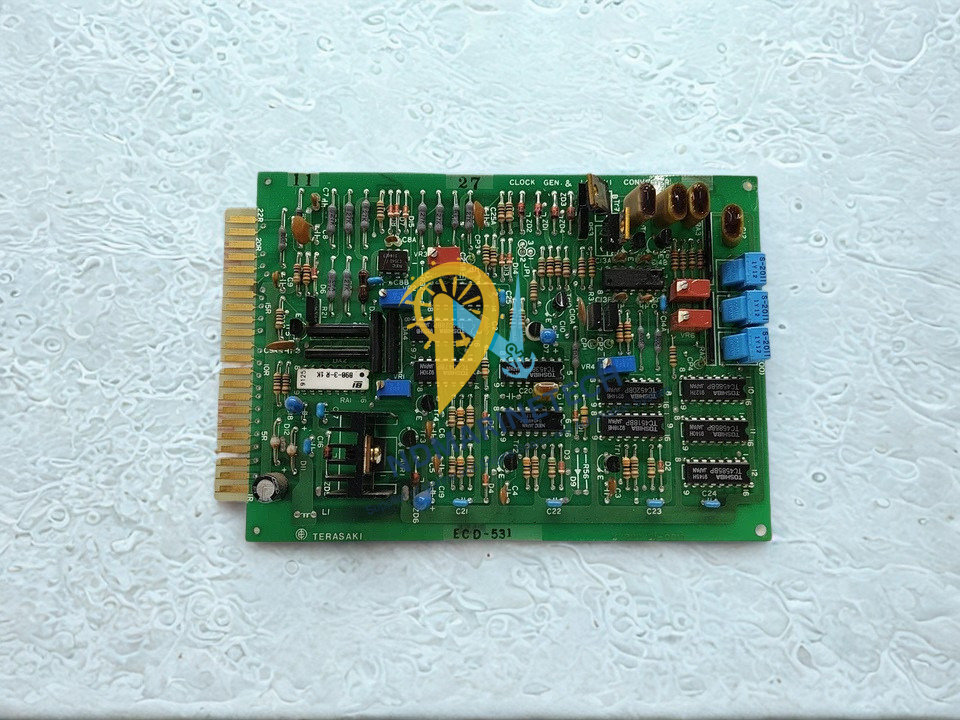

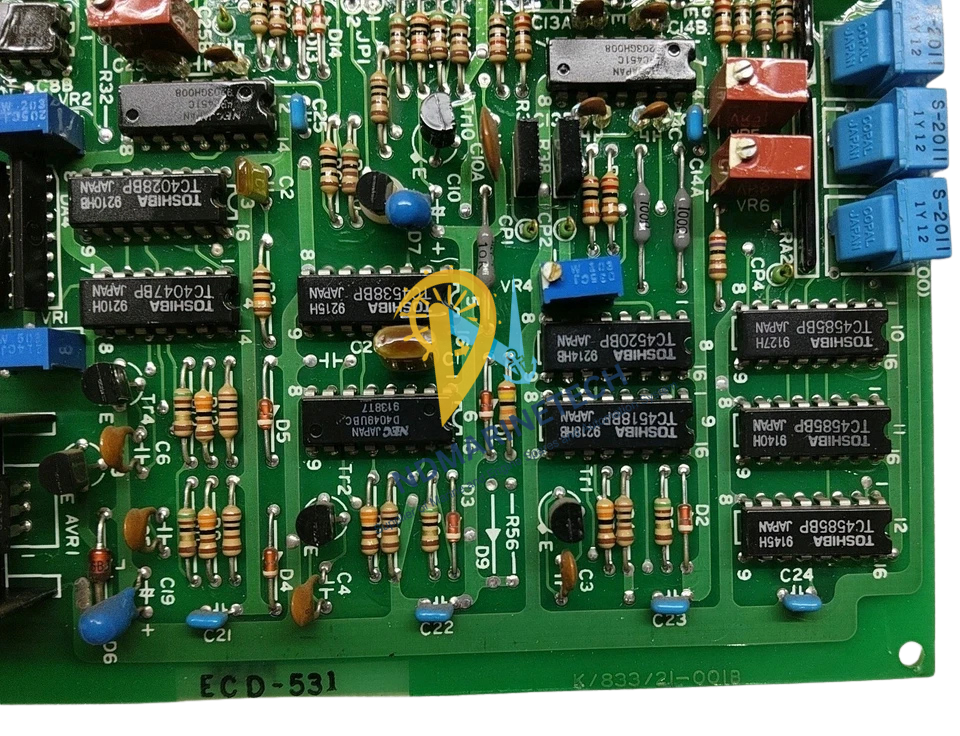

TERASAKI ECD-531 Electronic Circuit Board PCB Module

The TERASAKI ECD-531 is a high-precision electronic circuit board designed for industrial automation and marine power management systems. Manufactured in Japan, this PCB module is engineered to handle the rigorous demands of marine switchboard control, offering unparalleled reliability in harsh environments.


Specifications

Maintenance and Expert Tips:

As a marine engineer, I have seen many PCBs fail prematurely due to poor thermal management and moisture ingress. The Terasaki ECD-531 is a workhorse, but its lifespan depends heavily on your maintenance routine.

1) Anti-Vibration Checks: On a vessel, vibration is the silent killer of solder joints. Ensure that the module is mounted securely using the original Terasaki standoffs. Check for fretting at the connector pins every six months during your planned maintenance system (PMS) schedule.

2) Thermal Management: The ECD-531 performs best when heat is dissipated effectively. Ensure the control cabinet’s ventilation filters are clean. If you notice any discoloration on the PCB surface (darkening), it’s a sign of localized overheating—investigate the cooling fans immediately.

3) Cleaning Protocols: Never use standard shop air to clean this board. Use contact cleaner (residue-free) and specialized brushes. If the board is exposed to salty air, ensure it is housed in an IP-rated enclosure to prevent tracking between high-voltage traces.

4) ESD Protection: When replacing the ECD-531, always use an Anti-Static (ESD) wrist strap. These logic boards are sensitive to static discharge which can bruise the silicon, leading to intermittent failures that are a nightmare to troubleshoot at sea.
