Testifire 1000-057 Smoke & Heat Detector Tester Kit with Charger

The Testifire 1000-057 is the premier industrial and marine-grade multi-stimulus functional testing tool engineered for the rapid, simultaneous, or sequential testing of smoke and heat fire detectors. By generating precise, on-demand smoke and heat stimuli internally without the use of hazardous, pressurized aerosol canisters, it eliminates the risk of detector contamination and volatile organic compound (VOC) exposure.

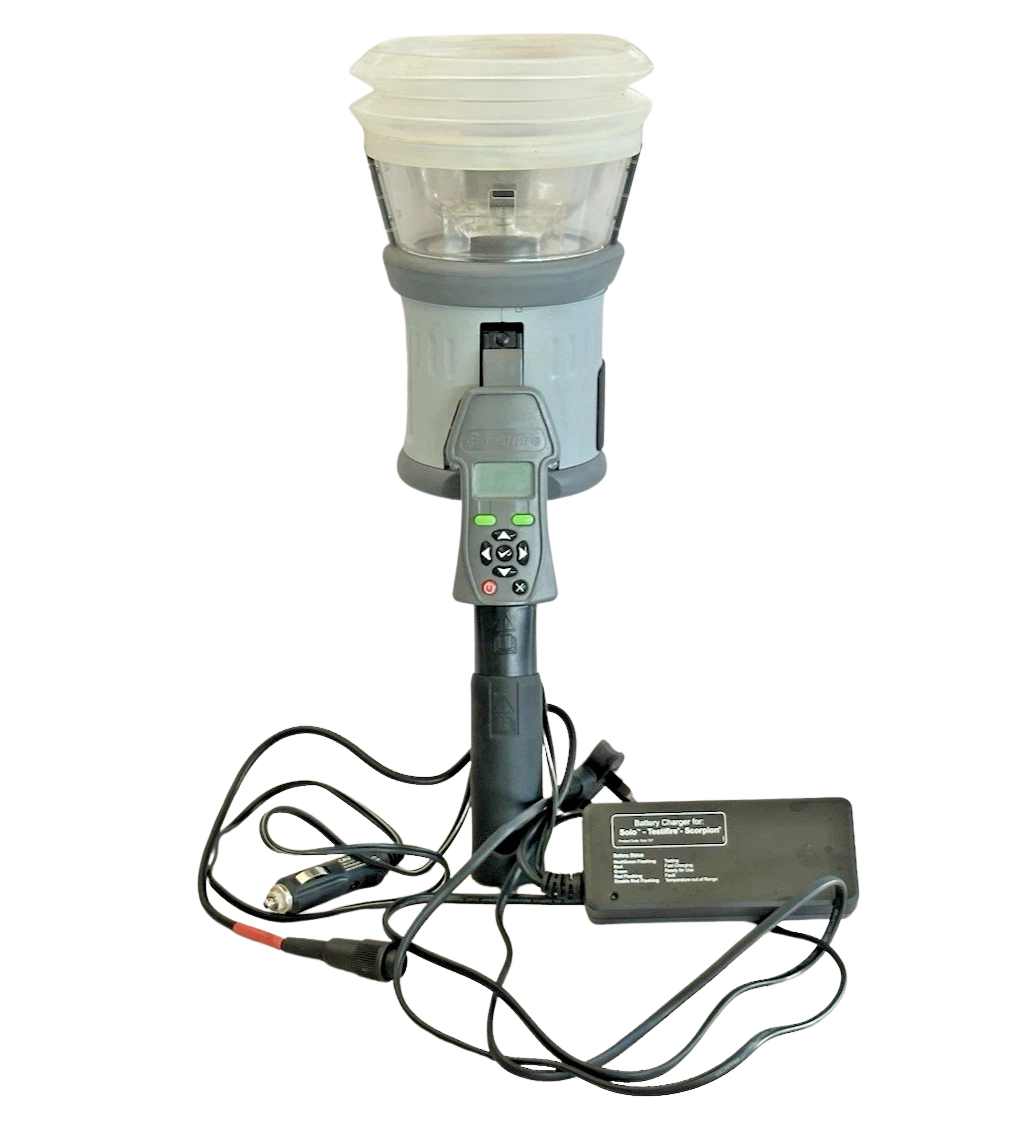

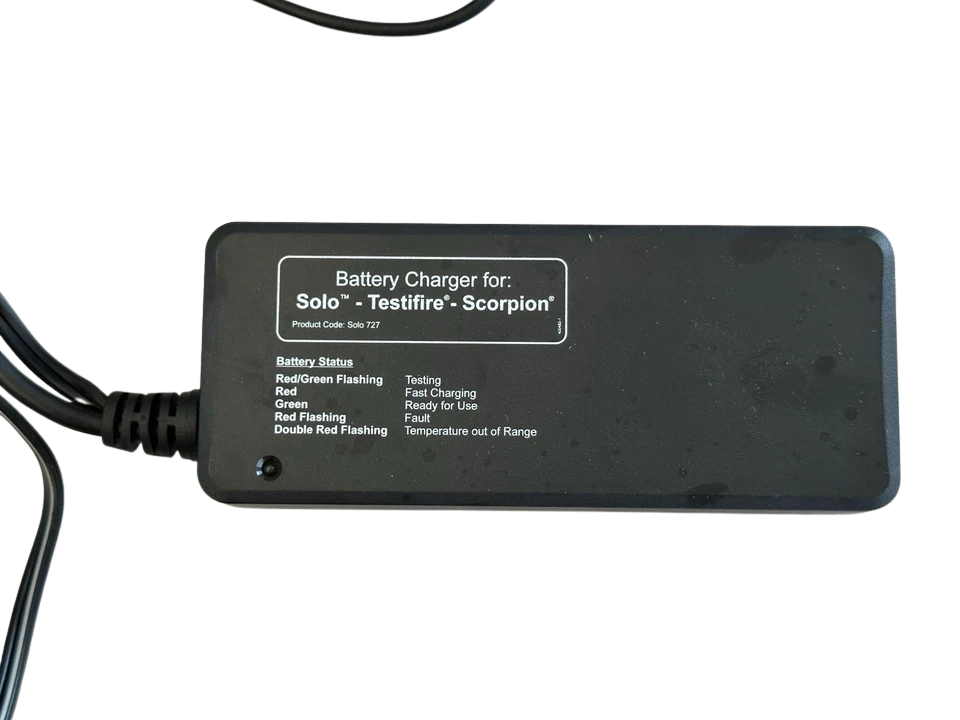

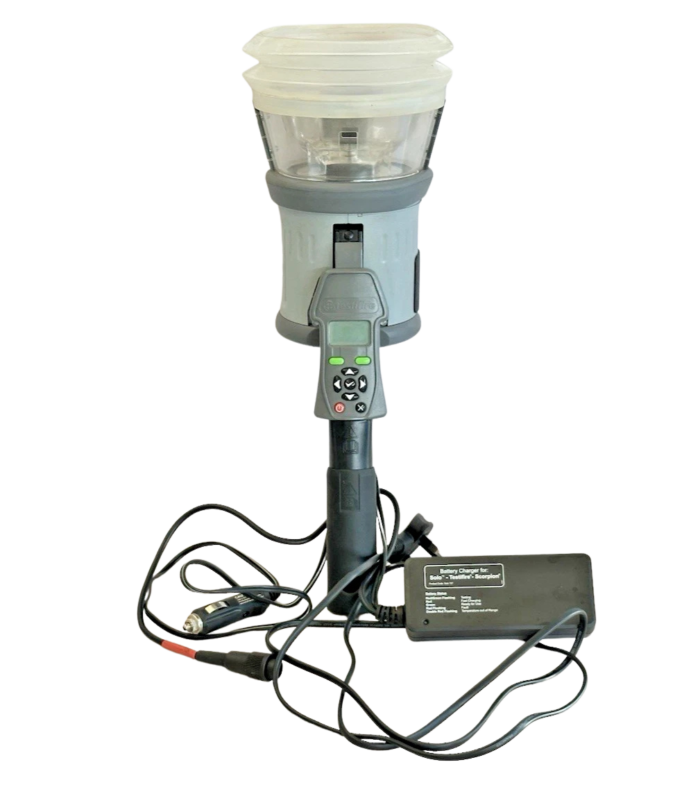

The 1000-057 kit includes the core multi-sensor test head, a high-capacity NiMH battery baton, and an intelligent fast charger capable of operating from both AC mains power and 12V vehicle auxiliary outlets. Designed to drastically reduce testing times on both single-sensor and complex multi-sensor intelligent fire systems, this kit is an indispensable component of compliance maintenance arrays across marine vessels, offshore platforms, and heavy commercial facilities.

Technical Specifications: Testifire 1000-057

Main Features

1. Multi-Stimulus Integration: Integrates smoke and heat generation into one testing cup, allowing users to conduct sequential and simultaneous sensor stimulation without changing instruments.
2. Non-Pressurized Capsule Technology: Uses Testifire TS3 fluid capsules to produce safe, non-toxic smoke, fully eliminating the need for combustible or pressurized aerosol gas cans.
3. Advanced Cross-Air Clearing Cycle: Includes an automatic clean-air clearing mode which aggressively clears remaining test stimuli from the detector chamber, significantly shortening reset times and preventing repeat alarms.
4. High-Temperature Thermal Capability: Integrated heat beam design offers dual thermal settings and performs functional testing on standard rate-of-rise and fixed heat sensors up to 100°C (212°F).
5. Fully Backwards Compatible: Integrates smoothly with normal Solo access poles, Solo 760 battery batons, and Solo 726/727 charging apparatuses and drops into the existing fire technician fleet kit.

Applications

• Marine Vessel Fire Main Monitoring: Routine safety compliance testing of optical, photoelectric, ionization, and thermal detectors across marine engine rooms, accommodation spaces, and control rooms.
• Offshore Oil & Gas Platforms: Functional verification of critical addressable and analogue addressable multi-sensor safety systems in explosive-safe, non-hazardous ambient zones.
• Commercial and Industrial Infrastructures: Fast, high-capacity inspection routes for multi-criteria systems utilizing advanced scatter-angle, dual-wavelength, or complex interdependent sensor algorithms.
• Aspirating Smoke Detection (ASD) Systems: Functional challenge testing of aspirating pipe networks via direct stimulus introduction at the sampling points.

The Residual Heat and Emulsion Boundary

Marine Engineering Insights: In high-salinity marine environments, sensor chambers accumulate microscopic salt crusting and ambient humidity films. Traditional pressurized aerosol testers blast the chamber with propellants that chill the sensor body, freezing this moisture and causing long-term calibration drift or immediate sensor blinding. The Testifire 1000-057 relies on an on-demand thermal vapor stream and controlled air-beam delivery. This prevents thermal shock to delicate optical photodiodes and ensures clean evacuation via the clearing cycle.

Tips for the Field Fleet:

1. Executing the Clearance Bellows Seal: When working under heavy draft conditions or ventilation plenums on ships, ensure the silicone bellows of the clear cup forms a flush, continuous seal against the deckhead or ceiling surface. If the seal is broken, external cross-drafts will dissipate the internally generated smoke stimulus before the infrared beam threshold triggers activation.
2. Sequential Testing Logic for Combi-Detectors: When validating multi-criteria algorithms (e.g., optical smoke combined with rate-of-rise heat), program your test cycle through the UI as Smoke 1 -> Heat 2 rather than running them simultaneously. Testing sequentially allows you to isolate and confirm the discrete functional integrity of each sensor element before verifying the panel’s combined fire-matrix response.
3. Capsule Lifetime Management: Always monitor the Status LEDs. If you notice a flashing green/red combination, you are facing a Testifire timeout or localized system error. Do not force tests if a capsule is dry; doing so exposes the internal fluid intake pipe to dry heating, reducing internal element lifespan.

Part Number Cross-References & Model Details

• Manufacturer Product Name (MPN): Testifire 1000-057 (Often cataloged internationally under variation prefixes such as Testifire 1001-001 or regional kit SKUs including specific battery bundles)
• Global Trade Item Number (GTIN) / Alternative Model IDs: 1000-057, Testifire 1000 Series, SDi-Testifire-1000
• Compatible Accessory SKUs: Solo 760 (NiMH Battery Baton), Solo 727 (Fast Charger), Testifire TS3-001 (Smoke Capsules), Solo 100 (Telescopic Access Pole)
