Frydenbø SABB 014056 Engine Cable Harness with Junction Box

Frydenbø SABB 014056 Engine Cable Harness with Junction Box (New)

The real Frydenbø SABB 014056 is a marine grade, heavy duty engine cable harness pre-integrated with a central distribution junction box. This full electrical wire assembly is designed for extreme marine environments and allows seamless power distribution, sensor signal routing and control system connectivity across essential life-safety and propulsion systems. As a genuine Frydenbø SABB component it offers strong structural integrity to withstand the constant heat cycling, exposure to salt spray and extreme structural vibrations typical for commercial maritime vessels and emergency lifeboats.

This factory-built solution lowers installation downtime and removes the risk of custom point-to-point wiring, while maintaining structural compliance with international safety criteria. It is the principal electrical backbone that connects the critical engine accessories such as starting motors, high power alternators, glow plugs and protective monitoring sensors directly to the main instrument panel of the boat.

Model Details

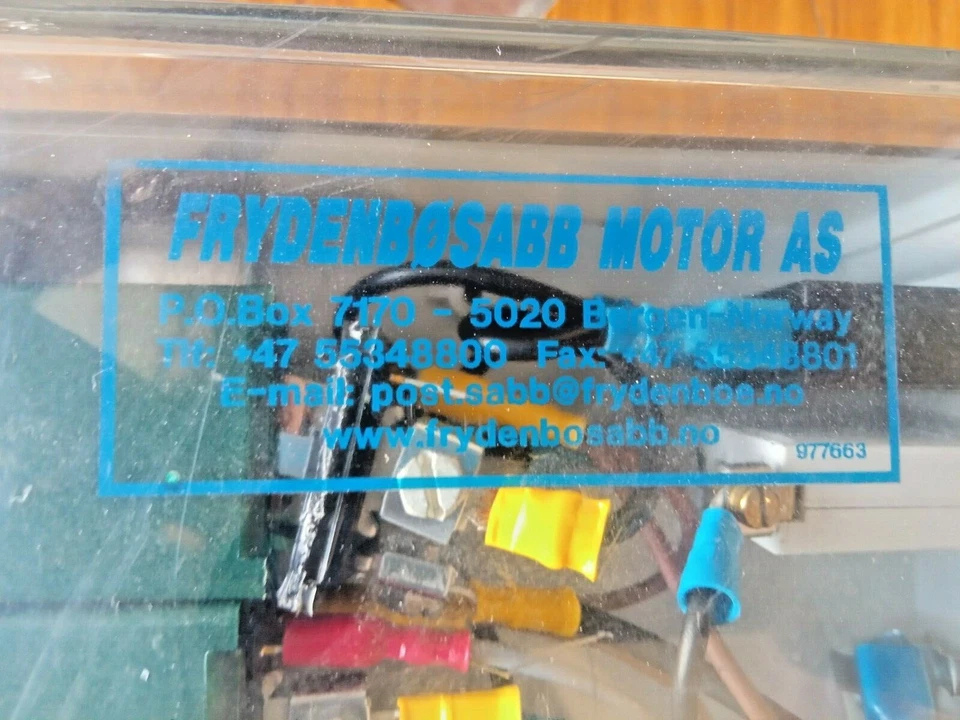

• Brand: Frydenbø SABB Motor AS
• Manufacturer Part Number (MPN): 014056
• Alternative Manufacturer Code / Cross-Reference: 977663 (Ref: MKBV 240121)
• Product Condition: New (New Old Stock – Original Factory Condition)

Key Features

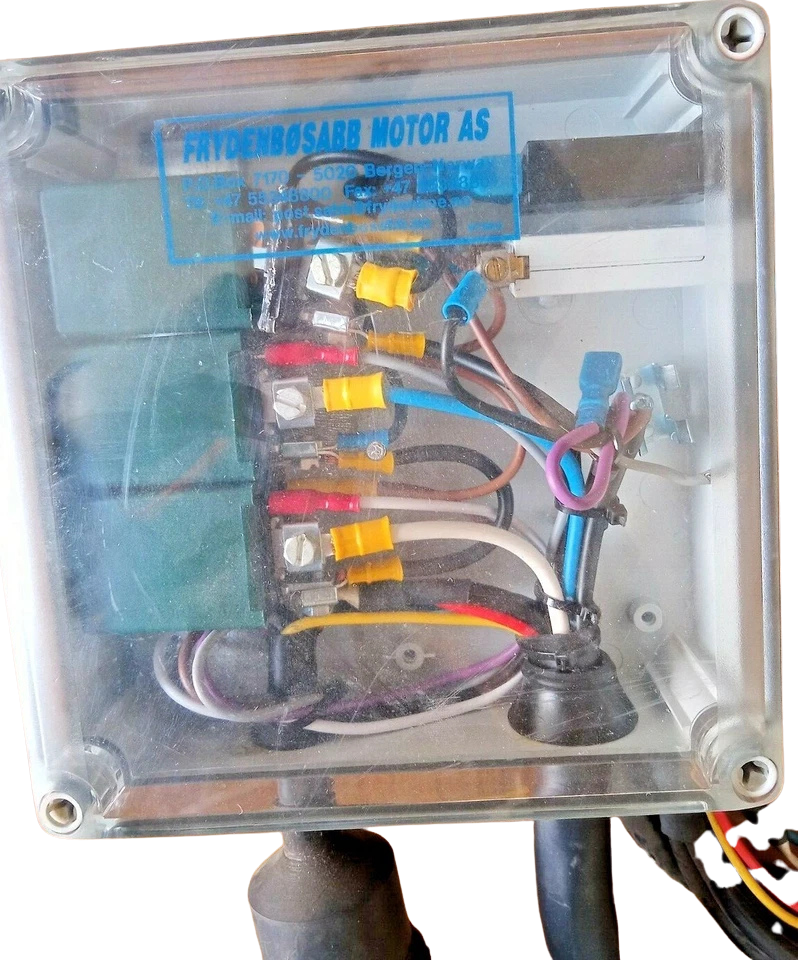

1. Integrated Marine Junction Box: Pre-assembled enclosure equipped with heavy-duty automotive-style automatic circuit breakers (5A and 10A ratings) and rugged, high-current relays for glow-plug preheating and start/stop automation.
2. Cross-Linked Polyethylene Insulation: Oil, fuel, and heat-resistant low-smoke halogen-free (LSHF) conductor insulation ensures circuit continuity during extreme engine room thermal spikes.
3. Corrosion-Resistant Interconnects: Terminated with heavy-duty, tinned-copper lugs and IP67/IP68 rated waterproof multipin plugs to completely halt moisture ingress and galvanic corrosion.
4. Vibration-Dampened Sheathing: High-density, abrasion-resistant braided conduit shielding protects conductors from structural chafing and localized mechanical wear against engine blocks.
5. True Plug-and-Play Architecture: Factory engineered drop-in configuration completely cuts out manual wire crimping, matching factory pinouts for instant field replacements.

Applications

• SOLAS Lifeboat Propulsion Systems: Primary electrical distribution loom for Frydenbø SABB Lister Petter rescue boat and lifeboat propulsion systems operating under extreme Arctic and tropical marine protocols.
• Fast Rescue Boats (FRB) & Tenders: High-reliability wiring configuration for emergency response watercraft where instant starting and critical signal redundancy are required.
• Marine Auxiliary Power Gen-Sets: Ruggedized small-displacement control loop wiring for emergency generator sets based on matching Lister-Petter or SABB base blocks.

Technical Specifications: Frydenbø SABB 014056

Pro Tips from Chief Engineer:

1. Strain Relief is Important When routing the harness bundle away from the main junction box along the engine frame, minimum bend radius of 5 times the cable diameter. Avoid severe bends which give rise to local tensile stresses on the interior multi strand copper cables.
2. Vibration Isolation Isolation: Always use heavy-duty, cushioned P-clips to mount the harness to the selected isolated structural support points. Do not zip-tie the harness directly to high vibration structural metal lips or high heat fluid lines such as fuel injection pipes or exhaust manifolds.
3. Dielectric Protection: Apply a thin film of high grade marine dielectric silicone grease to the pins prior to inserting the multi-pin instrument panel extension plug. This offers an added protection against micro-condensation and galvanic pinning deterioration in sea-air conditions with severe salt exposure.
4. Reset Inspection: If an electrical subsystem breaks during operation, verify the integrated automatic 5A/10A resettable breakers inside the junction box before replacing downstream sensors. A modest trip is generally a sign of little grounding spikes during heavy washing down or big moisture loads.
