Unison Exciter Ignition 59501-10-392775-4 H | GE G12130A 2941TH

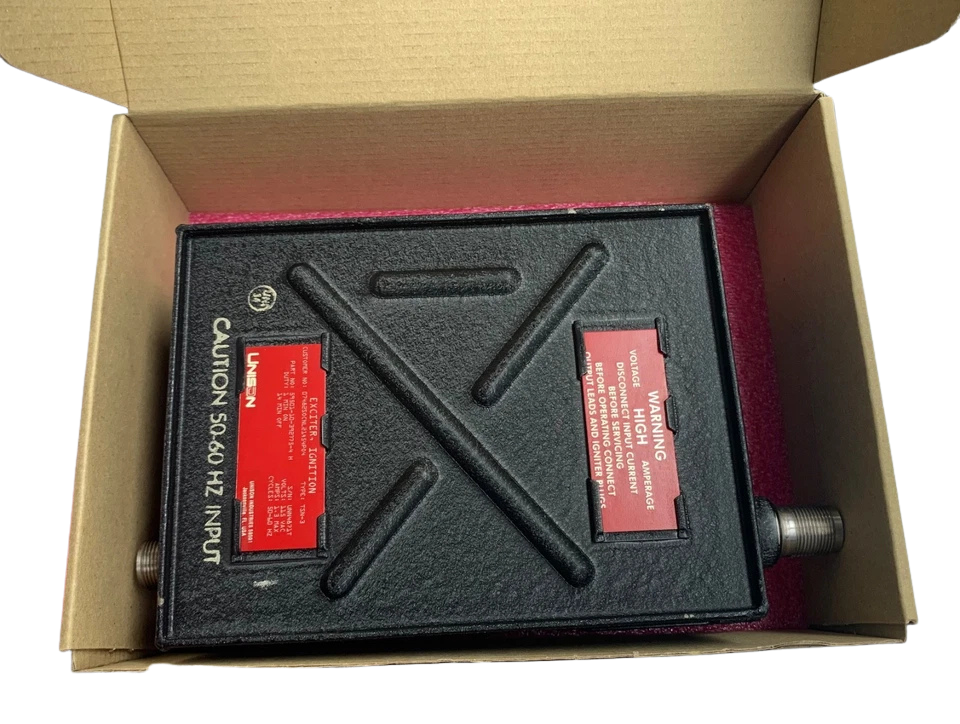

Unison Exciter Ignition 59501-10-392775-4 H (GE G12130A 2941TH) Industrial Ignition Module

Unison Exciter Ignition 59501-10-392775-4 H (also known as GE G12130A 2941TH) is a heavy-duty, high-performance industrial ignition module of the TSN-3 type. This capacitive discharge ignition exciter is built for tough marine propulsion and land-based industrial gas turbine applications requiring a high-energy spark for consistent ignition of combustion under severe ambient conditions. This model has a tuned duty cycle to safeguard internal solid-state components and to ensure quick flame-front establishment.

Model Details:

• Manufacturer: Unison / General Electric (GE)
• Manufacturer Part Number (MPN): 59501-10-392775-4 H
• Sub-Assembly / Basic Part Number: 10-392775-4
• GE Catalog Number: G12130A
• GE Drawing Number: 315A4204P001
• Turbine Reference Number: 2941TH / 296281
• Exciter Type: TSN-3 Type

Key Features

1. High-Energy Capacitive Output: Optimized discharge circuitry generates consistent voltage to ionize spark gaps under high-pressure turbine startup sequences.
2. TSN-3 Thermal Management: Programmed for a 1-minute active duty cycle followed by a 14-minute cooldown to prevent thermal degradation of the internal storage capacitors.
3. Ruggedized Cast Enclosure: Engineered with vibration-dampening shock mounts to resist structural fatigue common in marine engine rooms and industrial generator sets.
4. Shielded Terminal Architecture: Minimizes electromagnetic interference (EMI) and radio frequency interference (RFI) to safeguard adjacent low-voltage control circuits.
5. Multi-Frequency Compliance: Adapts seamlessly to both 50 Hz and 60 Hz grid or shipboard power supplies at 115 VAC.

Compatible Equipment Models

• General Electric LM2500 Series Marine & Industrial Gas Turbines
• General Electric LM1600 Aeroderivative Gas Turbines
• Stewart & Stevenson Marine Generator Packages
• Various industrial co-generation systems utilizing GE G12130A configuration platforms

Main Industrial Applications

• Marine Main Propulsion: Initial ignition firing systems for naval vessels and commercial fast-ferries.
• Offshore Power Generation: Startup ignition systems for gas turbines mounted on oil and gas platforms.
• Emergency Standby Systems: High-reliability power generation starts within municipal and critical data facilities.
• Pipeline Compressor Drives: Mechanical drive turbine starters along natural gas transmission pipelines.

Part Number Cross-References

• Unison 59501-10-392775-4 H
• Unison 10-392775-4
• GE G12130A
• GE 2941TH
• GE 296281
• GE DWG 315A4204P001

Professional Engineering Insight

• Thermal Duty Cycle Enforcement: The 1-minute ON, 14-minute OFF duty rule is absolute. In marine commissioning sequences, attempting repeated, rapid manual starts without letting the exciter cool down will cook the potting compound and short out the internal transformer windings. If the turbine fails to fire on the first sequence, check the fuel purges and wait the mandated 14 minutes before applying power to the unit again.
• Cable Insulation Hazards: Always inspect the high-voltage ignition lead connector threading. Salt crust or humidity buildup on the output terminal will cause high-voltage tracking (arcing) to the grounded outer shell. Clean the terminals exclusively with an approved electrical contact cleaner and dry completely before locking down the coupling nut.

Frequently Asked Questions

What does the 1 MIN ON / 14 MIN OFF rating mean?

This denotes the duty cycle limit. The internal capacitors accumulate significant thermal energy during continuous spark discharge. The unit must only be energized for up to 1 minute continuously, followed by a minimum 14-minute unpowered rest period to dissipate internal heat.

Can I use the GE G12130A 2941TH exciter at 400 Hz shipboard power?

No. This module is specifically rated for 50 Hz or 60 Hz input at 115 VAC. Connecting it to a 400 Hz aviation or specialized naval distribution bus will cause inductive overheating and catastrophic failure of the primary power stage.

How do I know if my Unison 59501-10-392775-4 H is failing?

Common failure modes include interlocked turbine ignition timeouts due to weak or absent spark energy, breakdown of internal potting resulting in audible arcing inside the casing, or an overcurrent draw that trips the upstream 115V circuit breaker (drawing more than 1.3 Amps max).

Are test reports provided with reconditioned units?

Yes. Every reconditioned or surplus unit undergoes insulation resistance testing (Megger test), input current consumption analysis under load, and cyclic spark profile analysis. The complete documentation packet is attached directly to the shipping manifest.
