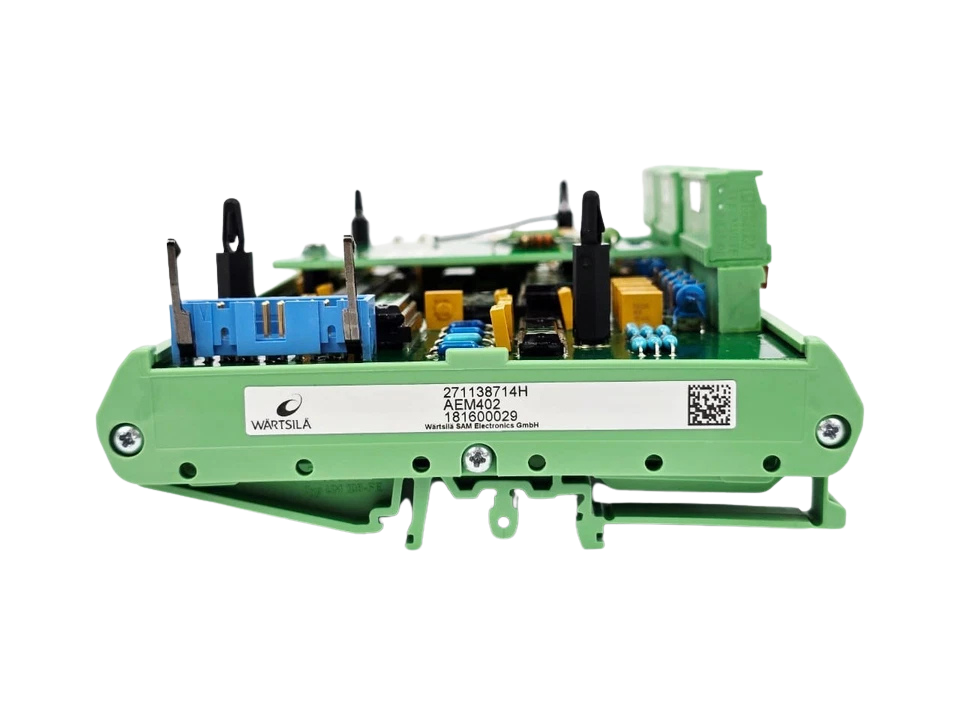

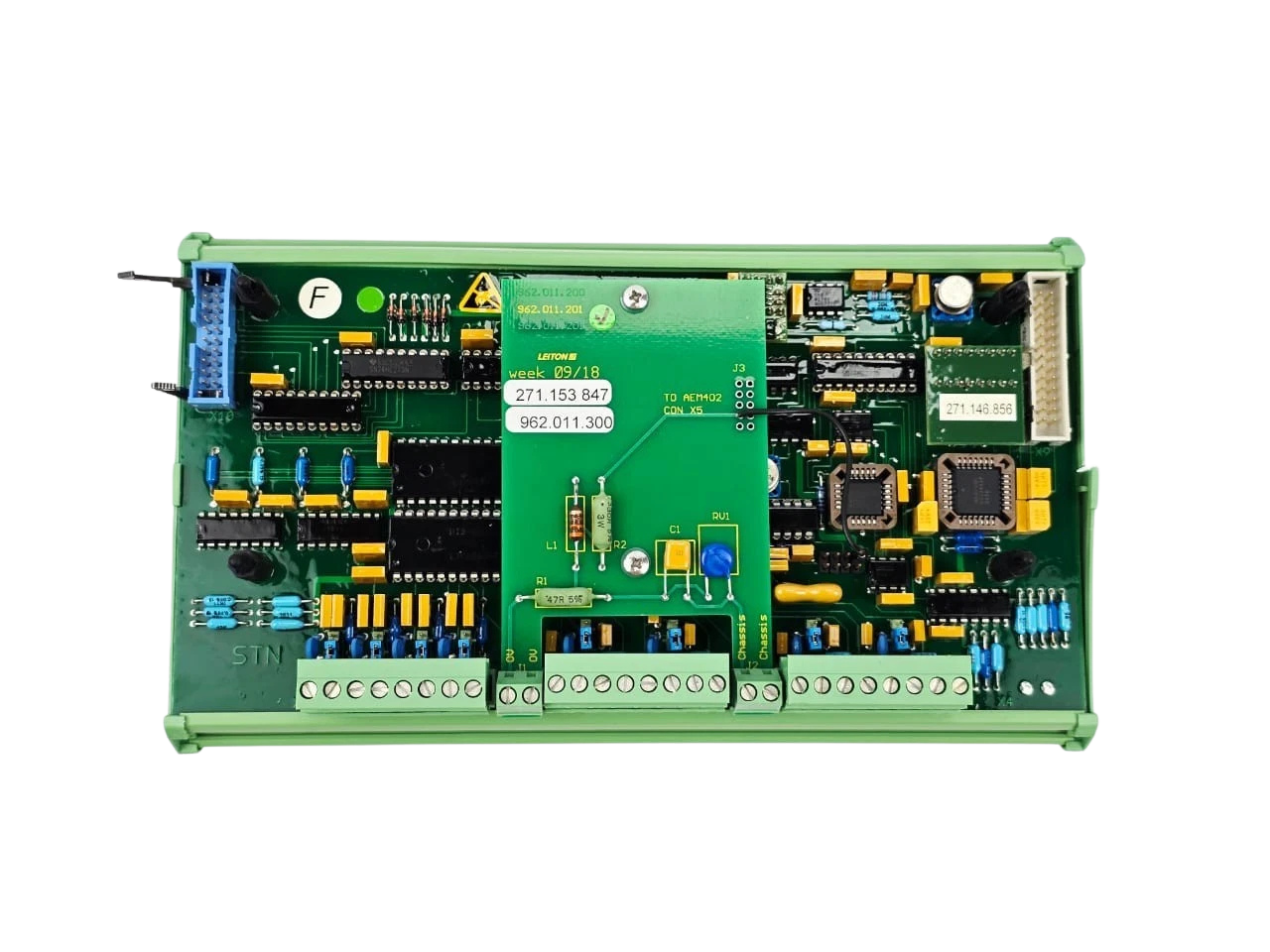

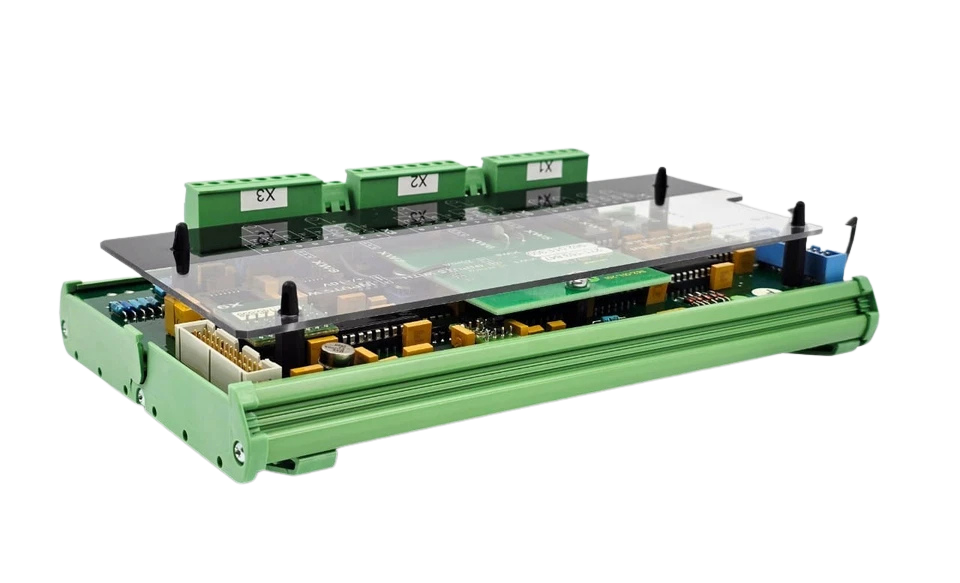

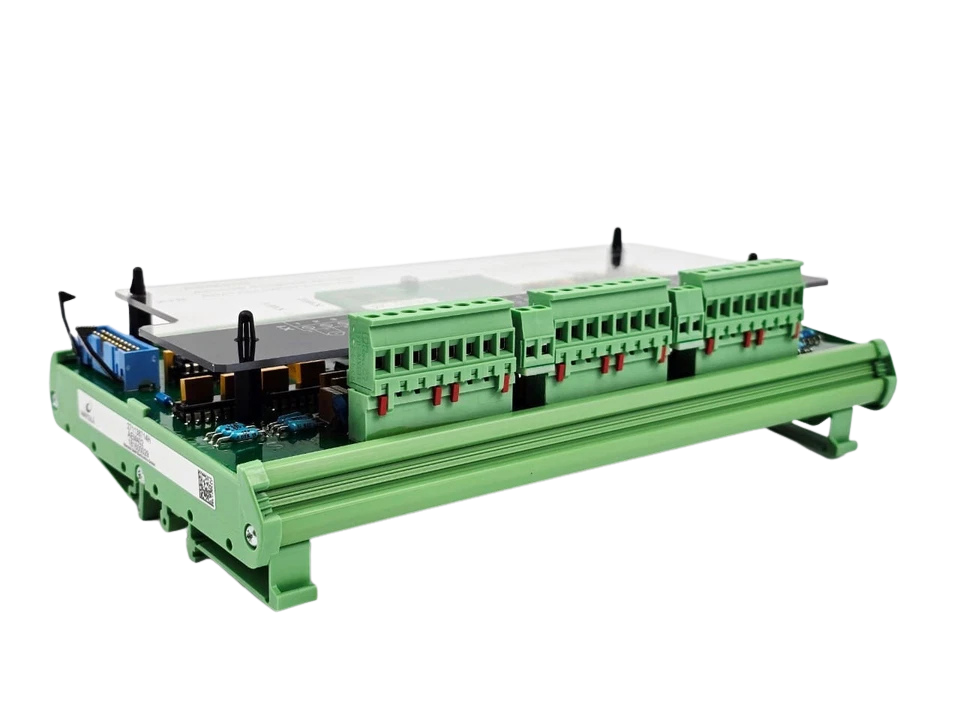

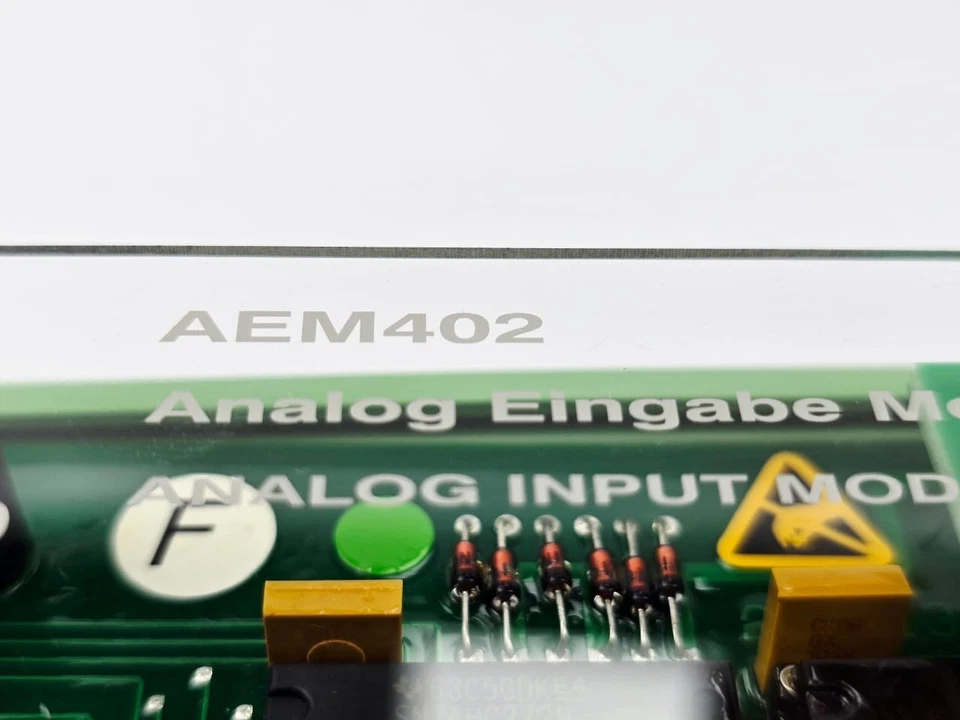

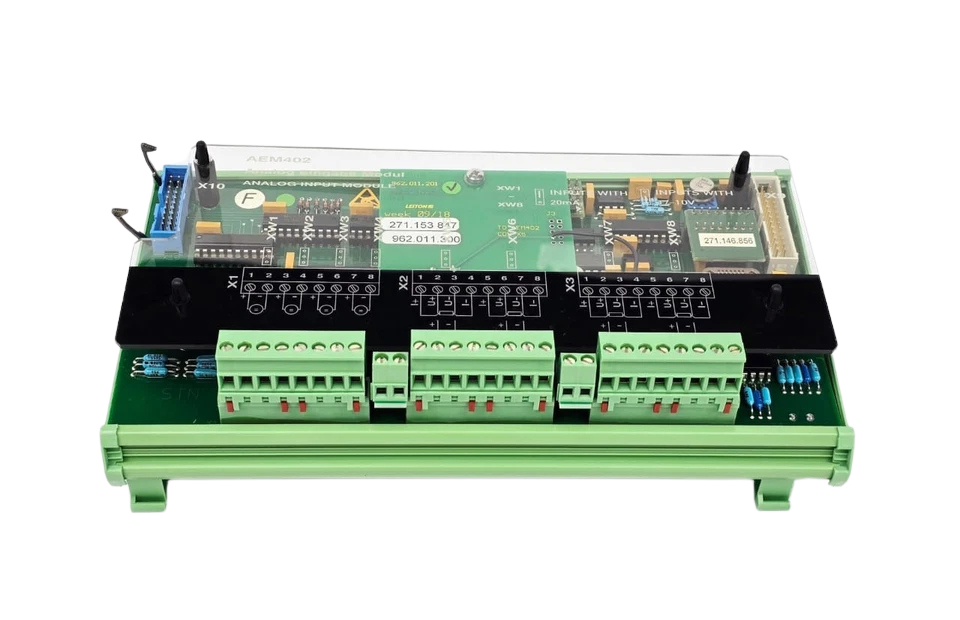

Wärtsilä SAM Electronics AEM 402 Analog Input Module (271.153 847)

The Wärtsilä SAM Electronics AEM 402 (Part Number: 271.153 847) is an 8-channel analog input module engineered for demanding shipboard environmental conditions. Designed as an acquisition interface for integrated control, monitoring, and alarm architectures, the module digitizes field instrumentation loops—such as 4–20 mA current loops, resistance temperature detectors (Pt100/Pt1000), and low-level millivolt signals.

Commonly deployed in SAM Electronics (Lyngsø Marine / Wärtsilä) Geamar and NACOS automated systems, the AEM 402 provides galvanic isolation across channels and system backplanes. This prevents ground loops from corrupting critical sensor telemetry in high-vibration, high-EMI engine-room spaces.

Model Details:

• Manufacturer: Wärtsilä SAM Electronics (formerly AEG / STN Atlas)
• Model: AEM 402 (Analog Input Expansion Module)
• Manufacturer Part Number (MPN): 271.153 847
• Compatible Rack Type: SAM Electronics Subrack / Geamar I/O Cassette

Technical Specifications

Key Features

1. Multi-Signal Acquisition: Supports 8 software/jumper-configurable channels for 4–20 mA, 0–10 V, Pt100/Pt1000, and low-drift thermocouple inputs.
2. Galvanic Channel Isolation: Protects backplane communications from field wiring spikes up to 1.5 kV DC.
3. High-Accuracy A/D Conversion: Integrates 16-bit analog-to-digital delta-sigma converters providing continuous self-calibration and active 50/60 Hz noise rejection.
4. Fault Detection Diagnostics: Detects open-circuit loop failures, sensor burnouts, over-range states, and short-circuits at the field terminal block.
5. Marine-Hardened PCB: Coated against corrosive marine air, condensation, high humidity, and steady-state engine-room vibration profiles.

Compatible Platforms

• SAM Electronics: Geamar 100, Geamar 120, Geamar 200, NACOS 2-2, NACOS 3-2, NACOS 4-2 series
• Lyngsø Marine: Integrated Monitoring and Control Systems (MCS 2200 / CMS 9100 interfaces)
• Wärtsilä Marine Automation Systems: Transas / Wärtsilä SAM Unified Automation bridges

Marine Applications

• Main & Auxiliary Engine Monitoring: Exhaust gas temperatures, charge air pressures, scavenge box temperatures, lube oil inlet/outlet pressures.
• Boiler Plant Monitoring: Feedwater conductivity, steam drum pressure, water levels.
• Cargo Handling Systems: Tank radar level processing, deepwell pump pressure telemetry, ullage temperature monitoring.
• Propulsion & Steering Gear: CPP pitch feedback, rudder angle indicator acquisition, bearing temperature tracking.

Part Number Cross-References

• Wärtsilä / SAM Electronics ID: 271.153 847
• Alternative References: 271153847, 271 153 847, AEM402, AEM-402
• Series Lineage: Preceded by AEM 401; succeeded in modern designs by digital Field Bus Coupler modules (Wärtsilä MCM/M-Series).

Chief Engineer’s Installation & Fault-Finding Brief

• Zero-Point Drift Diagnostics: If encountering fluctuating values on Pt100 channels, inspect the module’s 3-wire/4-wire return loop resistances. Resistance imbalances over 0.5 Ω between the positive and sense return lines often cause wild temperature swings in the alarm system.
• DIP Switch & Shunt Verification: Never slide an AEM 402 replacement into a live backplane without verifying the onboard configuration dip-switches and hardware jumpers against the unit being replaced. A channel physically configured for 0–10 V will read an open circuit or burn an internal input filter if wired directly into an active 4–20 mA powered field loop.
• Hot-Swapping Warning: While modern distributed I/O racks allow hot-plugging, always disconnect the 24V supply to the field transmitter loops prior to extracting the AEM 402. Unseating the Eurocard connector under inductive load can cause ESD and backplane spikes that reset adjacent processing units (DPUs), risking an automation blackout on critical monitoring circuits.
• Cable Screening Integrity: SAM systems are sensitive to common-mode loop ground differences. Confirm that external instrument cable shields are terminated only at the cabinet entry star-ground busbar, not daisy-chained into the module chassis grounding pins.

Frequently Asked Questions

Can I replace an AEM 401 module with an AEM 402 directly?

The AEM 402 is generally backward-compatible with the AEM 401 in terms of pinout and chassis footprint. However, you must verify the processing unit firmware version on older Geamar installations to confirm the rack accepts the AEM 402 profile. You must also replicate all jumper settings from the defective unit onto the replacement card before installation.

How do I calibrate an analog input channel on the AEM 402?

Hardware calibration is handled automatically by the delta-sigma converter’s internal reference voltage circuits. Offset and scale adjustments are executed digitally in software via the marine operator workstation (Geamar or NACOS engineering console) during loop check commissioning.

What is the standard test procedure for refurbished AEM 402 modules?

Refurbished units run through complete input sweeps across all 8 channels using a precision Fluke 754 process calibrator. Inputs are tested at 0%, 25%, 50%, 75%, and 100% of range for both 4–20 mA current and RTD curves under steady 50°C thermal conditions to verify drift limits before dispatch.

Why does the system report a “Sensor Wire Break” alarm immediately after card replacement?

This occurs if the input channel jumper is set to 4–20 mA but the field loop is wired as unpowered (passive) without an active 24V loop power supply, or if an empty channel is not jumpered/disabled in the system parameters. Verify loop voltage across terminals with a high-impedance multimeter.
