ABB ACS150-03U-02A4-4 Micro Drive

ABB ACS150-03U-02A4-4 Micro Drive: 0.75 kW (1 HP), 380–480V AC, 3-Phase Inverter

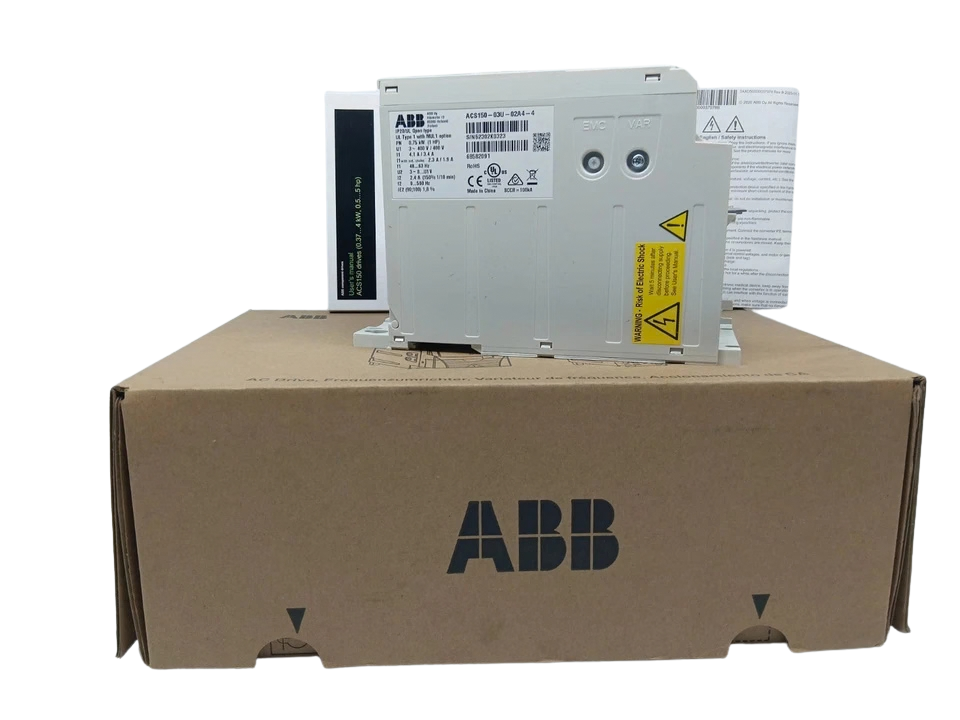

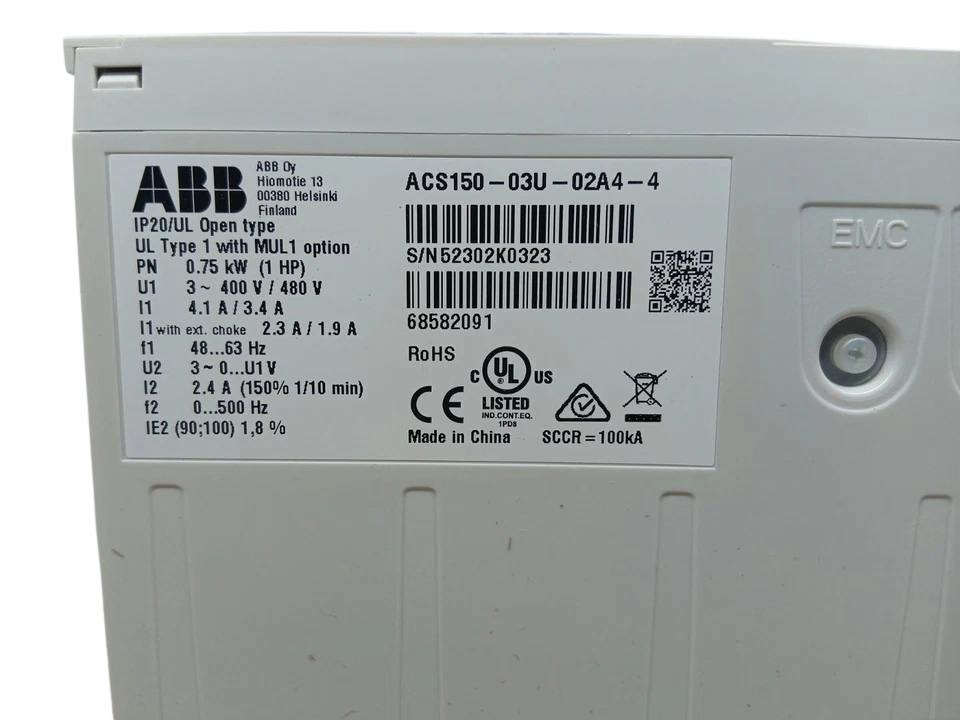

The ABB ACS150-03U-02A4-4 (ABB Ordering Code: 3AUA0000004579) is an entry-level micro variable frequency drive engineered for fixed-parameter machinery and low-capacity industrial/marine auxiliary processes. Rated at 0.75 kW (1.0 HP) with a continuous output current of 2.4 A across nominal 3-phase line supplies of 380 V to 480 V, this drive integrates an integrated control panel with an LCD display and speed potentiometer directly onto its front bezel.

Manufactured in an R1 frame size, the drive features a built-in dynamic braking chopper, an integrated EMC filter suitable for second environment (industrial) installations, and coated printed circuit boards (3C2/3S2 classification) that resist humidity, salt spray, and particulate fouling typical of marine engine rooms, HVAC spaces, and industrial factory floors.

Model Details

• Manufacturer: ABB
• Product Series: ACS150 Micro Drive Family
• Full Model Code: ACS150-03U-02A4-4
• Manufacturer Part Number (MPN): 3AUA0000004579
• Alternate Ordering Identifiers: ACS15003U02A44, ACS150-03E-02A4-4 (EMC filter variant)

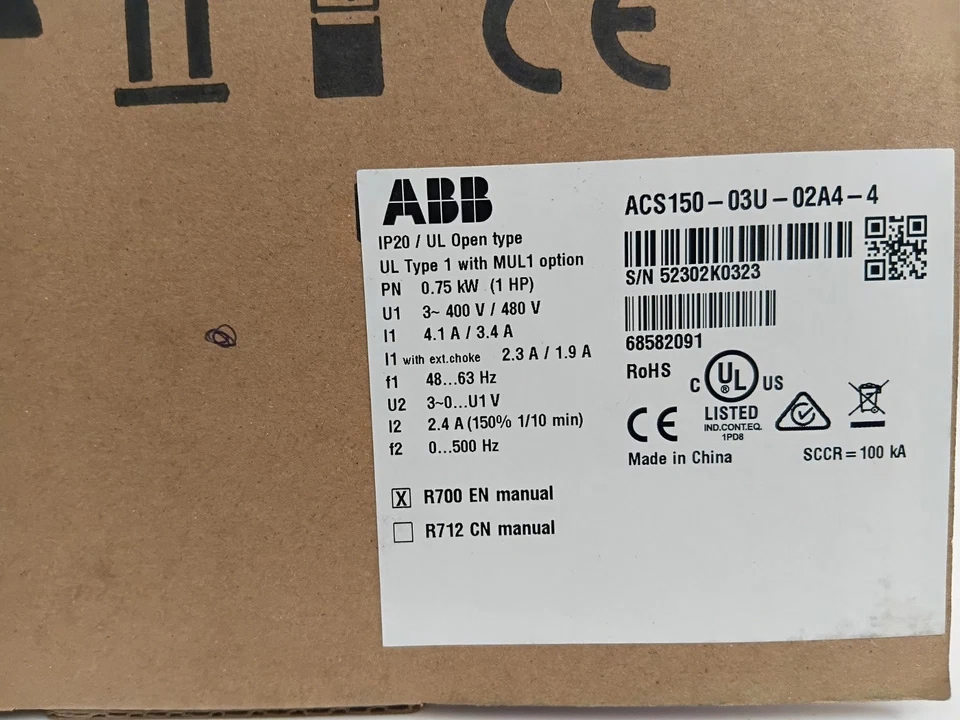

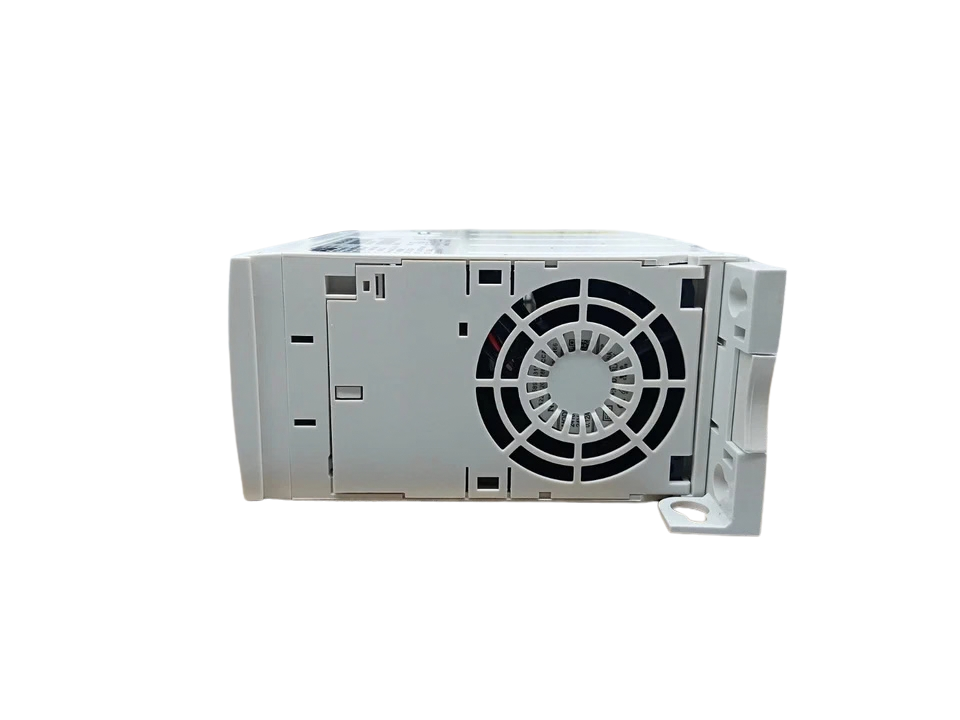

• Frame Size: R1 (Cold-plate base with heatsink and integrated internal cooling fan)

Technical Specifications

Key Features

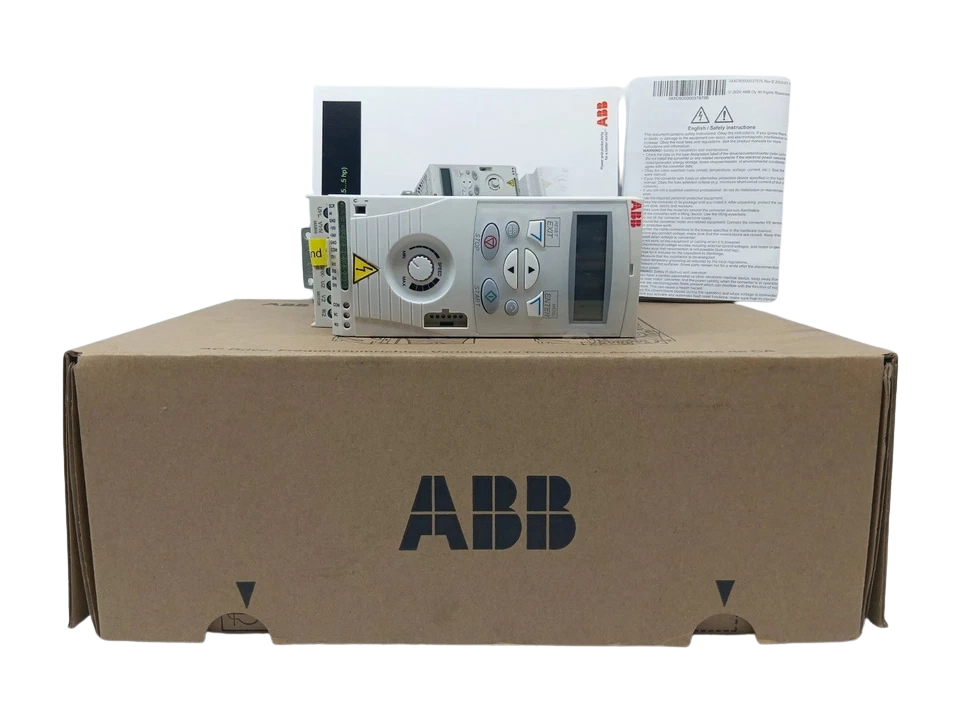

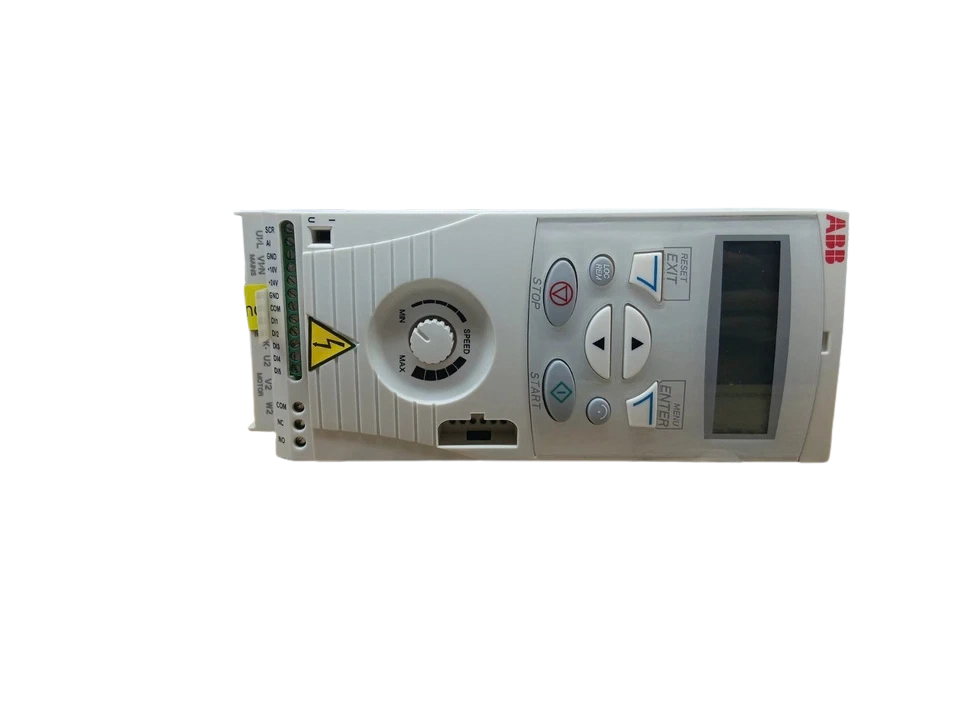

1. Integrated Local Interface: Built-in LCD user panel with membrane pushbuttons and an analog speed reference potentiometer for rapid local commissioning without external PC tools.
2. Standard Dynamic Brake Chopper: 100% duty-cycle internal dynamic brake transistor eliminates the cost of external chopper modules for deceleration and overhauling loads.
3. Coated Circuit Boards: Standard IEC 60721-3-3 Class 3C2 (chemical gases) and Class 3S2 (solid particles) varnish coating provides corrosion protection in aggressive, damp marine/industrial ambient atmospheres.
4. Flexible I/O Architecture: Dedicated macro configurations (Standard, 3-wire, Alternate, Motor Potentiometer, Hand/Auto, and PID control) pre-mapped to onboard terminals for immediate setup.

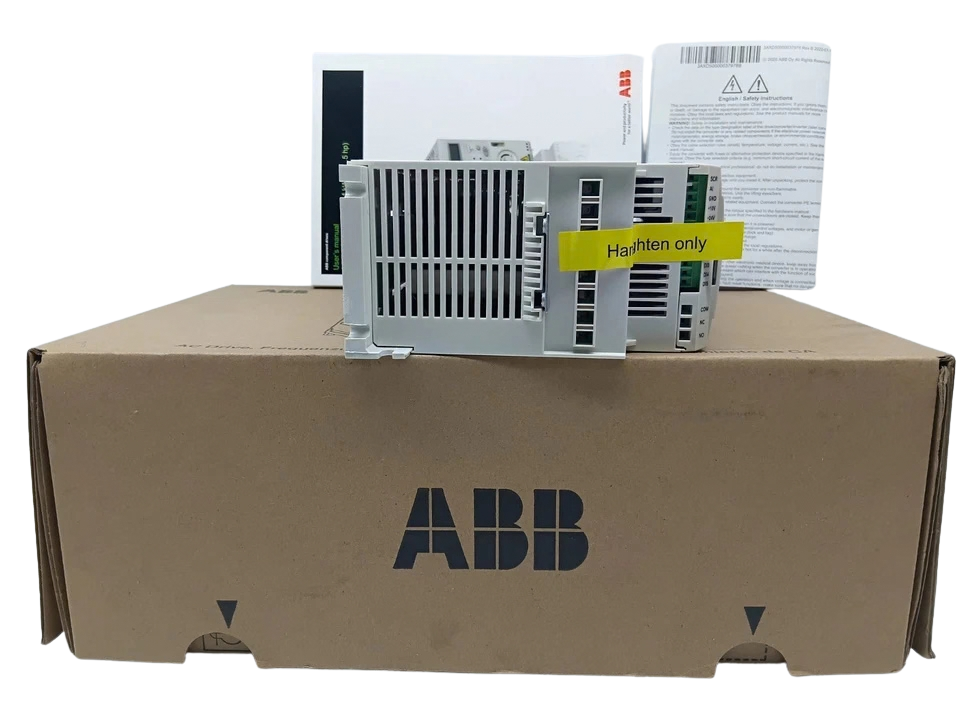

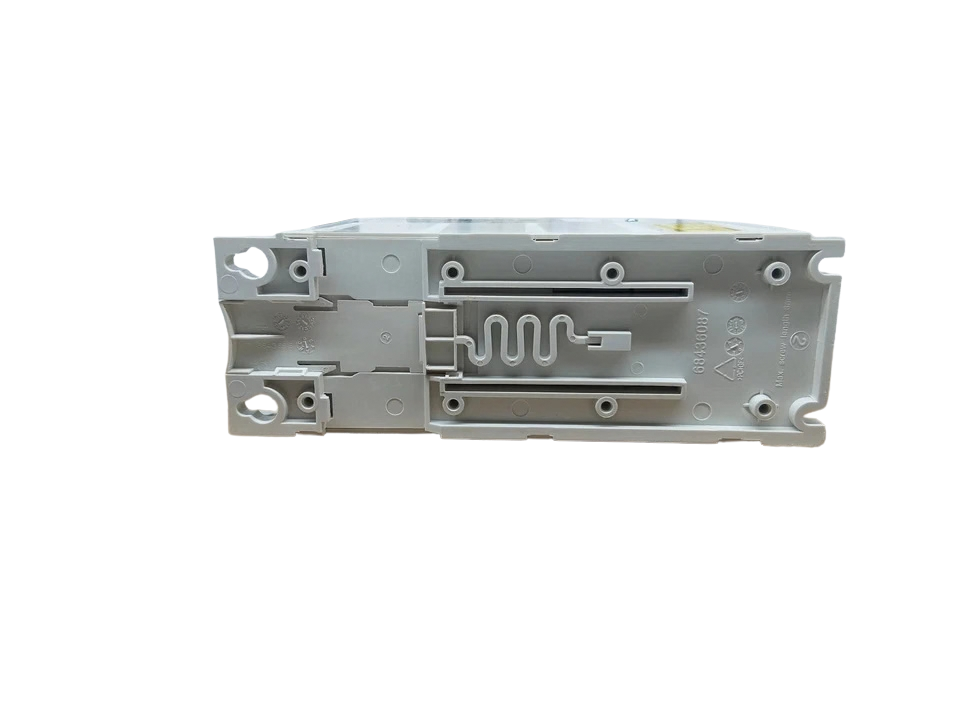

5. Compact DIN-Rail or Cabinet Mounting: Designed for adjacent side-by-side mounting without derating, supporting both standard 35 mm DIN-rail clips and direct rear-wall screw fixing.

Backward & Direct Cross-References

• Direct Legacy Equivalent: ABB ACS140-03U-02A4-4 (Discontinued series; direct functional replacement with identical envelope).
• European Filter Variant: ABB ACS150-03E-02A4-4 (Includes internal category C2 EMC filter; identically rated electrically).
• Modern Machinery Upgrade Path: ABB ACS355-03U-02A4-4 (Drop-in dimensional footprint; provides vector control, STO Safe Torque Off, and fieldbus support).

Compatible Motor Frames & Transducers

• Standard Induction Motors: IEC frame sizes 71M, 80M, and NEMA 56C frames wound for 380V, 400V, 415V, 440V, or 460V AC.
• Control Sensors: Standard 2-wire / 3-wire pressure transmitters, level sensors, and flow meters delivering 4–20 mA or 0–10 V DC signals.

Applications

• Marine Engine Room & Deck Auxiliaries: Fuel feed booster pumps, dirty oil transfer systems, engine room ventilation damper controls, small centrifugal separators, and fresh water hydrophone delivery pumps.
• Material Handling: Small package conveyors, roller tables, diverter gates, indexing turntables, and light hoist traverse axes.
• Pumps & Flow Control: Positive displacement dosing pumps, chemical metering skids, chilled water circulation, and booster stations.
• Commercial HVAC & Exhaust: Supply/extract axial fans, condenser exhaust fans, air curtain blowers, and air handler mixing dampers.
• Machinery OEM Integration: Packaging wrappers, commercial laundry wash extractors, woodworking spindle drives, and automated door actuators.

Frequently Asked Questions

Can the ABB ACS150-03U-02A4-4 run on a 1-phase 230V line?

No. The “03U” designation confirms this model requires a 3-phase incoming supply between 380 V and 480 V AC. For single-phase 200–240 V line applications, select an ACS150 model from the “01U” or “01E” sub-series (such as ACS150-01U-02A4-2).

Does this drive support vector control for high-torque low-speed operations?

No. The ACS150 family uses scalar V/Hz (frequency control with voltage boost). For closed-loop, sensorless vector control, or constant torque hold at 0 Hz, upgrade to the ABB ACS355 or ACS580 series.

What value braking resistor should be used with the ACS150-03U-02A4-4?

The minimum allowable braking resistance on the internal chopper is 130 Ohms. Installing a resistor with a lower ohmic value will damage the dynamic braking transistor. Ensure the dynamic brake resistor bank has adequate thermal wattage dissipation based on your cycle time and braking frequency.

How do I configure the drive to accept a 4–20 mA transducer input?

Locate the small two-position DIP switch marked AI1 directly above the control terminal block. Shift the switch position from “V” (0–10 V DC default) to “I” (0/4–20 mA current mode). Then set Parameter 1301 MINIMUM AI1 to 20% (which sets 4 mA as the minimum 0 Hz reference).

How do I switch the drive between the integrated potentiometer and an external signal?

Press the “LOC/REM” key on the integrated user control panel. In Local (LOC) mode, the potentiometer on the keypad governs drive speed. In Remote (REM) mode, speed and run logic revert to control terminal strip inputs (DI1–DI5, AI1) or pre-selected parameters.
