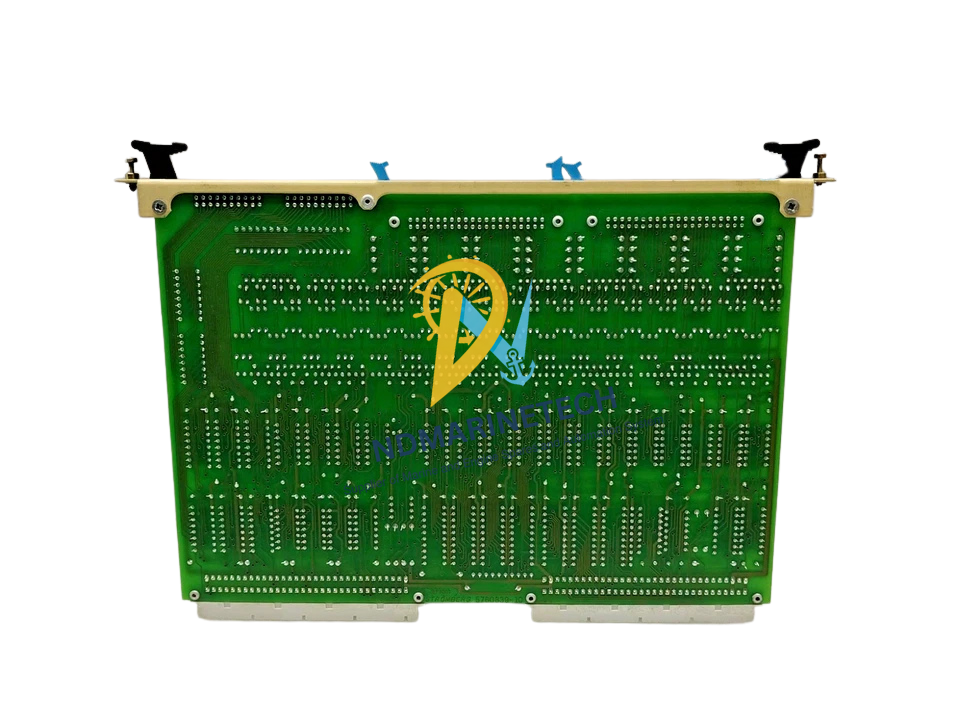

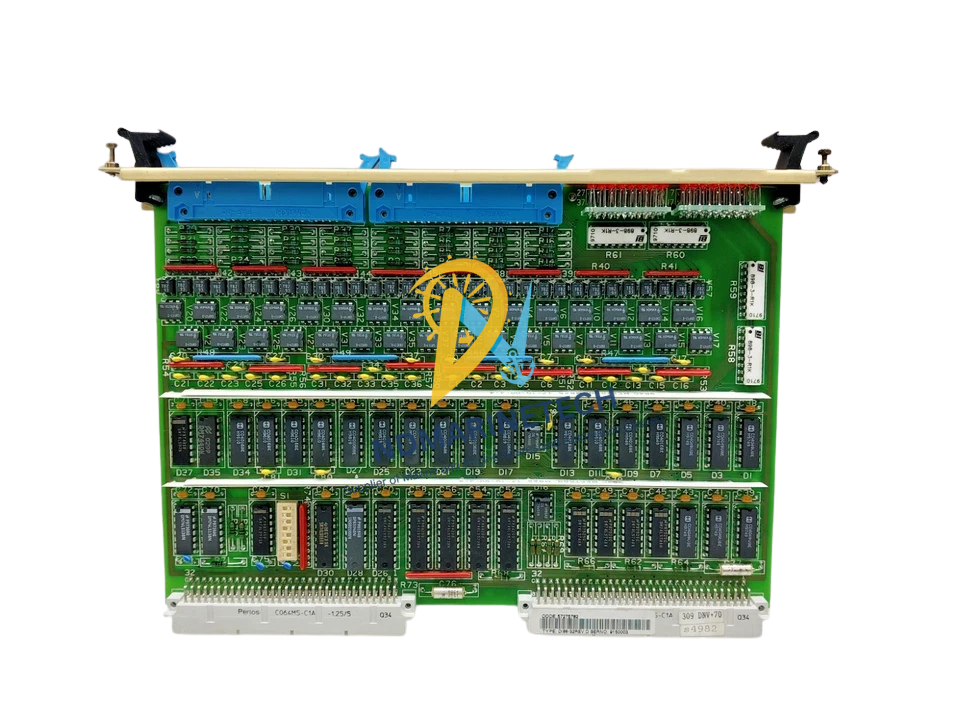

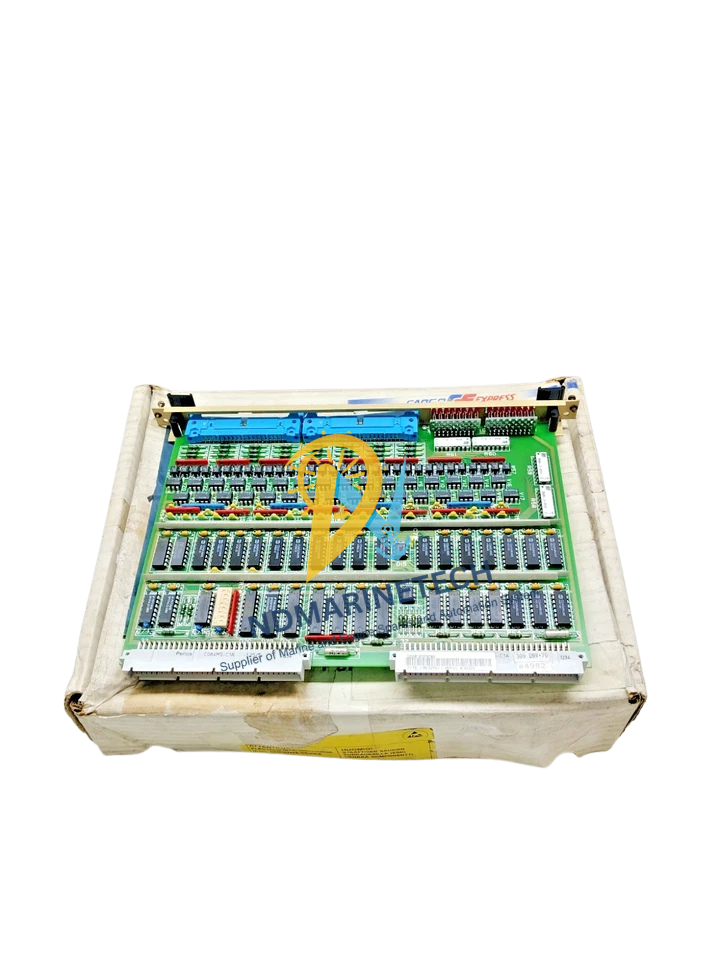

ABB DI86-32 Digital Input Module 57275782

ABB DI86-32 Digital Input Module

The ABB DI86-32 is a digital input module with 32 channels that works with the ABB Advant Master and MasterPiece 200/1 systems. It is the most important link between the central processing unit and field sensors like pressure switches, level sensors, and limit switches. It has 32 separate inputs in one module, which saves space in the cabinet without affecting the quality of the signal or the speed of the response. The ABB DI86-32 (MPN: 57275782) is a powerful Advant Controller designed to handle high-density digital signaling with the precision required for complicated industrial and maritime applications.

 Specifications

Expert Insight:

In my experience on VLCCs and offshore platforms, digital input failures are usually caused by chatter or ground loops. When installing the DI86-32, ensure your 24V field supply is stabilized.

Pro-Tip: Always utilize the module’s grouping logic to separate Safety-Critical inputs from General Alarm inputs. This prevents a single field fault from cascading through the entire module. If you are retrofitting this into an older MasterPiece system, verify your backplane bus version—this module is robust, but it thrives on clean power and proper terminal tightening to withstand high-vibration environments.
