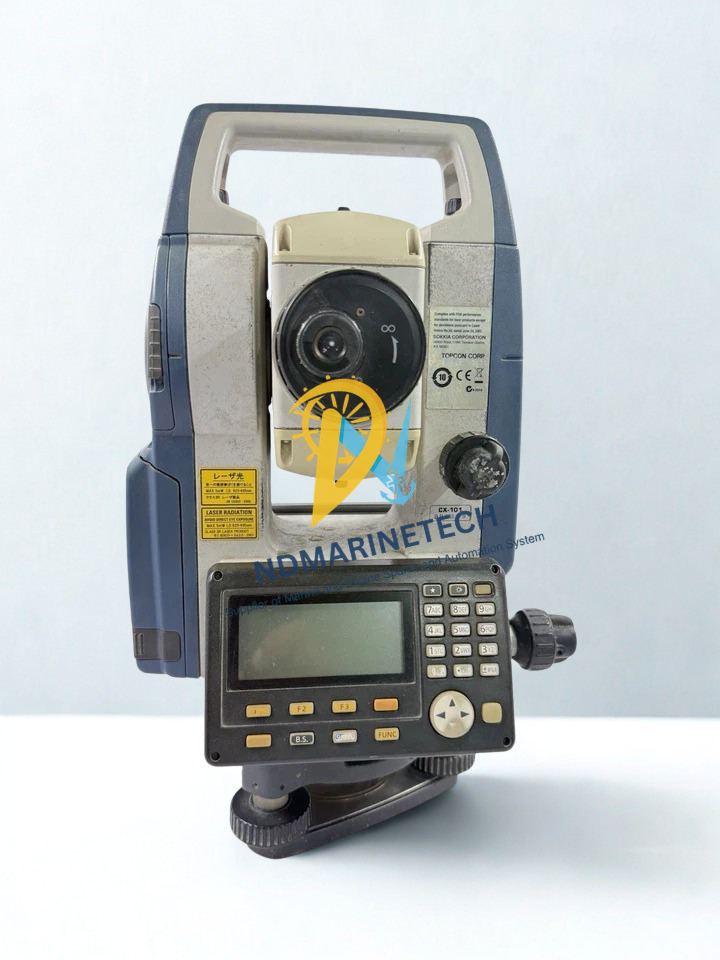

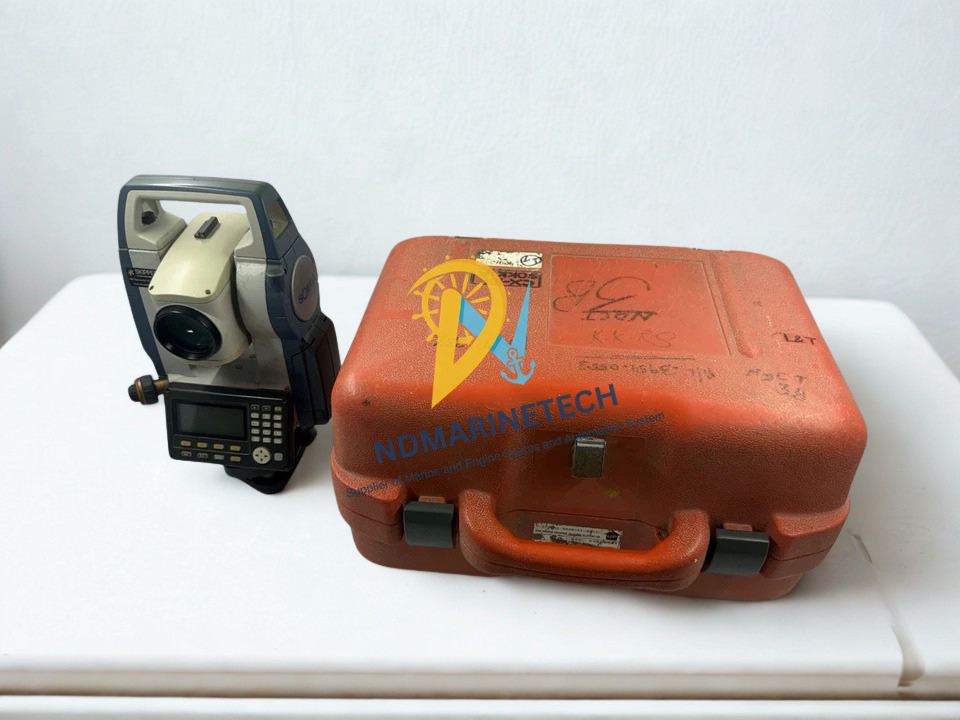

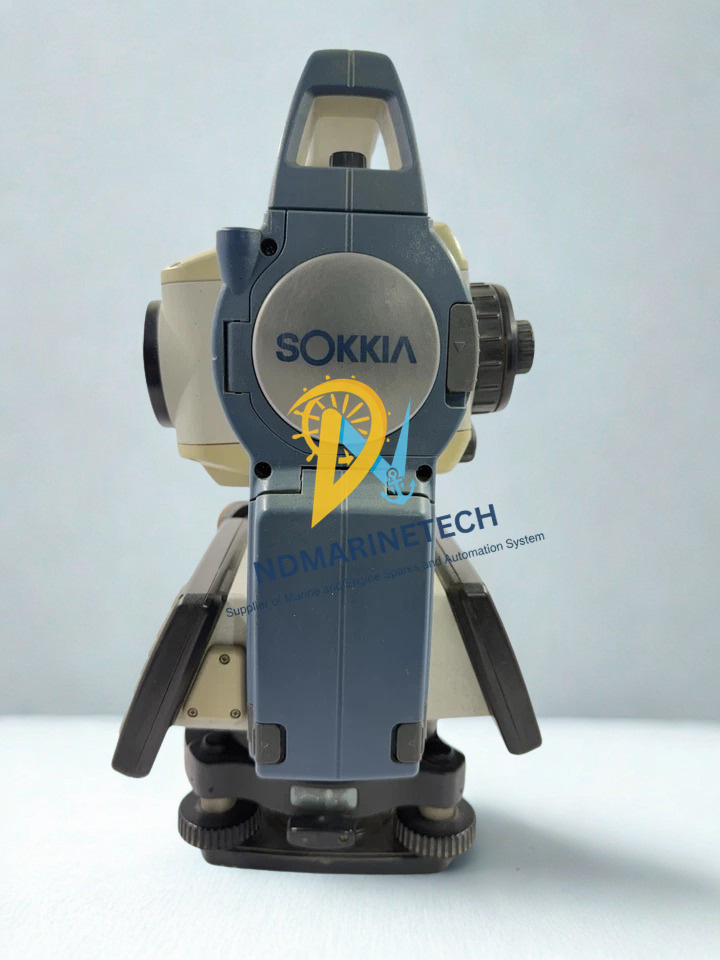

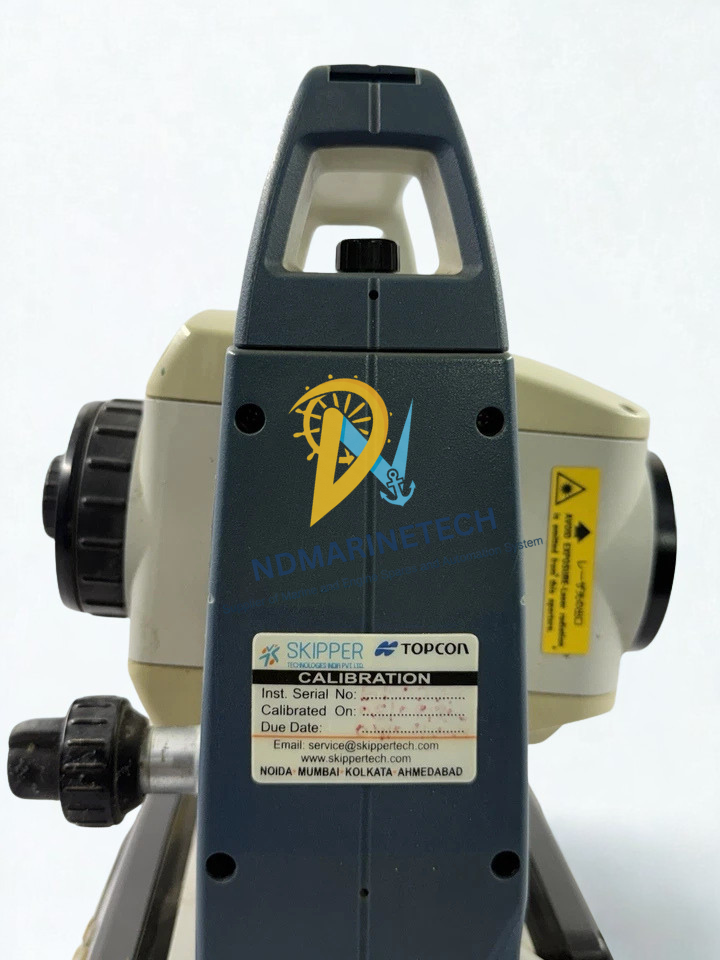

SOKKIA CX-101 Total Station: Precision Engineering for the Modern Surveyor

The Sokkia CX-101 is a professional-grade total station without a reflector. It is meant for high-end surveying and construction work. It has an industry-leading RED-tech EDM that lets you quickly and accurately measure distances, even in tough conditions. The IP66-rated chassis is tough enough to safeguard your data and gear from dust storms and heavy rain. Whether you are laying out a foundation on land or monitoring structural integrity on a pier, the CX-101 delivers the industrial-grade reliability Sokkia is known for.


Specifications

Features:

1. 1 Angular Precision: This is the most accurate level in the CX series, which is necessary for building bridges, tunnels, and high-rise buildings.
2. RED-tech Reflectorless Technology lets you measure very quickly (0.9 seconds) and on hard-to-measure surfaces like dark rock or skinny cables.
3. TSshield Security System: The first web-based telematics support system in the world lets you lock your device from afar and monitor its firmware if it gets lost.
4. Long-Range Bluetooth: This device has Bluetooth Class 1 technology, which lets you collect data from a controller up to 300 meters away.
5. 36-Hour Battery Life: The best power capacity in the business, so your staff can stay in the field without having to recharge in the middle of the day.

Applications

• Topographic Surveying: Getting data quickly for land development and mapping.
• Marine and Coastal Engineering: Keeping a close eye on the alignments of sea barriers, docks, and offshore platforms.
• Boundary Surveys: Setting legal property lines with an accuracy of one second.
• Civil Infrastructure: Keeping an eye on how bridges, dams, and tunnels change shape.
• Mining: figuring out how much rock is there and keeping an eye on the stability of the high wall.

Installation Guide by Our Engineer:

1. Stable Footing: Always start with a heavy-duty wooden or fiberglass tripod. In marine environments or soft soil, ensure the tripod shoes are driven deep into the substrate to prevent settling errors.
2. Centering: Use the laser plummet for quick positioning over your control point. I recommend a double-check using the optical plummet if you are working in high-vibration areas.
3. Leveling: Level the circular vial first, then use the electronic dual-axis compensator for the plate level. For 1 accuracy, your tilt offset should be as close to zero as possible.
4. Atmospheric Correction: Don’t forget to input the current temperature and pressure. In high-humidity marine zones, the refractive index of air changes, and ignoring this can throw off your EDM by several millimeters over long distances.
5. Collimation Test: Before starting a critical project, perform a quick horizontal and vertical collimation test (Face I and Face II readings) to ensure the internal optics haven’t shifted during transport.
