DBI SALA 3400902 Sealed-Blok SRL 50 FT Stainless Steel Fall Arrest

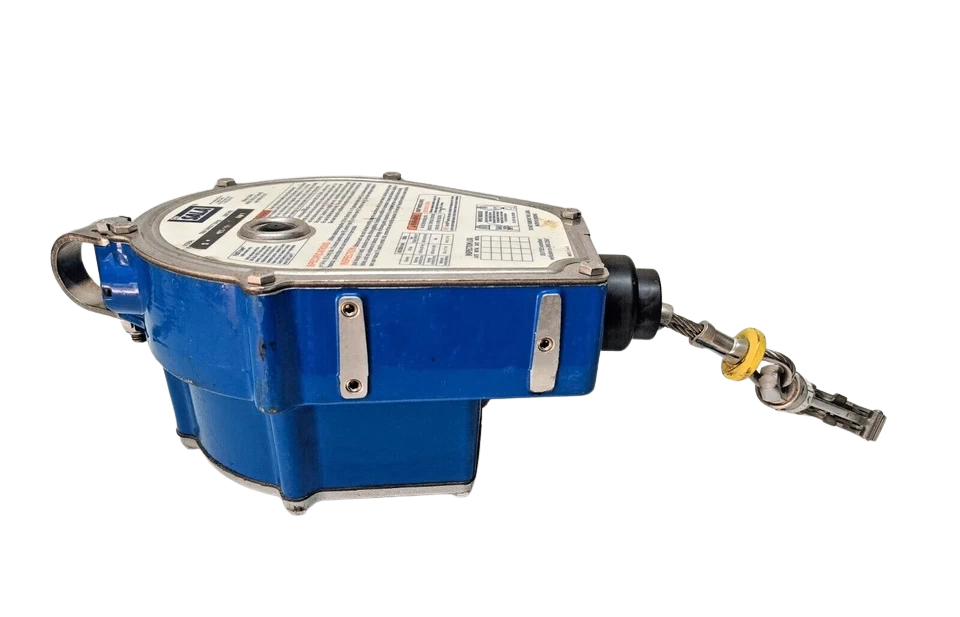

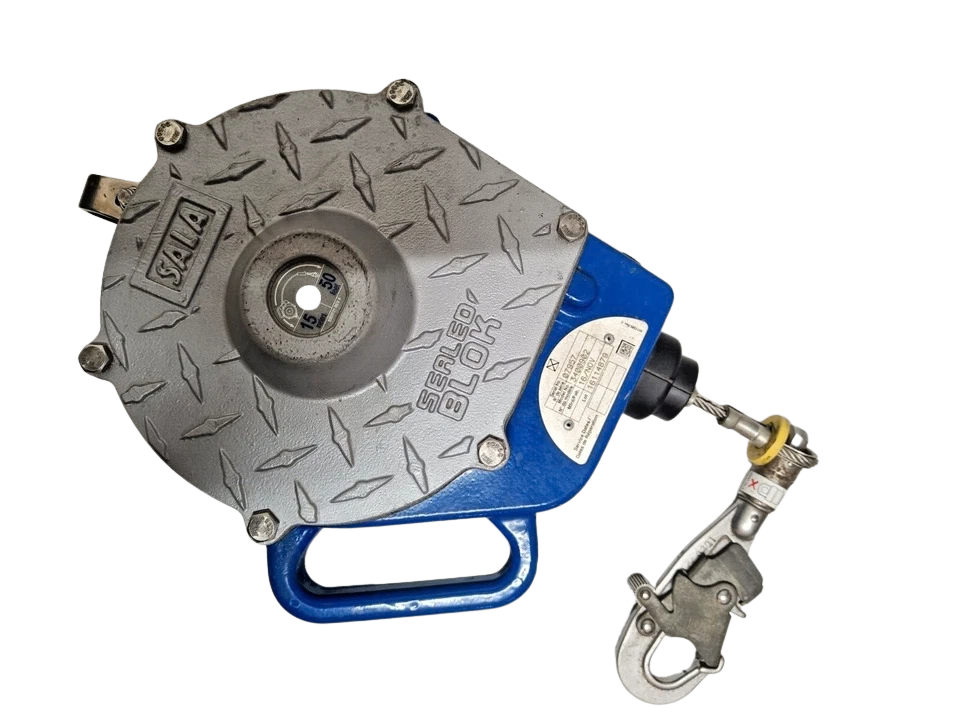

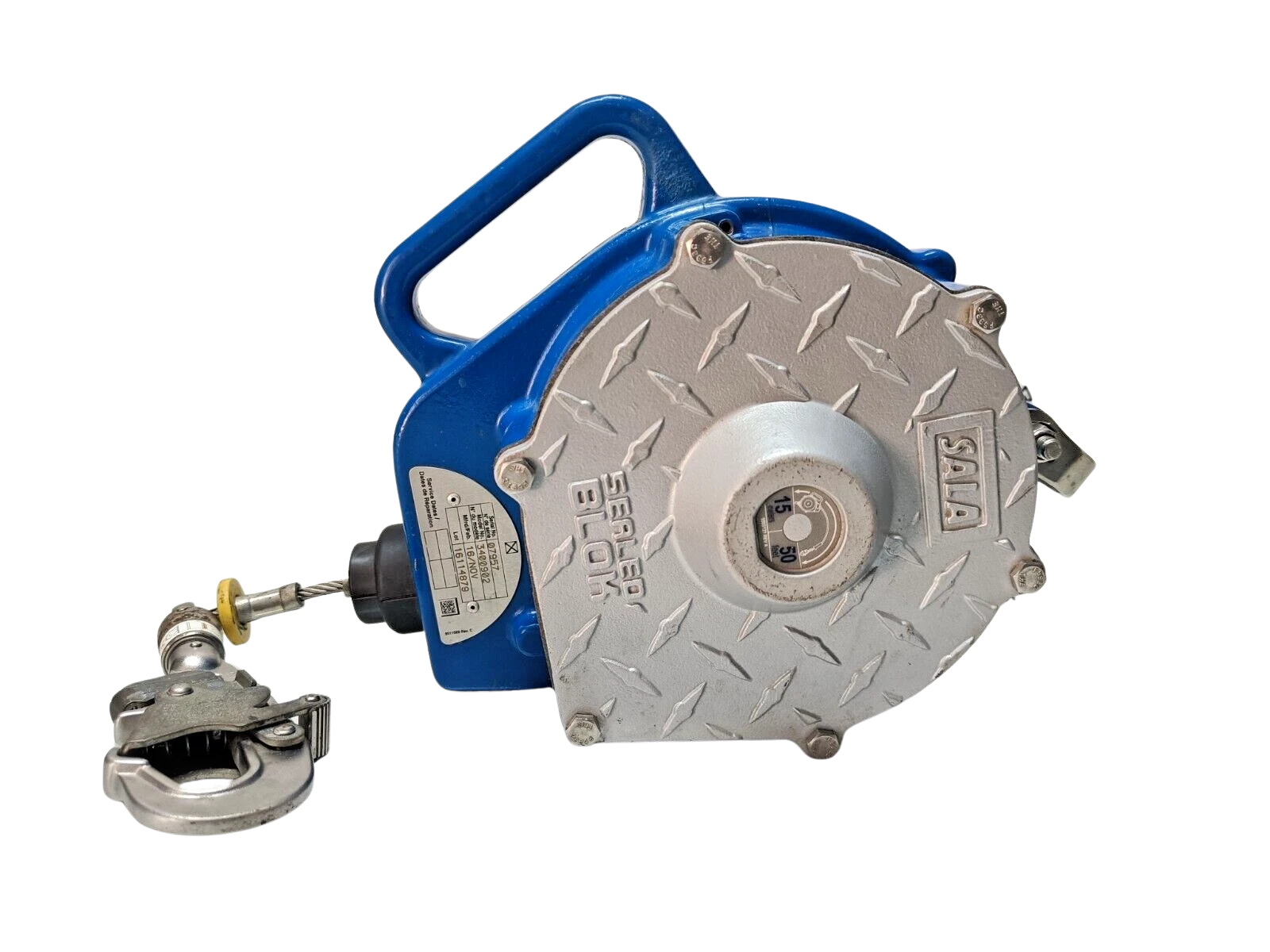

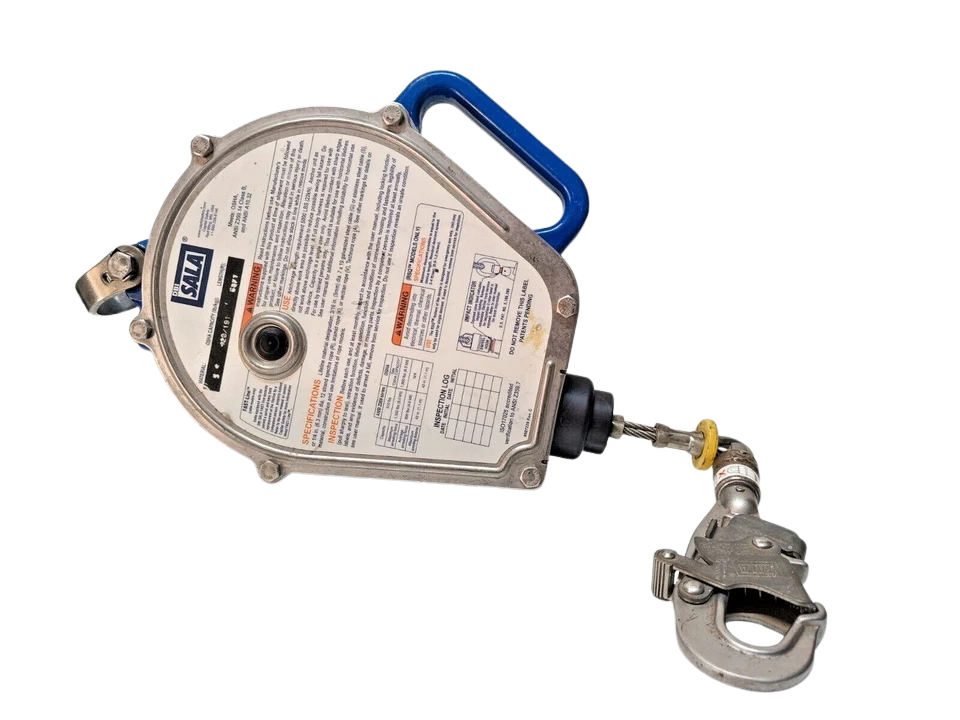

DBI SALA 3400902 Sealed-Blok™ Self-Retracting Lifeline / Fall Arrestor – 50 FT (15 m) Stainless Steel Cable

The 3M DBI-SALA Sealed-Blok™ 3400902 is a self-retracting lifeline (SRL) engineered specifically to withstand punishing offshore, maritime, petrochemical, and heavy industrial environments. Standard mechanical SRLs deployed in marine spray or chemical vapor suffer internal contamination, resulting in rusted pawls, fouled springs, and uncalibrated brake fade.

The DBI-SALA 3400902 eliminates these critical failure points by isolating all dynamic mechanical internals—including the motor drive spring, speed-sensing centrifugal brake mechanism, and internal drum bearings—within a sealed sub-assembly rated to IP68 and IP69K ingress standards. Outfitted with 50 feet (15.2 m) of corrosion-resistant 3/16-inch (5 mm) 7×19 stainless steel aircraft cable, this unit delivers uninterrupted personal fall arrest protection across shipboard gantries, moonpools, offshore drilling derricks, and enclosed process vessels.

Model Details

• Manufacturer: 3M Fall Protection / DBI-SALA
• Product Series: Sealed-Blok™

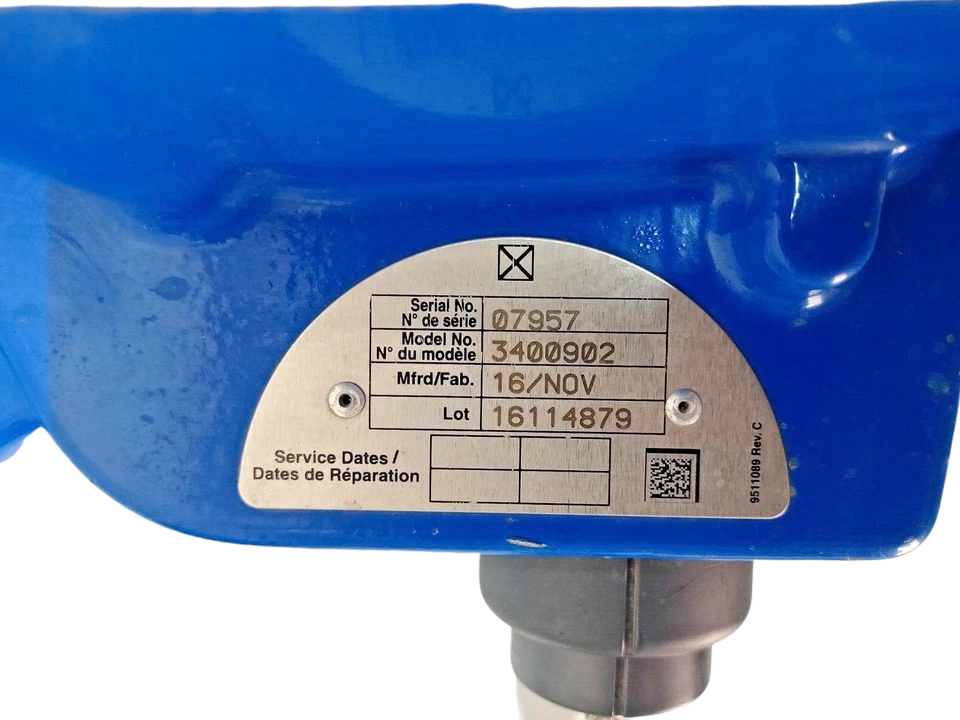

• Manufacturer Part Number (MPN): 3400902
• Global 3M Stock ID: 70007439369 / 7012819001 (equivalent variant baseline)
• Product Style: Single-Line Overhead Fall Arrest Block

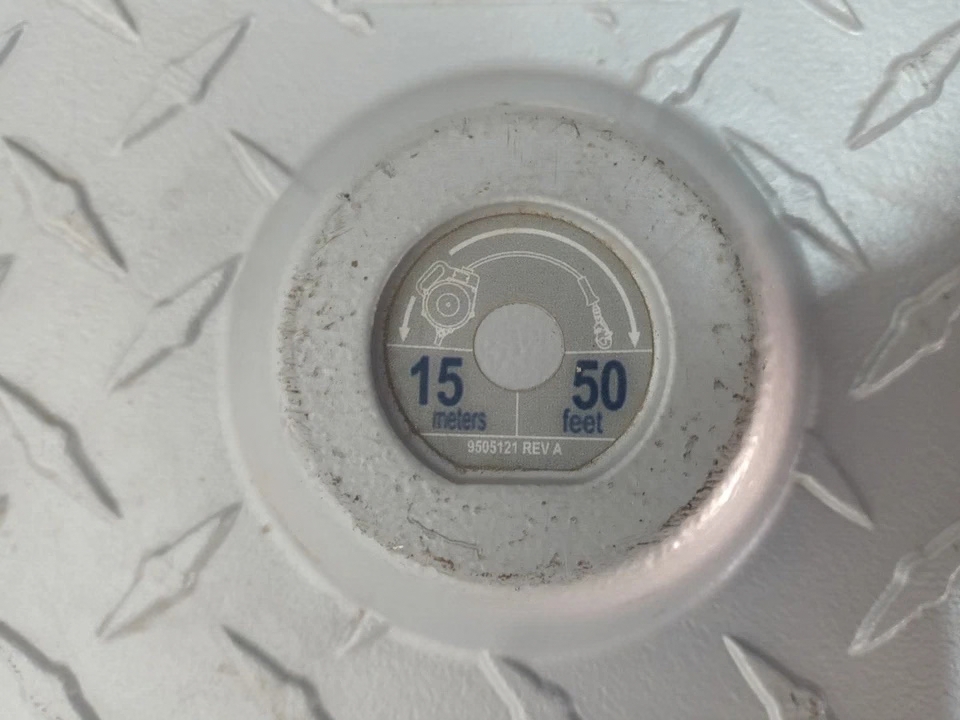

• Working Length: 50 ft (15.2 m)

Technical Details:

Key Features

1. Hermetically Sealed Dynamic Sub-Assembly (IP68/IP69K): Patented sealed architecture completely sequesters the drive spring, anti-ratcheting pawls, and centrifugal brake from seawater, brine, drilling mud, caustic gasses, and pressure-wash operations.
2. High-Tensile Stainless Steel Cable: Spooled with 50 feet (15.2 m) of 3/16-inch (5 mm) 7×19 316-grade stainless steel aircraft cable, maximizing resistance against saltwater pitting, mechanical abrasion, and chemical degradation.
3. FAST-Line™ Field Replacement Capability: Allows qualified safety rigging technicians to replace the lifeline cable assembly on-site without opening the hermetically sealed brake chamber, reducing total cost of ownership and vessel downtime.
4. Anti-Ratcheting Speed-Sensing Brake: Features a centrifugal braking mechanism designed to engage instantly and resist ratcheting on flex-prone anchor points, limiting dynamic arresting forces to under 900 lbs (4 kN).

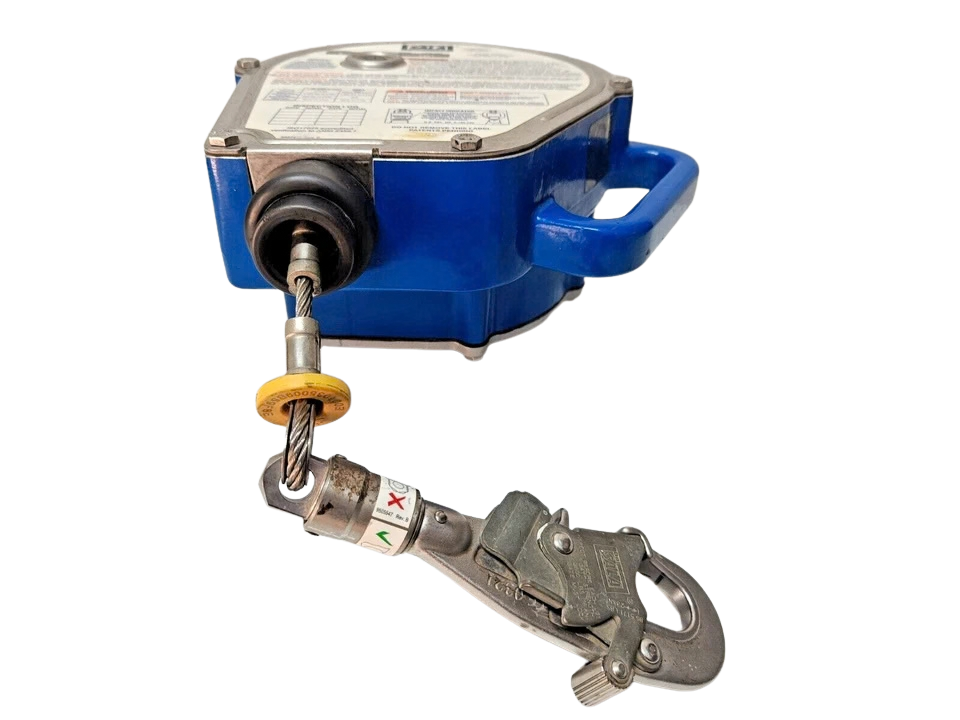

5. Integrated Impact Indicator & 3M™ Connected Safety ID (RFID): Equipped with a swiveling stainless steel snap hook containing an integrated visual deployment flag, paired with a built-in RFID chip for automated digital asset tracking and mandatory inspection logging.

Equipment Compatibility

• Full Body Harnesses: Compatible with all ANSI Z359.11-compliant full-body harnesses via the dorsal D-ring (e.g., DBI-SALA Delta™, ExoFit™ STRATA™, and DBI Derrick harnesses).
• Anchorage Connectors: Direct interface to fixed steel padeyes, certified overhead I-beams, tripod davits (DBI-SALA Advanced Tripod series), and horizontal lifelines certified for Class 1 SRL arresting loads.
• Included Hardware:
  • 1x 3M Saflok™ High-Strength Steel Anchorage Carabiner.
  • 1x 4 ft (1.2 m) Heavy-Duty Cable Tie-Off Adaptor with Carabiner.
  • Integrated Ergonomic Carrying Handle.

Frequently Asked Questions

What is the primary benefit of an IP68/IP69K sealed SRL over a standard retractable lifeline?

Standard SRL housings allow ambient humidity, brine, acidic particulates, and cleaning water to enter the dynamic mechanical cavity. Over time, this corrodes internal spring motors, damages bearings, and reduces the friction coefficient of the brake disc, potentially leading to catastrophic failure. An IP68/IP69K rated unit completely seals these moving components behind O-rings and gasketed chambers, ensuring reliable fall arrest regardless of external deck washdowns or corrosive salt spray.

Can the DBI-SALA 3400902 be mounted horizontally?

The unit is tested and classified for overhead anchorage (Class 1 fall arrest). While it can function on horizontal lifelines where the anchorage is positioned above foot level, it is not an ANSI Class 2 leading-edge SRL. To use an SRL at deck level where the cable may bend over sharp edges, an engineered leading-edge model with an external shock pack (or an approved edge-rated interface) must be specified.

What is the maximum user capacity for the 3400902?

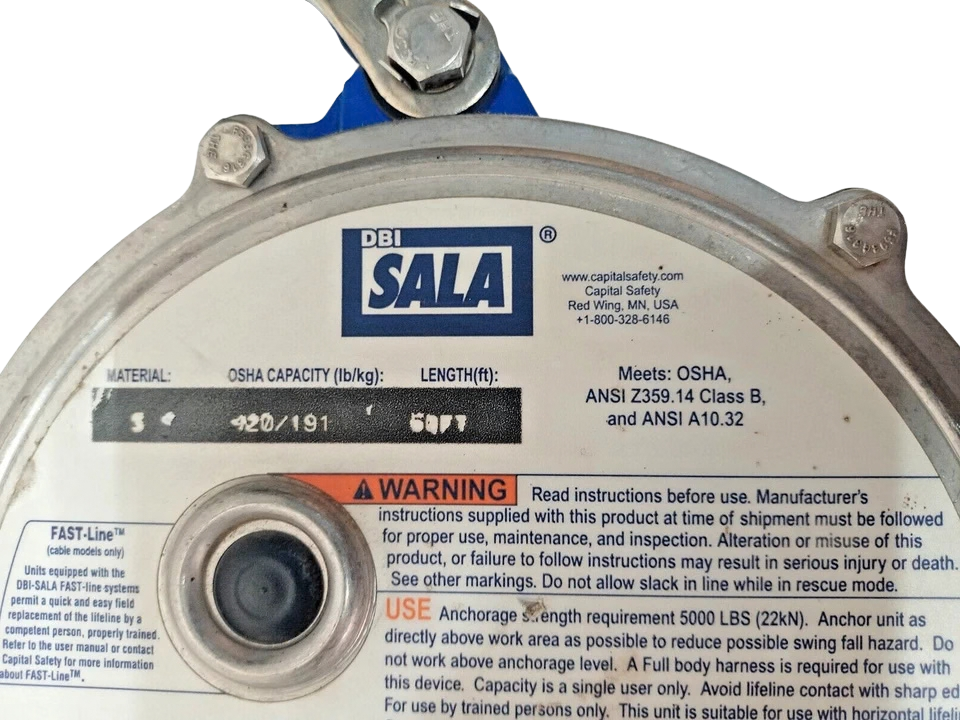

Under ANSI Z359.14, the standard single-user rating is 130 to 310 lbs (59 to 141 kg) including combined body weight, tools, and clothing. However, when tested in compliance with OSHA 1926.502 regulations, the unit maintains certified arresting capabilities for total operator weights up to 420 lbs (190 kg).

How do I know if the lifeline has arrested a fall and requires removal from service?

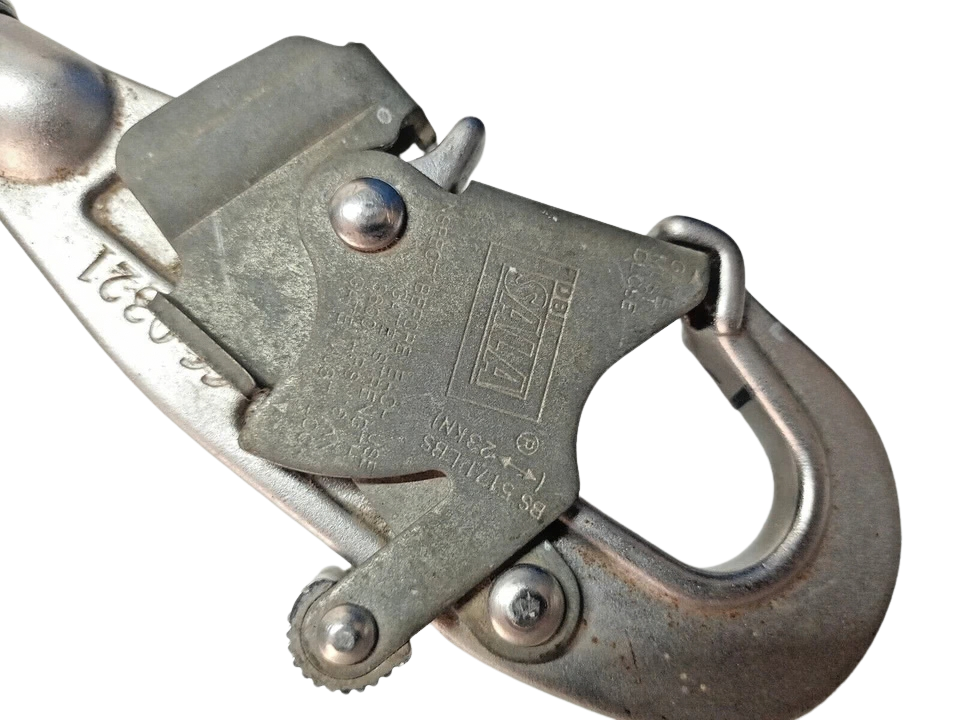

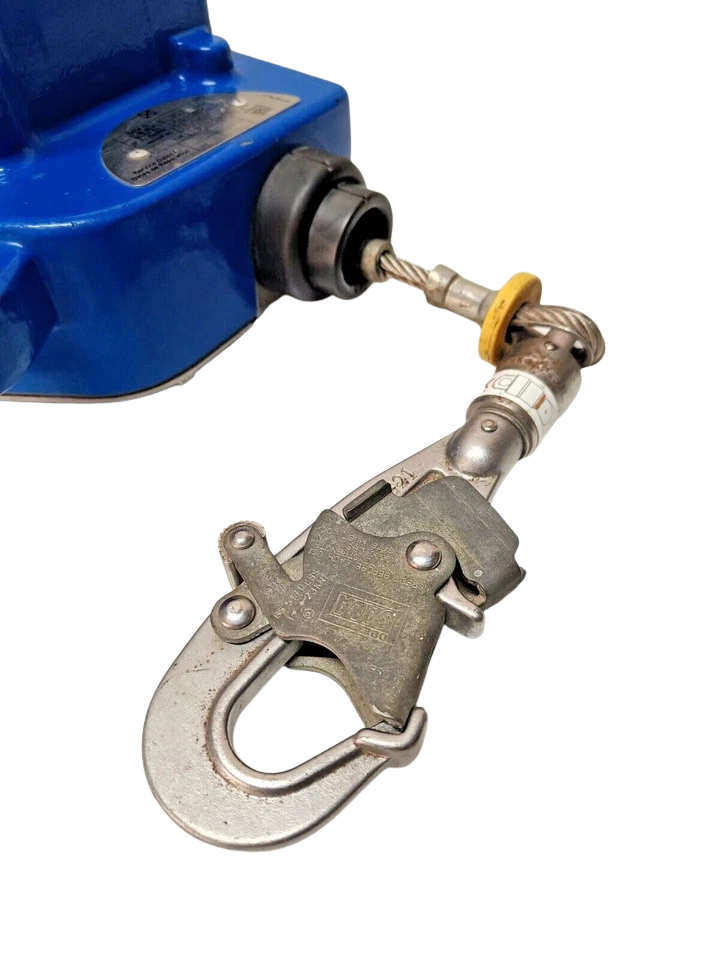

The 3400902 is equipped with an integrated drop impact indicator located inside the barrel of the bottom swiveling snap hook. When subjected to fall arrest load conditions, the snap hook reveals a visible red ring indicator. If this red ring is exposed, the unit has arrested a dynamic event, must be removed from service immediately, and must undergo complete recertification.

Can the cable be replaced in the field if damaged?

Yes. The 3400902 includes DBI-SALA’s patented FAST-Line™ cable system. If the stainless steel aircraft wire suffers cosmetic crushing or mechanical kinking, a trained competent technician can install an authentic replacement cable kit directly on the vessel or worksite without opening the sealed brake assembly.
