EMD Technologies 9777.23.R0 Epsilon X-Ray Operator Console

EMD Technologies 9777.23.R0 High Voltage X-Ray Epsilon Operator Console

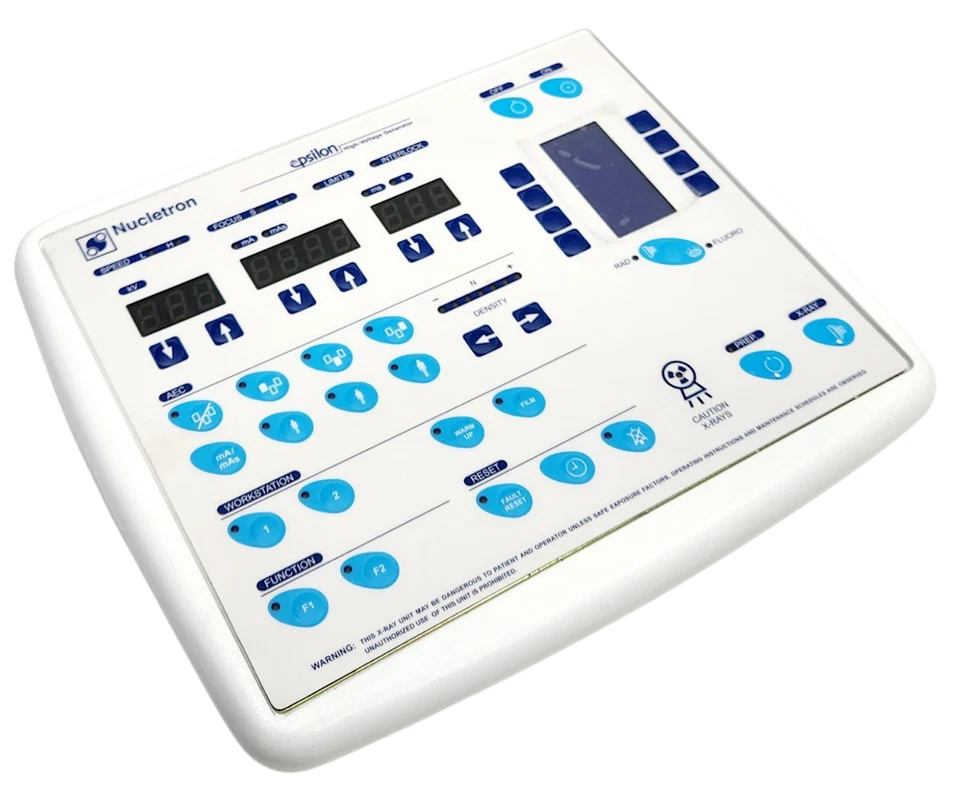

The EMD Technologies 9777.23.R0 is a specialized operator console interface engineered specifically for the Epsilon EPS 45–80 High-Voltage X-Ray Generator Series. Built for demanding clinical radiography (RAD) and radiography/fluoroscopy (RF) medical imaging systems, this microprocessor-controlled console manages exposure parameters, operational interlocks, tube calibration parameters, and real-time fault diagnostics.

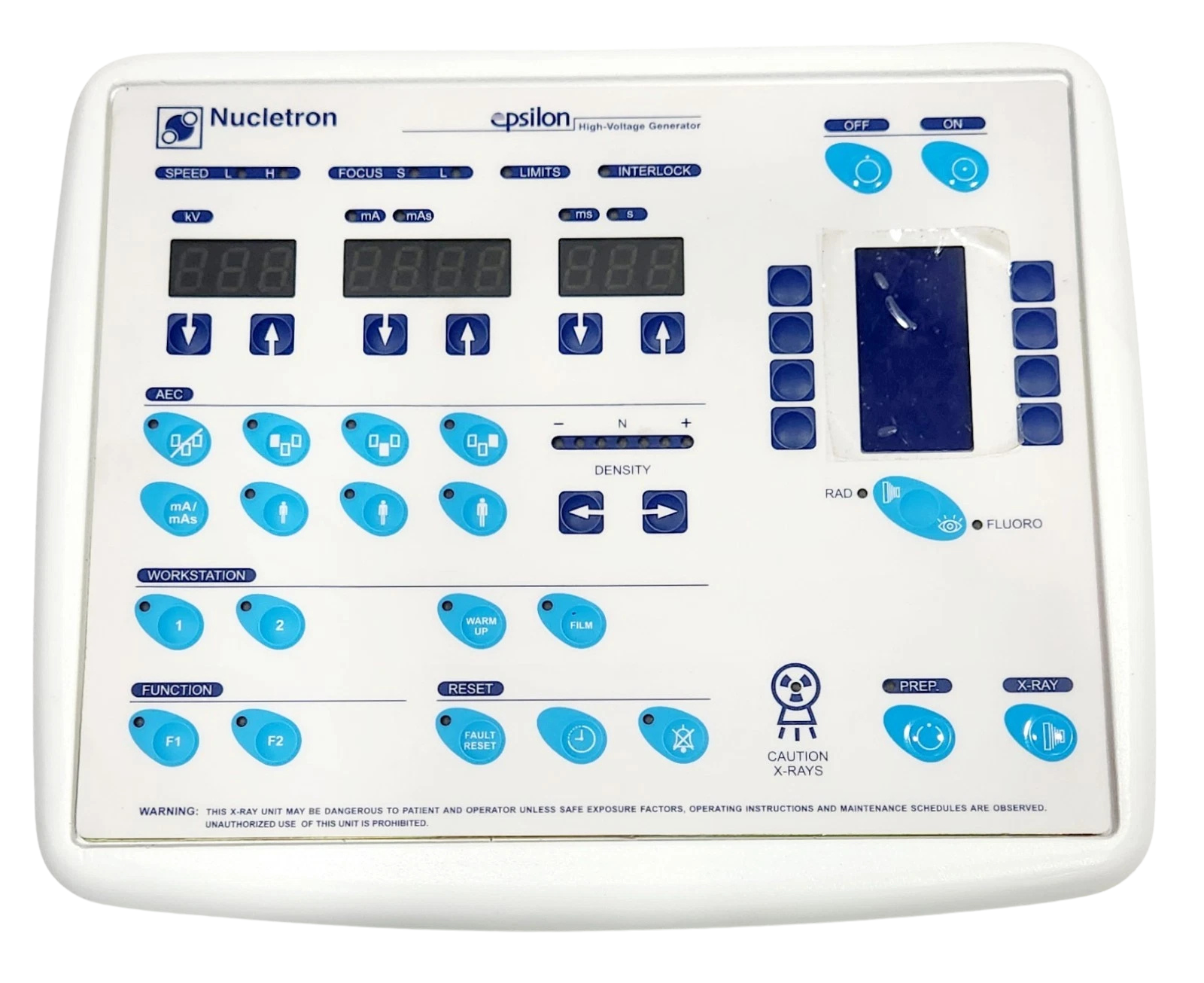

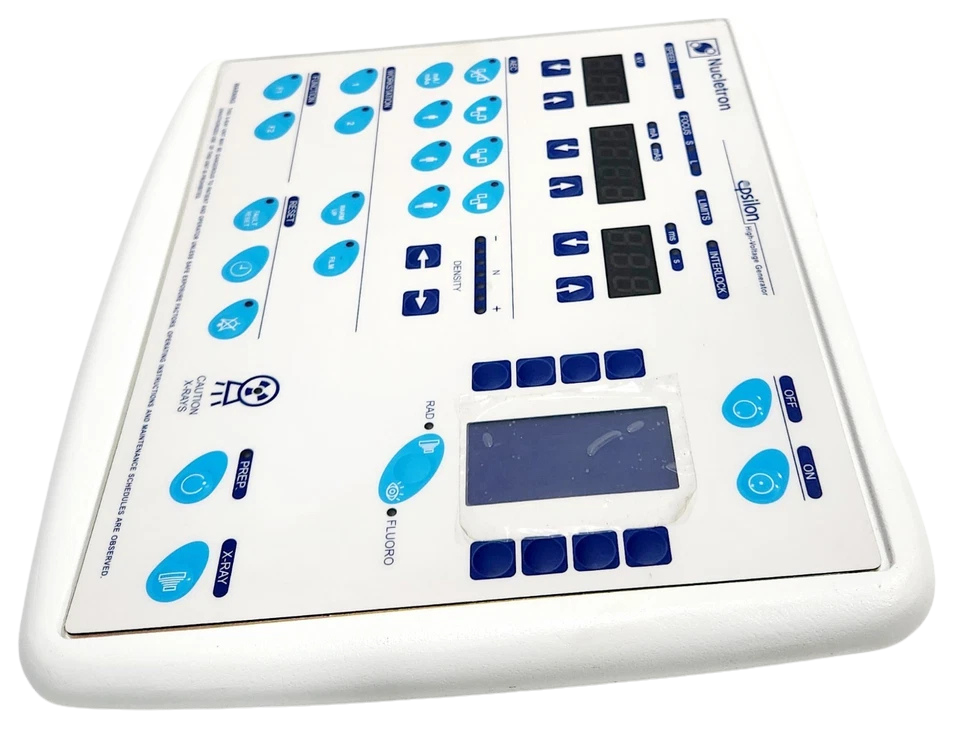

This unit functions as the primary user interface and communications hub between the system operator, the imaging workstation, and the high-frequency inverter core of the generator. It facilitates continuous monitoring of kVp, mA, mAs, and exposure timing, while governing dual-speed rotor control, Automatic Exposure Control (AEC) chambers, and safety door interlock loops. Each unit supplied undergoes comprehensive hardware integrity checks, bus voltage verification, and diagnostic communications testing to ensure immediate drop-in replacement reliability in active diagnostic suites and marine vessel medical stations.

Model Details

• Manufacturer: EMD Technologies Inc.
• Series: Epsilon High Voltage Generator System

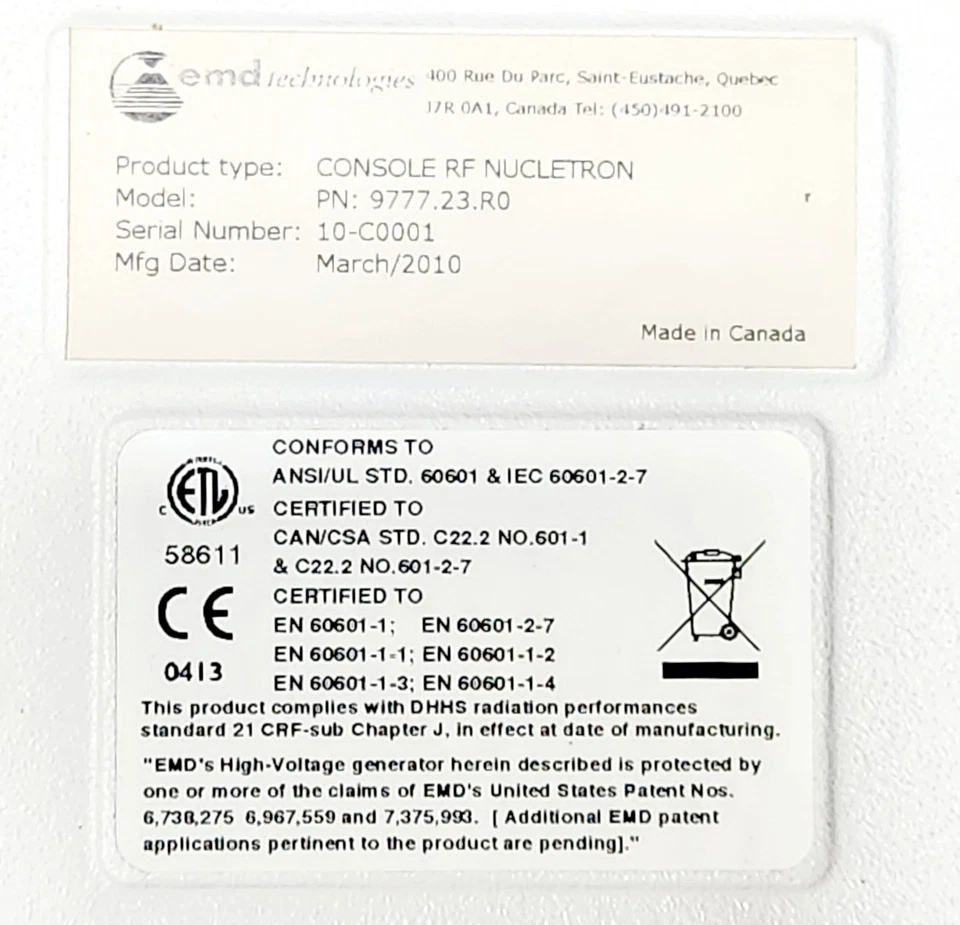

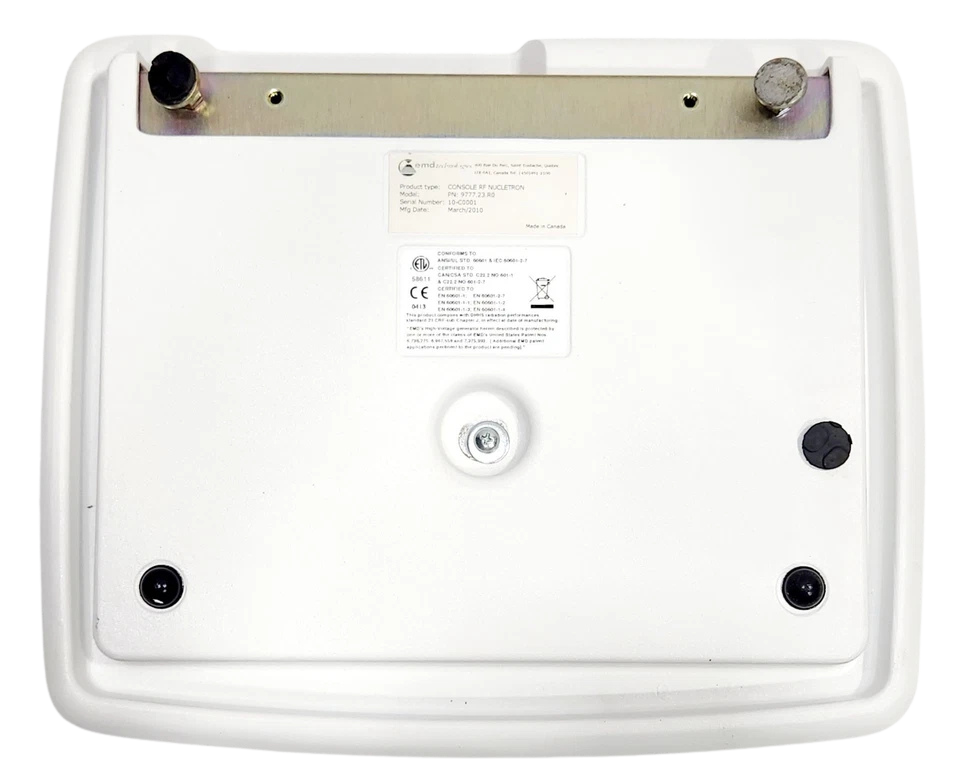

• Console Model / Assembly Number: 9777.23.R0
• Revision: Rev 0 (R0)
• Associated Manual & Documentation Reference: Technical Manual P/N 9894.00 / System Spec Document 13940.000

Key Features

1. Direct Epsilon High-Frequency Bus Integration: Provides synchronous two-way serial communication and parameter handshake with EMD Epsilon 45 kW to 80 kW / 100 kW high-voltage solid dielectric power modules.
2. Comprehensive Parameter Management: Precise digital execution and real-time visualization of high-voltage settings (40–150 kVp), tube load currents (10–1000 mA), and millisecond-accurate exposure durations.
3. Multi-Channel Workstation & AEC Support: Configurable interfacing for ion chamber AEC pick-ups, solid-state detectors, and multi-field selection (Left, Center, Right).
4. Integrated Safety & Interlock Loop Processing: Real-time continuous sensing for room safety doors, X-ray tube thermal limit switches, dual-stage prep/expose hand switches, and rotor boost detection.
5. Industrial-Grade Microcontroller Architecture: High noise-immunity electronics engineered to operate cleanly within severe electromagnetic fields in compliance with IEC 60601-1-2 standards.

Compatible Equipment Models

• EMD Epsilon RAD Series: EPS 45-R, EPS 50-R, EPS 65-R, EPS 80-R (30 kW to 80 kW high-frequency units).
• EMD Epsilon RF Series: EPS 45-RF through EPS 80-RF Radiographic/Fluoroscopic systems.
• Associated Generator Modules:
  • EMD High Voltage Tank Assembly (Oil-free solid dielectric units)
  • EMD Dual Starter / Rotor Controller Board (Low Speed & High Speed starter circuits)
  • EMD AEC Pick-up Interfaces (Ion chamber preamplifiers)
• OEM System Integration: Used widely by medical systems integrators in stationary hospital X-ray suites, mobile military diagnostic field units, and onboard hospital ships / commercial vessel medical bays.

Part Number Cross-References

• EMD Technologies Primary MPN: 9777.23.R0
• Alternate Engineering Revisions: 9777.23.R1, 9777-23-R0, 977723R0
• Parent System Manual Reference: P/N 9894.00.G6 / 13940.000.G0
• Consoles of the Same Family: Epsilon RAD Console, Epsilon RF Operator Desk Unit

Applications

• Medical Diagnostic Facilities: General radiography suites, emergency trauma X-ray rooms, and orthopedic clinics utilizing EMD Epsilon generators.
• Fluoroscopy & Interventional Suites: RF table control and secondary imaging interface stations.
• Marine & Offshore Health Facilities: Commercial vessels, cruise ships, offshore accommodation platforms, and hospital ships requiring certified high-frequency diagnostic imaging systems.
• OEM Retrofits & Modernization: Field upgrades replacing damaged or legacy operator consoles on existing Epsilon-powered X-ray installations.

Frequently Asked Questions

What generators are directly compatible with the EMD 9777.23.R0 console?

The 9777.23.R0 is specifically designed for the EMD Technologies Epsilon EPS series high-voltage generators, including the EPS 45-R, EPS 50-R, EPS 65-R, EPS 80-R, and their corresponding RF variants.

Does this console supply direct power to the X-ray tube?

No. The operator console is a low-voltage command interface. High-voltage generation and tube filament current are produced inside the solid-dielectric Epsilon high-frequency tank assembly. The console controls exposure timing, kVp, and mA parameters via low-voltage logic and serial data buses.

What causes a communication error warning on the 9777.23 console upon system startup?

A communication fault typically stems from one of three issues: a disrupted or unseated DB-25 harness cable between the console and the main cabinet, a failed +24V/+5V auxiliary power supply output rail on the generator distribution board, or mismatched baud rate jumper configurations on the console rear assembly.

Can this console handle dual-tube configurations?

Yes. When paired with an EMD Epsilon generator equipped with the optional 2-tube high-voltage switching relay, the console manages tube selection parameters (e.g., Tube 1 Table vs. Tube 2 Bucky Stand) seamlessly from the operator interface.

How is the unit packaged to avoid damage during international air delivery?

Every unit is sealed in heavy antistatic (ESD) moisture-barrier bags, nested in high-density custom foam cushioning, and boxed in reinforced multi-wall corrugated containers to withstand vibration and shocks during air transit.
