GE DS38200SRB1C1B EGR Engine Generator Regulator Control Module

General Electric DS38200SRB1C1B Engine Generator Regulator (EGR) Control Module

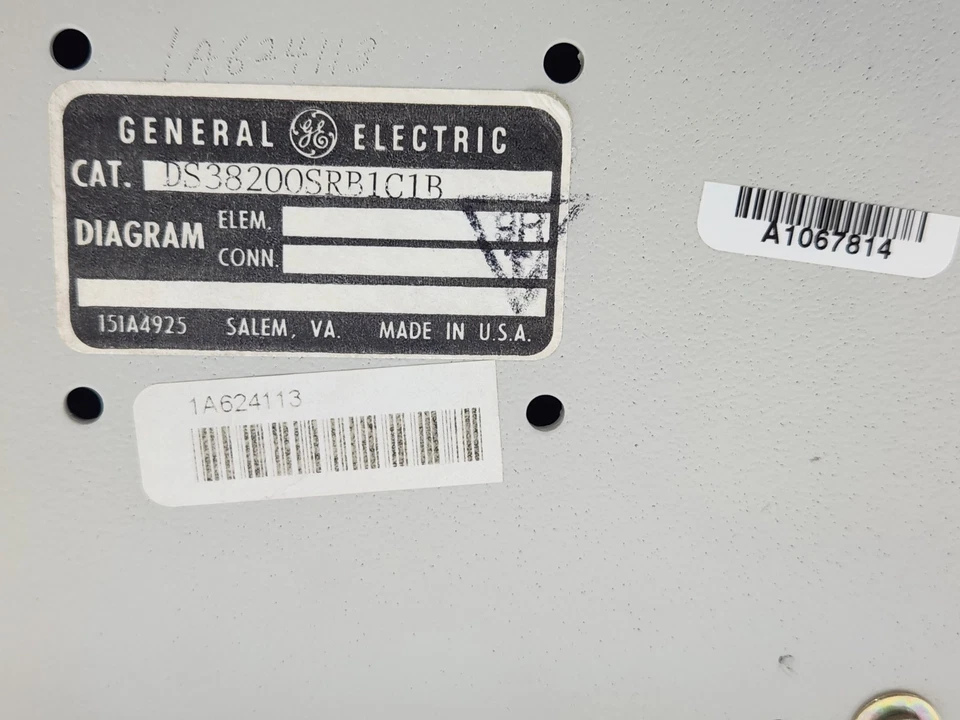

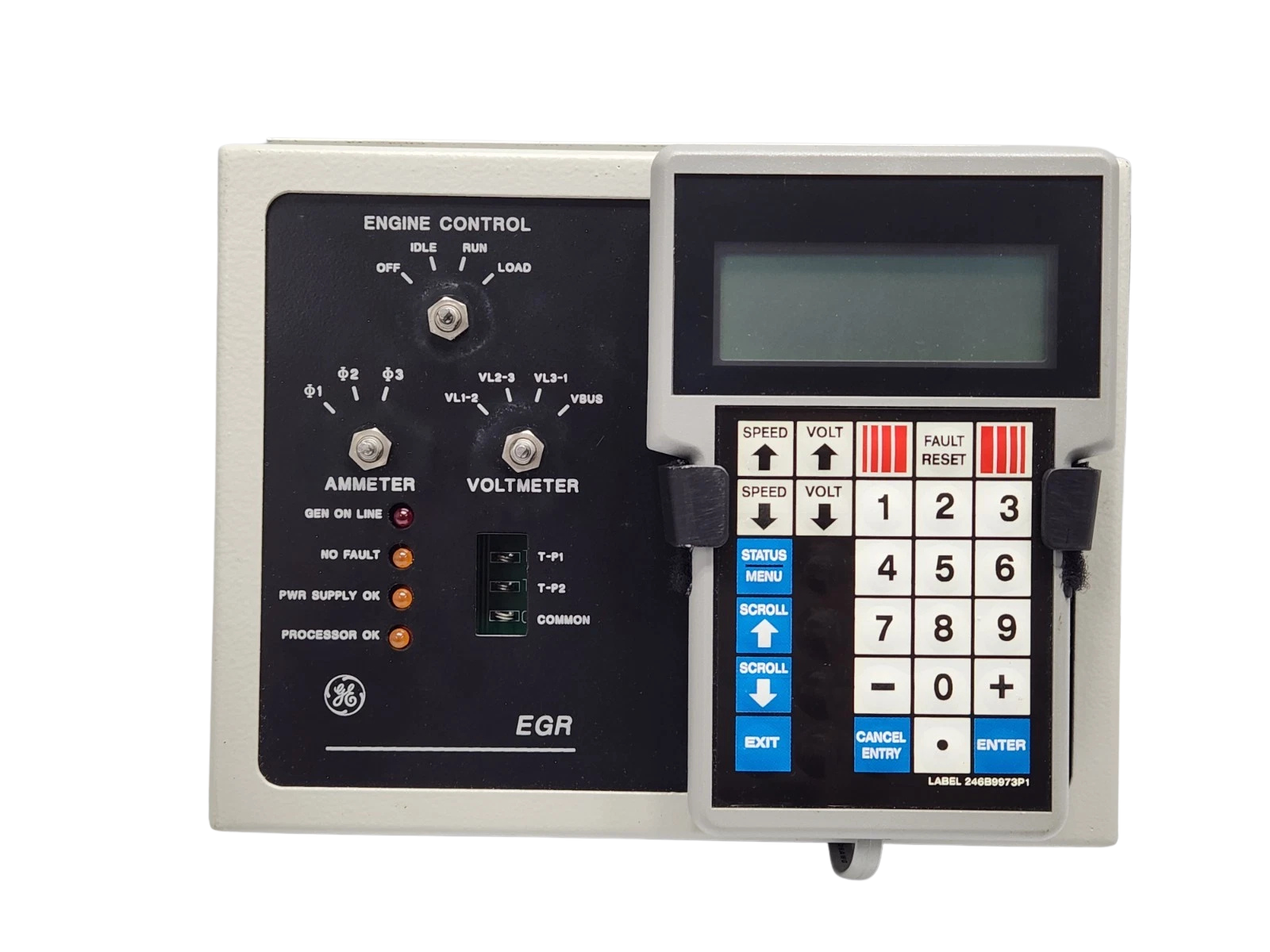

The General Electric DS38200SRB1C1B is a high-reliability Engine Generator Regulator (EGR) control module that is digitally controlled especially for heavy-duty industrial power plants, maritime vessels and offshore oil-drilling platforms. The DS38200SRB1C1B is a precision AC generator current regulator and diesel engine control device, providing steady voltage and excellent speed regulation for dynamic, high-transient load sequences.

This module is a straight upgrade and drop-in replacement for legacy GE GEM generator control systems. It consolidates complex multi-panel wire arrangements into a single integrated digital module. It incorporates a built-in power-up diagnostic self-test, an internal mathematical model of the generator to permit temporary overcurrent situations safely, and high-speed communication interfaces for transparent integration into dispersed control networks.

Technical Specifications: DS38200SRB1C1B

Part Number Cross-References

• DS38200SRB (Base Board Number)
• DS38200SRB1C1B (Exact revision with advanced communication chips)
• DS6820EGRB1A1B (System Kit variant)
• GE GEM Module (Legacy system superseded by this EGR unit)

Compatible Equipment Models

The DS38200SRB1C1B operates seamlessly within the following systems:

• GE Legacy SCR Drive Systems: Micro Drill 1500, Micro Drill 3000, and Generation III 1200A–1800A SCR Bays.
• Prime Movers: Heavy industrial diesel engines (including GE FDL, Evolution Series Marine, and PowerHaul configurations) driving AC synchronous alternators.

Applications

1. Offshore Drilling Platforms: Main engine-generator sets on jack-up rigs, semi-submersibles, and drillships requiring precise kW load sharing and strict fault ride-through capacity.
2. Marine Propulsion & Auxiliaries: Diesel-electric propulsion systems and large auxiliary marine generators subject to rapid load variations and demanding synchronization sequences.
3. Stationary Industrial Power Plants: Critical backup power arrays and island-mode heavy industry generation facilities.

Engineering Insight: Installation & Commissioning

1. Excitation Thermal Management: When wiring the 240V AC input to the internal field exciter bridge, verify the cross-sectional area of your conductor handles the 20A continuous DC load without exceeding a 30°C temperature rise over ambient. Always use high-temperature, oil-resistant marine-grade cabling (e.g., Type P or switchboard wire) when routing through engine room enclosures.
2. Tachometer Loss Calibration: The “Tach Loss Sensing” routine is a critical safety parameter. Ensure that magnetic pickups (MPUs) are clear of debris and gapped strictly between 0.025 inches and 0.035 inches from the flywheel gear teeth. An erratic MPU signal will trigger a false “First Fault” shutdown sequence during the transition from IDLE to RUN mode.
3. Parameter Locking Protocol: Once active kW load sharing and synchronization window parameters are tuned, lock the control registry via the membrane interface. This locks out field adjustments, preventing system divergence or unauthorized modifications that could destabilize parallel bus configurations during sudden marine maneuvers or high-torque drilling sequences.
