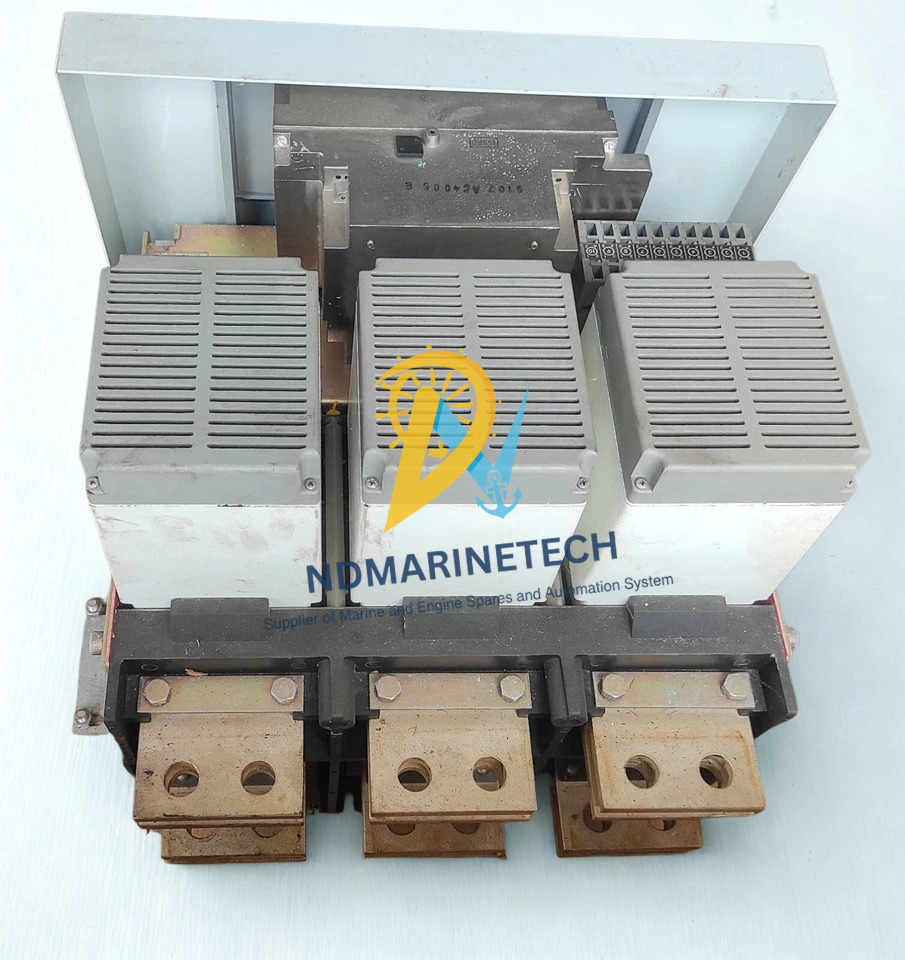

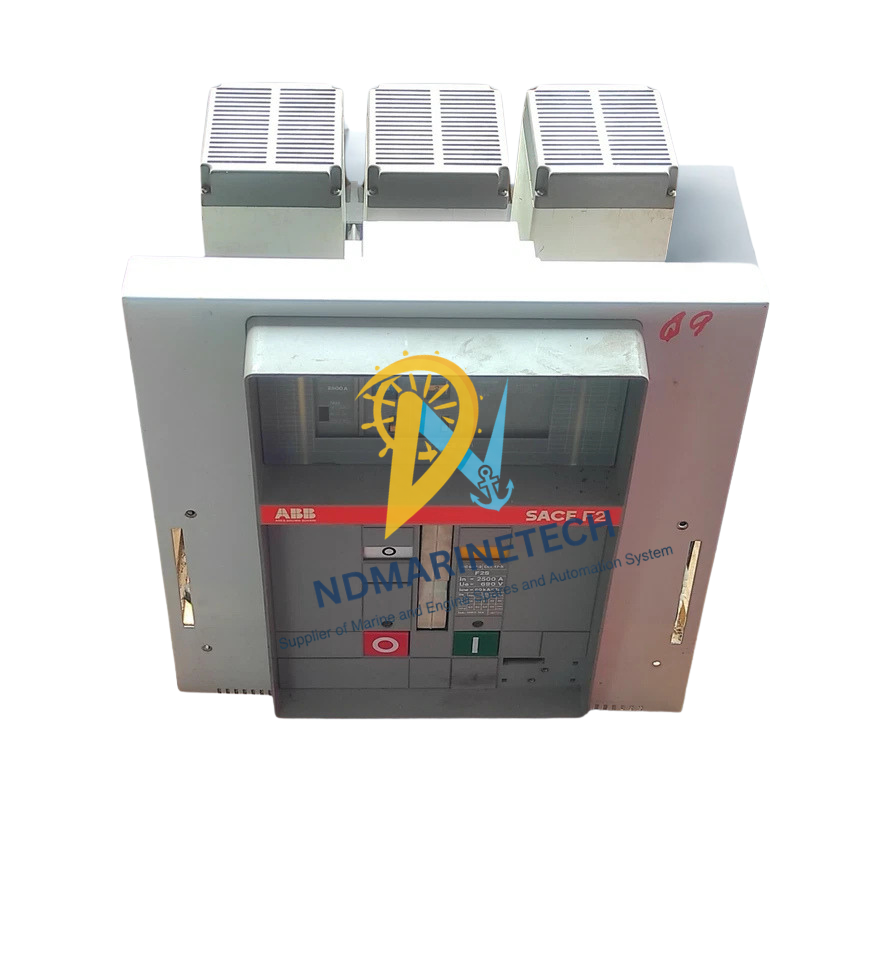

ABB Sace F2 F2S Circuit Breaker 2500A 690V

The ABB Sace F2 F2S Circuit Breaker 2500A (MPN: F2S2500A) is an industrial-grade, heavy-duty low-voltage air circuit breaker, designed for use in high-demand electrical networks. This version of the Megamax series, designed by industry leader ABB, offers excellent protection against overloads and short circuits in main power distribution switchboards.

Model Details

• Brand/Manufacturer: ABB Sace
• Series: Megamax / F2 Series
• Model Configuration: F2S
• Manufacturer Part Number (MPN): F2S2500A / F2S 2500A

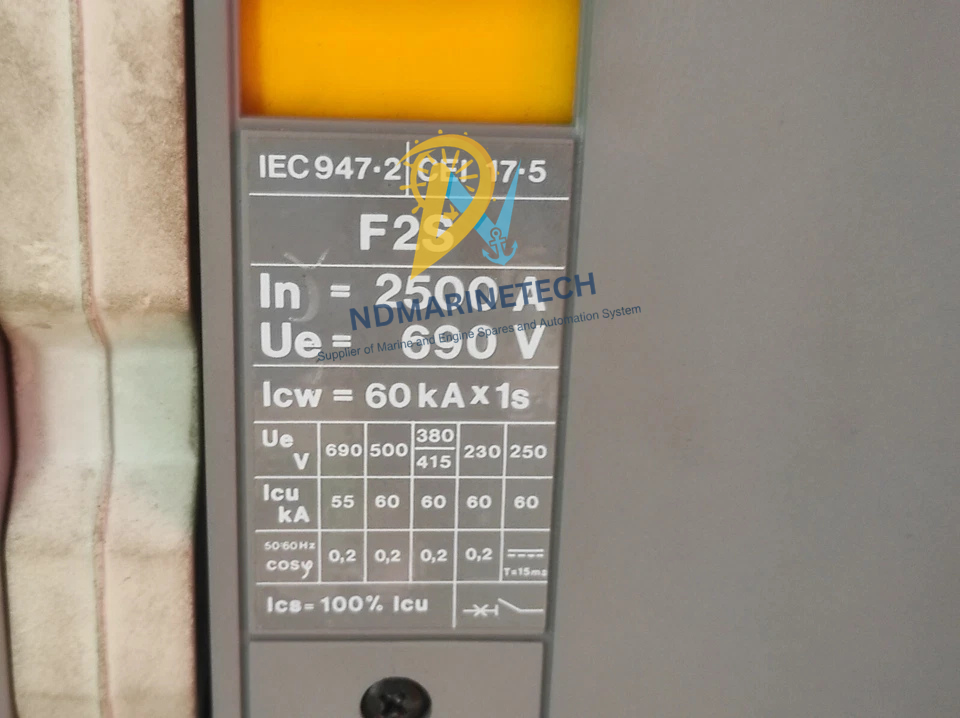

Technical Specs: ABB Sace F2 F2S 2500A

Main Features

1. Dual Contact Architecture: For minimal wear and extended life of the electrical system in high current disconnections, we have separate main and arc-breaking contacts.
2. Better Thermal Dissipation: Engineered with quality internal busbars and connections to securely handle continuous 2500A loads in compact enclosure designs.
3. Customizable Trip Unit: Seamlessly integrates with advanced electronic protection releases for accurate coordination of overcurrent, selective short-circuit, and ground-fault protection.
4. Marine-Grade Durability : Built to withstand persistent vibration, high ambient temperatures and humid situations, a key component of offshore applications.

Where to Use?

• Marine Vessel primary Switchboards: Protects primary generator outputs and distribution lines on cargo ships, tankers and offshore installations.
• Industrial Manufacturing Plants: Used as an incoming or vital feeder breaker in large capacity manufacturing plant power distribution centers.
• Power Generation Facilities: Controls and isolates high current circuits coupled to low voltage alternators and transformers.
• Heavy Infrastructure & Mining: Reliable fault interruption for vital infrastructure, huge motors and processing plants.

Compatibility

• Series Compatibility: Compatible with ABB Sace Megamax F2 series accessories, draw-out cradles, shutter mechanisms, and terminal extensions.
• Part Number Cross-References: ABB F2S2500A, Sace Megamax F2S 2500, UXAB269499051 (Related Arc Chamber Spares), RAMA423895.

Maintenance Guide from NDMarineTech:

1. Arc Chute Inspection: During annual black-out testing always draw the arc chutes. Check for carbon tracking or structural cracks. If the breaker tripped on a high load short circuit, replace the arc chamber sets promptly to ensure proper arc extinction in the future.
2. Note: Greasing Lubrication Only use the manufacturers prescribed lubricant (e.g. 5RX Moly Grease) on the mechanical functioning linkages. Do not use generic penetrating oils on the spring-charging mechanism as these will wash away the original grease and attract ambient dust, causing mechanical blockages.
3. Secondary Injection Testing: Always perform a secondary injection test on the integrated electronic release for reconditioned or surplus stock being put back into active service. This ensures that the time-delay characteristics are consistent with the selective coordination study for your vessel prior to tying it to the main bus.
