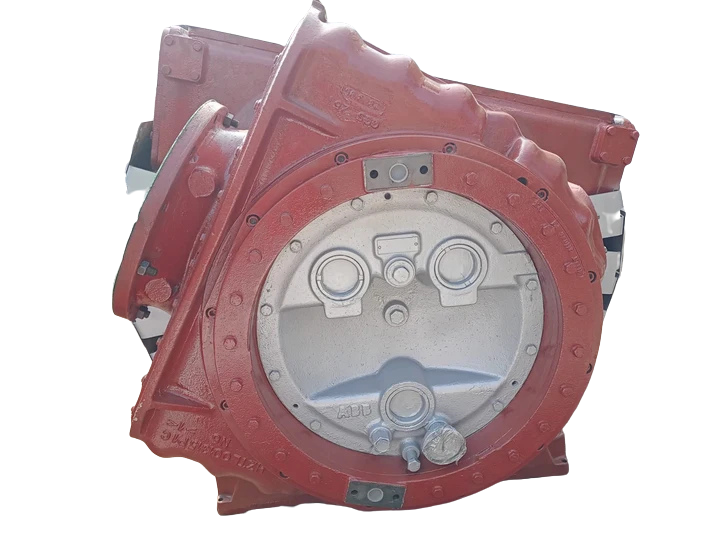

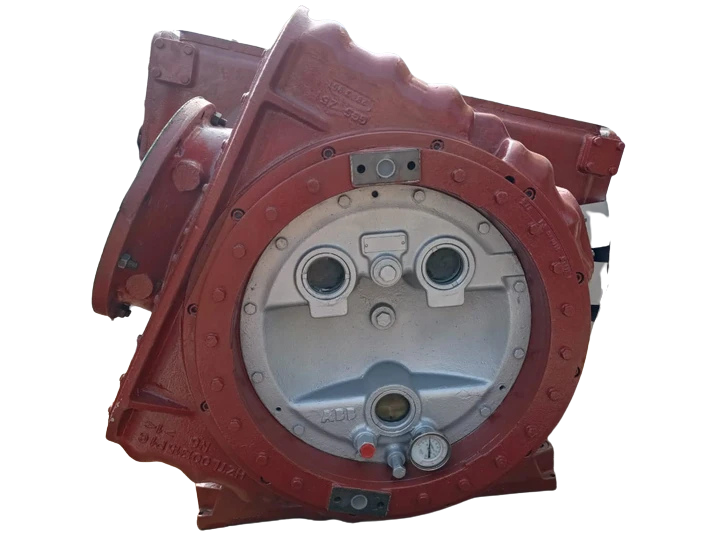

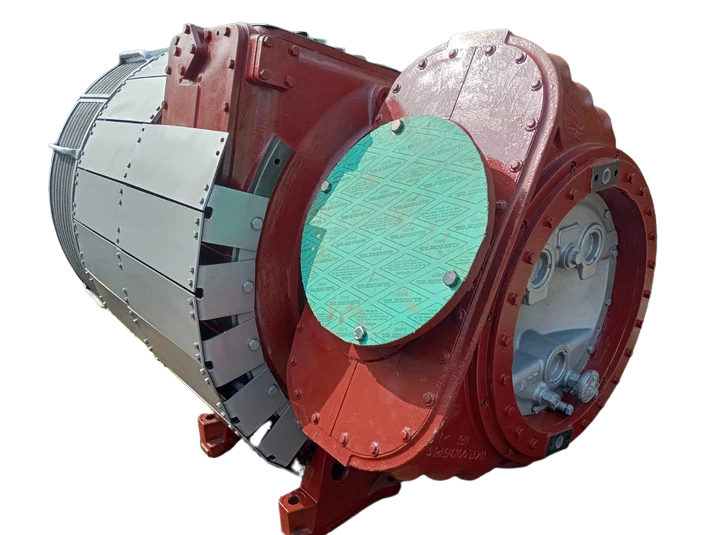

ABB VTR 454 P 32 Exhaust Gas Turbocharger

ABB VTR 454 P 32 Exhaust Gas Turbocharger | Marine Spares

The ABB VTR 454 P 32 is a heavy duty exhaust gas turbocharger with excellent efficiency for marine diesel engines and stationary power plants with medium to high output. It is of ABB VTR-P series and is known for its pulse system charging technique that optimizes scavenging, improves fuel efficiency and gives high pressure ratios. It is an essential asset for continuous heavy marine propulsion operations and is built to withstand high temperature and mechanical strains.

Model Details

• Manufacturer: ABB Turbo Systems Ltd.
• Series: VTR-P Series (Pulse System)
• Model Type: VTR 454 P 32
• Manufacturer Part Number (MPN): VTR454-32-P

Key Features

1. Robust Pulse-System Design: Engineered to capture maximum exhaust gas energy pulses, significantly improving low-end engine torque and transient response.
2. Independent Lube Oil System: Features an integrated self-contained lubricating oil circuit, avoiding contamination risks from the main engine oil system.
3. Optimized Aerodynamics: Advanced compressor wheel and turbine blade geometries ensure high adiabatic efficiency across wide operational ranges.
4. Service-Friendly Architecture: Modular build allows individual components—such as the rotor shaft, nozzle ring, and bearing assemblies—to be overhauled without dismantling the entire exhaust gas ducting.
5. Heavy-Duty Thermal Resistance: High-grade cast iron and nimonic alloys built to withstand extreme exhaust gas corrosion and thermal fatigue.

Applications

• Marine propulsion main engines (Two-stroke and Four-stroke diesel engines)
• Auxiliary marine diesel generator sets (Aux-gensets)
• Heavy fuel oil (HFO) and marine gas oil (MGO) fired power generation plants
• Industrial diesel and heavy gas engine installations

Compatibility

• Compatible Engine Builders: MAN B&W, Sulzer, Wärtsilä, Daihatsu, Yanmar (Medium speed variants)
• Matched Engine Examples: B&W 5S50MC, Sulzer 6RTA52 series configurations.
• Interchangeable Part References: VTR 454-11, VTR 454-31, VTR 454 D-32

Part Number Cross-References

• ABB Ident No: 70454 / VTR454-32
• Rotor Assembly Part Ref: VTR454-ROT
• Nozzle Ring Part Ref: VTR454-NR

Expert Engineer’s Guide:

• Marine Engineer’s Operational Tip: On the VTR 454 P series, keeping a close eye on the lube oil temperature differential across the cooler and maintaining the purity of the self-contained oil bath is critical. Because these units run at high speeds (up to 294 RPS), even minor micro-contaminations in the lubricating oil can lead to premature journal and thrust bearing wear.
• Overhaul Pro-Tip: During routine scavenging air cooler cleanings, always inspect the compressor diffuser and impeller blades for salt-deposit scaling or fouling. Periodic washing using approved liquid cleaners while operating at part-load helps preserve the design surge margin and prevents efficiency drop-offs. Ensure dynamic balance certification is verified whenever rotor components are replaced.

Frequently Asked Questions

What engines are compatible with the ABB VTR 454 P 32 turbocharger?

The VTR 454 P 32 is primarily matched with medium-speed marine diesel engines and specific two-stroke auxiliary configurations, including select MAN B&W and Sulzer engine models ranging up to 6,000 kW output classes.

Does the unit come with a dynamic balancing report?

Yes. All reconditioned and surplus turbochargers undergo stringent quality checks, including high-speed dynamic rotor balancing. Complete NDT and balancing test reports are provided prior to dispatch.

Is the lubrication system on the VTR 454 P 32 self-contained?

Yes, this model features an independent, self-contained lubricating oil system driven by an integrated gear pump mounted directly on the turbocharger shaft assembly.

What is the difference between VTR 454-11, VTR 454-31, and VTR 454-32?

These designations represent design generations and specification revisions detailing changes in pressure ratios, turbine nozzle configurations, and casing metallurgy intended to match specific engine builder tuning curves
