Caterpillar NA 297 Turbocharger 284-8281

Caterpillar NA 297 Turbocharger – Part No.: 284-8281

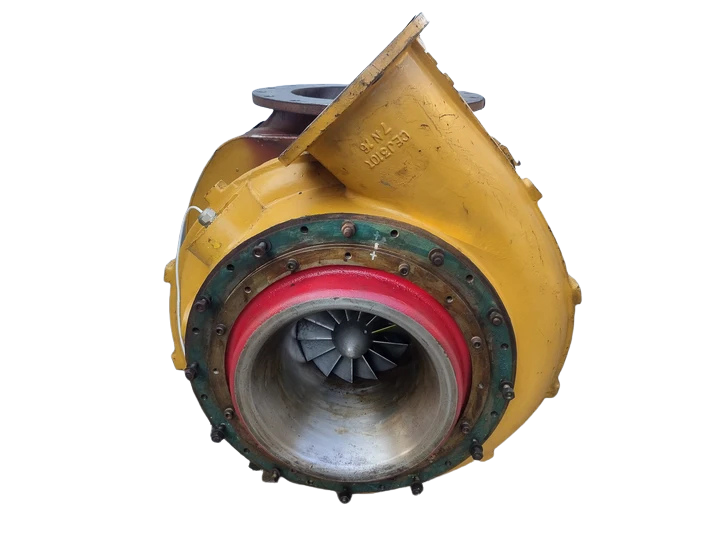

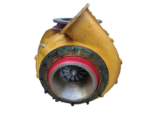

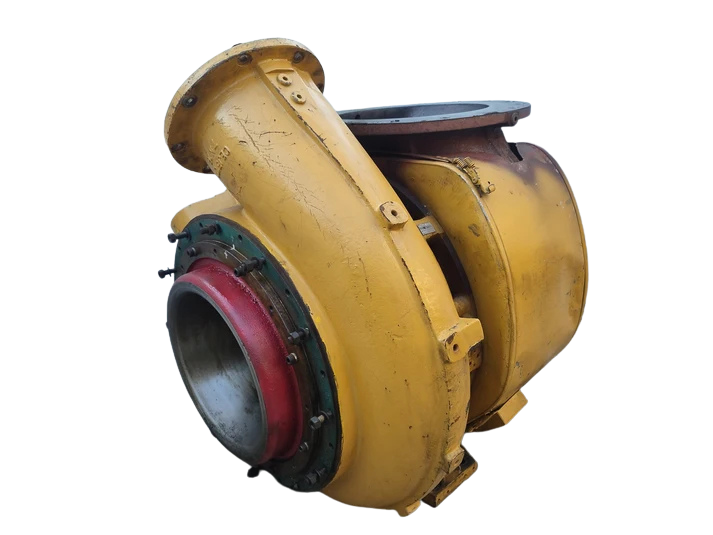

The Caterpillar NA 297 Turbocharger (MPN: 284-8281) is an engineering forced-induction assembly specifically built for large-displacement, medium-speed marine and industrial diesel engines, such as Caterpillar 3608, 3616 and C280 series. It serves as a high-efficiency compressor assembly and improves volumetric efficiency by injecting high-density mass air into the combustion chambers, leading to complete fuel oxidation, maximum power production, and adherence to specified fuel oil consumption (SFOC). This turbocharger unit is constructed around stress resistant aluminum compressor impellers and sturdy ductile iron turbine casings to sustain continuous high exhaust thermal loads and extraordinary rotational speeds experienced in continuous duty maritime propulsion and auxiliary power production.

Model Details

• Manufacturer: Caterpillar Inc. / Napier Turbocharger Design Integration
• Series Type: NA 297 Series (7-Series Architecture)

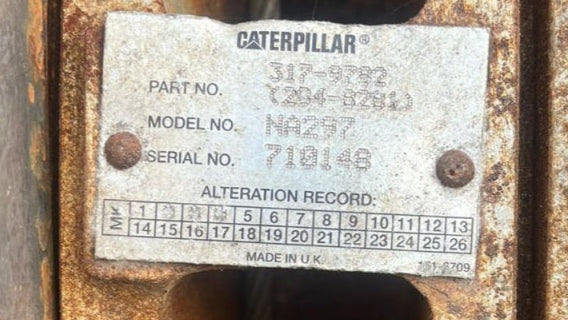

• MPN / Part Number: 284-8281 (Turbo Group – Base)
• Application Environment: Marine Propulsion, Offshore Drilling, and Land-Based Power Generation

Compatibility

• Marine Engines: Caterpillar C280-8, Caterpillar C280-16
• Generator Set (Gen Set) Engines: Caterpillar 3608, Caterpillar 3616 (Rated up to 2725 kW @ 900 RPM configurations)

Part Number Cross-References

• Cat Base Part Number: 2848281
• Alternative Industry References: Napier NA297 Series Turbocharger Group, 7-Series Blower Assembly.

Key Features

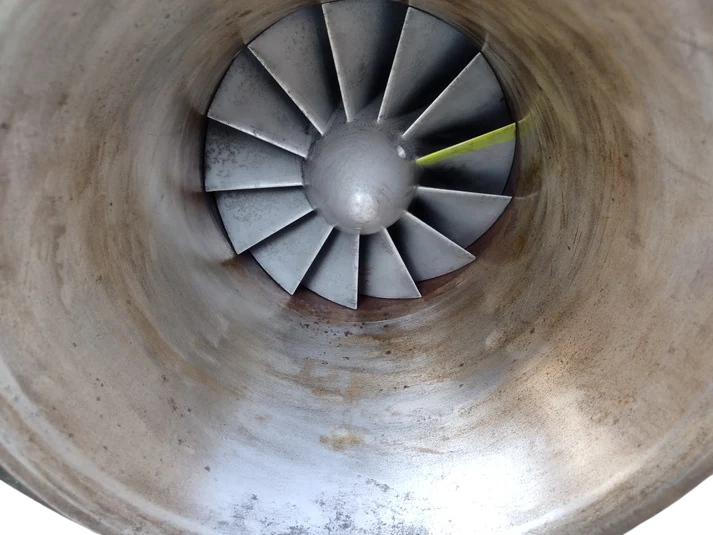

1. Engineered with a high-strength, stress-resistant aluminum compressor wheel providing optimized airflow without sacrificing aerodynamic efficiency.
2. Heavy-duty ductile iron casings designed to handle extreme exhaust gas temperatures and minimize thermal fatigue cracking.
3. Advanced bearing assembly configurations designed to extend service interval timing and reduce operational downtime.
4. Improves engine altitude compensation, turndown capabilities, and overall transient response under heavy marine block loads.
5. Fully compatible with factory-specified lubrication and cooling channels, ensuring seamless drop-in replacement on target 3600-series blocks.

Applications

• Main marine propulsion systems for container vessels, bulk carriers, and tankers.
• Auxiliary marine power plants and shipboard emergency generating sets.
• Continuous base-load land-based oil and gas field power generation setups.

Engineer Expert’s Guide

Lube Oil Purity Check: Prior to mounting this 900kg assembly, always flush the turbocharger oil supply lines and inspect the pre-lube pump functionality. Bearing failure on high-inertia units like the NA 297 typically stems from micro-contaminants or delayed oil pressure build-up during initial cold startup.

Thermal Insulation Blanket Alignment: Ensure the exhaust casing is correctly fitted with certified high-temperature insulation jackets. Uneven cooling across the ductile iron volute due to missing or damaged blankets can lead to thermal distortion and running clearance degradation.

Rotational Clearance Auditing: Always record axial and radial rotor shaft clearances with a dial indicator during installation, comparing baseline metrics against the maintenance manual tolerances to guarantee optimal dynamic performance.

Frequently Asked Questions

What engines are compatible with the Caterpillar 284-8281 turbocharger?

The 284-8281 turbocharger is specifically engineered for Caterpillar 3608 and 3616 generator set engines, as well as C280-8 and C280-16 marine propulsion diesel engines.

What is the total weight and dimensions of the NA 297 turbo unit?

The unit weighs approximately 901.76 kg (1988 lbs) with approximate physical dimensions of 47.5 inches length, 41.5 inches width, and 39 inches height.

Can this turbocharger handle high-altitude or extreme ambient marine conditions?

Yes, the NA 297 architecture is designed to maximize altitude and turndown capabilities, ensuring steady manifold air density even under severe ambient temperature variations at sea.
