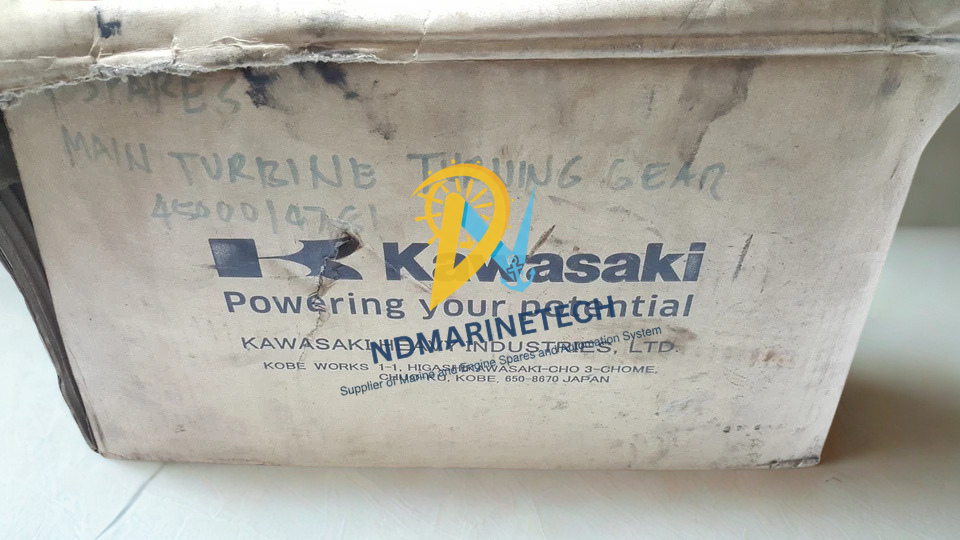

Kawasaki 31V9258 Main Turbine Turning Gear Spare

KAWASAKI 31V9258 Main Turbine Turning Gear Spare

The 31V9258 Kawasaki is an OEM quality replacement assembly to work with Kawasaki heavy marine steam turbines. The system is driven by a heavy duty electric motor through a reduction gear train and an automatic or manual engagement device to turn the main shaft slowly and continuously (normally 0.1 to 1.5 RPM). This ensures homogeneous heat dissipation throughout the whole rotor mass.

This genuine KAWASAKI 31V9258 main turbine turning gear spare meets high criteria set by marine classification societies to provide proper gear engagement and sufficient torque delivery to overcome static friction on large propulsion plants.

Model Details

• Brand: Kawasaki Heavy Industries (KHI)
• Model / Part Number: 31V9258
• Product Category: Marine Steam Turbine Propulsion Spares / Auxiliary Machinery
• MPN: 31V9258-KHI-TG
• System Component: Main Propulsion Barring Gear Assembly

Applications

1. LNG Carriers: Steam-turbine propelled Liquefied Natural Gas vessels that use boil-off gas (BOG) systems.
2. Large Oil Tankers (VLCCs): Traditional and specialised steam-powered Very Large Crude Carriers.
3. Industrial Marine Power Plants: Auxiliary steam turbine generators that operate on heavy marine infrastructure.
4. Naval Auxiliaries: Powerful steam turbine propulsion plants that necessitate powerful barring systems.

Key Features: Kawasaki 31V9258

1. Precision Ground Anti Backlash Toothing: Unique tooth profiles give high static breakaway torque without localised pitting or premature mechanical fatigue.
2. Thermal Shock Resistance: Constructed of high quality alloy steel, specially case hardened for durability in severe engine room thermal cycling.
3. Seamless Clutch Engagement Alignment Uses accurate geometric tolerances to provide clean, seamless meshing and unmeshing with the primary reduction gear train to prevent gear conflict.
4. Optimised Hydrodynamic Oil Channels Integrated micro surface channels provide instant boundary lubrication when the rotating gear motor is energised, hence reducing metal-to-metal wear.
5. OEM Direct-Fit Interchangeability: Manufactured straight from original KHI designs, no field machining, shim modification or back-lash adjustments required for emergency overhauls.

Engineer’s Insights:

The Golden Rule of Barring Gears: Never, under any circumstances, admit steam to the main turbine while this gear is engaged. Even though electrical interlocks are designed to trip the motor, a mechanical jam can rip the turning gear casing clean off its mountings. Always visually confirm the physical locking pin or lever is retracted.
