Cummins PCC3300MLD Control Assy PCB A051L546

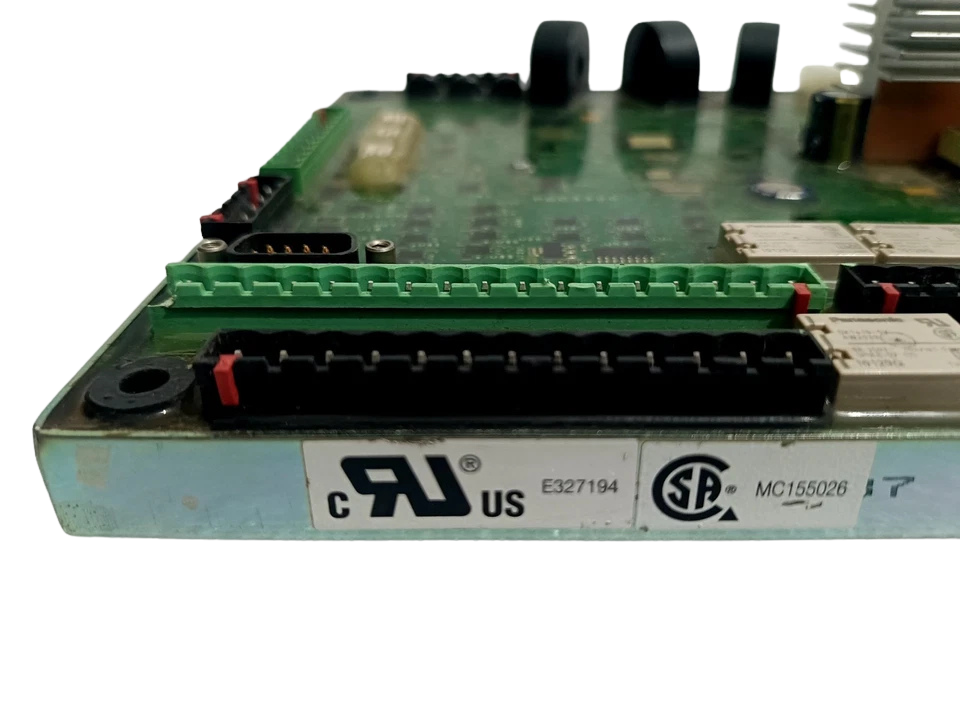

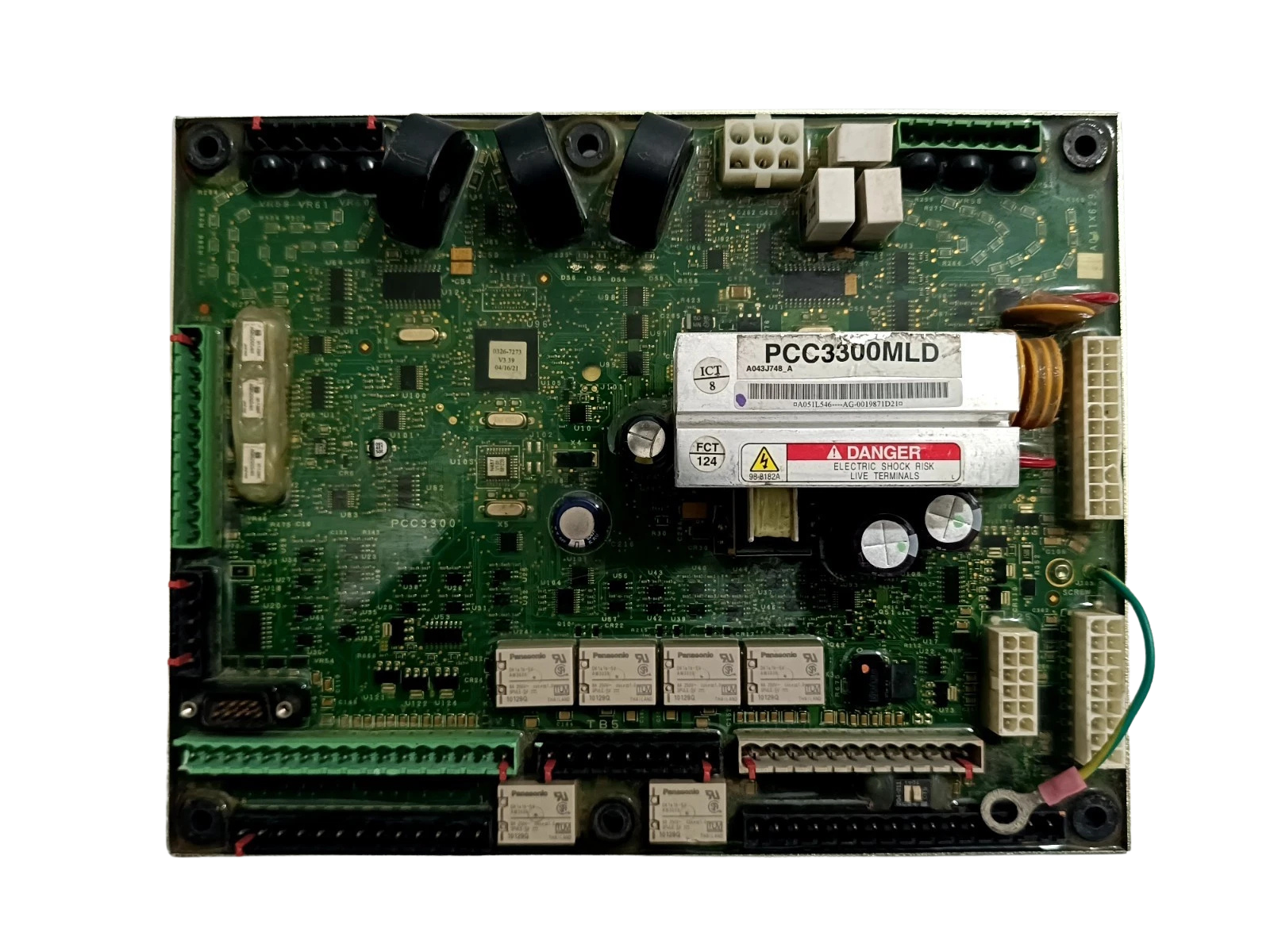

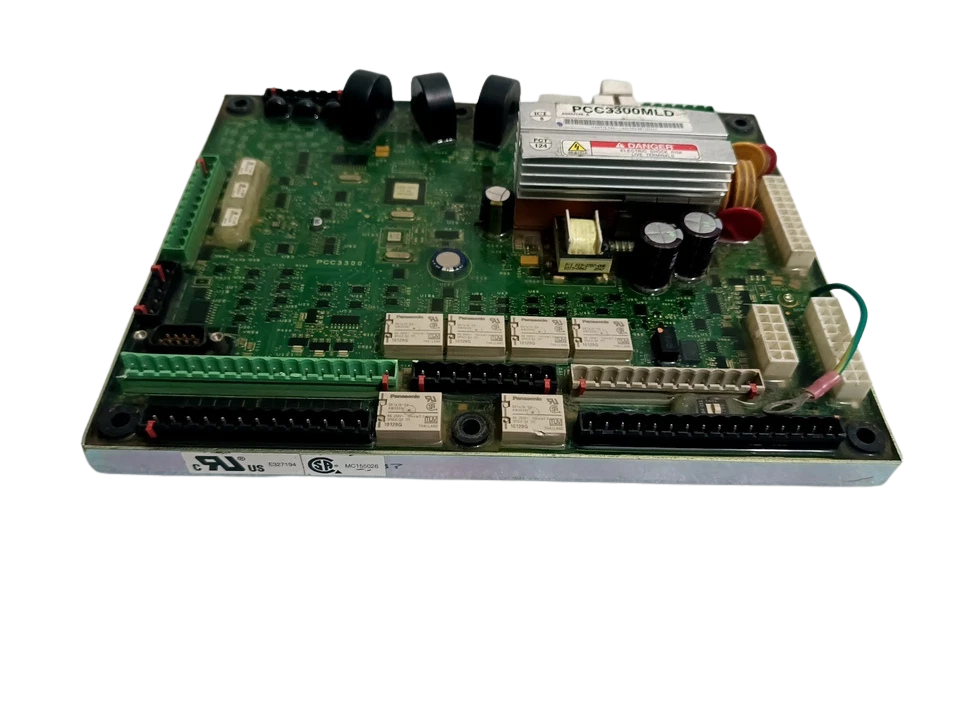

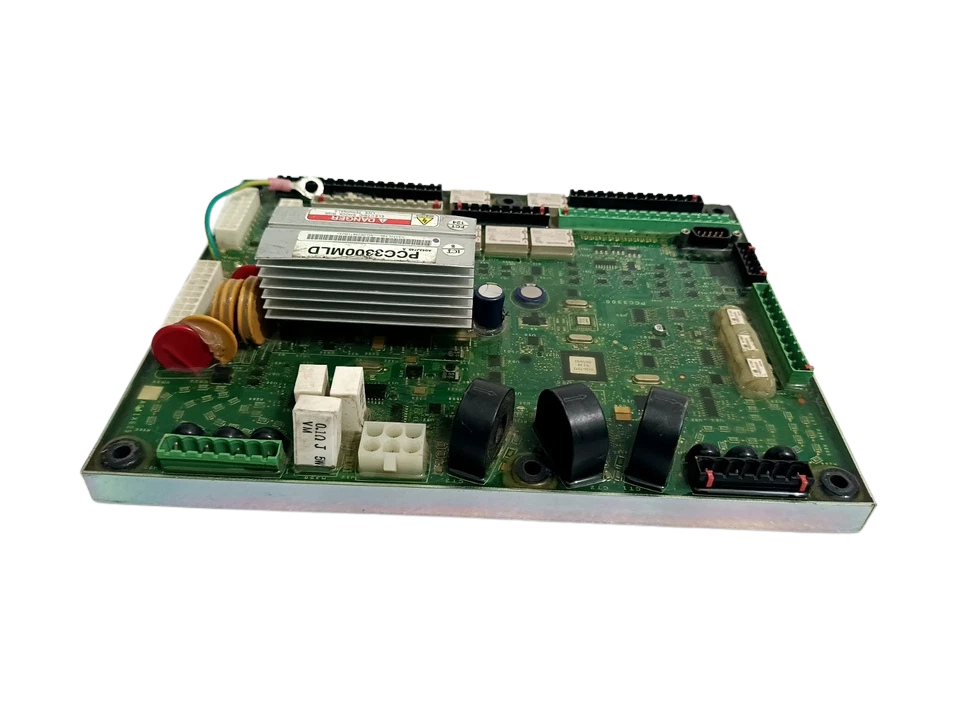

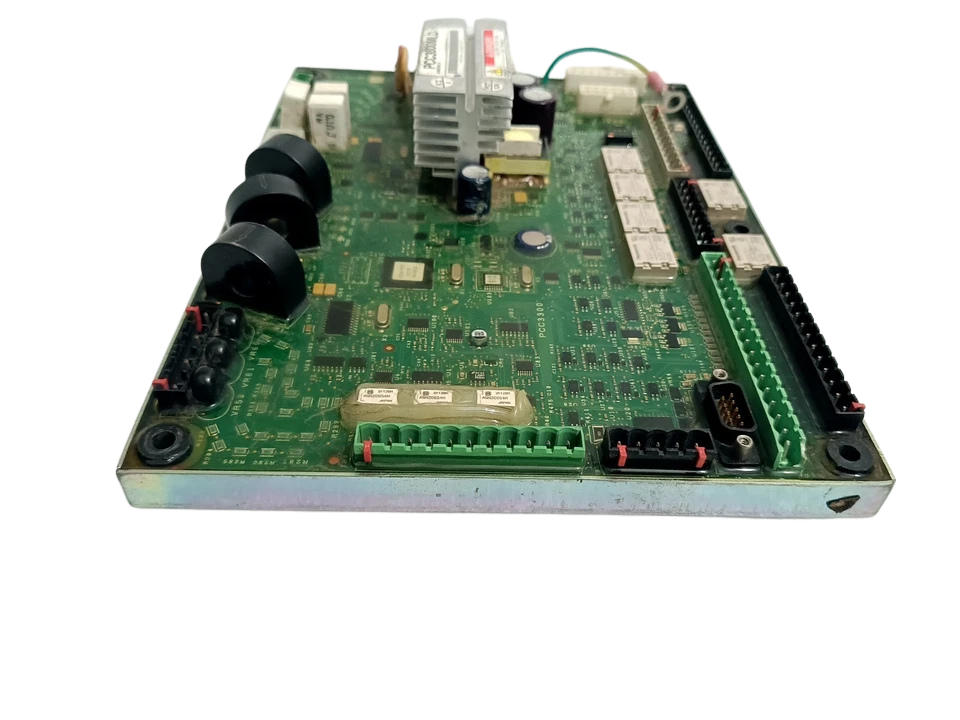

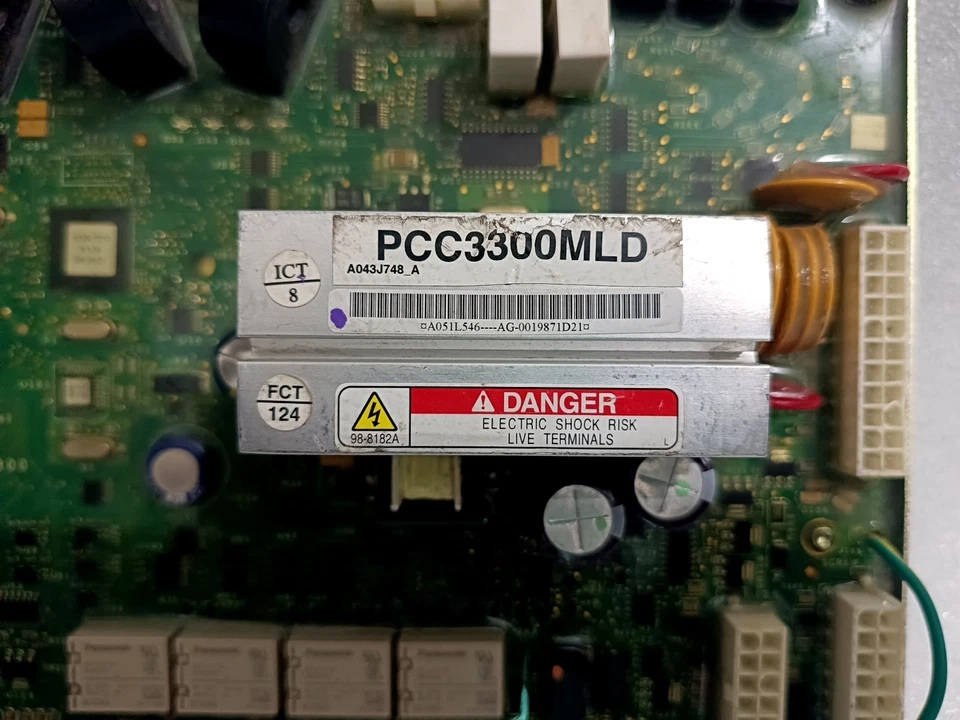

CUMMINS PCC3300MLD CONTROL ASSY PCB P/N: A051L546

Engineered specifically for mission-critical marine and heavy industrial power generation applications, the Cummins PCC3300MLD Control Assembly PCB (P/N: A051L546) serves as the core processing intelligence for PowerCommand 3.3 architecture. As a veteran marine engineer, I can attest that this microprocessor-based controller manages critical engine governing, precise alternator voltage regulation, comprehensive paralleling, and extensive fault-logging functions. Built to endure harsh engine-room environments characterized by constant vibrations, salt-mist exposure, and thermal cycling, this printed circuit board guarantees deterministic control, protecting prime mover and alternator assets against catastrophic failure.

Model Details

• Manufacturer: Cummins
• Product Series: PowerCommand 3.3 / PCC3300 MLD
• Component Type: Central Processing & Control Assembly PCB
• Manufacturer Part Number (MPN): A051L546
• Alternative / Superseded Part Numbers: A041W736, A041X629

Terminal Allocations & Pinout Architecture

• TB1 (Power Supply): Pins 1 (+BAT), 2 (-BAT), 3 (Emergency Stop Return).
• TB2 (Governing & Actuator Interface): Analog speed trim output (±10V / 0-20mA) and magnetic pickup (MPU) speed sensing inputs.
• TB3 (Voltage Regulation & PT Inputs): Phase A, B, C potential transformer inputs and exciter field PWM drive connections.
• TB4 (Communication & Networking): RS-485 Modbus serial links for PLC and vessel management system (VMS) integration.

Key Features

1. Advanced engine monitoring providing real-time diagnostics, pre-alarms, and shutdowns for low oil pressure, high coolant temperature, and overspeed.
2. Integrated AmpSentry™ protection safeguards the alternator against thermal damage under all fault conditions.
3. Built-in digital governing and voltage regulation eliminating the need for standalone external hardware modules.
4. Comprehensive data logging storing up to 250 historical engine events with exact time and date stamps.
5. Seamless multi-generator paralleling capability with load sharing and dead-bus arbitration routines.

Applications

• Marine auxiliary and emergency diesel generator sets aboard commercial and offshore vessels.
• Land-based prime power and continuous industrial Cummins generator packages.
• Critical standby power plants for data centers, hospitals, and municipal infrastructure.
• Containerized mobile power generation units operating in hostile environments.

Compatible Equipment Models

• Engine Platforms: Cummins KTA19, QSK19, VTA28, QST30, and QSK50 series engines.
• Alternator Models: Stamford / Cummins Generator Technologies UCI and HC series alternators equipped with digital excitation systems.
• Controller Assemblies: PowerCommand 3.3 / PCC3300 MLD control panel integrations.

Part Number Cross-References

• Cummins OEM P/N: A051L546
• Factory Alternate P/N: A041W736
• Legacy Production P/N: A041X629

Frequently Asked Questions

Can I install part number A051L546 as a direct drop-in replacement for older revisions like A041X629?

Yes, A051L546 is fully upward compatible with older hardware revisions under the PCC3300 MLD architecture. However, always verify that your control panel’s software version aligns with the processor firmware requirements.

Does this circuit board require calibration after installation?

No manual potentiometer adjustments are needed. All calibration parameters, including voltage matching and speed bias, are handled digitally via the service tool interface or front-panel display keypad.

What causes sudden loss of communication on the PCC3300 control loop?

Communication loss is typically driven by loose RS-485 termination resistors, improper shielding grounding at one end only, or high electrical noise interference from nearby ignition harnesses or unsuppressed inductive solenoids.
