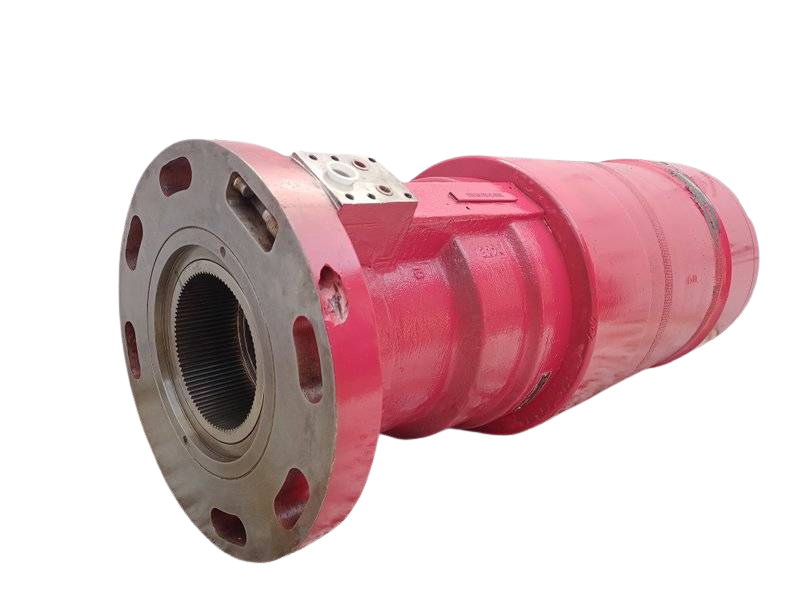

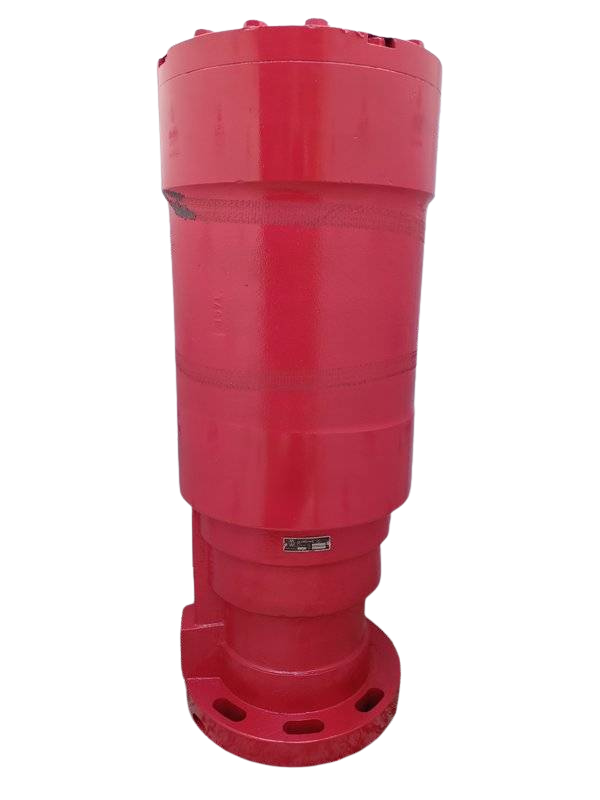

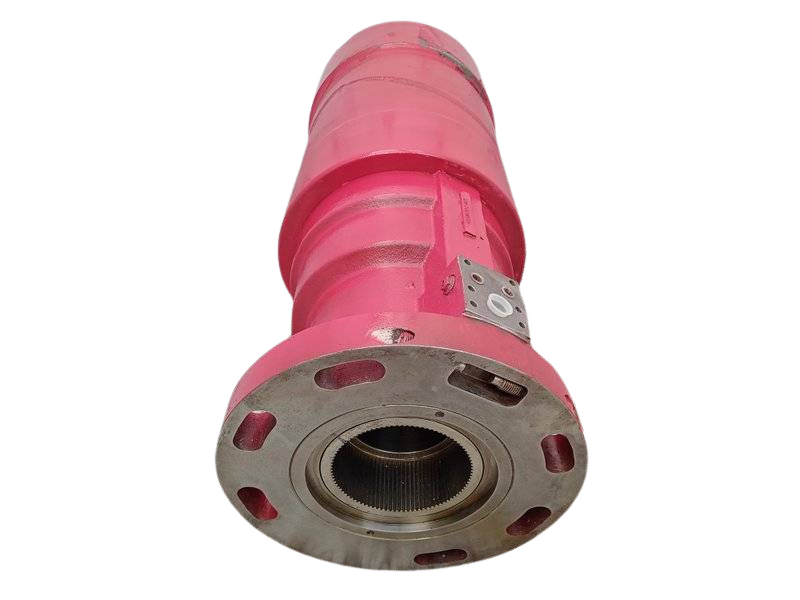

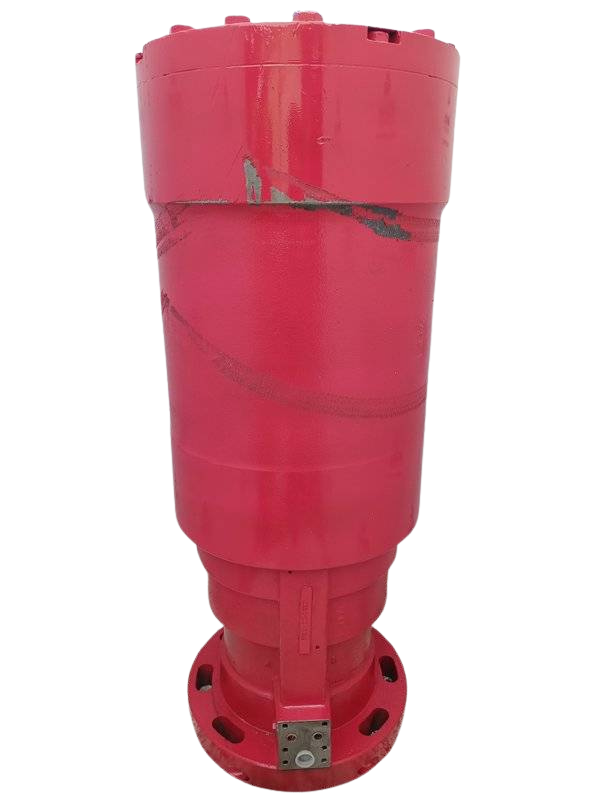

Damcos BRCF 16000-B1 Hydraulic Single-Acting Rotary Actuator

Damcos BRCF 16000-B1 Hydraulic Single-Acting Spring Return Rotary Actuator

The Damcos BRCF 16000-B1 is a single-acting, spring-return balanced rotary hydraulic actuator engineered for 90° (quarter-turn) valve automation. Designed specifically for arduous marine and offshore duties, the BRCF 16000 operates on a balanced helical-spline principle. By distributing mechanical forces symmetrically, it eliminates side loads and bending moments across the valve spindle—substantially extending valve seat and packing life.

This actuator is configured as fail-safe spring return (hydraulic pressure opens the valve; mechanical springs close the valve upon hydraulic pressure discharge or system failure). Every tested unit undergoes bench hydrostatic shell and seal integrity verification up to working test pressures, guaranteeing dynamic sealing integrity under continuous cyclic pressure and extreme vibration environments.

Model Details

• Manufacturer: Damcos
• Series: BRCF (Balanced Rotary Compact Fail-Safe)
• Size / Model: 16000-B1
• Actuation Type: Single-Acting / Spring-Return (Fail-Close standard; reversible fail-action upon assembly)
• Manufacturer Part Numbers (MPN): 160N4184 / 160N5003

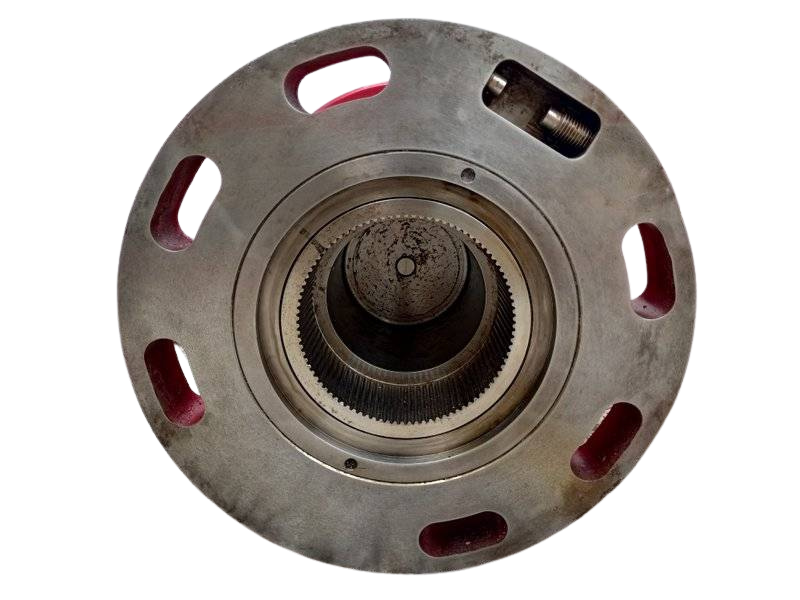

• Intermediate Flange / Shaft Standard: DIN 6885 (Keyed) / DIN 79 (Square/Splined options)

Part Number Cross-References

• Damcos Standard Assembly P/N: 160N4184
• Alternate / Variant Code: 160N5003
• Drawing / Specification Sheet Reference: SD 0308-2E05
• Legacy Equivalents: Danfoss Marine Systems BRCF 16000-B1

Key Features

1. Balanced Helical Spline Design: Dual-opposed pistons transform linear displacement into 90° rotational torque without imparting radial side thrust to the valve stem.

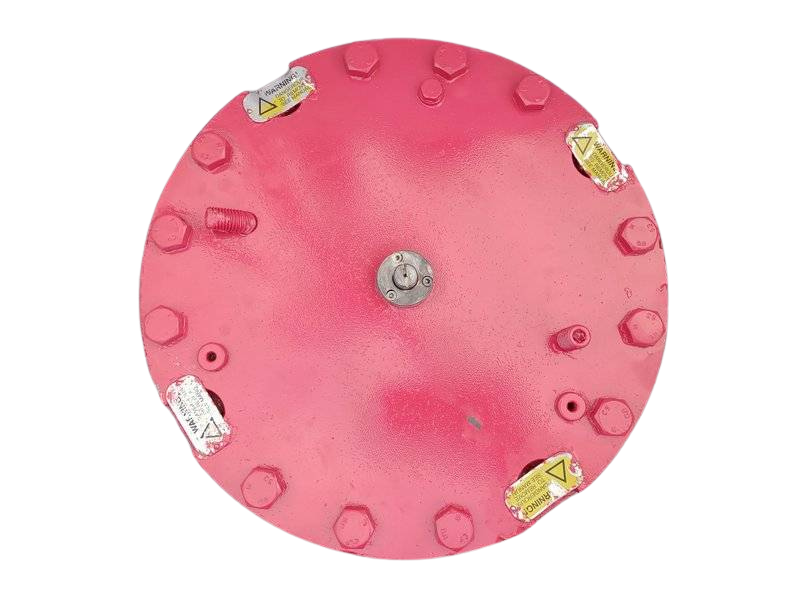

2. True Mechanical Fail-Safe: Heavy-duty internal spring packs ensure emergency closure on hydraulic power failure.
3. Built-in End-Stop Adjustment: Integral adjustment screw (tightening torque: 50nm) enables precise ±5° on-site alignment for tight disc-to-seat shutoff.
4. Extreme Marine Durability: Cast ductile iron housing (GGG 40) coated with two-pack epoxy/alkyd marine paint, resistant to continuous immersion and corrosive sea atmospheres.

Applications

• Ballast Water Management Systems (BWMS): Heavy-duty ballast suction, overboard discharge, and cross-over isolation valves.
• Cargo Handling & Tankers: Crude oil washing (COW), cargo tank manifold valves, and slop handling systems.
• Bilge & Fire Fighting Mains: Emergency quick-closing seawater suction and emergency bilge isolation.
• Offshore Floating Production (FPSO / FLNG): Turret manifolds, pontoon ballast cells, and topside process utility lines.
• Dry Docks & Marine Infrastructure: Caisson dewatering, sluice gate controls, and remote manifold loops.

Frequently Asked Questions

What does “BRCF” designate compared to “BRC” in Damcos actuators?

“BRC” represents Damcos’ standard double-acting balanced rotary actuator, requiring hydraulic pressure to both open and close the valve. “BRCF” designates a single-acting actuator fitted with internal heavy-duty spring packs that automatically drive the valve into a safe position (normally fail-closed) when hydraulic pressure is dropped or lost.

Can the fail-safe action be changed from fail-closed to fail-open?

Yes. The BRCF 16000 can be assembled in either fail-to-close or fail-o-open orientation by inverting the actuator unit 180° relative to the mounting bracket or re-indexing the internal helical spline spindle assembly relative to the valve shaft adapter prior to shipboard installation.

What hydraulic oil viscosity should be used with the BRCF 16000?

The manufacturer specifies acid-free, anti-wear mineral hydraulic oils within a viscosity range of 15 to 200 cSt (ISO VG 32, VG 46, or VG 68 are the most common marine choices, depending on engine room or exposed weather deck ambient temperatures).

How do I verify if the internal seals require replacement?

Perform an internal leakage check by dead-heading port B with 135 bar working pressure. Measure fluid bypass at the drain/return port over a 5-minute interval. Any steady volumetric leakage past the balanced piston seals exceeding classification thresholds indicates worn NBR/Viton seal sets that require replacement.
