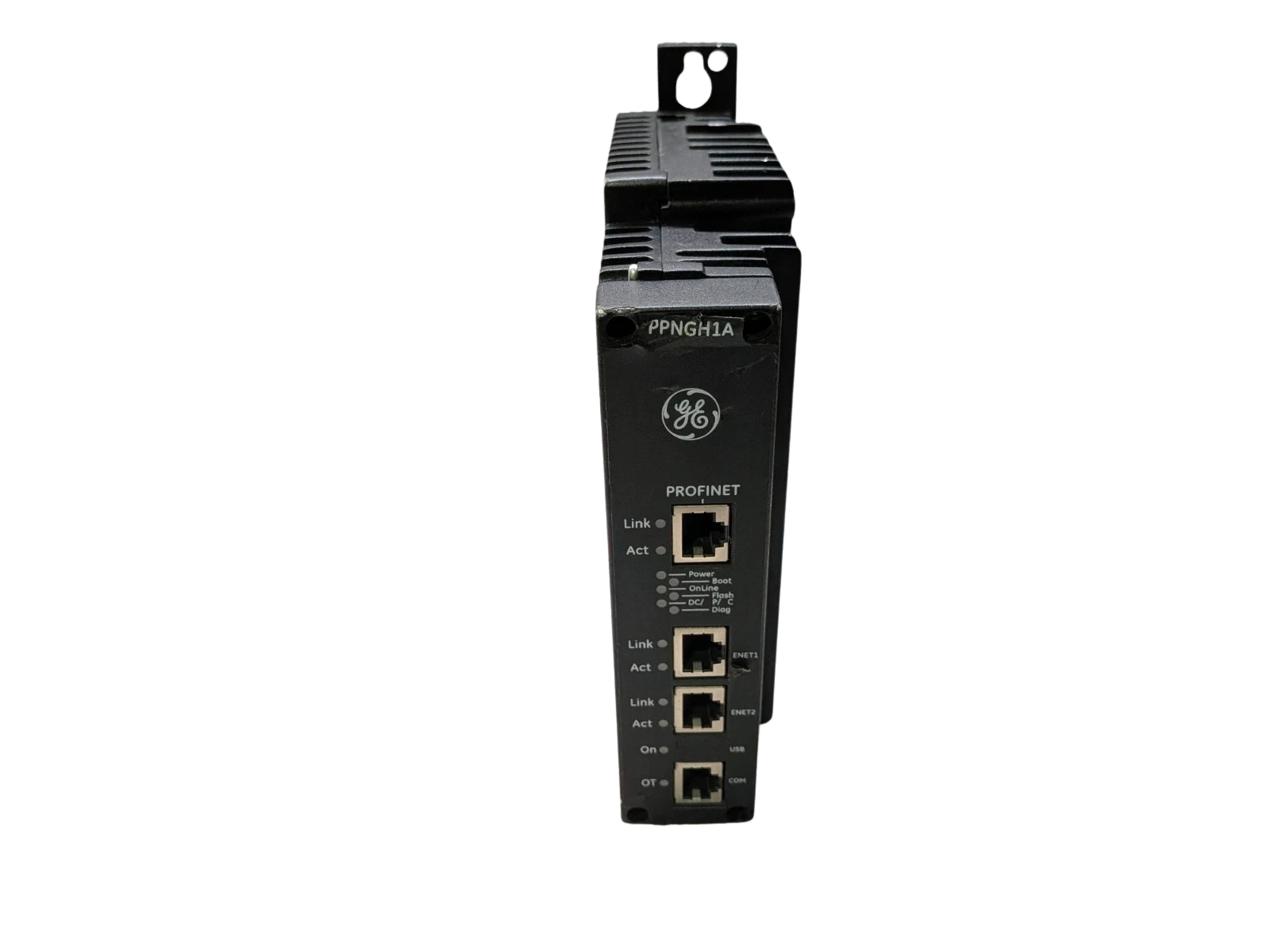

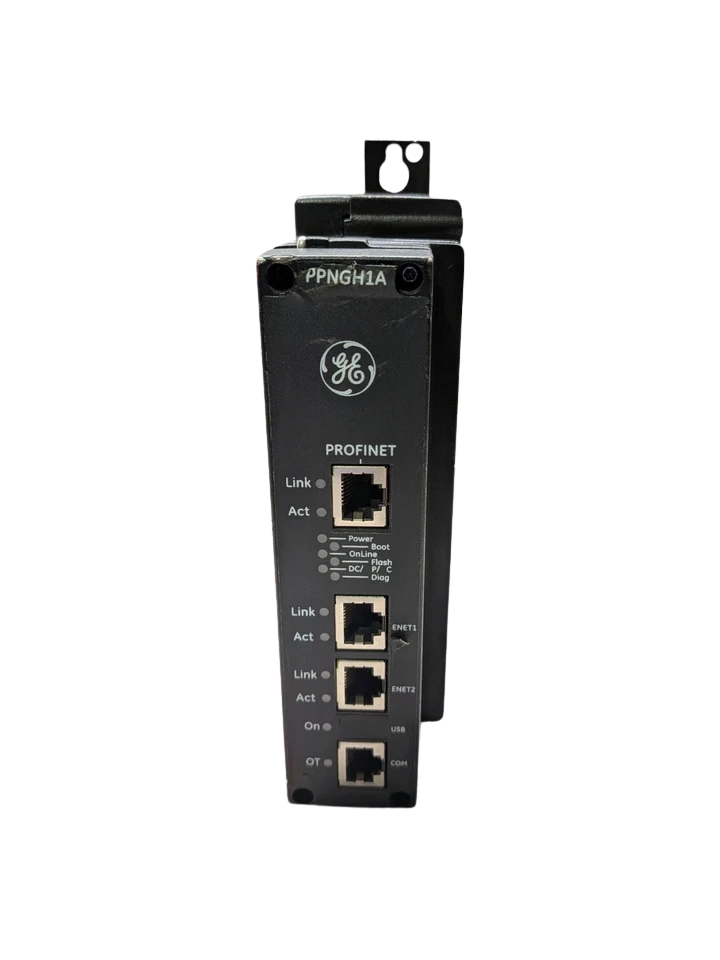

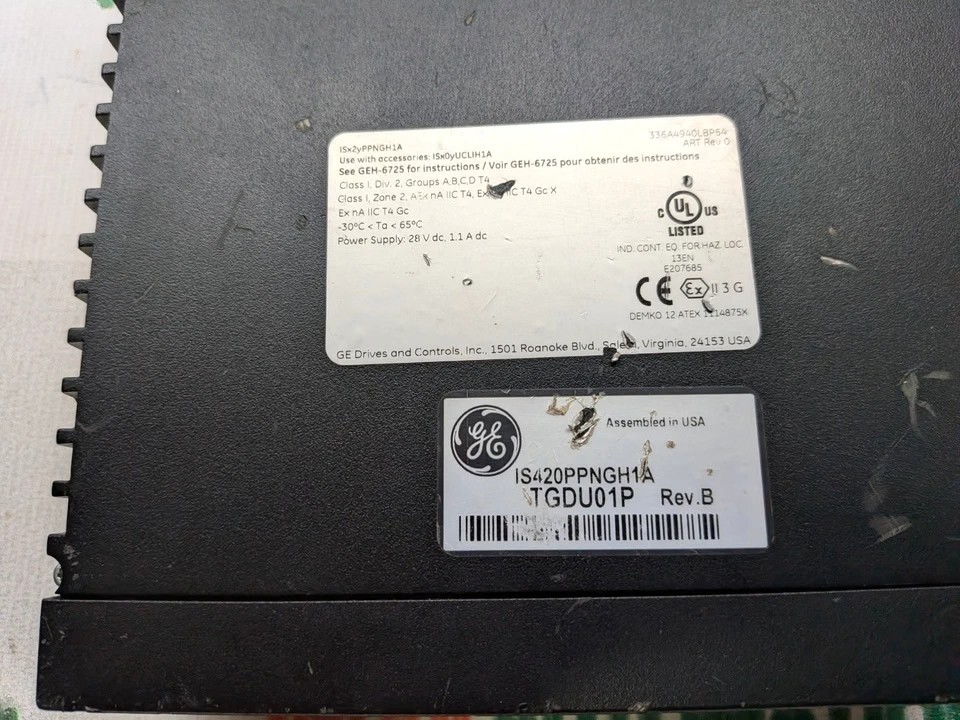

GE IS420PPNGH1A PPNG PROFINET Controller Gateway Module

GE IS420PPNGH1A PPNG PROFINET Controller Gateway Module

The GE IS420PPNGH1A is a dedicated PROFINET Controller Gateway Module designed for the General Electric Speedtronic™ Mark VIe and Mark VIeS functional safety control architectures. Functioning under the internal system designation PPNG, this unit acts as a deterministic, high-throughput bridge connecting Mark VIe/VIeS controllers to field-level PROFINET I/O networks.

The IS420PPNGH1A enables cyclic data exchange between central turbine control units and remote intelligent field instrumentation. The module is powered by an embedded 1066 MHz Intel Tolapai (EP80579) processor operating on the real-time QNX Neutrino® microkernel OS, providing stable determinism with a peak PROFINET throughput capability of 6 KB per millisecond.

Constructed without rotating parts or electrolytic backup cells, the IS420PPNGH1A employs a purely passive convective heat dissipation model. It is specifically built for panel-mounting in vertical orientation within standard industrial control enclosures, isolated from extreme vibration and EMI.

Model Details

• Part Number / MPN: IS420PPNGH1A
• Functional Acronym: PPNG
• Platform Series: GE Mark VIe / Mark VIeS Turbine Control Systems
• Processor Architecture: 1066 MHz Intel EP80579 Integrated Processor
• Memory Allocation: 256 MB DDR2 SDRAM; internal non-volatile flash memory for runtime firmware
• Operating System: QNX Neutrino RTOS
• Required Software Suite: GE ControlST™ V05.04 or higher

Main Features

1. Industrial-Grade Intel Processing Engine: Equipped with an embedded 1066 MHz Intel EP80579 system-on-chip running an industrial QNX Neutrino RTOS to guarantee low-jitter cyclical transfers.
2. High-Reliability Fanless and Battery-Free Design: Thermal dissipation is handled exclusively via passive vertical chassis convection, eliminating moving parts, air filter clogs, and dead-battery maintenance outages.
3. High-Capacity Cyclic Data Handling: Capable of transferring up to 6 KB of cyclic I/O data per millisecond to service high-density distributed I/O blocks, variable frequency drives, and remote motor starters.
4. Native ControlST Toolset Integration: Seamlessly configured and diagnosed within the GE ControlST™ software suite (v05.04 or above), featuring continuous port diagnostic and connection sanity status reporting.

Compatible Controllers:

• GE Mark VIe UCSA / UCSB / UCSC Controller Modules (e.g., IS420UCSBH3A, IS220UCSAH1A)
• Mark VIeS Functional Safety Controller Racks

Network Infrastructure Switches:

• GE ESWA (8-Port Unmanaged Industrial Ethernet Switch)
• GE ESWB (16-Port Unmanaged Industrial Ethernet Switch)
• Industrial Managed Switches (Hirschmann, Cisco Industrial, Moxa) adhering to strict IEEE 802.3u Layer-2 framing with QoS mapping.

Frequently Asked Questions

What is the primary purpose of the GE IS420PPNGH1A module?

The IS420PPNGH1A serves as a PROFINET Controller Gateway within GE Mark VIe and Mark VIeS Speedtronic systems. It connects central controllers to PROFINET-compatible field instruments, variable speed drives, motor control centers, and third-party remote I/O drops.

Can IONet and PROFINET be run over the same network switch?

No. General Electric explicitly dictates that IONet and PROFINET traffic must not share the same physical switch. Each network interface requires an independent, isolated unmanaged switch (such as the GE ESWA or ESWB) or dedicated VLAN configurations to prevent packet contention and controller communication dropouts.

What version of GE ControlST software is required to configure the IS420PPNGH1A?

The module requires GE ControlST™ software platform version V05.04 or higher to be properly identified, configured, and flashed within the ToolboxST application environment.

Does the IS420PPNGH1A require routine battery or fan replacement?

No. The module is built with zero moving components and contains neither an internal cooling fan nor an onboard backup battery. It uses non-volatile flash memory for parameter storage and passive natural convection for heat dispersion.

Can the IS420PPNGH1A be installed horizontally on a DIN rail?

No. The module is certified exclusively for vertical panel mounting. Horizontal orientation disrupts the natural convective airflow through the heatsink channels, leading to internal thermal bottlenecks and component failure under elevated ambient temperatures.
