GE Energy Services CSC143-4001 (580-2006/7) Industrial Switch-Mode Power Supply

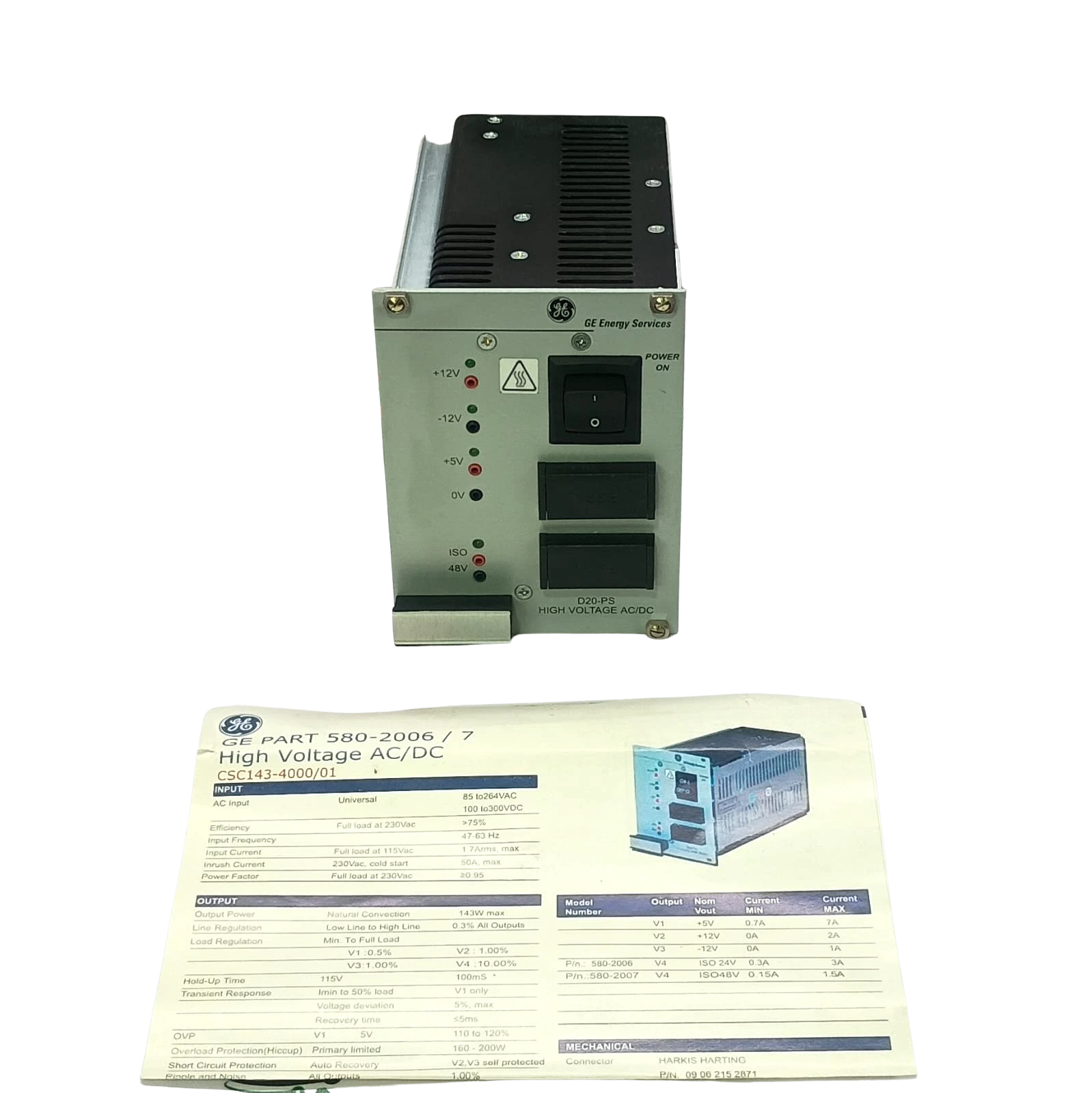

The GE Energy Services CSC143-4001 (associated assembly part numbers 580-2006 and 580-2007) is a mission-critical switch-mode power supply unit (SMPS) designed specifically for high-reliability telemetry, supervisory control, and data acquisition (SCADA) platforms. Engineered originally for the GE Wesdac D20 / D200 Substation Automation Systems and D20ME II Main Processor Chassis, this multi-rail industrial supply provides regulated DC power across severe electrical and environmental disturbances.

Operating with an expansive universal input window of 85 to 264 VAC (47–63 Hz) or 100 to 300 VDC, the CSC143-4001 accommodates fluctuating utility station battery banks, marine auxiliary switchboards, and unstable grid feeds. The module delivers a continuous rated power output of up to 143 Watts partitioned into precision bus rails (+5 VDC logic, ±12 VDC comms/analog, and an isolated 24 VDC loop rail). Built to IEEE and IEC utility-grade surge and dielectric isolation benchmarks, it delivers clean, ripple-suppressed power to sensitive microprocessor backplanes, transducer loops, and optical/serial communication interfaces.

Technical Specifications

Key Features

1. Universal Broad-Input Front End: Accommodates high-fluctuation AC sources (85–264 VAC) and standard station battery banks (100–300 VDC) without manual selector jumpers or external voltage transformers.
2. Dedicated High-Current +5V Logic Rail: Delivers 7.0A of ripple-filtered +5 VDC power to sustain densely populated D20ME II microprocessor cards and memory backup circuits.
3. Galvanically Isolated 24V Loop Supply: Provides an independent 24 VDC @ 3.0A loop power bus, breaking common-mode ground loops for external 4–20 mA transducers and dry-contact inputs.
4. Dual Time-Lag In-Line Protection: Factory-fitted with twin T4A 250V (6.3×32 mm) fuses on both lines to ensure fast, arc-safe fault clearing under catastrophic mains flashovers.
5. High-Vibration Ruggedized Chassis: Features heavy-gauge steel framing, conformal-coated circuit assemblies, and secured magnetic components to survive maritime mechanical shock and substation seismic duty.

Compatibility

• Substation Controllers: GE Energy D20 Substation Controller, D20 MX Chassis, and Wesdac D20ME II Gateway Racks.
• SCADA Remote Terminal Units (RTUs): GE D200 Substation Automation Platforms, D20-EME II Ethernet Modules.
• I/O Peripheral Integration: D20 A (Analog Input), D20 K (Control Output), D20 S (Status Input), and D20 C (Combination) peripheral racks interconnected via standard GE backplane distribution.
• Direct Form-Fit Alternates: Direct mechanical and electrical alternative for earlier revision CSC143-4000 and single-source assemblies labeled under legacy Harris Controls or GE Multilin D20-PS labels.

Applications

• Electric Utility Transmission & Distribution: Station RTU power conditioning within 110 kV–765 kV electrical switchyards subject to severe high-frequency switching transients and DC battery backup operations.
• Marine Engine Automation & Propulsion Telemetry: Distributed automation control systems (Machinery Automation Systems – MAS) on commercial vessels, drillships, and offshore platforms requiring clean DC logic amid auxiliary engine generator harmonic distortions.
• Oil & Gas Pipeline Pumping Substations: Telemetry remote terminal racks monitoring emergency shutdown (ESD) systems, multi-point pressure transmitters, and automated flow valves.
• Industrial Rail Traction Substations: Signaling, power-routing interlocks, and remote monitoring units operating off DC third-rail step-down transformers or auxiliary battery chargers.

Frequently Asked Questions

Can the GE CSC143-4001 accept both AC mains and DC station battery input directly?

Yes. The internal rectifier and wide-range primary switching topology allow the CSC143-4001 to operate natively from either an 85–264 VAC source (47–63 Hz) or a 100–300 VDC direct station battery supply without requiring manual switch repositioning or external step-down equipment.

What is the exact difference between GE part numbers 580-2006 and 580-2007?

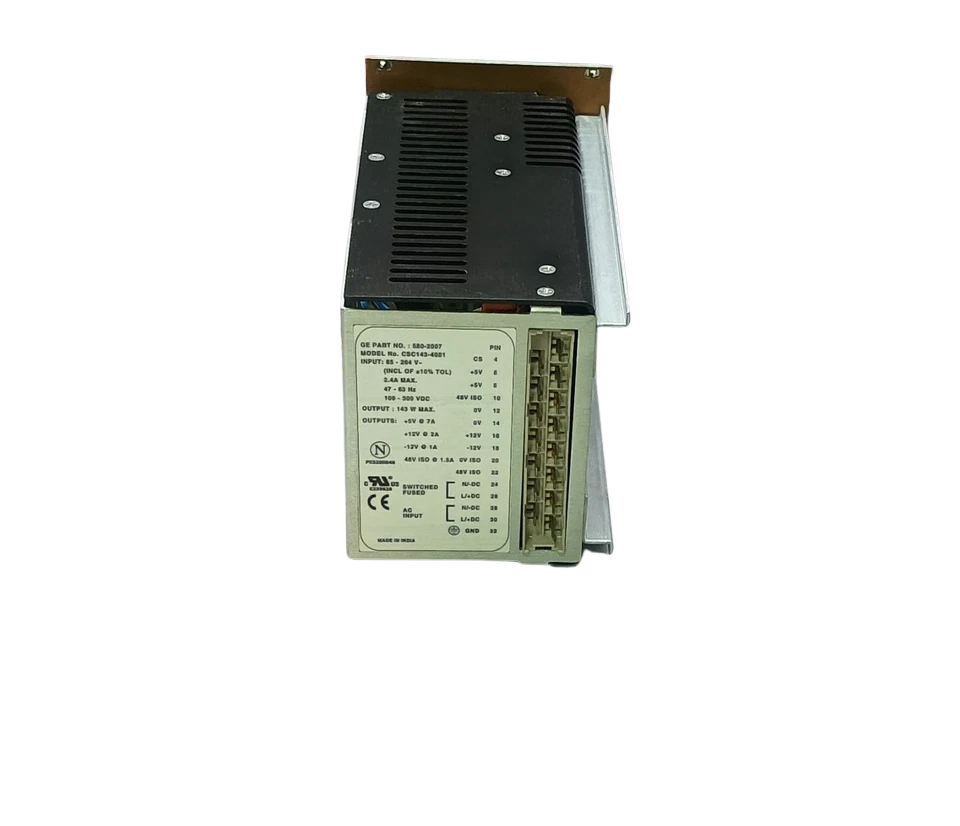

Parts 580-2006 and 580-2007 represent manufacturing revisions of the CSC143 platform. They share identical mechanical dimensions, backplane connections, and multi-rail output ratings (+5V @ 7A, +12V @ 2A, -12V @ 1A, and 24V ISO @ 3A). The differences relate to updated internal component revisions and surge withstand compliance ratings; both models are fully interchangeable in GE D20 and D20 MX racks.

How do I troubleshoot a zero-voltage condition on the 24V isolated loop output while other rails are active?

The 24 VDC output features independent current-limiting circuitry. If external field loops experience a short circuit or an aggregate draw exceeding 3.0 Amps, the 24V rail folds back its voltage to protect the transformer winding. Disconnect the field terminal plug: if the 24 VDC rail restores to normal, the fault is located in the external wiring or a damaged field instrument.

Which replacement fuse is required for the internal AC/DC input protection?

The module utilizes two fast-acting/time-lag ceramic fuses designated F1 and F2, rated at T4A, 250V (size 6.3 mm × 32 mm). Always replace them with equivalent ceramic high-breaking-capacity fuses rather than standard glass fuses to maintain arc protection in industrial environments.

Is the CSC143-4001 backward-compatible with older CSC143-4000 installations?

Yes. The CSC143-4001 is a backward-compatible direct replacement for the legacy CSC143-4000. It slides directly into the standard D20 rack power slot and mates seamlessly with the original backplane harness without wiring modification.
